Toyota HILUX Ventilation Hose — Figure 1201

Toyota HILUX EPC diagram 1201, Ventilation Hose, with 6 images and 15 PNC and OE references.

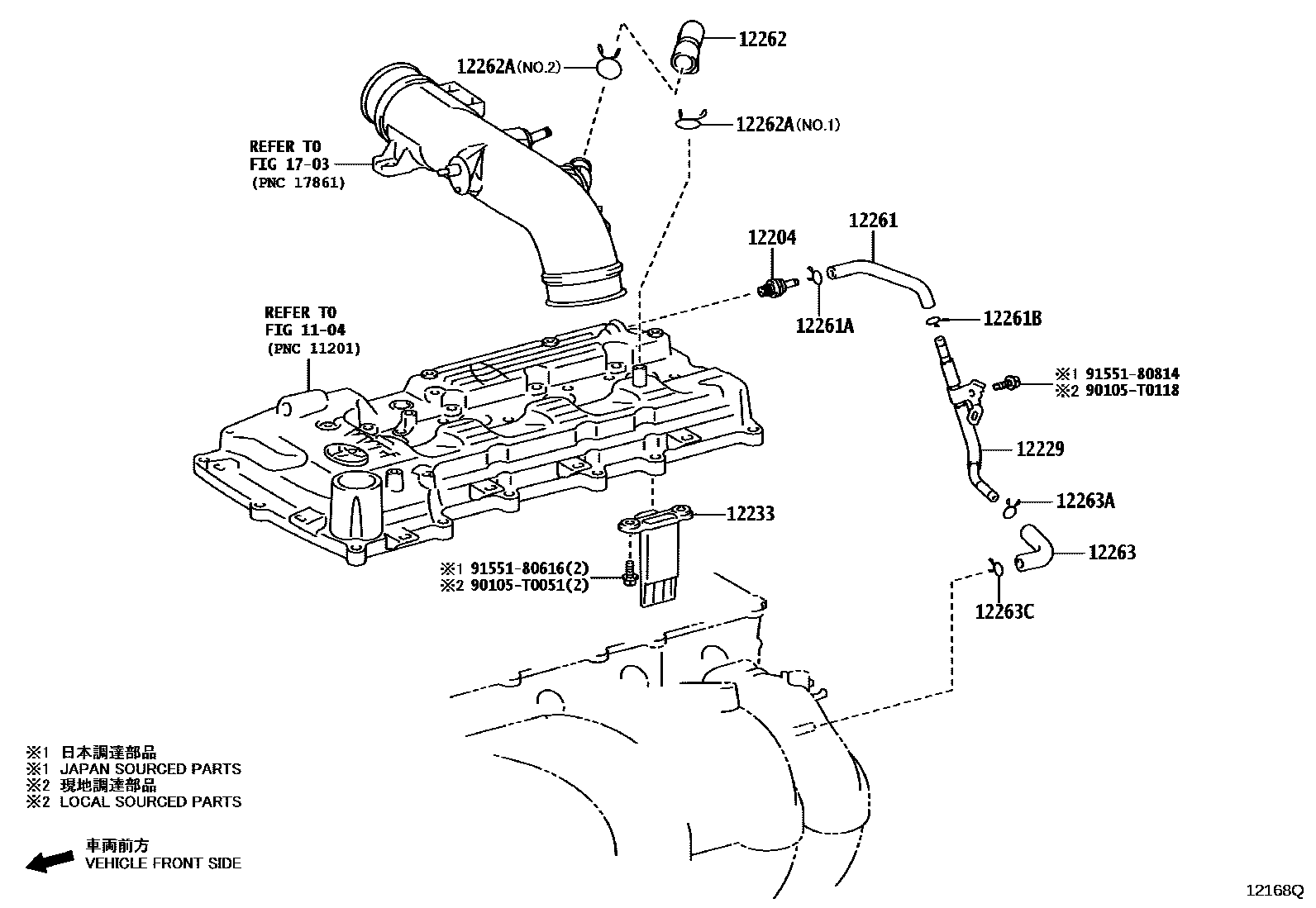

Toyota HILUX Ventilation Hose EPC diagram — 12168Q
Ventilation Hose — 12168Q (202408 – 999999)

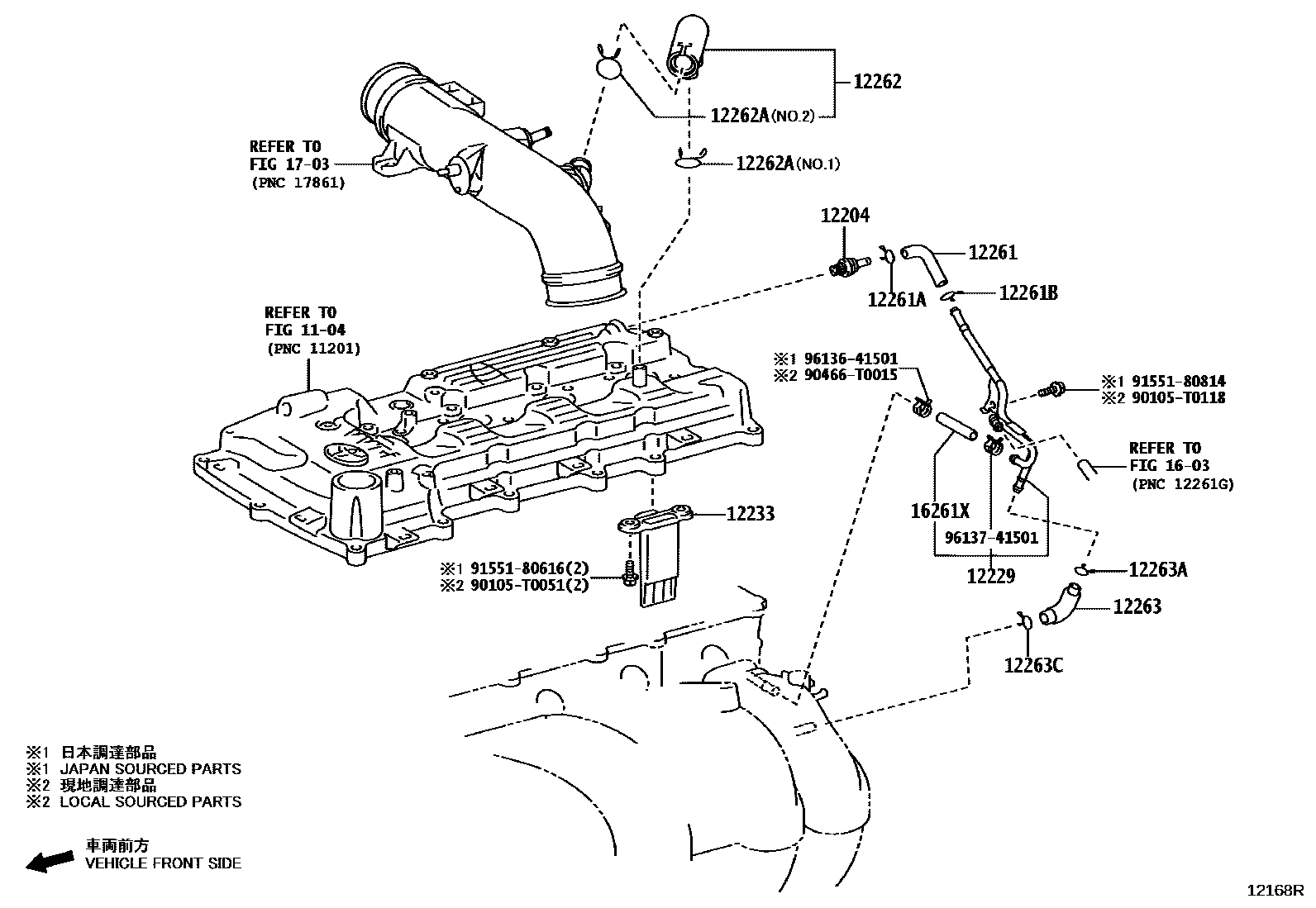

Toyota HILUX Ventilation Hose EPC diagram — 12168R
Ventilation Hose — 12168R (202408 – 999999)

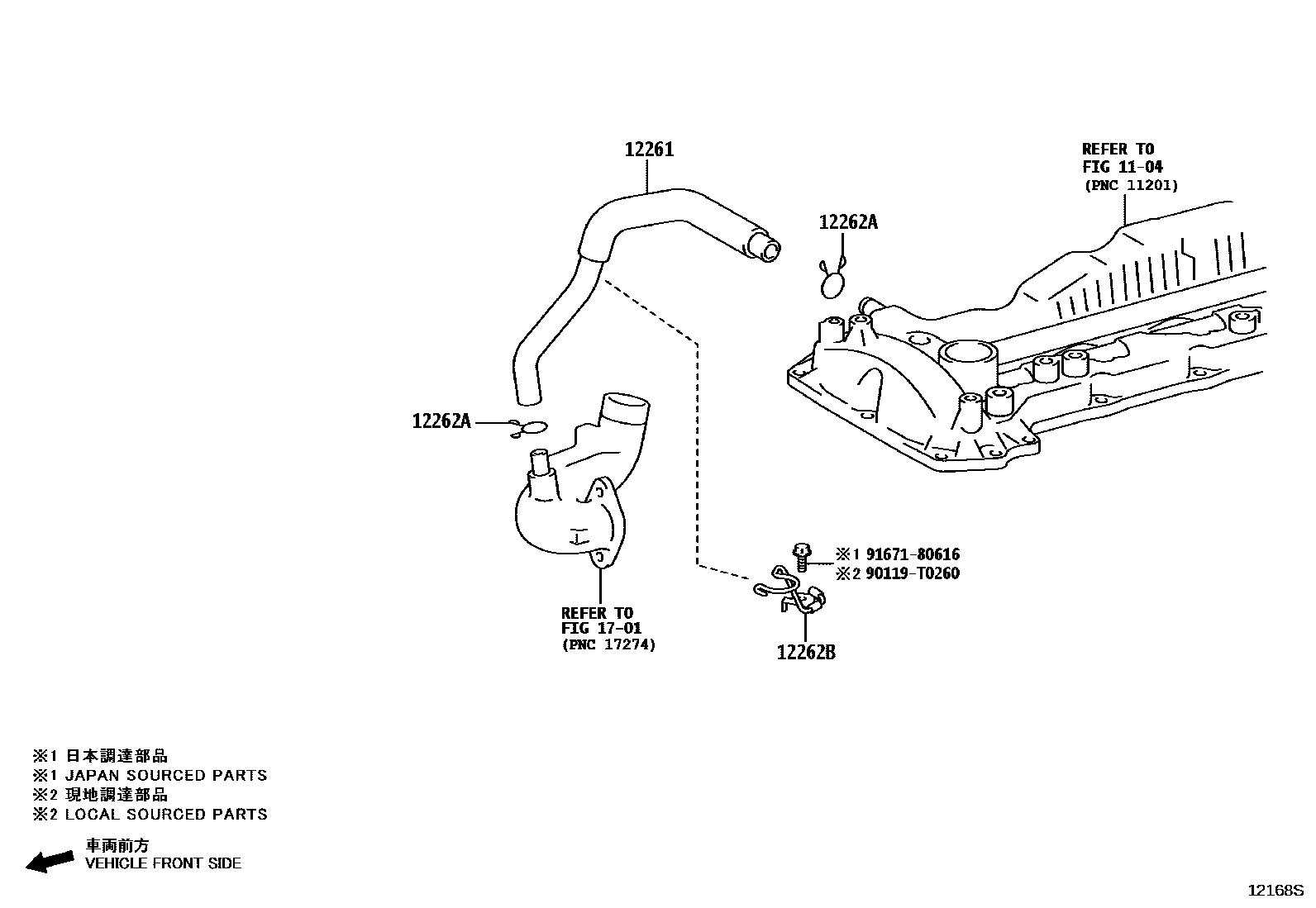

Toyota HILUX Ventilation Hose EPC diagram — 12168S
Ventilation Hose — 12168S (202408 – 999999)

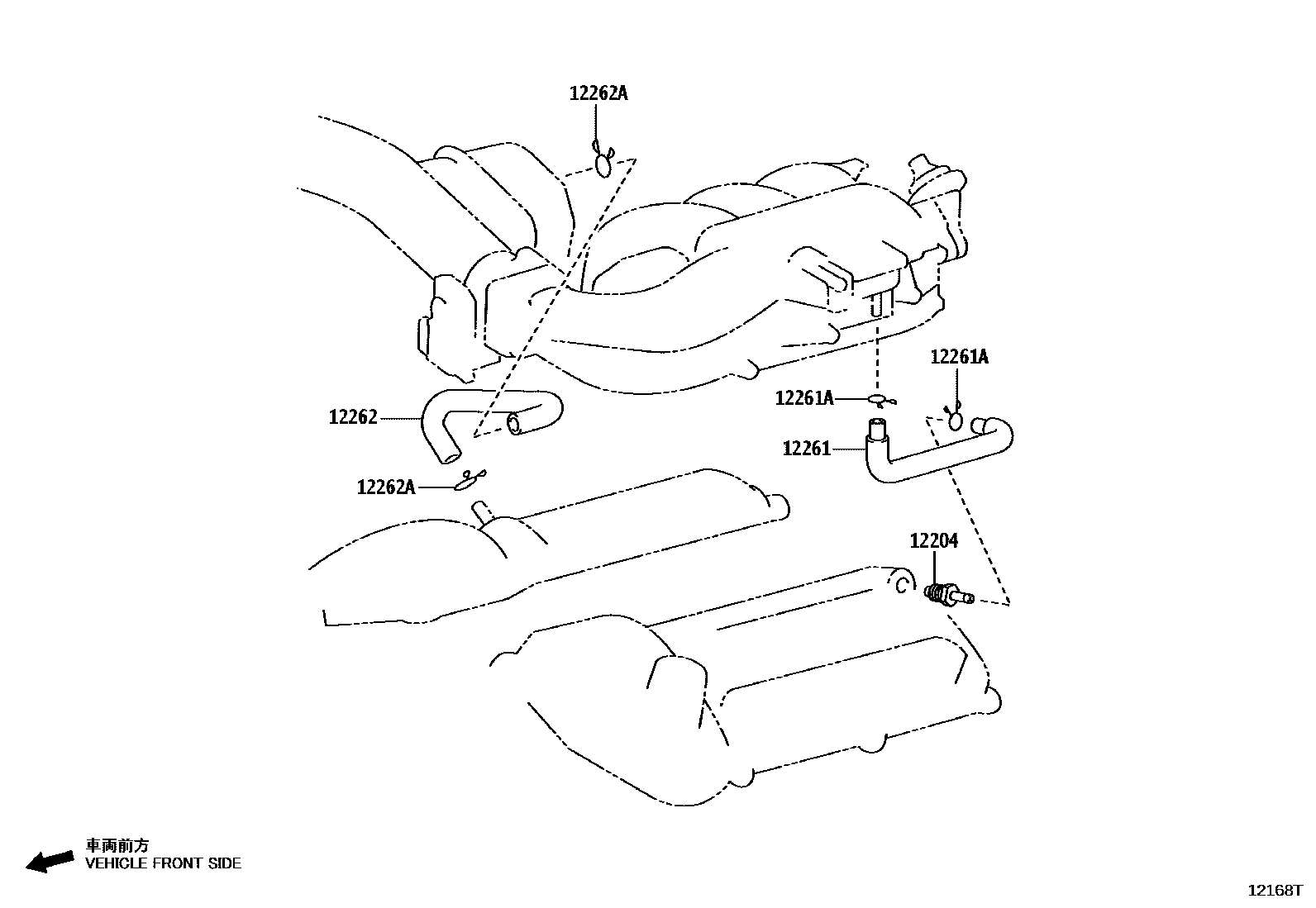

Toyota HILUX Ventilation Hose EPC diagram — 12168T
Ventilation Hose — 12168T (202408 – 999999)

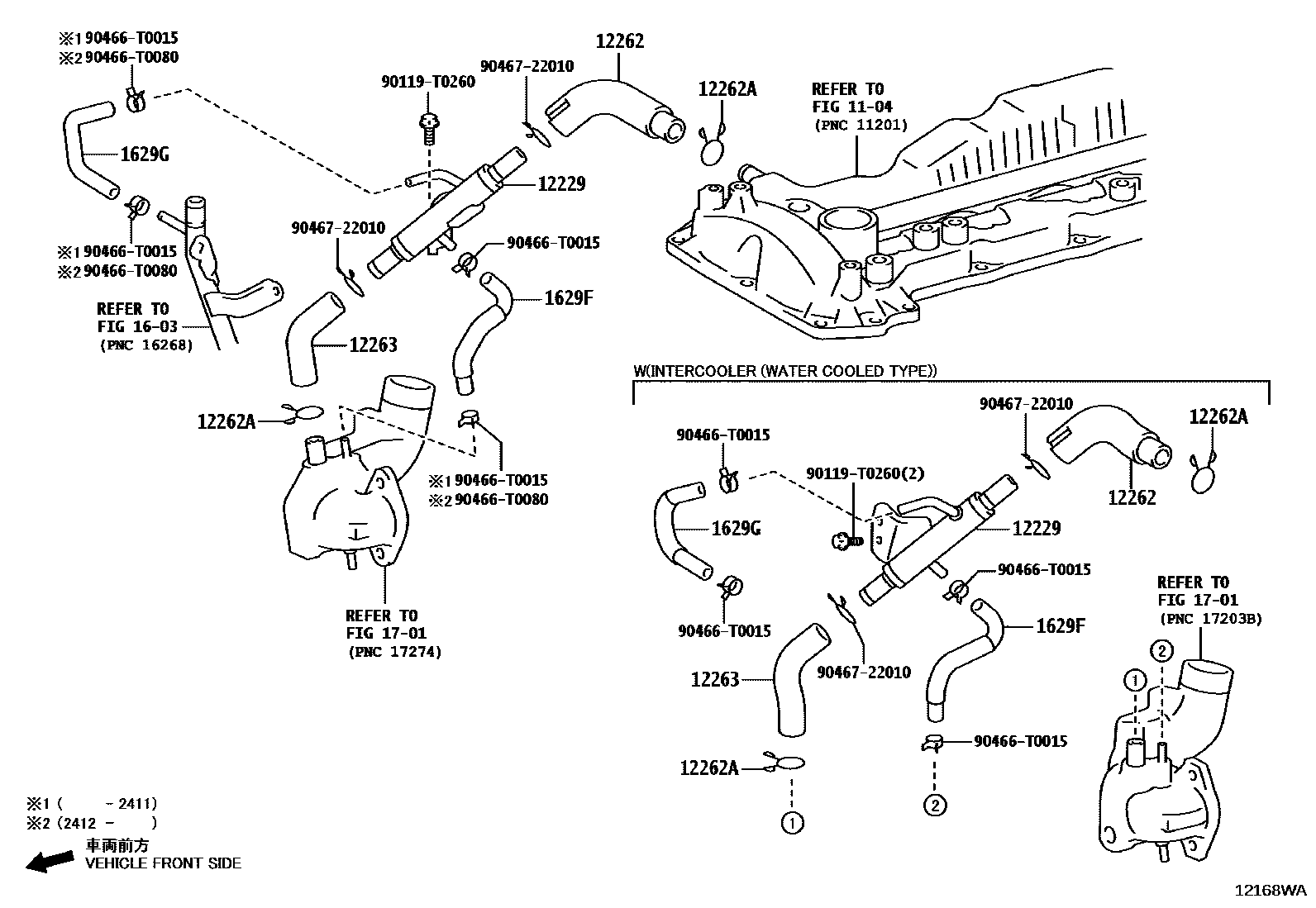

Toyota HILUX Ventilation Hose EPC diagram — 12168WA
Ventilation Hose — 12168WA (202408 – 999999)

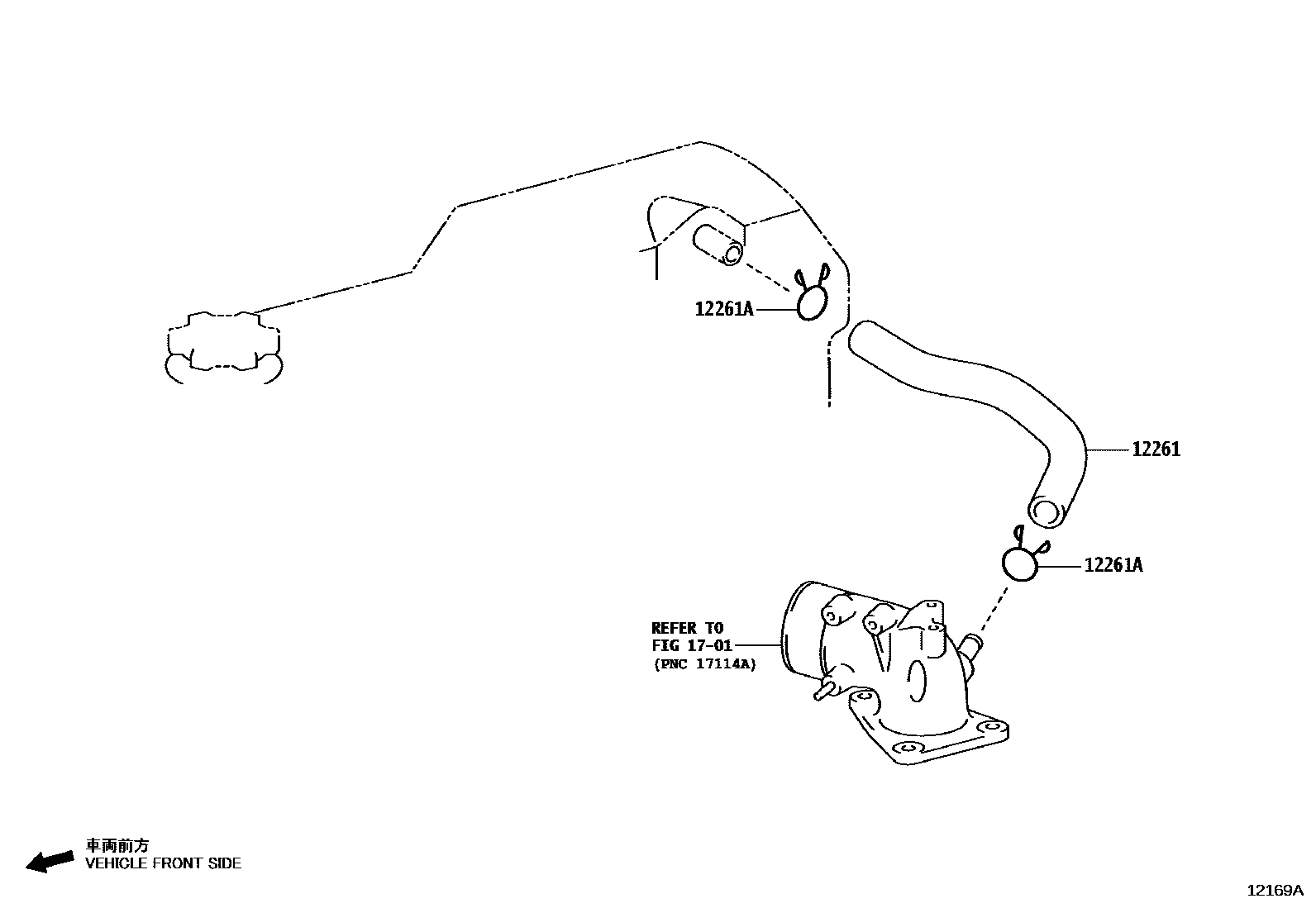

Toyota HILUX Ventilation Hose EPC diagram — 12169A
Ventilation Hose — 12169A (202411 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-0C030 · 12204-31030
12229ventilation duct12229-0C010 · 12229-0C020 · 12229-0E010 · 12229-0E020 · 12229-75070
12233Ventilation Connector No. 112233-0C010 · 12233-0C020 · 12233-75010
12261Ventilation Hose12261-0C030 · 12261-0C040 · 12261-0E010 · 12261-0E020 · 12261-0P060 · 12261-11240 · 12261-54200 · 12261-75140
12261AClip or clip (for vent hose)90467-14017 · 90467-15021 · 90467-18003
12261BClip or clip (for vent hose)90466-T0026 · 90467-14001
12262Ventilation hose No. 212262-0C050 · 12262-0C060 · 12262-0E010 · 12262-0E020 · 12262-0P090 · 12262-75240
12262AClamp (for vent hose No. 2)90466-22005 · 90466-T0027 · 90466-T0075 · 90467-21004 · 90467-21152 · 90467-24038
12262BClamp (for ventilation hose)16581-11040
12263No. 3 ventilation hose12263-0C010 · 12263-0C020 · 12263-0E010 · 12263-0E020 · 12263-75070
12263AClip (for ventilation hose)90466-T0026 · 90467-14001
12263CClip (for ventilation hose)90466-T0060 · 90466-T0061 · 90467-16035
16261Xwater hose16267-75070
1629FNo. 19 water bypass hose1629F-0E010 · 1629F-0E020
1629GNo. 20 water bypass hose1629G-0E010 · 1629G-0E020
