Toyota HILUX Engine Overhaul Gasket Kit — Figure 1103
Toyota HILUX EPC diagram 1103, Engine Overhaul Gasket Kit, with 14 images and 2 PNC and OE references.

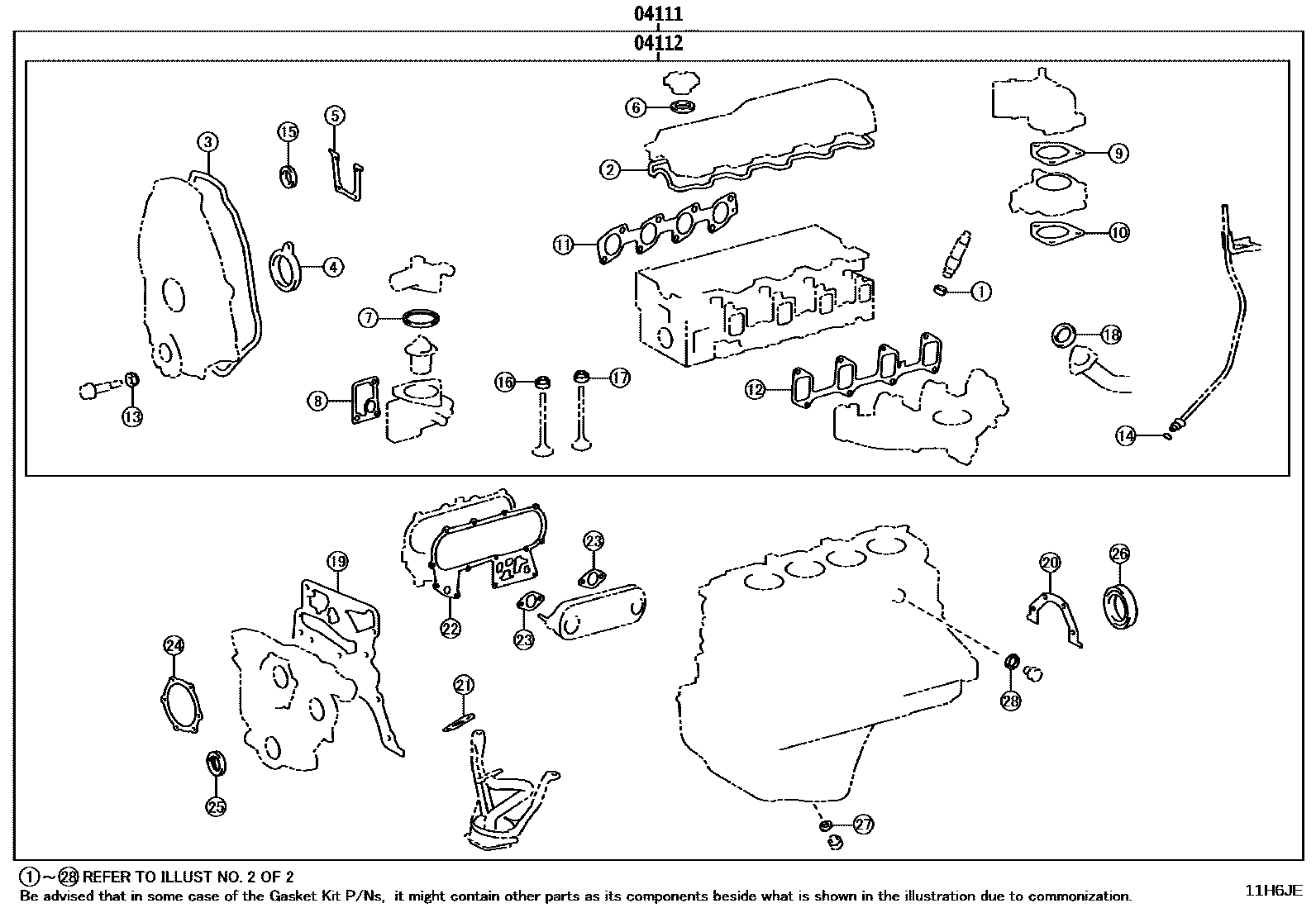

Engine Overhaul Gasket Kit — 11H6JE (202411 – 999999)

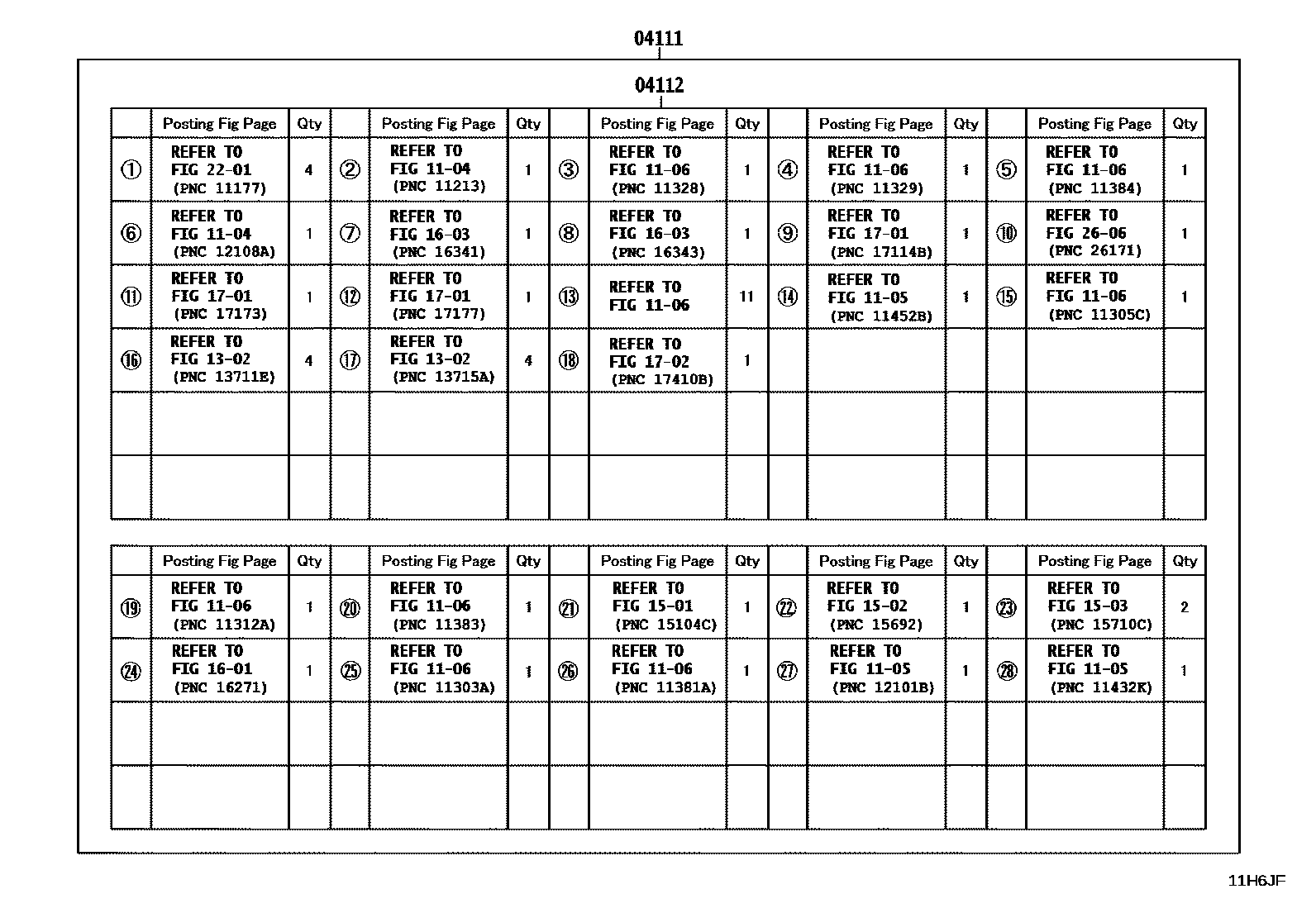

Engine Overhaul Gasket Kit — 11H6JF (202411 – 999999)

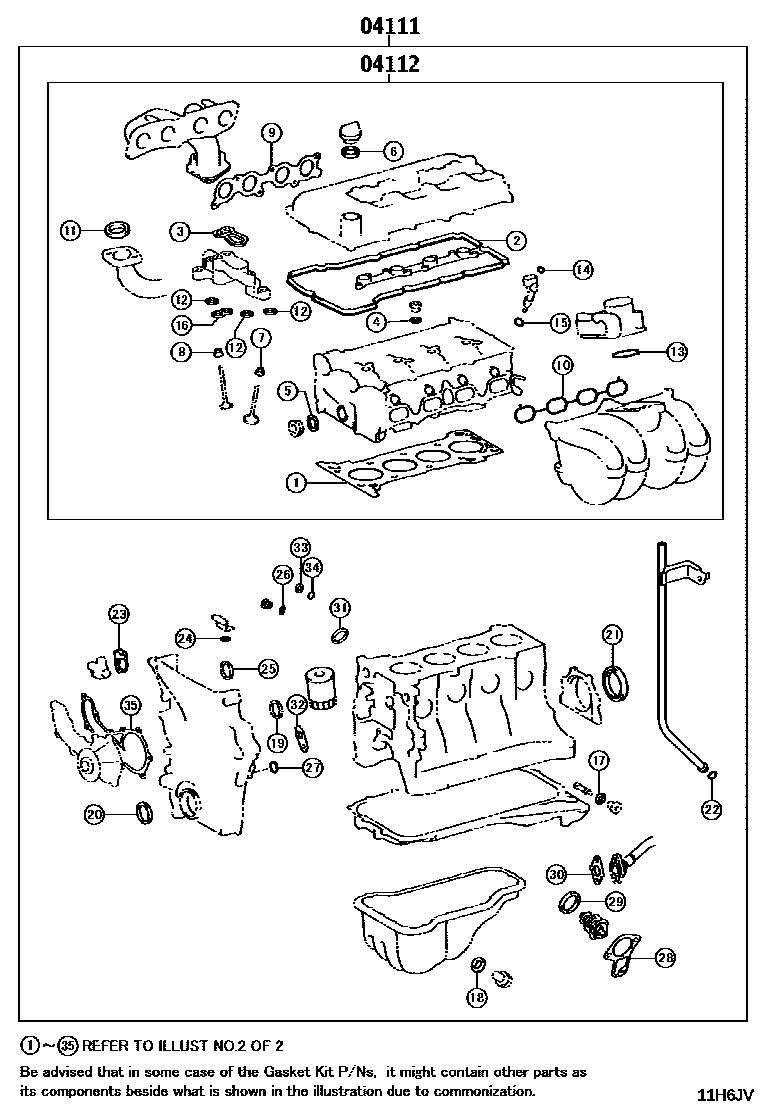

Engine Overhaul Gasket Kit — 11H6JV (202408 – 999999)

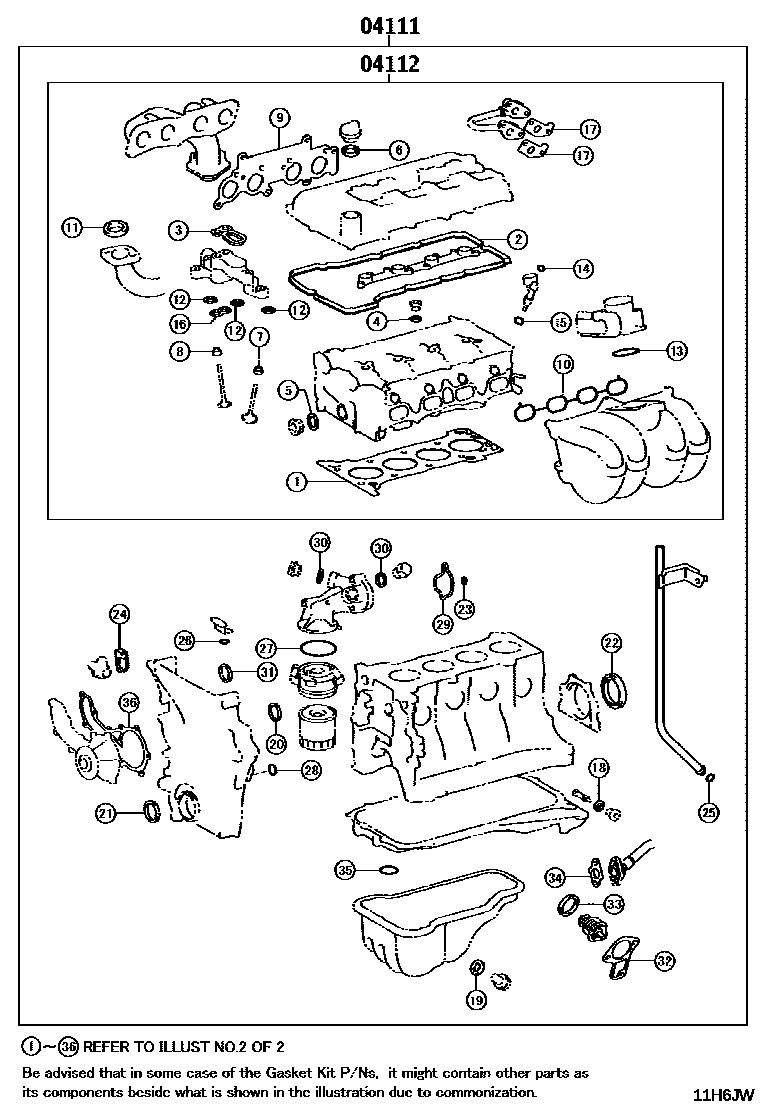

Engine Overhaul Gasket Kit — 11H6JW (202408 – 999999)

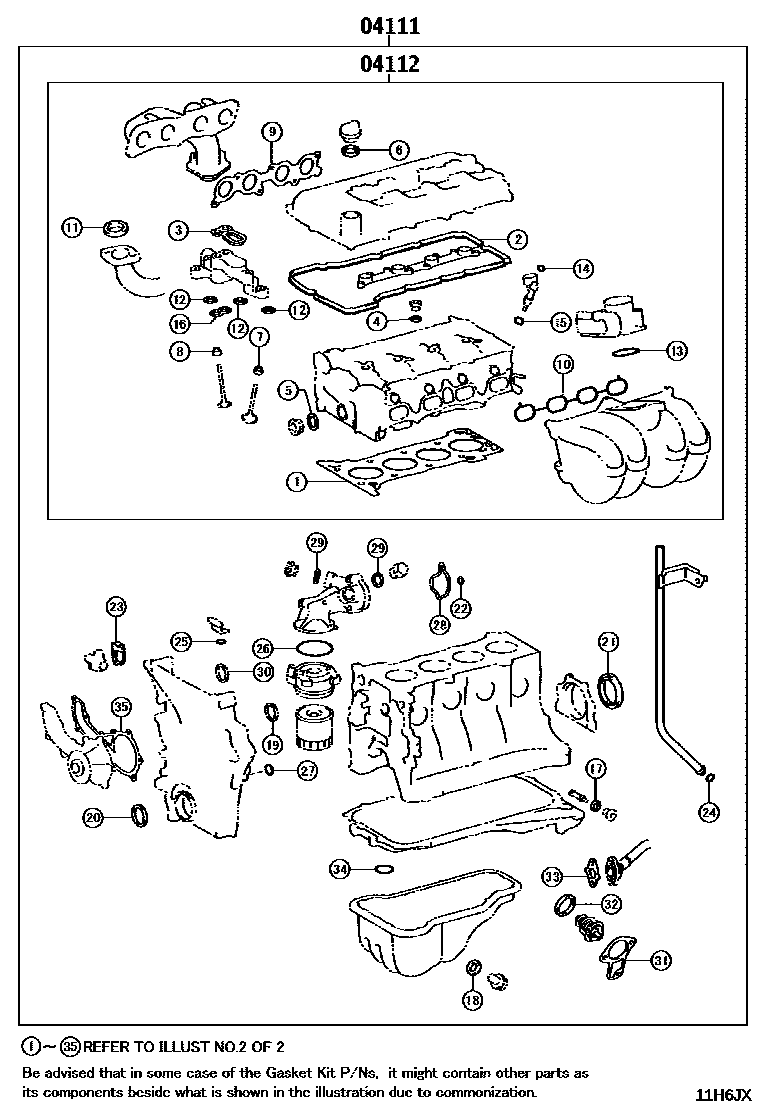

Engine Overhaul Gasket Kit — 11H6JX (202408 – 999999)

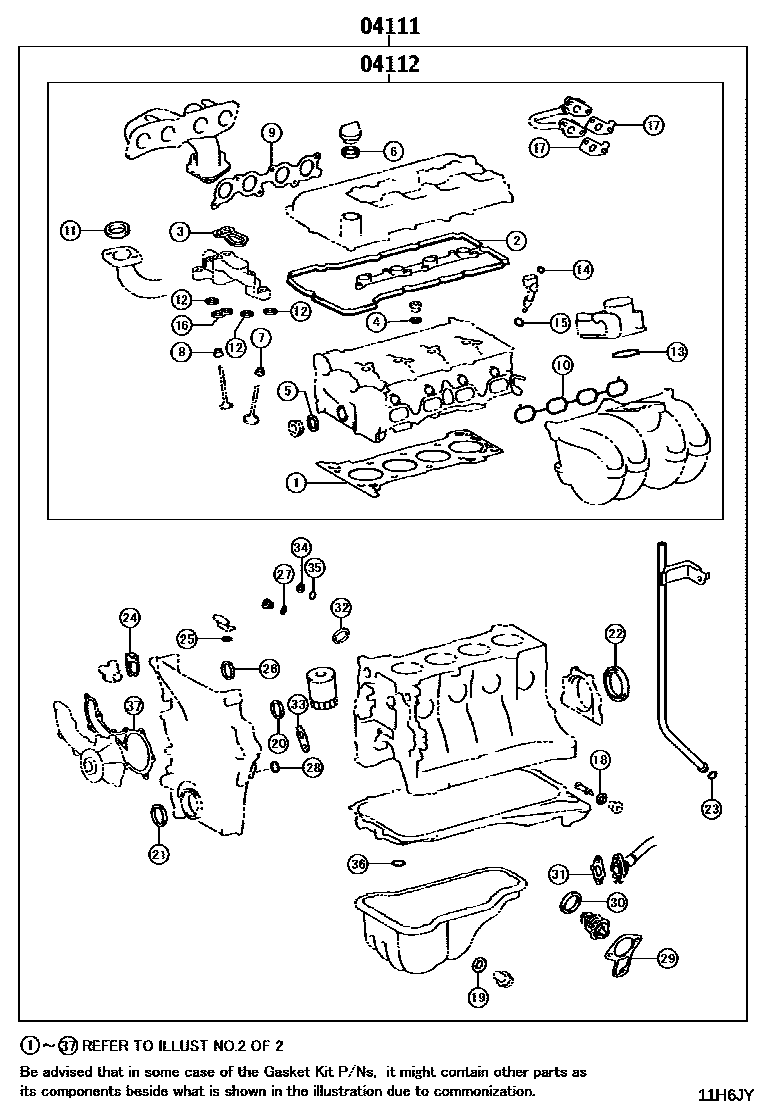

Engine Overhaul Gasket Kit — 11H6JY (202408 – 999999)

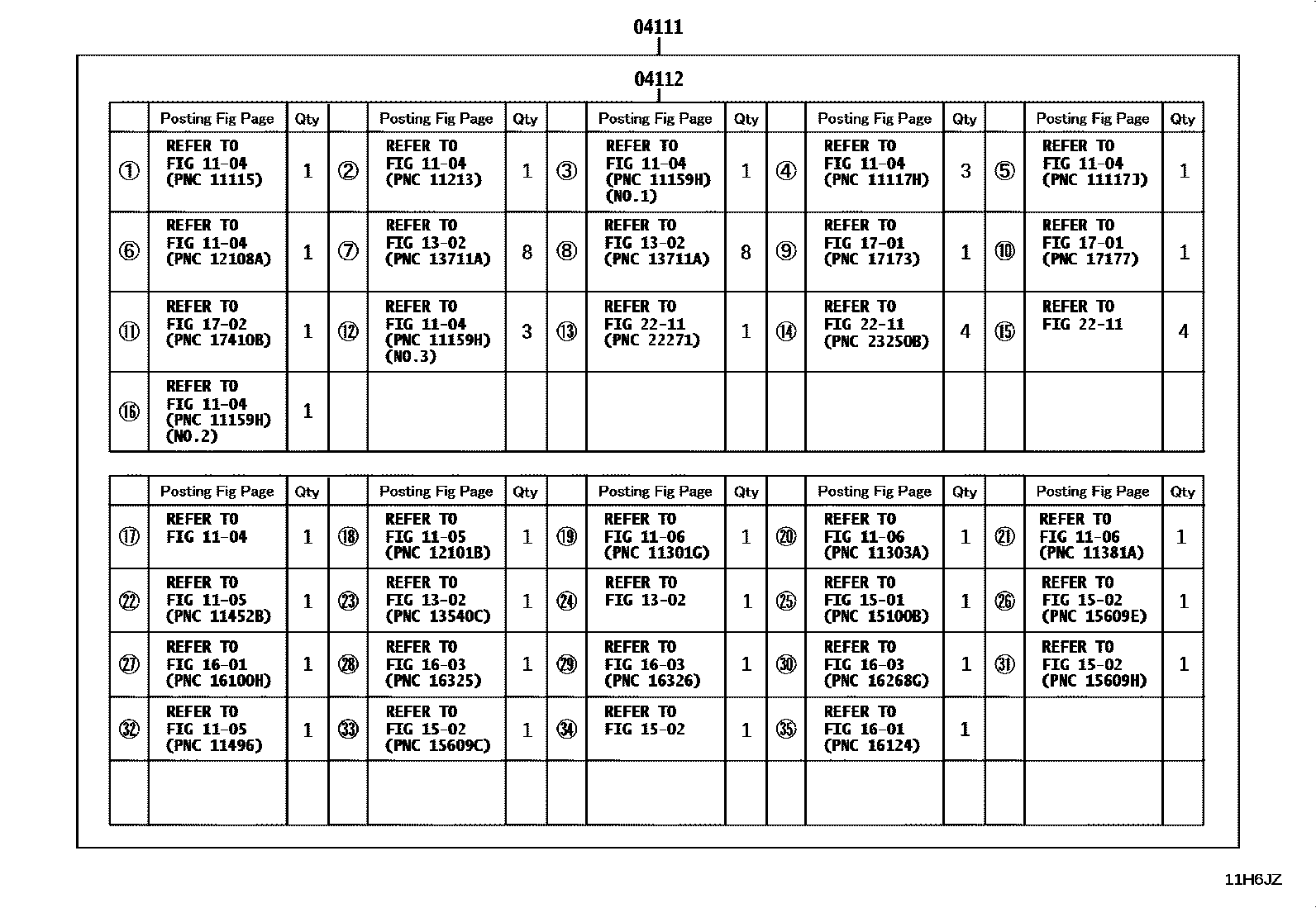

Engine Overhaul Gasket Kit — 11H6JZ (202408 – 999999)

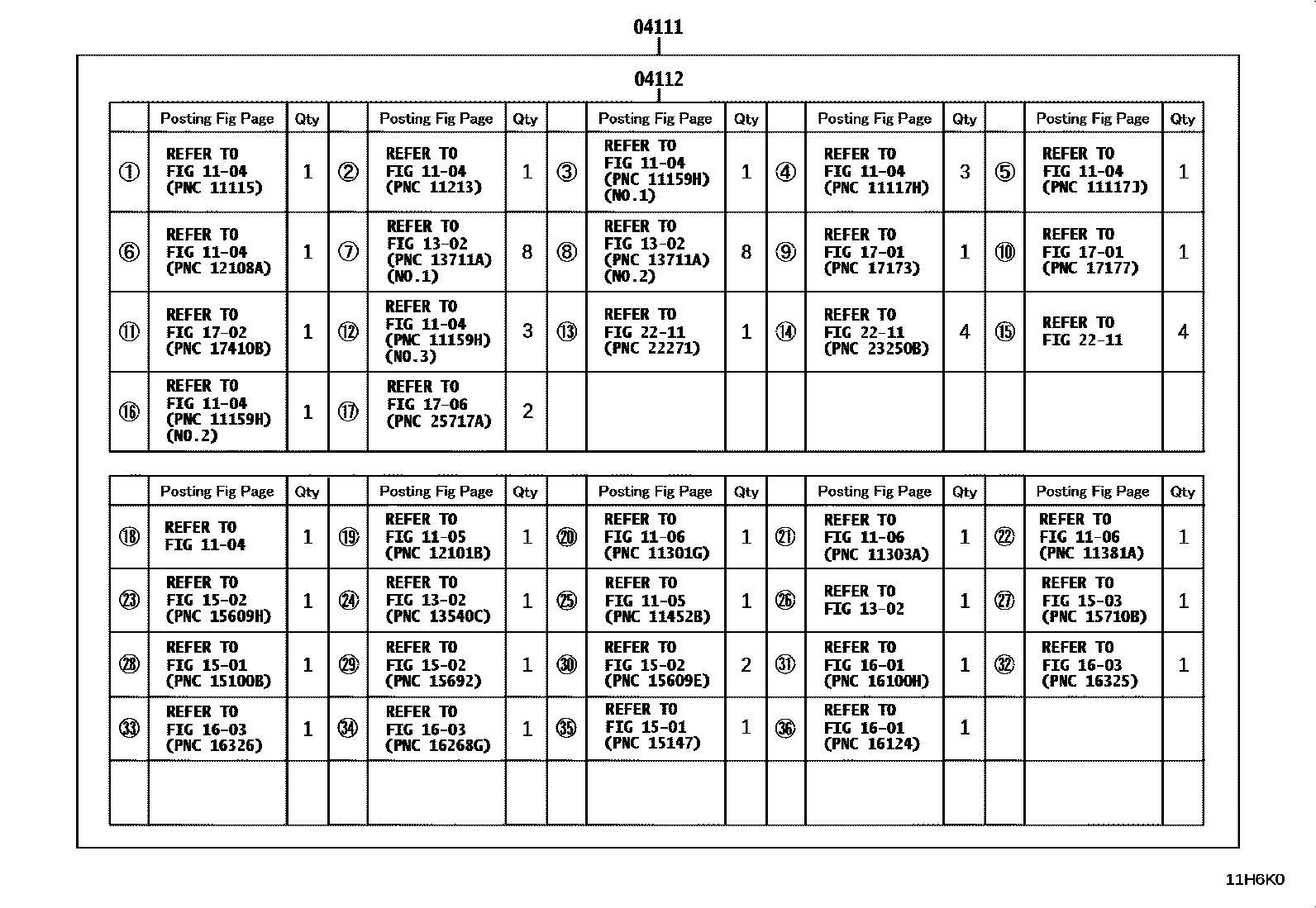

Engine Overhaul Gasket Kit — 11H6K0 (202408 – 999999)

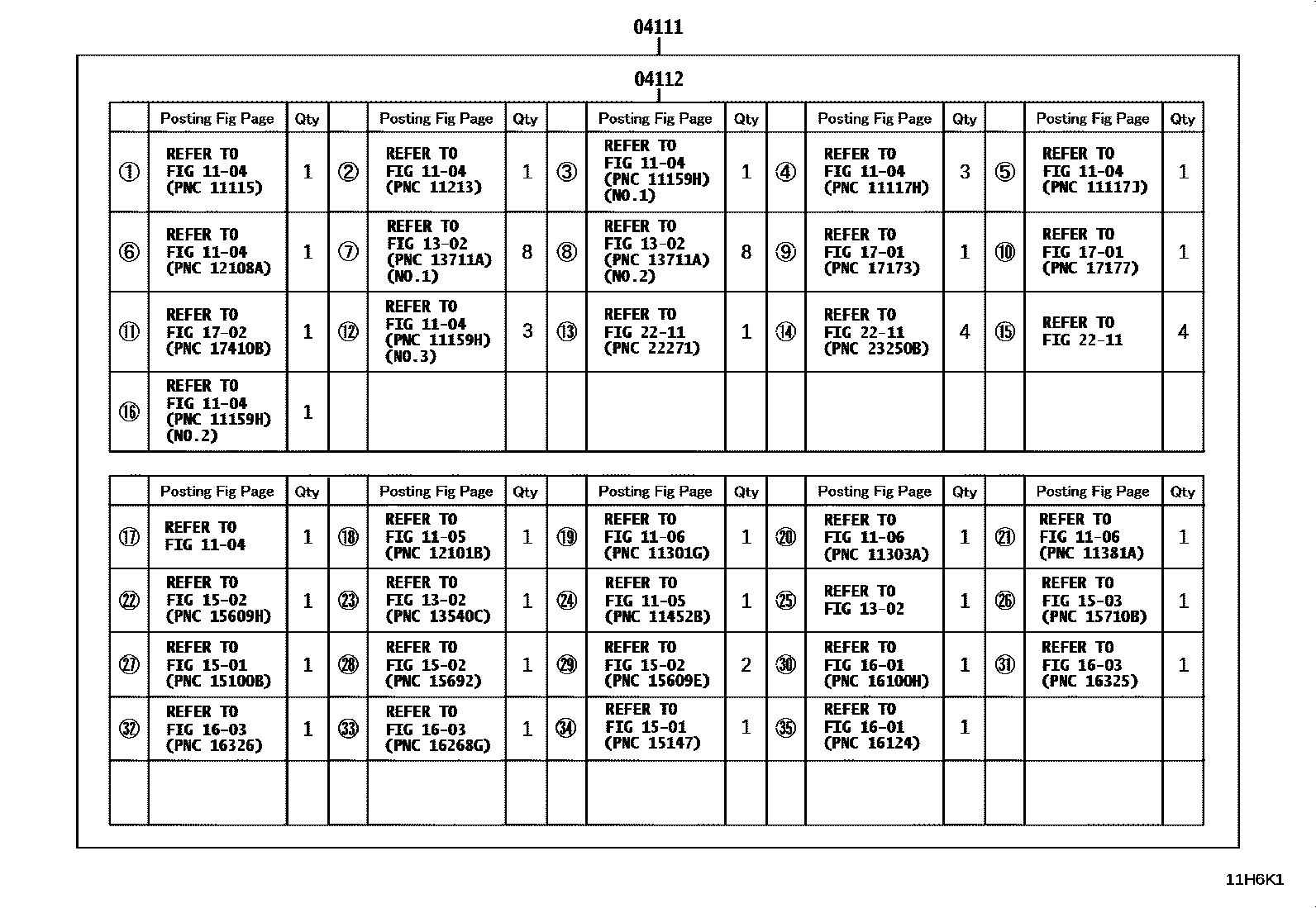

Engine Overhaul Gasket Kit — 11H6K1 (202408 – 999999)
Engine Overhaul Gasket Kit — 11H6K2 (202408 – 999999)

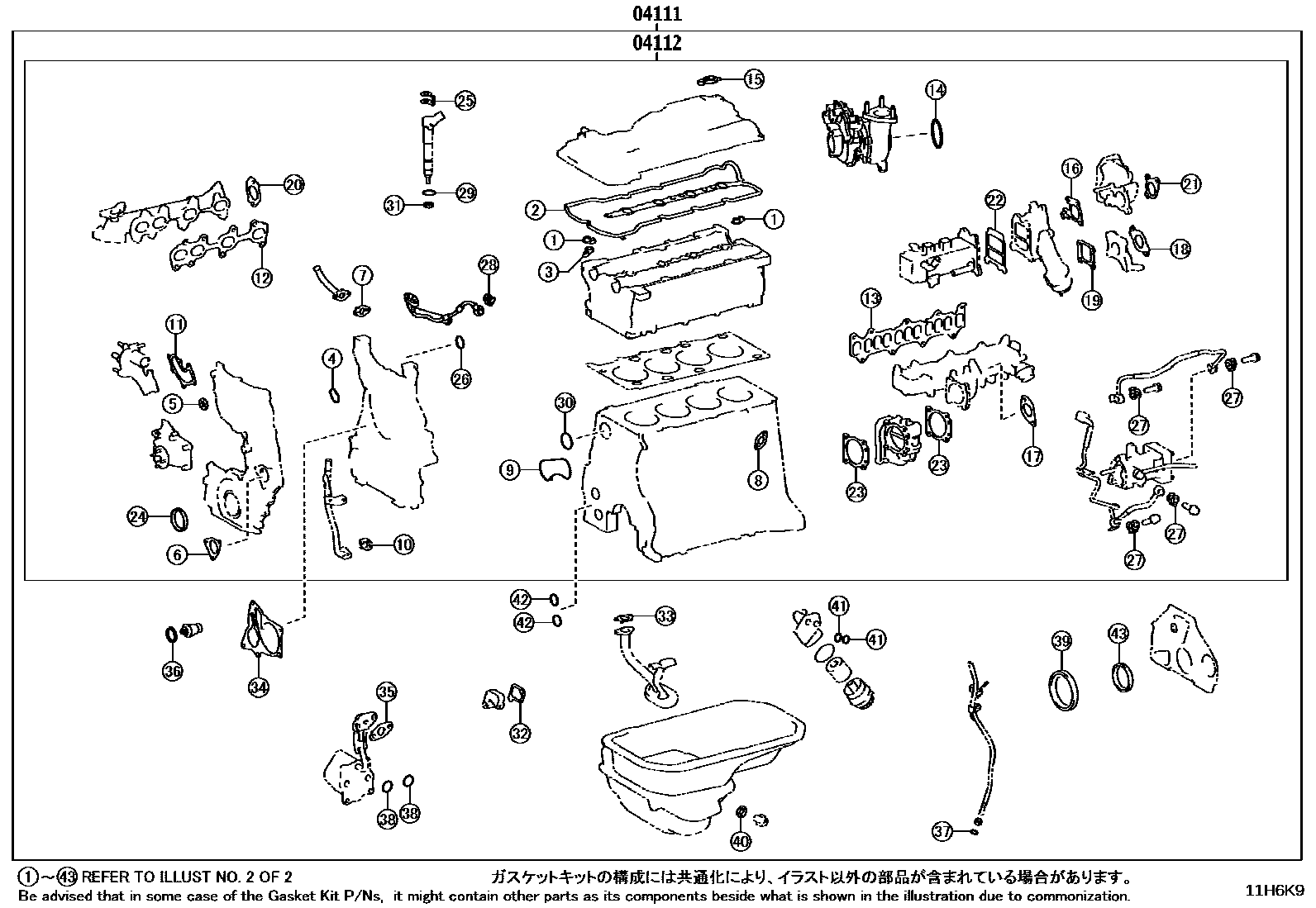

Engine Overhaul Gasket Kit — 11H6K9 (202408 – 999999)

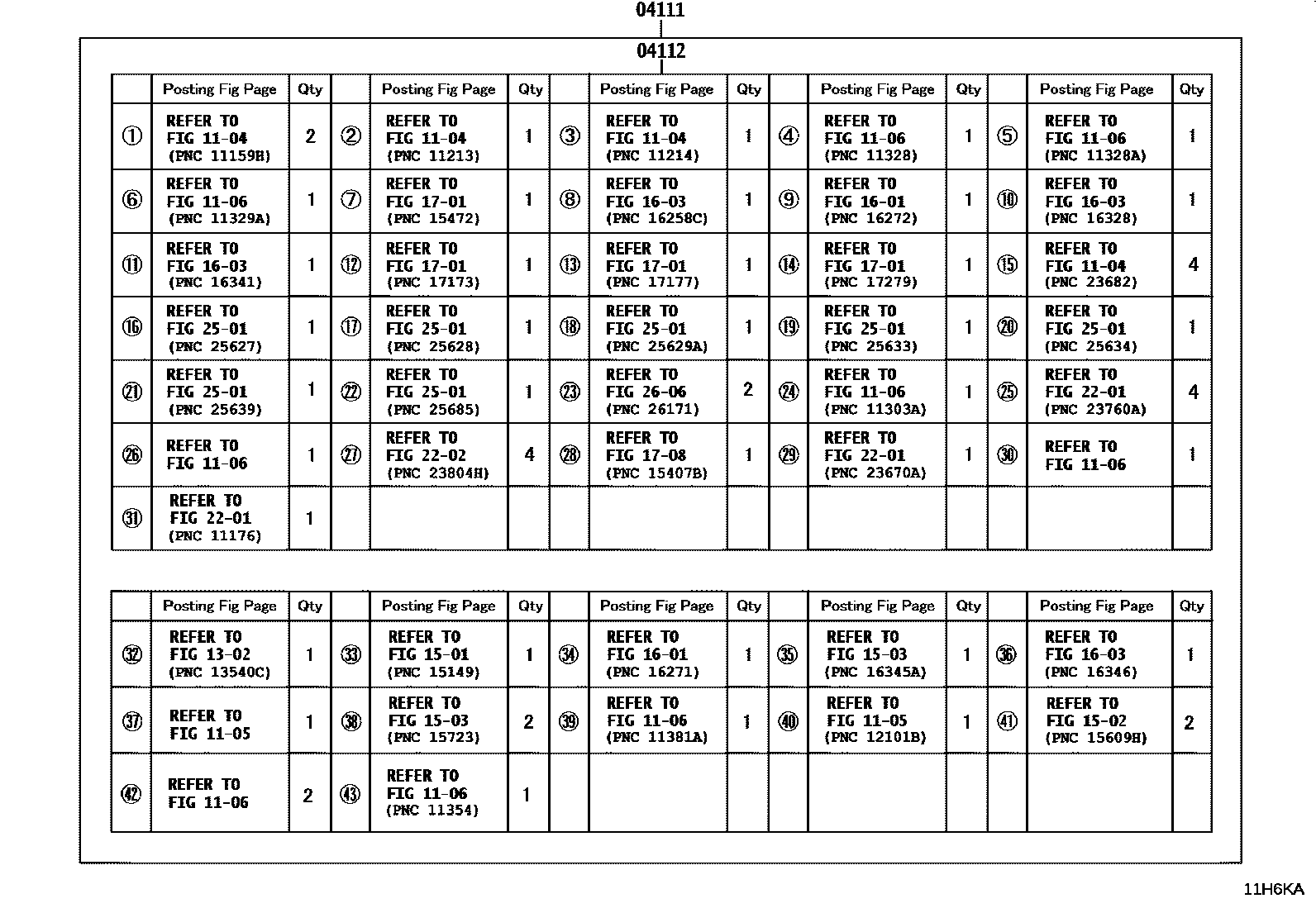

Engine Overhaul Gasket Kit — 11H6KA (202408 – 999999)

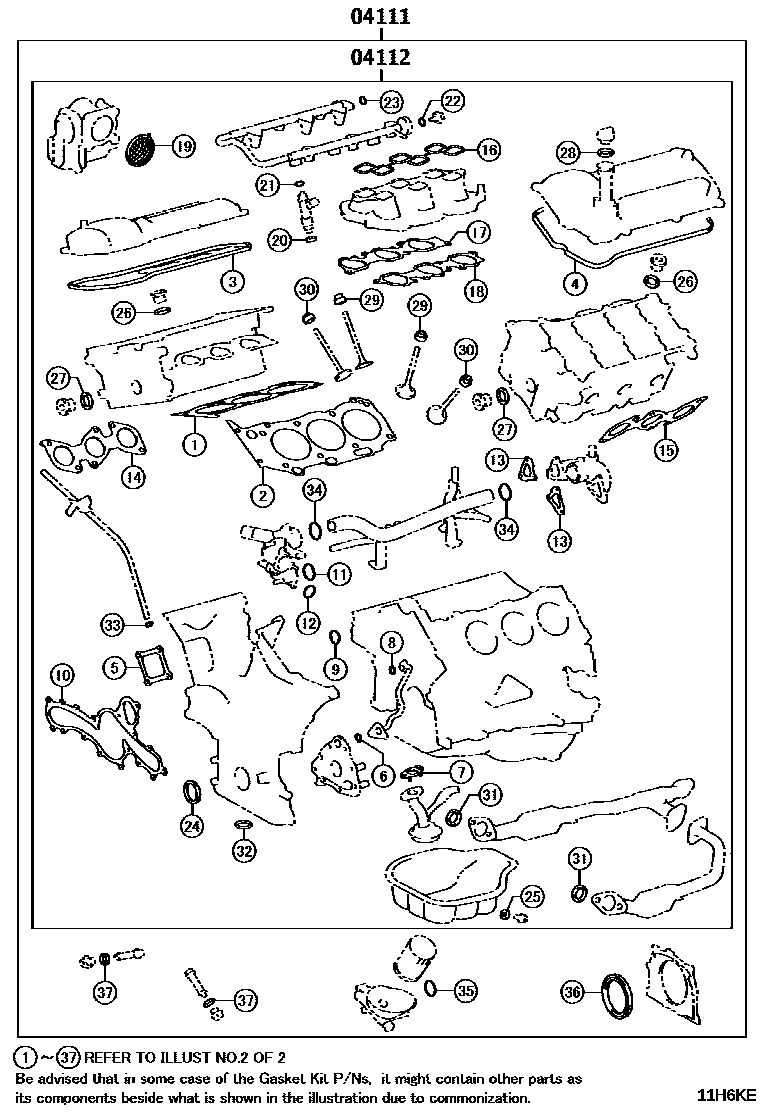

Engine Overhaul Gasket Kit — 11H6KE (202408 – 999999)

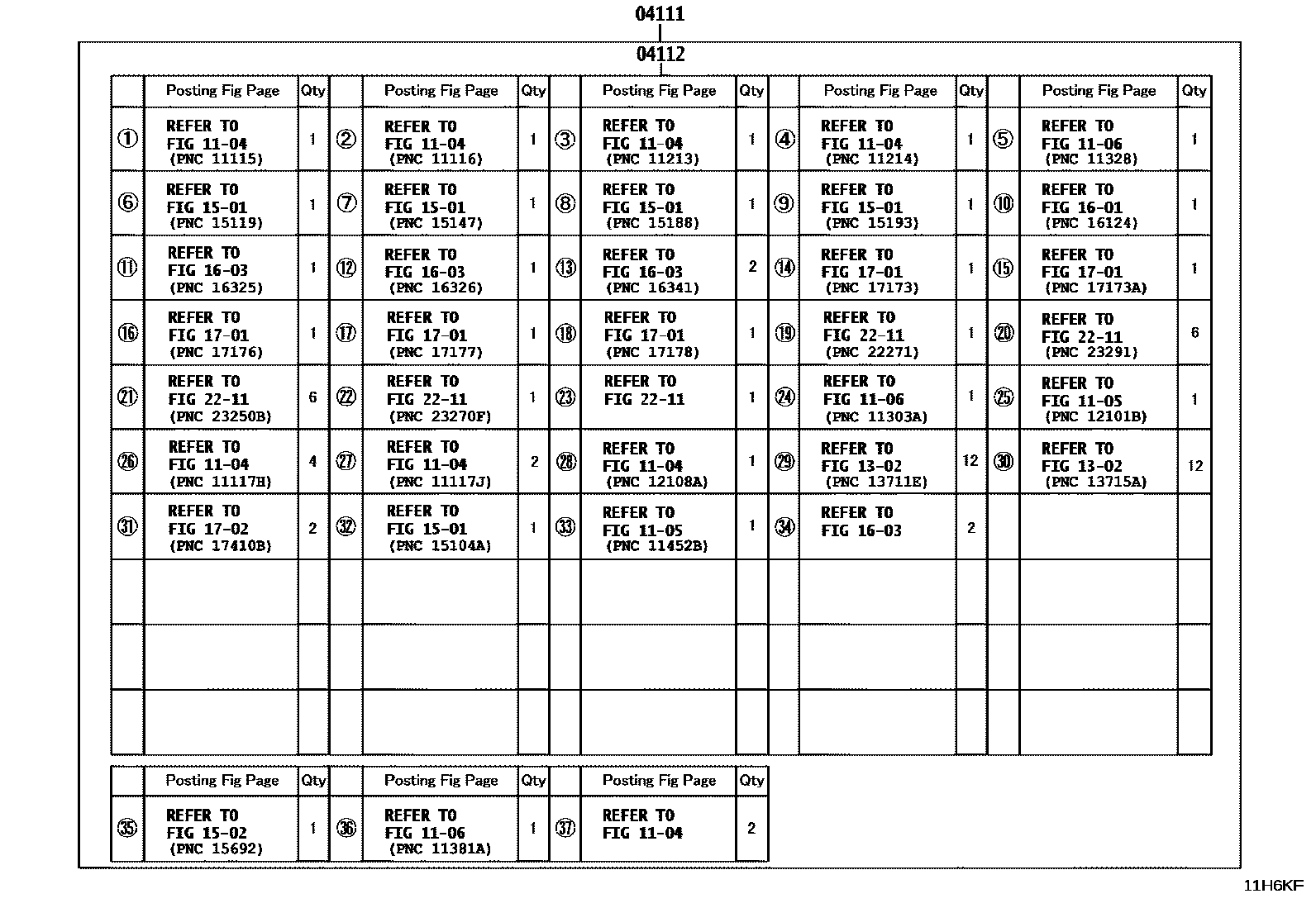

Engine Overhaul Gasket Kit — 11H6KF (202408 – 999999)PNC and OE references
| PNC | Part name | OE numbers |
|---|
| 04111 | Engine overhaul gasket assembly | 04111-0C152 · 04111-0C222 · 04111-0C300 · 04111-0C310 · 04111-0E114 · 04111-0E115 · 04111-0E162 · 04111-0E164 · 04111-0E172 · 04111-0E173 · 04111-0E191 · 04111-0E192 · 04111-0E193 · 04111-0E194 · 04111-0E222 · 04111-0E224 · 04111-0E242 · 04111-0E244 · 04111-0E290 · 04111-0E291 · 04111-31344 · 04111-54600 |
| 04112 | Engine valve grinding pad assembly | 04112-0C120 · 04112-0C130 · 04112-0C140 · 04112-0C170 · 04112-0E112 · 04112-0E161 · 04112-0E171 · 04112-0E191 · 04112-0E221 · 04112-0E241 · 04112-0E290 · 04112-31125 · 04112-54510 |
