Toyota HILUX 后组合灯 — Figure 8111

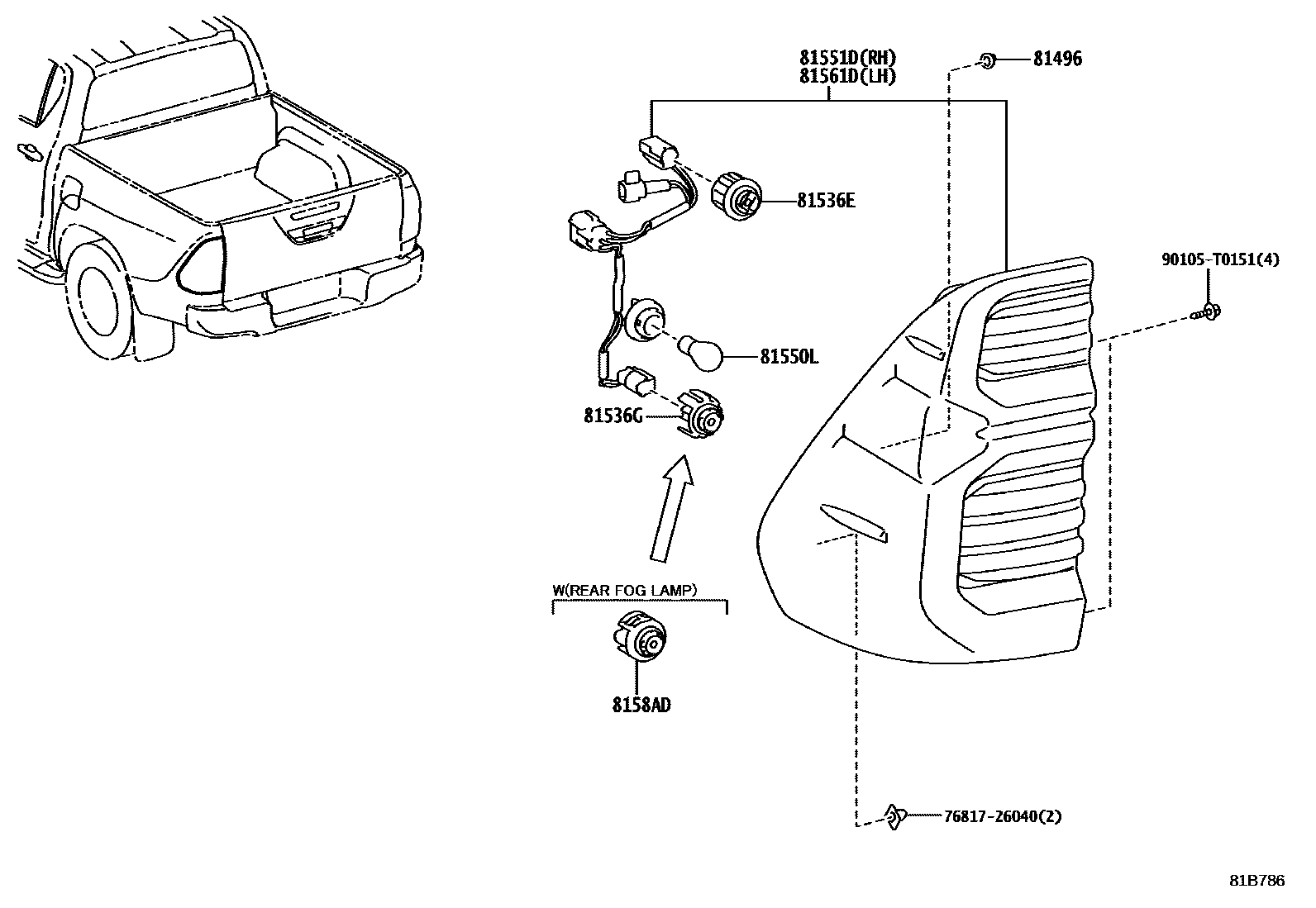

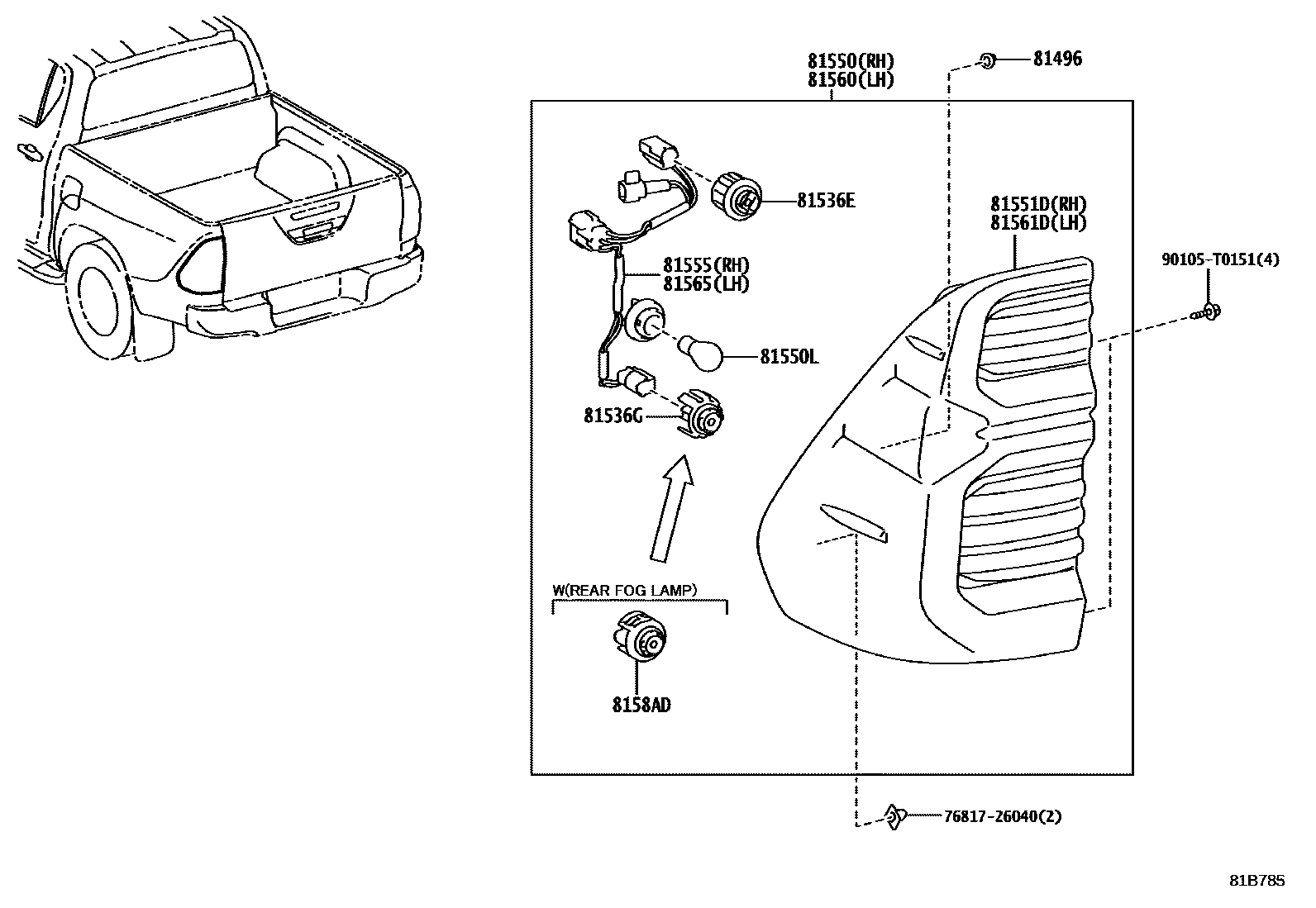

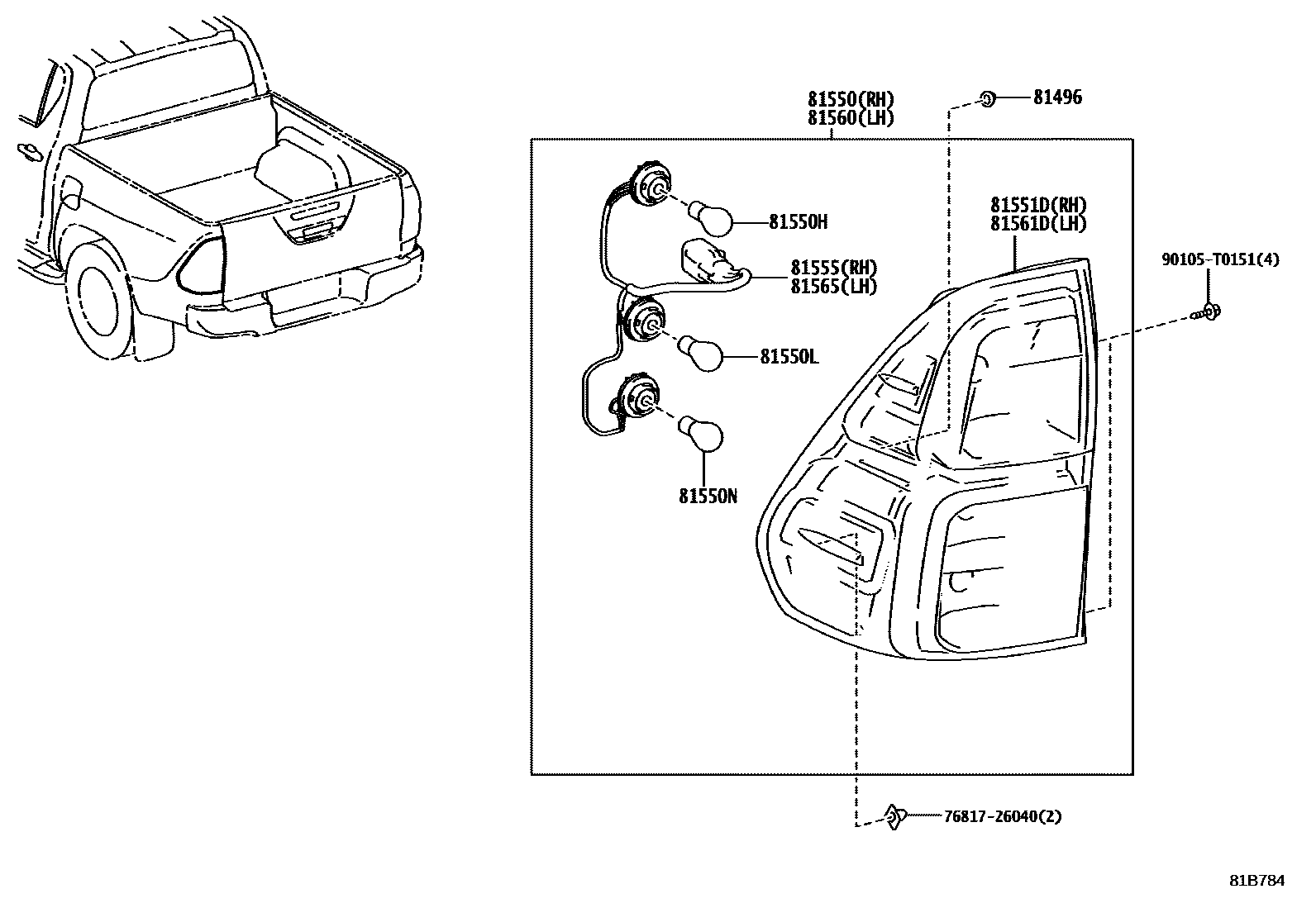

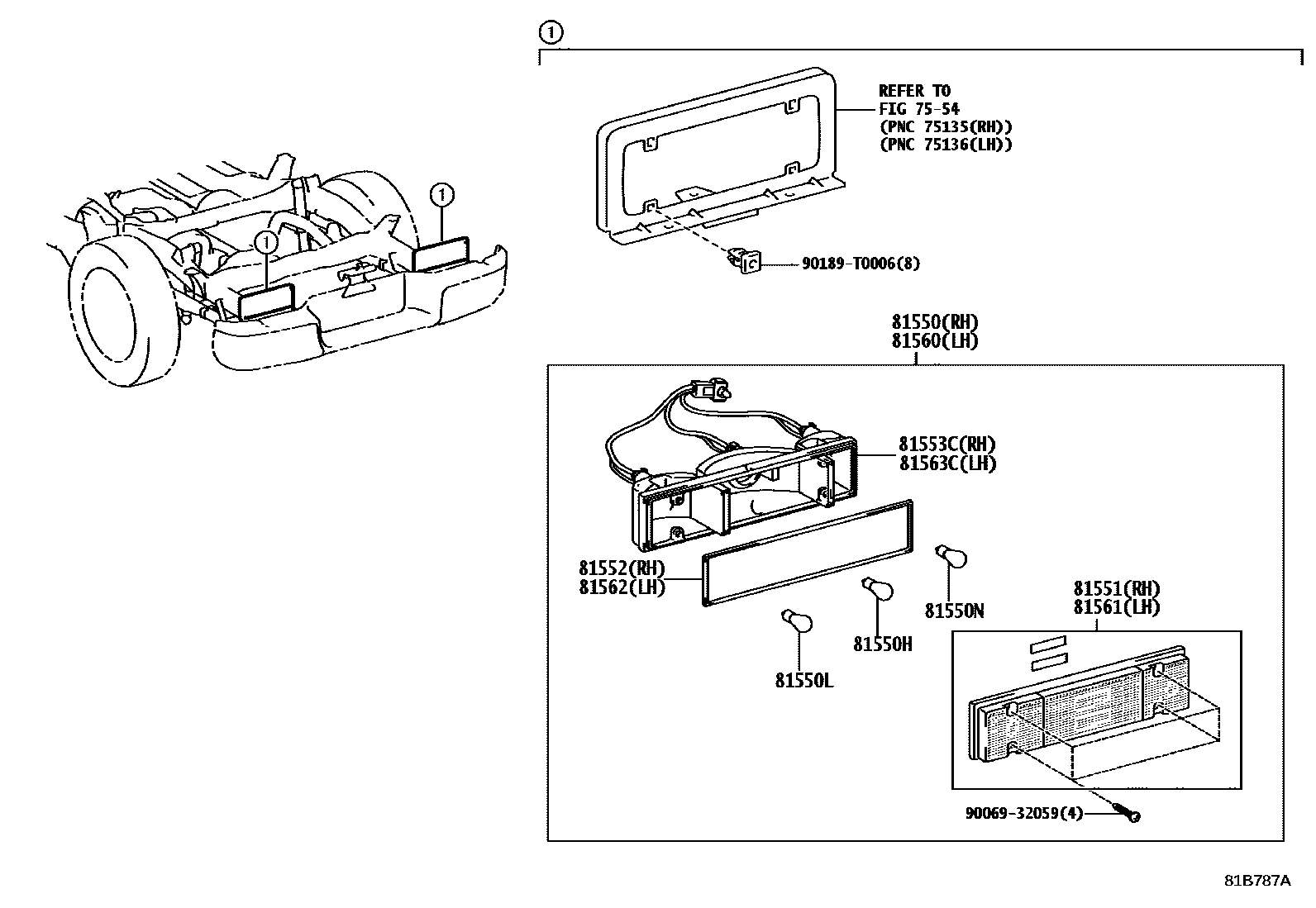

Toyota HILUX EPC diagram 8111, 后组合灯, with 4 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-0D040 · 81496-52020 |
| 81536E | LED brake light | 81536-15120 |
| 81536G | LED reversing light | 8158A-12260 |
| 81550 | Right rear combination light assembly | 81550-0K261 · 81550-0K271 · 81550-0K281 · 81550-0K300 · 81550-0K360 · 81550-0K660 · 81550-0K690 · 81550-0K700 · 81550-0K730 |
| 81550H | Tail and brake light bulbs | 90981-13094 · 90981-13096 · 90981-TD004 |
| 81550L | Rear turn signal light bulb | 90981-15020 · 90981-15028 · 90981-TD003 |
| 81550N | reversing light bulb | 90981-13093 · 90981-13095 · 90981-TD003 |
| 81551 | Right rear combination lamp shade | 81551-0K360 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-0K261 · 81551-0K271 · 81551-0K281 · 81551-0K300 · 81551-0K460 · 81551-0K660 · 81551-0K690 · 81551-0K700 · 81551-0K730 |
| 81552 | Right rear combination lamp shade gasket | 81552-0K360 |
| 81553C | Right rear combination light body | 81553-0K360 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-0K260 · 81555-0K270 · 81555-0K281 · 81555-0K300 · 81555-0K430 · 81555-0K440 · 81555-0K480 |
| 81560 | Left rear combination light assembly | 81560-0K261 · 81560-0K271 · 81560-0K281 · 81560-0K291 · 81560-0K300 · 81560-0K310 · 81560-0K400 · 81560-0K570 · 81560-0K690 · 81560-0K700 · 81560-0K730 · 81560-0K740 |
| 81561 | Left rear combination lamp shade | 81561-0K400 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-0K261 · 81561-0K271 · 81561-0K281 · 81561-0K291 · 81561-0K300 · 81561-0K310 · 81561-0K460 · 81561-0K470 · 81561-0K570 · 81561-0K690 · 81561-0K700 · 81561-0K730 · 81561-0K740 |
| 81562 | Left rear combination lamp shade gasket | 81552-0K360 |
| 81563C | Left rear combination light body | 81563-0K400 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-0K260 · 81555-0K270 · 81555-0K281 · 81555-0K291 · 81555-0K300 · 81555-0K430 · 81555-0K440 · 81555-0K480 · 81555-0K500 · 81565-0K310 |
| 8158AD | Rear LED fog lights | 8158A-0D610 |
