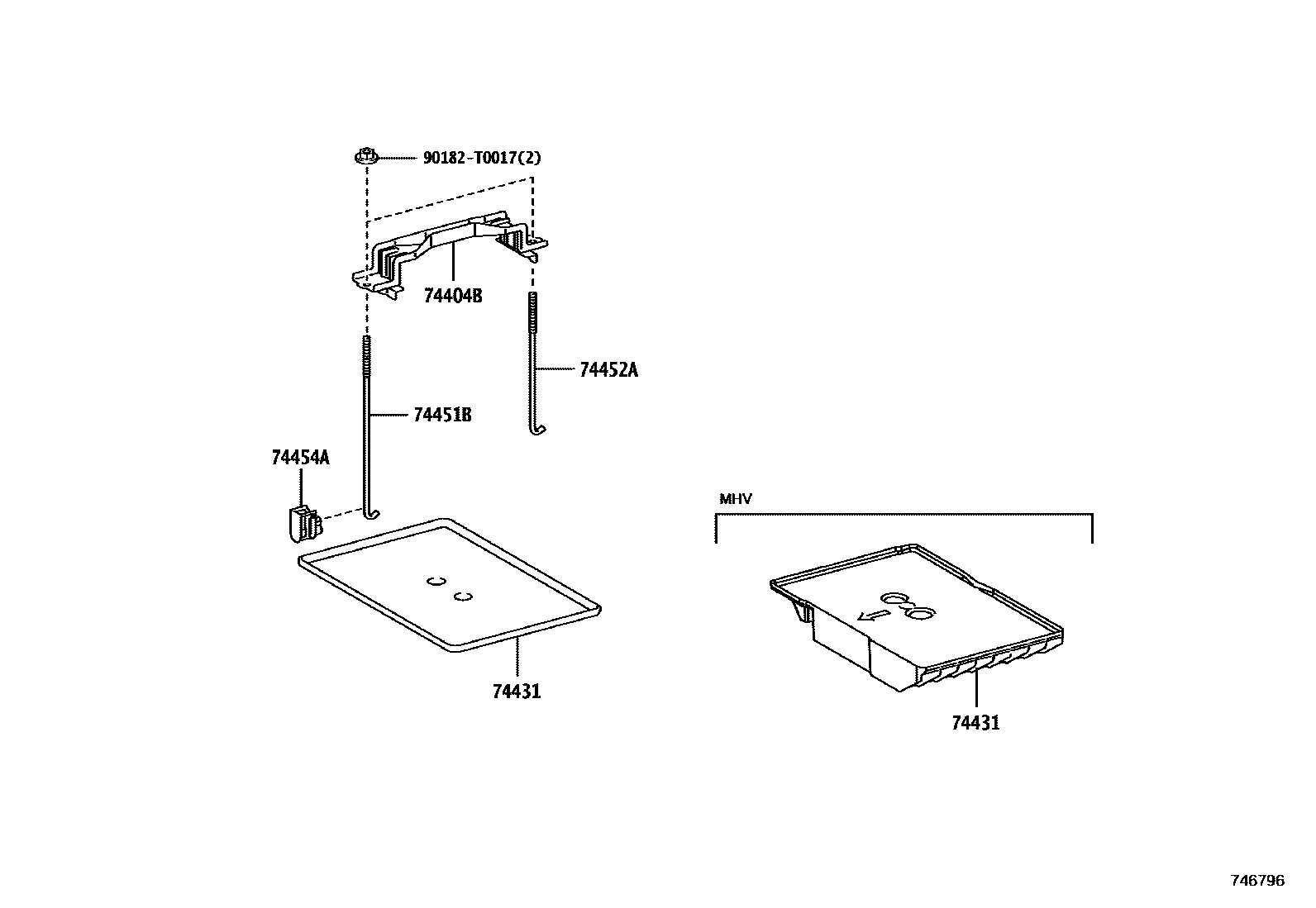

Toyota HILUX battery holder — Figure 7454
Toyota HILUX EPC diagram 7454, battery holder, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74404B | Battery clip sub-assembly | 74404-0K150 · 74404-KK010 · 74404-KK080 |
| 74431 | battery tray | 74431-0K110 · 74431-KK010 · 74431-KK020 · 74431-KK030 · 74431-KK040 |
| 74451B | Battery clamp bolt | 74451-0K070 · 74451-KK010 · 74451-KK030 |
| 74452A | No. 2 battery clamp bolt | 74451-0K110 · 74451-KK020 · 74451-KK040 |
| 74454A | Battery fixing bolt bracket | 74454-0K010 |
