Toyota HILUX 前保险杠及附件 — Figure 5252

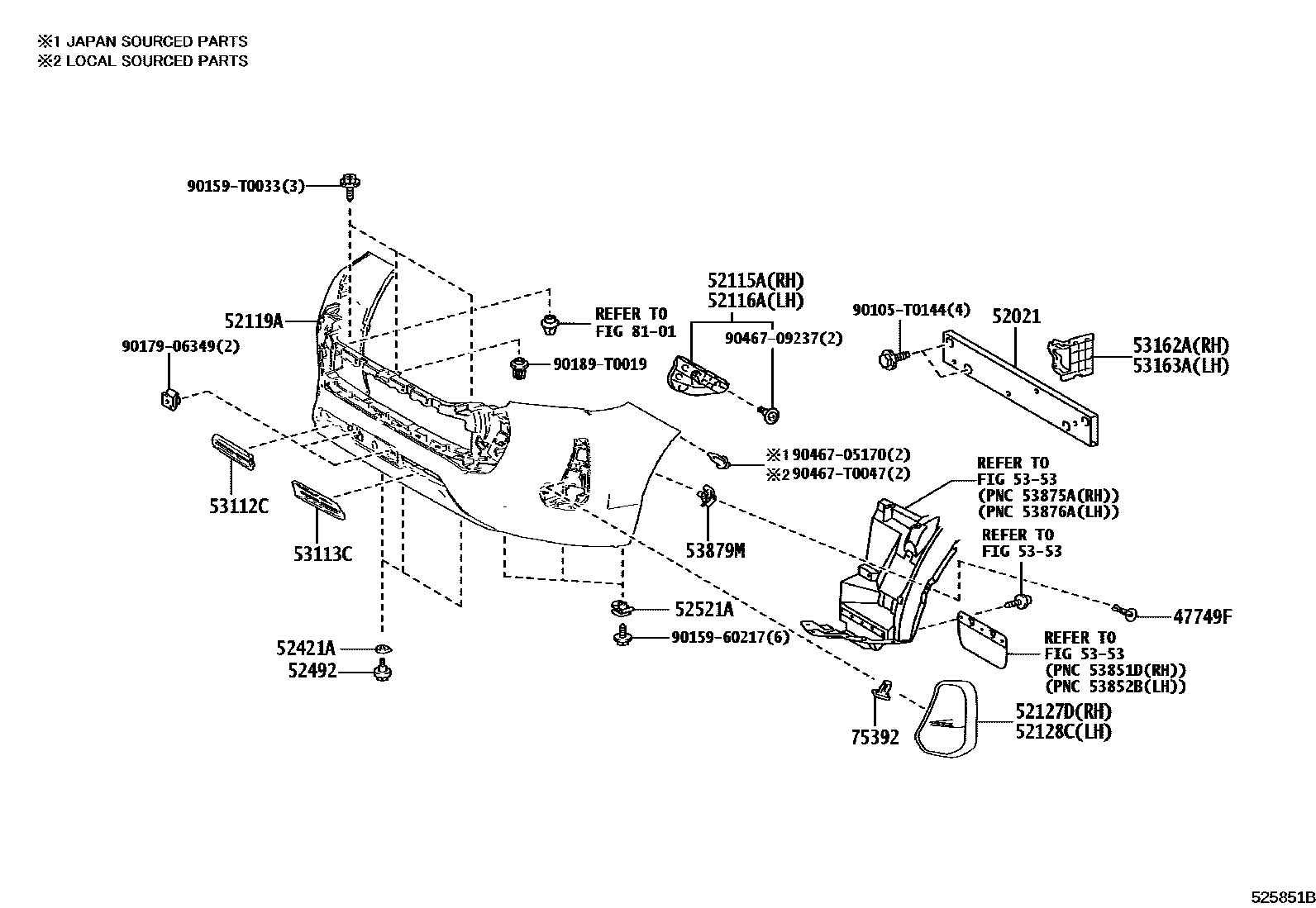

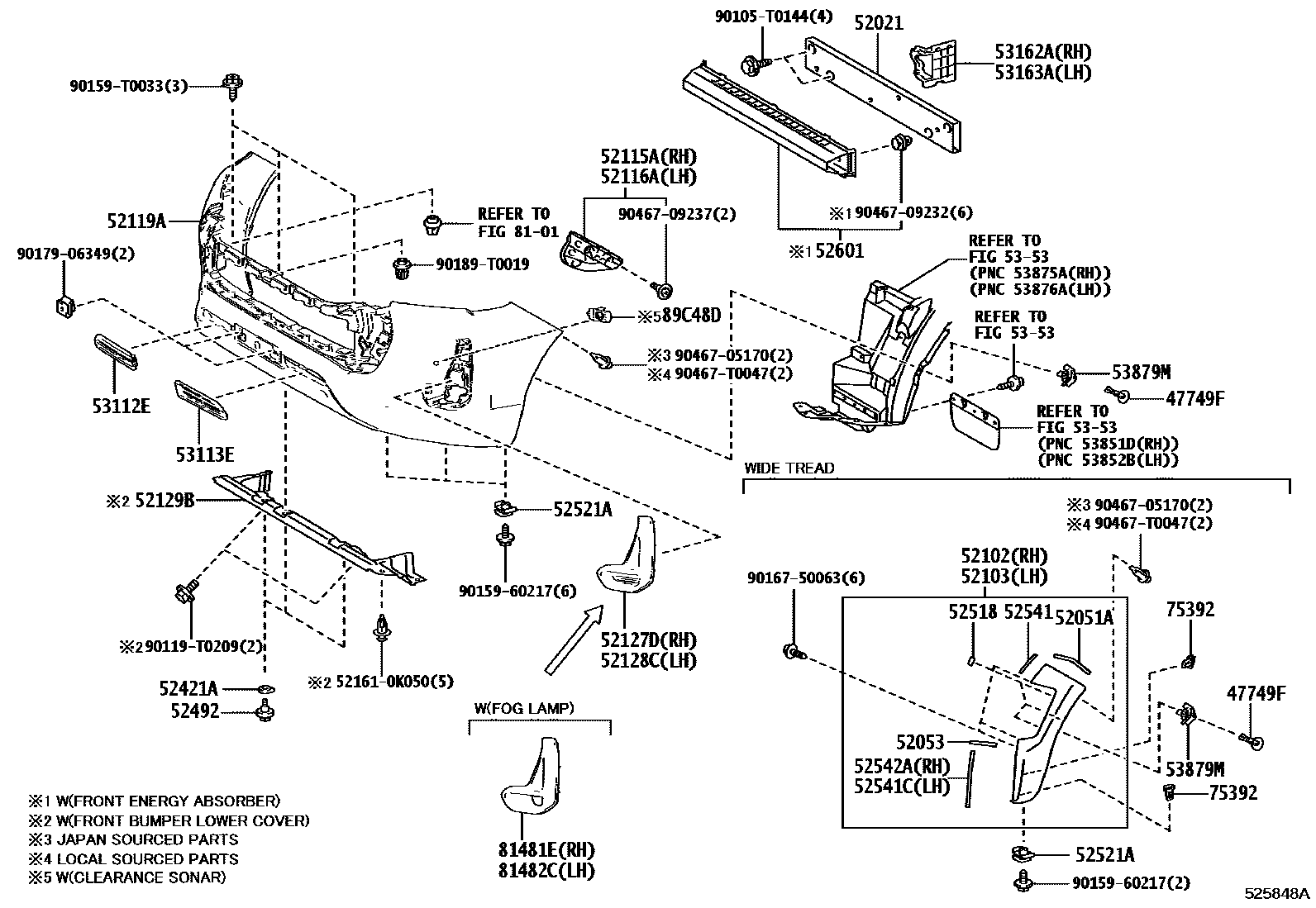

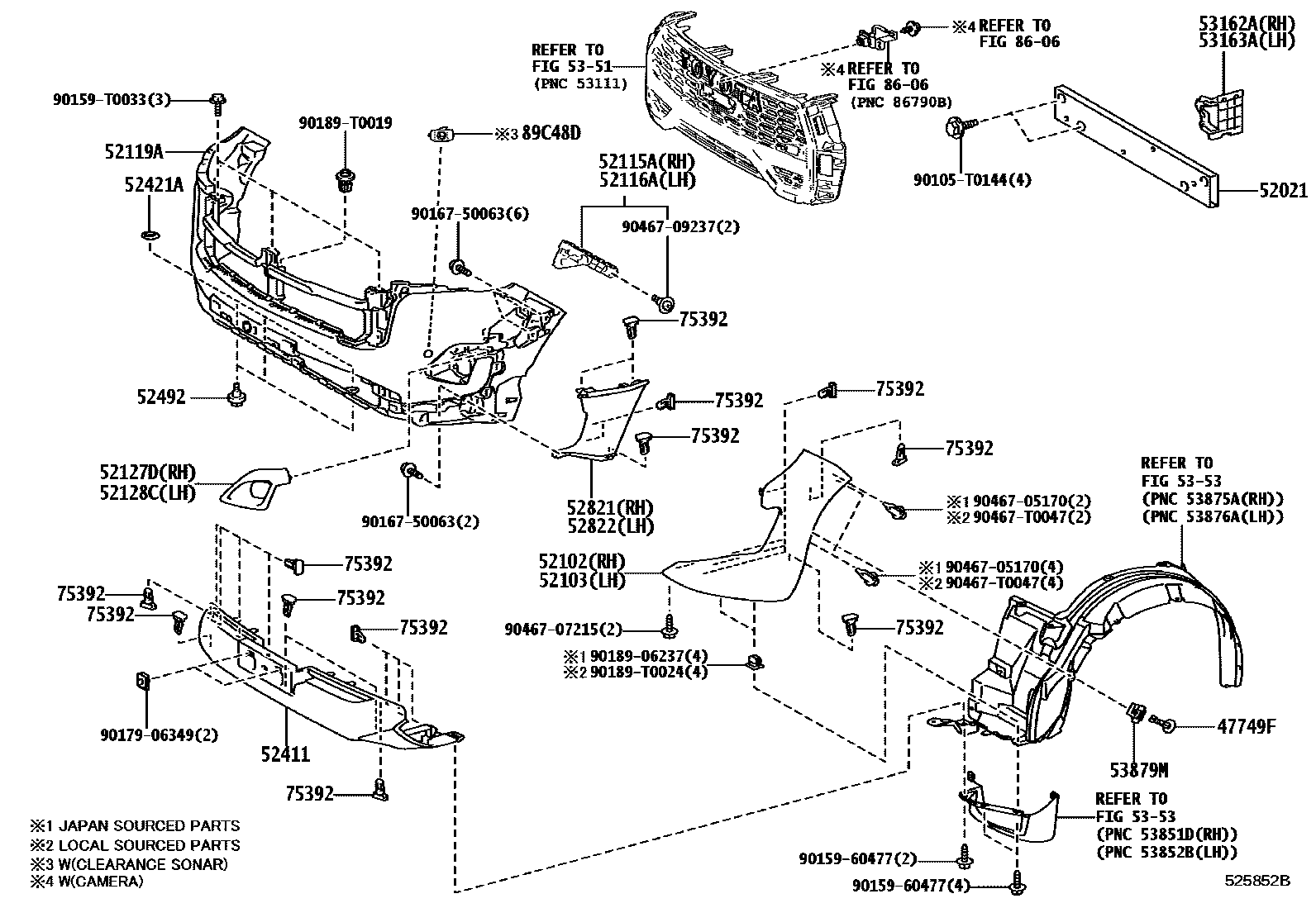

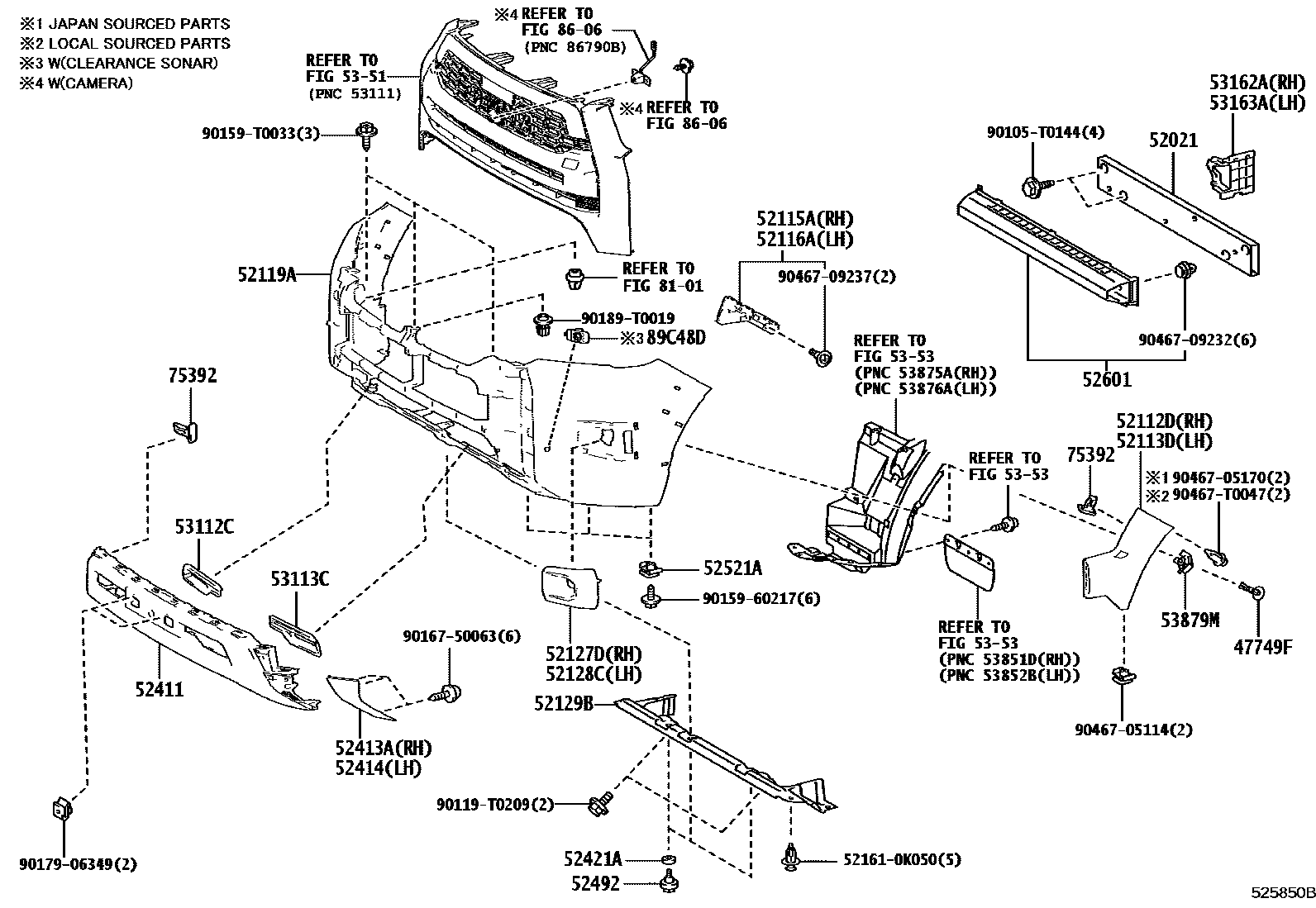

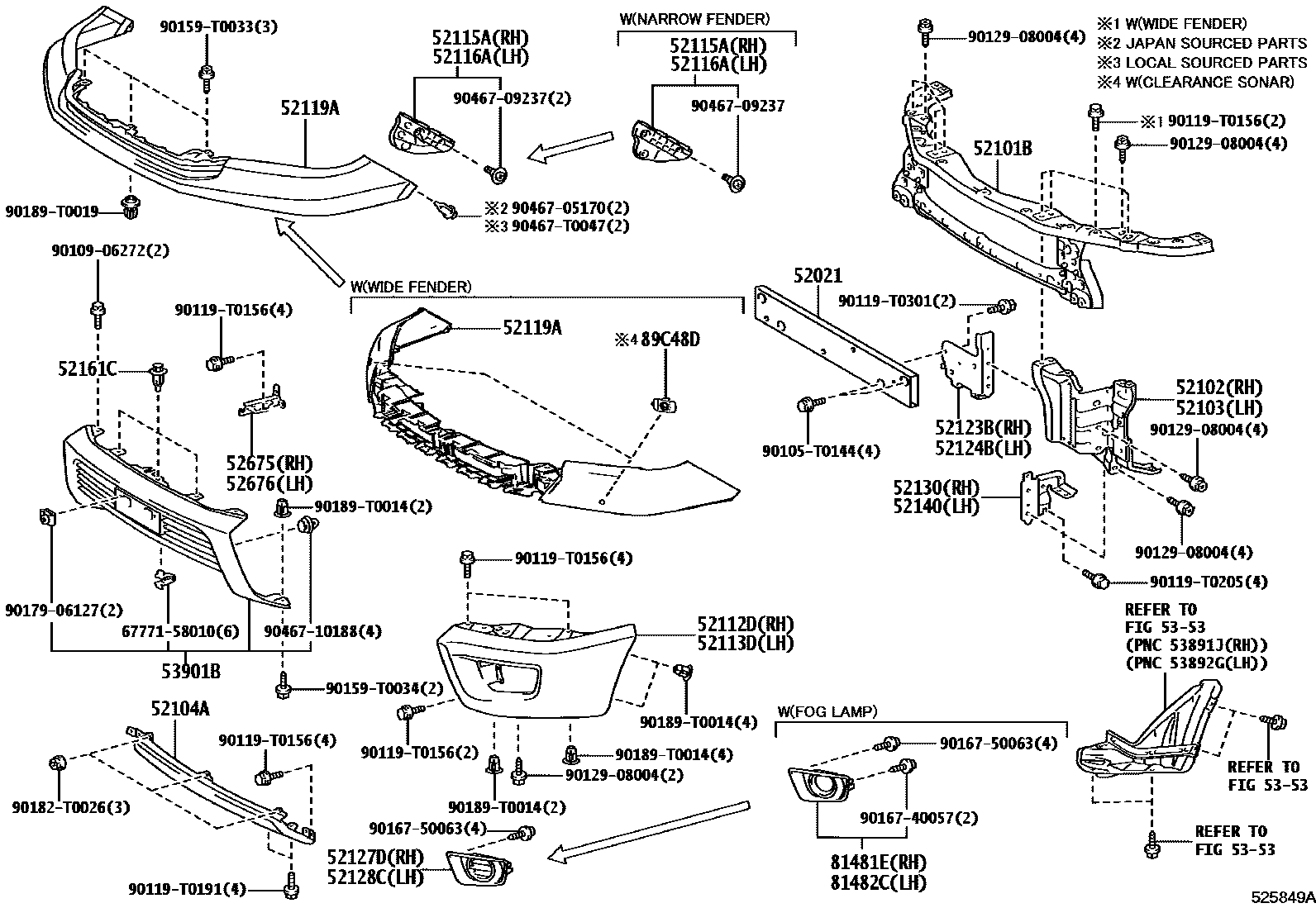

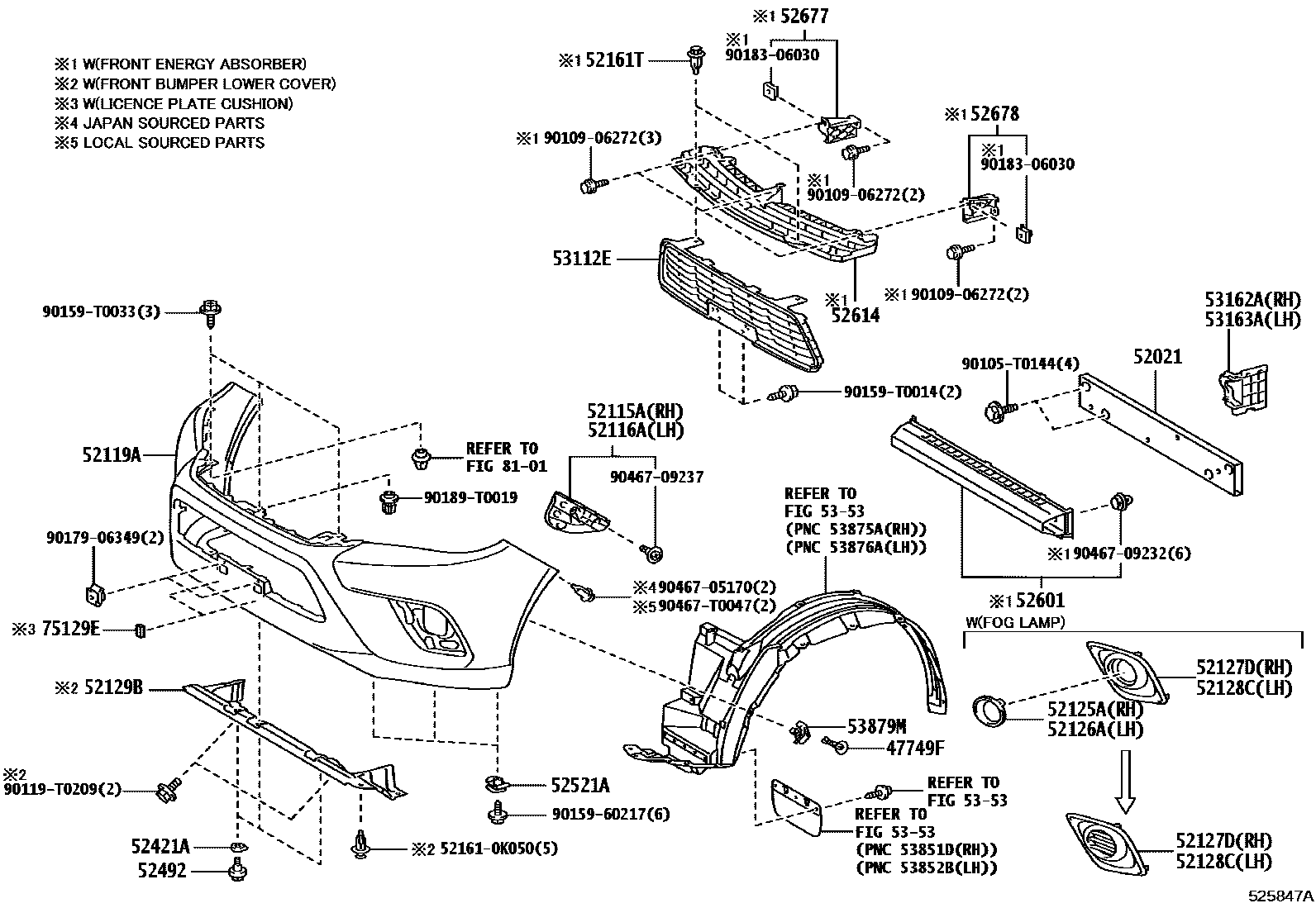

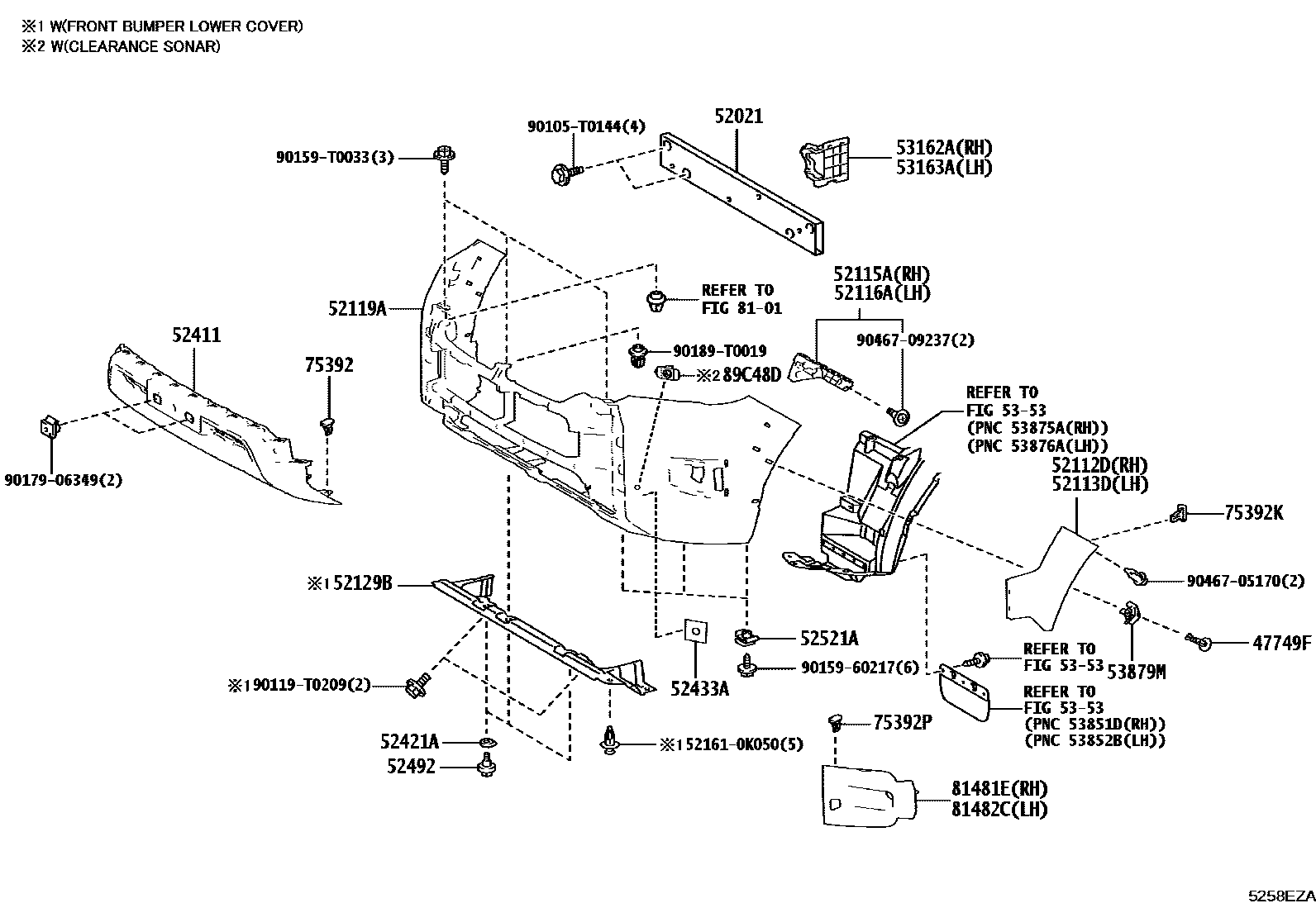

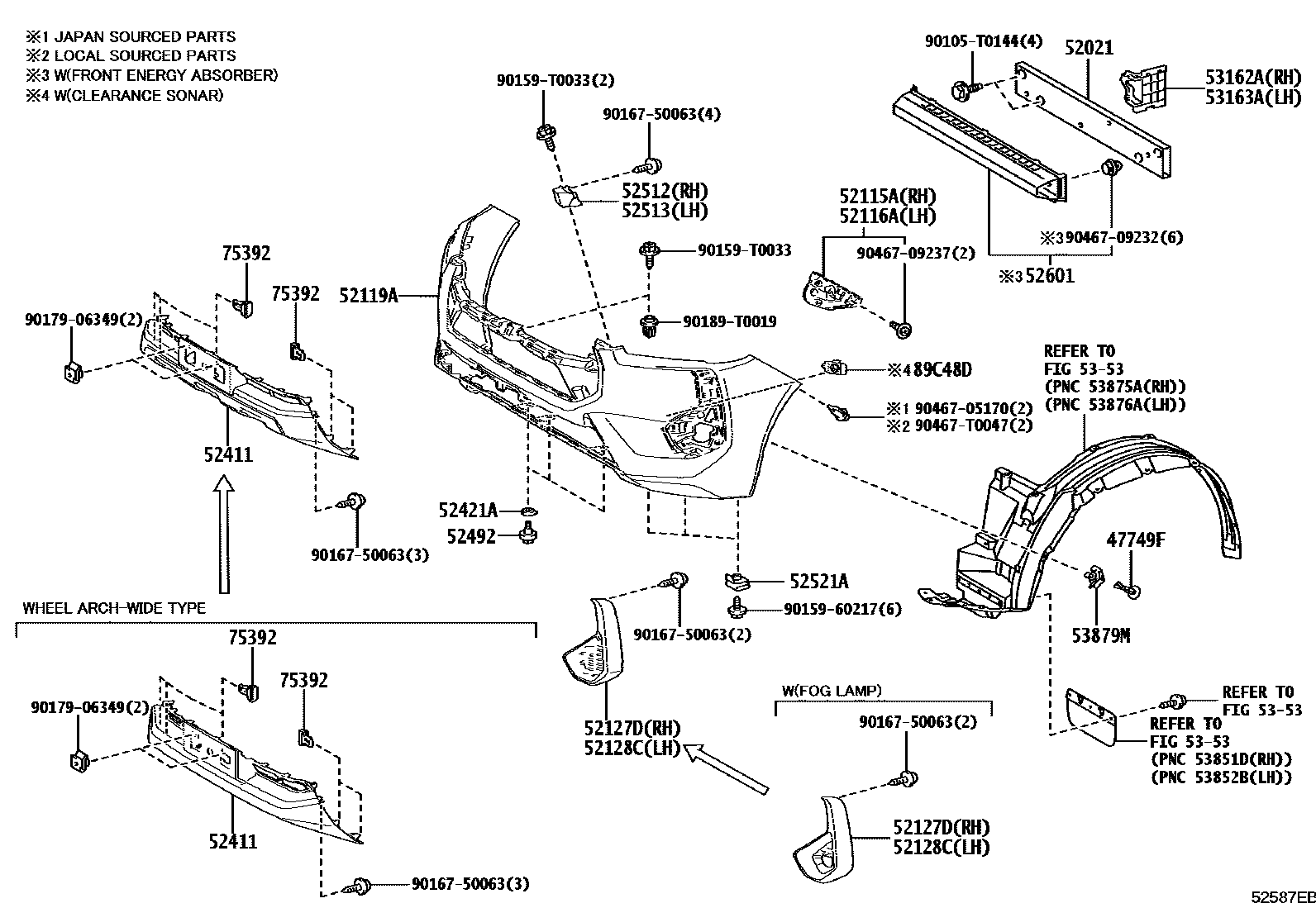

Toyota HILUX EPC diagram 5252, 前保险杠及附件, with 8 images and 60 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | pin fixing clip | 47749-50090 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-KK010 |
| 52051A | Front bumper gasket sub-assembly | 52421-YP060 |
| 52053 | Front bumper gasket sub-assembly | 52421-YP070 |
| 52101B | Front bumper reinforcement plate sub-assembly | 52101-0K010 |
| 52102 | Front bumper right side bracket sub-assembly | 52102-0K171 · 52102-YP010 · 52102-YP020 |
| 52103 | Front bumper left bracket sub-assembly | 52103-0K171 · 52103-YP010 · 52103-YP020 |
| 52104A | Front center bumper sub-assembly | 52104-0K010 |
| 52112D | Front bumper right extension | 52112-0K230 · 52112-YP010 · 52112-YP020 · 52112-YP030 · 52112-YP902 · 52112-YY060 |
| 52113D | Front bumper left extension | 52113-0K170 · 52113-YP010 · 52113-YP020 · 52113-YP030 · 52113-YP902 · 52113-YY020 |
| 52115A | Front bumper right side bracket | 52115-0K110 · 52115-0K120 · 52115-0K180 · 52115-0K190 · 52115-YP040 · 52115-YP050 |
| 52116A | Front bumper left bracket | 52116-0K110 · 52116-0K120 · 52116-0K180 · 52116-0K190 · 52116-YP040 · 52116-YP050 |
| 52119A | front bumper cover | 52119-0K820 · 52119-0K860 · 52119-0KA00 · 52119-0KE40 · 52119-0M951 · 52119-0M973 · 52119-0M977 · 52119-0M979 · 52119-0M991 · 52119-0M992 · 52119-0M999 · 52119-F0901 · 52119-F0905 · 52119-F0906 · 52119-F0909 · 52119-F0910 · 52119-F0911 · 52119-F0930 · 52119-F0932 · 52119-YP909 · 52119-YP910 · 52119-YP917 · 52119-YP918 · 52119-YP919 · 52119-YP920 · 52119-YP961 · 52119-YP962 · 52119-YP963 · 52119-YP970 · 52119-YP971 · 52119-YP975 · 52119-YP982 · 52119-YP983 · 52119-YP987 · 52119-YP988 · 52119-YP990 · 52119-YP991 |
| 52123B | Reinforcement panel on the right side of the front bumper | 52123-0K020 |
| 52124B | Front bumper left reinforcement plate | 52124-0K010 |
| 52125A | Right fog light mounting bracket | 52125-0K030 · 52125-0K040 · 52125-0K200 |
| 52126A | Left fog light mounting bracket | 52126-0K030 · 52126-0K040 · 52126-0K200 |
| 52127D | Front bumper right hole cover | 52127-0K170 · 52127-0K180 · 52127-0K200 · 52127-0K210 · 52127-0K230 · 52127-0K410 · 52127-0K850 · 52127-0K860 · 52127-0K870 · 52127-0K880 · 52127-0K890 · 52127-0KA00 · 52127-0KA20 · 52127-0KA30 · 52127-YP120 · 52127-YP130 · 52127-YP170 · 52127-YP180 · 52127-YP190 · 52127-YP200 · 52127-YP210 · 52127-YP480 · 52127-YP610 |
| 52128C | Front bumper left hole cover | 52128-0K170 · 52128-0K180 · 52128-0K200 · 52128-0K210 · 52128-0K230 · 52128-0K410 · 52128-0K850 · 52128-0K860 · 52128-0K870 · 52128-0K880 · 52128-0K890 · 52128-0KA00 · 52128-0KA20 · 52128-0KA30 · 52128-YP120 · 52128-YP130 · 52128-YP170 · 52128-YP180 · 52128-YP190 · 52128-YP200 · 52128-YP210 · 52128-YP480 · 52128-YP610 |
| 52129B | Front bumper lower cover | 52129-KK010 |
| 52130 | Front bumper right side mounting bracket assembly | 52130-0K021 |
| 52140 | Front bumper left side mounting bracket assembly | 52140-0K021 |
| 52161C | front bumper insert | 52161-0K040 |
| 52161T | front bumper insert | 52161-0K040 |
| 52411 | Front bumper anti-collision bar | 52411-YP050 · 52411-YP060 · 52411-YP070 · 52411-YP130 · 52411-YP140 · 52411-YP180 · 52411-YP200 · 52411-YP220 · 52411-YP900 · 52411-YP902 |
| 52413A | Front bumper right bumper pad | 52413-YP010 · 52413-YP020 · 52413-YP030 |
| 52414 | Front bumper left bumper pad | 52414-YP010 · 52414-YP020 · 52414-YP030 |
| 52421A | front bumper lining | 52421-0K020 · 52421-60191 |
| 52433A | Front bumper cover hole plug | 52433-YP010 · 52433-YP030 |
| 52492 | Bumper lining bolt No. 2 | 52491-60010 |
| 52512 | Front bumper right curved filler | 52512-YP030 · 52512-YP040 |
| 52513 | Front bumper left curved filler | 52513-YP030 · 52513-YP040 |
| 52518 | Front bumper curved filler liner | 52518-YP140 |
| 52521A | Clip (for front bumper mount) | 90467-05114 |
| 52541 | front bumper protector | 52541-YP050 |
| 52541C | Front bumper No. 1 protective part | 52542-YP030 |
| 52542A | Front bumper No. 2 protective part | 52542-YP020 |
| 52601 | Front bumper energy absorber sub-assembly | 52601-0K010 · 52601-0K140 |
| 52614 | No. 2 energy absorber for front bumper | 52614-0K010 |
| 52675 | Front bumper lower right side bracket | 52675-0K031 |
| 52676 | Front bumper lower left side bracket | 52676-0K031 |
| 52677 | Front bumper No. 2 right side bracket | 52675-0K010 |
| 52678 | Front bumper No. 2 left side bracket | 52676-0K010 |
| 52821 | Right air intake pipe | 52821-YP010 |
| 52822 | left air intake pipe | 52822-YP010 |
| 53112C | Lower right radiator grille | 53112-0K350 · 53112-YP110 · 53112-YP120 |
| 53112E | No. 1 radiator lower grille | 53112-0K120 · 53112-0K130 · 53112-0K160 · 53112-0K290 · 53112-0K350 · 53112-0K360 · 53112-0K370 · 53112-0K390 |
| 53113C | Lower left radiator grille | 53113-0K010 · 53113-0K020 · 53113-0K030 · 53113-0K050 · 53113-YP110 · 53113-YP120 |
| 53113E | No. 2 radiator lower grille | 53113-0K030 |
| 53162A | Front bumper right side baffle | 53162-KK010 |
| 53163A | Front bumper left side baffle | 53163-KK010 |
| 53879M | Front fender lining fixing parts | 53879-50020 |
| 53901B | Front baffle sub-assembly | 53901-0K010 · 53901-0K020 |
| 75129E | Front license plate cushion | 75129-48010 |
| 75392 | External protective strip fixings | 75392-0K010 · 75392-0K020 |
| 75392K | No. 2 outer protective strip fixings | 75392-0K010 · 75392-0K020 |
| 75392P | No. 3 outer protective strip fixings | 75392-0K020 |
| 81481E | Right fog light cover | 52030-0K120 · 52127-YP470 |
| 81482C | Left fog light cover | 52040-0K120 · 52128-YP470 |
| 89C48D | Front angle ultrasonic sensor holder | 89348-06110 · 89348-0K020 |
