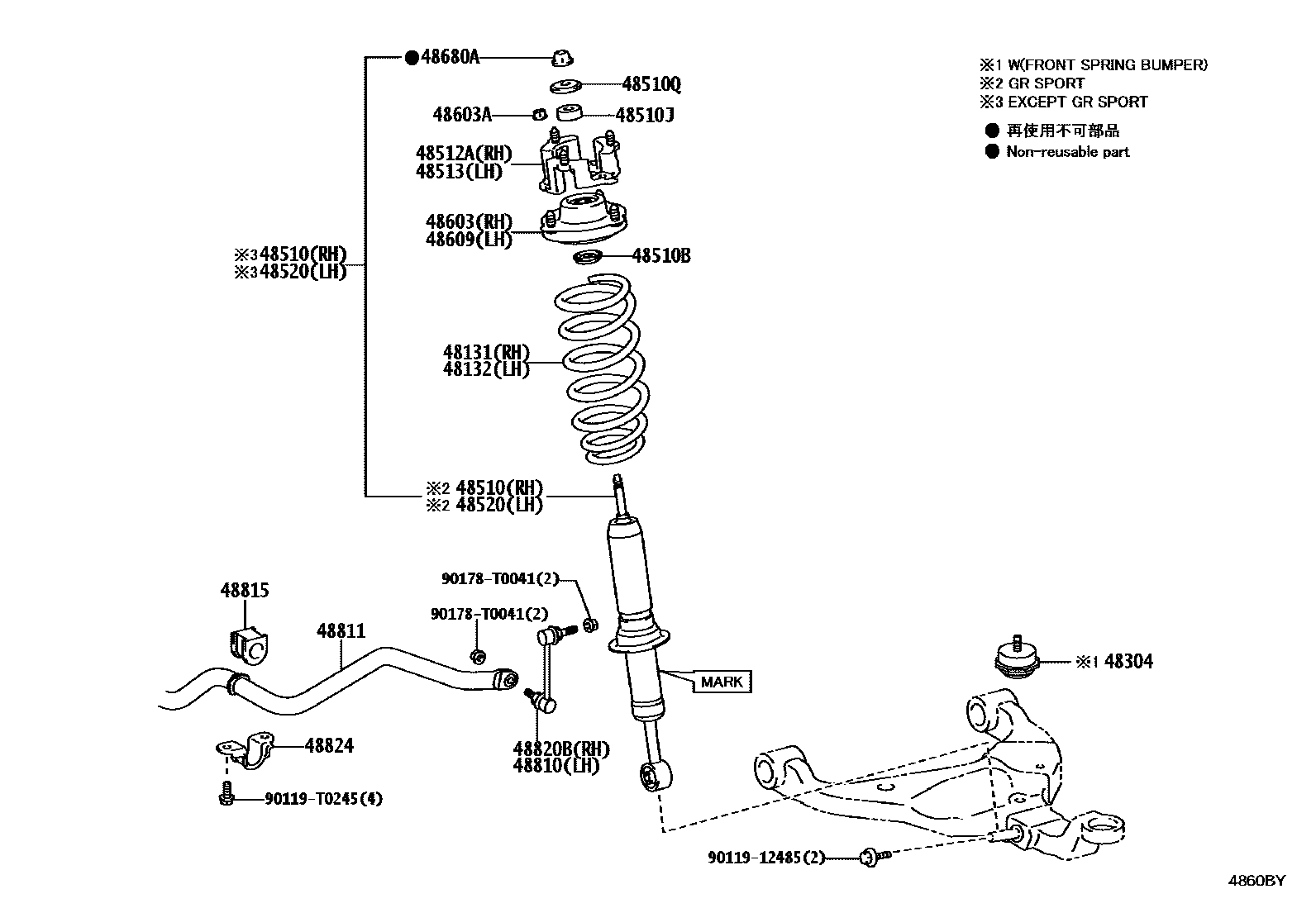

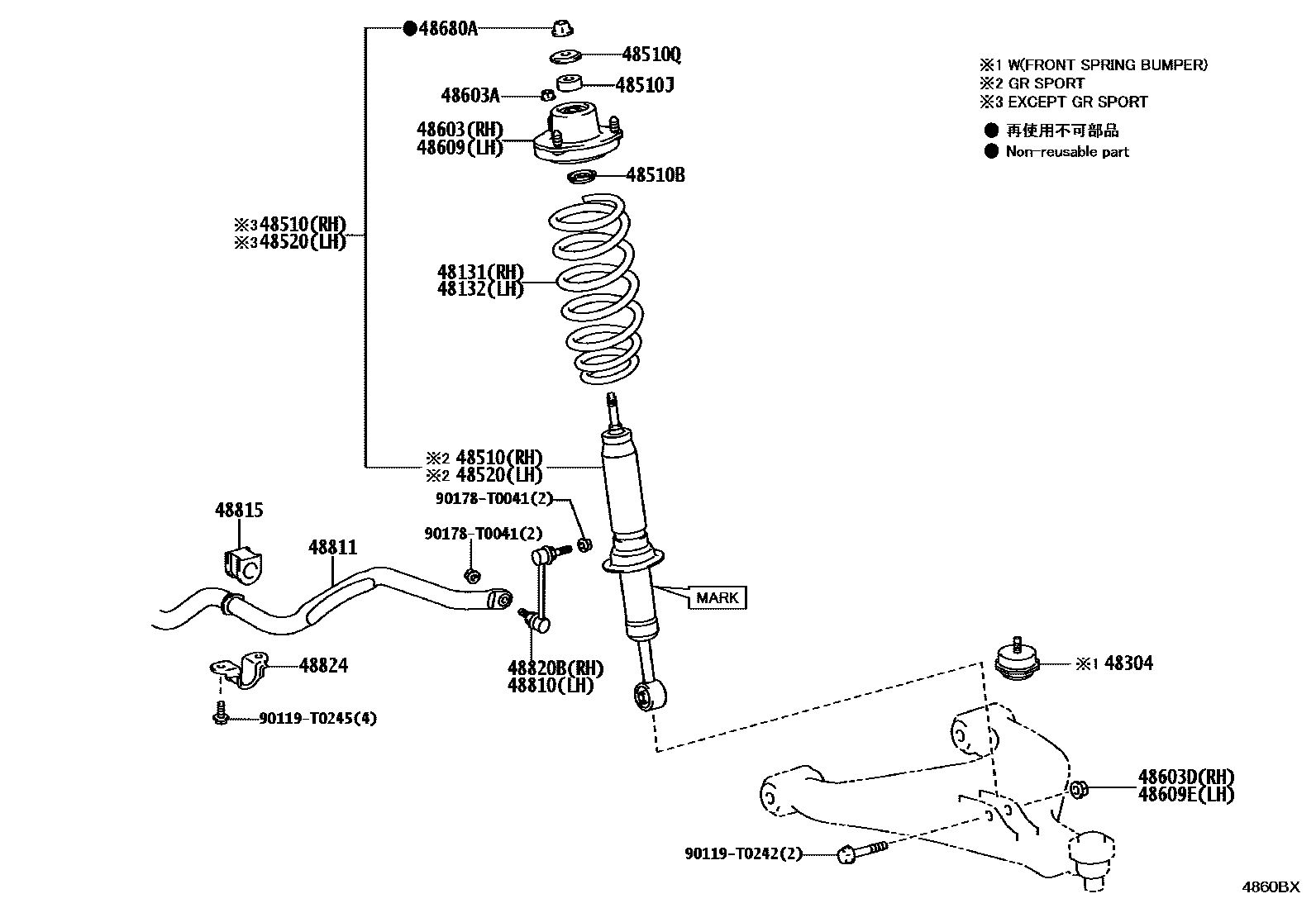

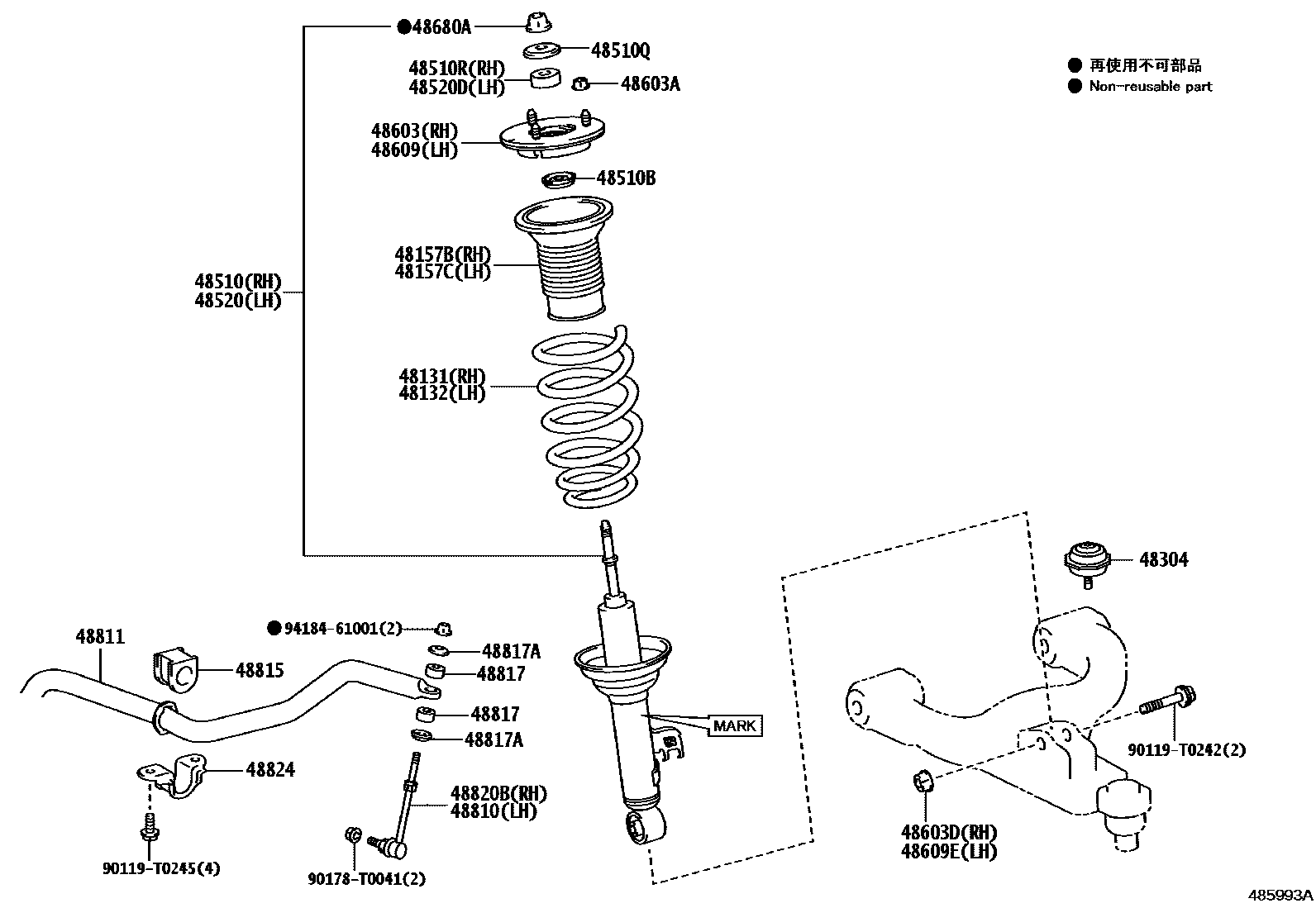

Toyota HILUX Front Spring & Shock Absorber — Figure 4803
Toyota HILUX EPC diagram 4803, Front Spring & Shock Absorber, with 3 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-0KC30 · 48131-0KF20 · 48131-0KF50 · 48131-0KF91 · 48131-0KG31 · 48131-0KG41 · 48131-0KK70 · 48131-0KL10 · 48131-0KL20 · 48131-0KL41 · 48131-0KL51 · 48131-0KM40 · 48131-0KM50 · 48131-0KM70 · 48131-0KN10 · 48131-0KN20 · 48131-0KN40 · 48131-0KR40 · 48131-0KS71 · 48131-0KS91 · 48131-0KT01 · 48131-0KU40 · 48131-0KU80 · 48131-0KV00 · 48131-0KV50 · 48131-0KW00 · 48131-YY060 · 48131-YY240 · 48131-YY320 · 48131-YY330 · 48131-YY360 · 48131-YY370 |
| 48132 | Left front coil spring | 48131-0KF20 · 48131-0KF50 · 48131-0KF91 · 48131-0KG31 · 48131-0KG41 · 48131-0KK70 · 48131-0KK80 · 48131-0KL10 · 48131-0KL31 · 48131-0KL41 · 48131-0KL51 · 48131-0KM40 · 48131-0KM50 · 48131-0KM60 · 48131-0KM70 · 48131-0KM80 · 48131-0KN10 · 48131-0KN20 · 48131-0KN30 · 48131-0KN50 · 48131-0KN70 · 48131-0KR40 · 48131-0KS71 · 48131-0KS91 · 48131-0KT01 · 48131-0KU40 · 48131-0KU90 · 48131-0KV00 · 48131-0KV60 · 48131-0KV90 · 48131-YY240 · 48131-YY330 · 48131-YY340 · 48131-YY360 · 48131-YY370 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-0K010 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-0K010 |
| 48304 | No. 1 front spring buffer block sub-assembly | 48304-0K010 · 48304-0K041 · 48304-0K080 · 48304-0K101 · 48304-0K121 |
| 48510 | Right front shock absorber assembly | 48510-8Z189 · 48510-8Z190 · 48510-8Z199 · 48510-8Z205 · 48510-8Z450 · 48510-8Z451 · 48510-8Z453 · 48510-8Z454 · 48510-8Z455 · 48510-8Z456 · 48510-8Z457 · 48510-8Z493 · 48510-8Z585 · 48510-8Z591 · 48510-8Z654 · 48510-YY152 · 48510-YY200 · 48510-YY210 |
| 48510B | No. 1 bumper plate (for front shock absorber) | 90948-F2002 · 90948-T2003 |
| 48510J | Front shock absorber No. 1 cushion | 90948-S1003 · 90948-T1013 · 90948-T1015 |
| 48510Q | No. 3 cushion block (for front shock absorber) | 90948-F2003 · 90948-T2004 |
| 48510R | Right front shock absorber No. 1 cushion pad | 90948-T1013 · 90948-T1015 |
| 48512A | Right front shock absorber upper bracket | 48512-KK010 |
| 48513 | Left front shock absorber upper bracket | 48513-KK010 |
| 48520 | Left front shock absorber assembly | 48510-8Z205 · 48510-8Z450 · 48510-8Z451 · 48510-8Z453 · 48510-8Z454 · 48510-8Z455 · 48510-8Z456 · 48510-8Z457 · 48510-8Z493 · 48510-8Z585 · 48510-8Z591 · 48510-8Z654 · 48510-YY152 · 48510-YY200 · 48510-YY210 · 48520-8Z070 · 48520-8Z071 · 48520-8Z074 |
| 48520D | Left front shock absorber No. 1 cushion pad | 90948-T1013 · 90948-T1015 |
| 48603 | Right front suspension bearing sub-assembly | 48609-0K070 · 48609-0K080 · 48609-0K090 · 48609-0K100 · 48609-0K120 · 48609-0K150 |
| 48603A | Nut (for front suspension mount) | 90178-T0050 |
| 48603D | Nut (for front mount to right front shock absorber) | 90178-T0048 |
| 48609 | Left front suspension bearing sub-assembly | 48609-0K070 · 48609-0K080 · 48609-0K090 · 48609-0K100 · 48609-0K120 · 48609-0K150 |
| 48609E | Nut (for front mount to left front shock absorber) | 90178-T0048 |
| 48680A | Nut (for front mount to front shock absorber) | 90177-T0015 |
| 48810 | Left front stabilizer bar link assembly | 48810-0K010 · 48810-0K020 · 48810-0K030 · 48810-0K031 · 48820-0K010 |
| 48811 | front stabilizer bar | 48811-0K170 · 48811-0K180 · 48811-0K190 · 48811-0K210 · 48811-0K230 · 48811-0K250 · 48811-0K260 · 48811-0K270 · 48811-0K360 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-0K050 · 48815-0K090 · 48815-0K120 |
| 48817 | Front stabilizer bar cushion | 90948-T1002 |
| 48817A | Crash pad block No. 1 (for front stabilizer bar) | 90948-T2002 |
| 48820B | Right front stabilizer bar link assembly | 48820-0K010 · 48820-0K030 · 48820-0K040 · 48820-0K060 · 48820-0K061 |
| 48824 | front stabilizer bar bracket | 48824-0K010 · 48824-KK010 |
