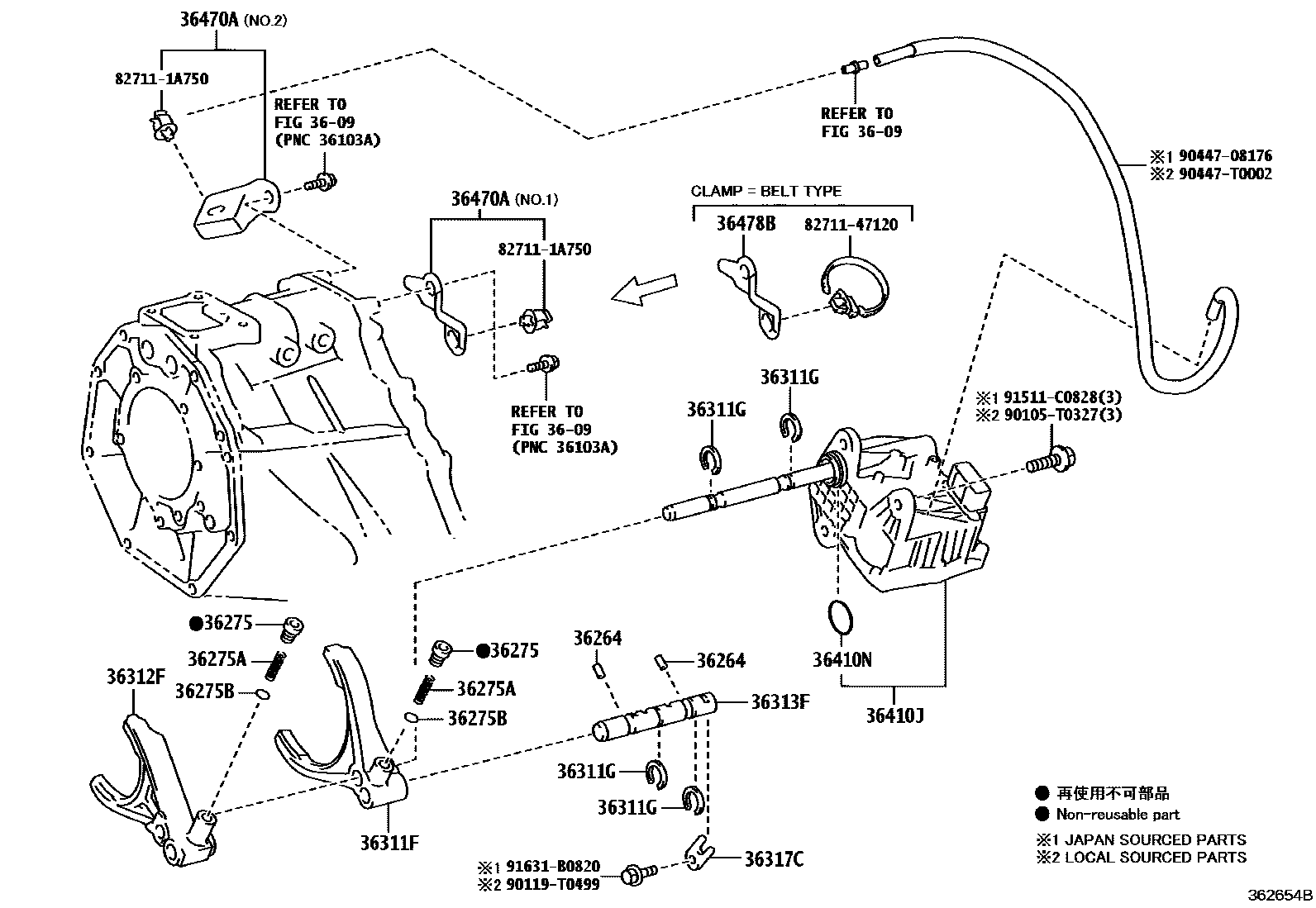

Toyota HILUX Transfer Lever & Shift Fork Shaft — Figure 3611
Toyota HILUX EPC diagram 3611, Transfer Lever & Shift Fork Shaft, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 36264 | Shift interlock pin or roller | 90250-06007 |
| 36275 | Gear shift lock steel ball spring plug | 33593-35030 |
| 36275A | Compression spring (for shift lock steel ball) | 90501-18091 · 90501-T0042 |
| 36275B | Gear shift lock steel ball | 90360-10003 · 90360-T0008 |
| 36311F | No. 1 transfer case shift fork | 36311-0K011 · 36311-34011 |
| 36311G | Shaft snap ring (for transfer case shift fork) | 90520-13002 · 90520-T0237 |
| 36312F | No. 2 transfer case shift fork | 36312-0K011 · 36312-34011 |
| 36313F | Transfer case front wheel drive shift fork shaft | 36313-0K030 · 36313-34011 |
| 36317C | Transfer case shift shaft limiter | 36317-0K020 · 36317-35041 |
| 36410J | Transfer case shift actuator assembly | 36410-0K010 · 36410-0K020 · 36410-71010 · 36410-71020 |
| 36410N | O-ring (for transfer case shift actuator) | 90301-28013 · 90301-T0066 |
| 36470A | Transfer case breather bracket assembly | 36470-0K010 · 36470-0K020 · 36470-71010 · 36470-71020 |
| 36478B | Transfer case breather bracket | 36478-71060 |
