Toyota HILUX 真空泵 — Figure 1905

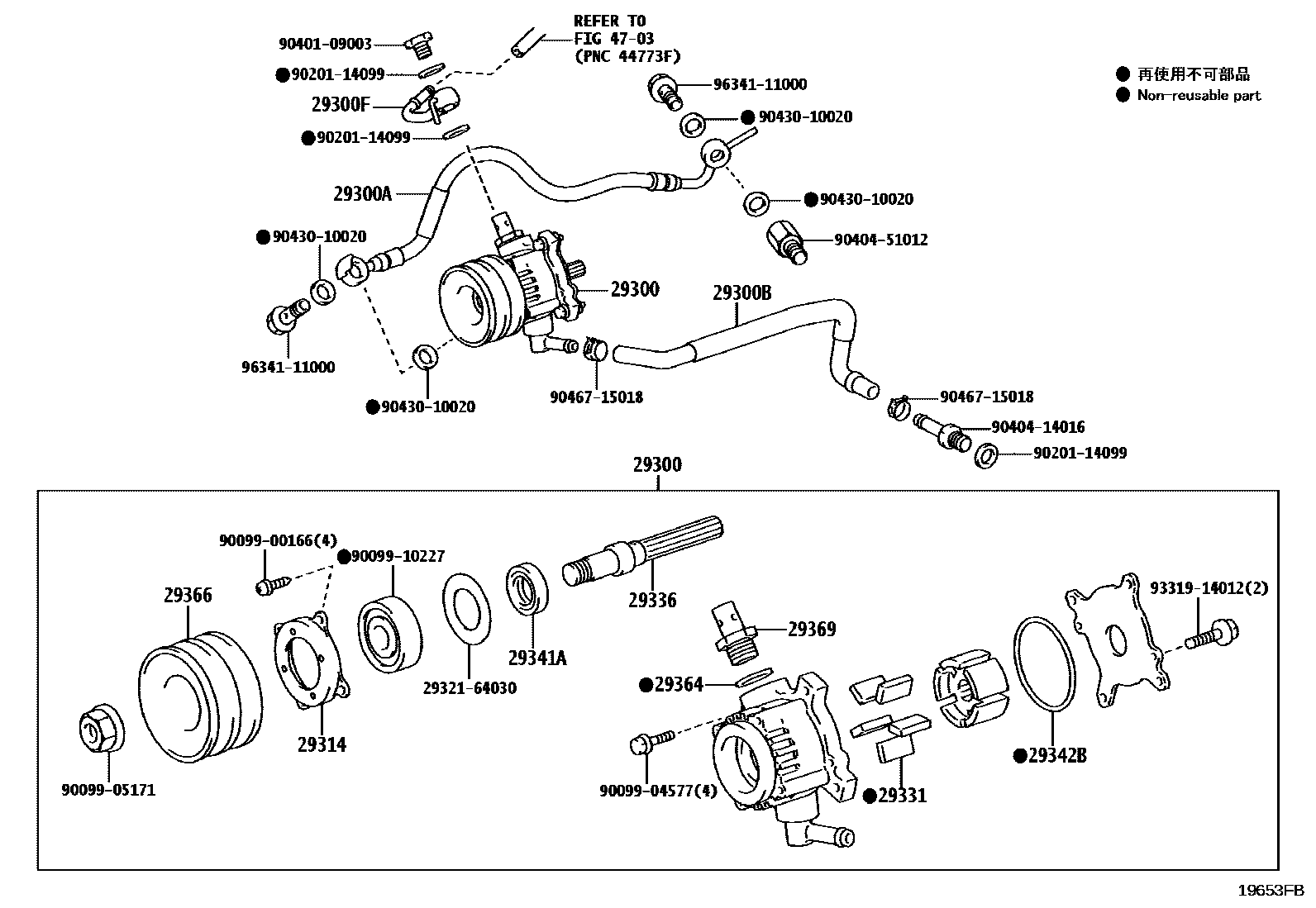

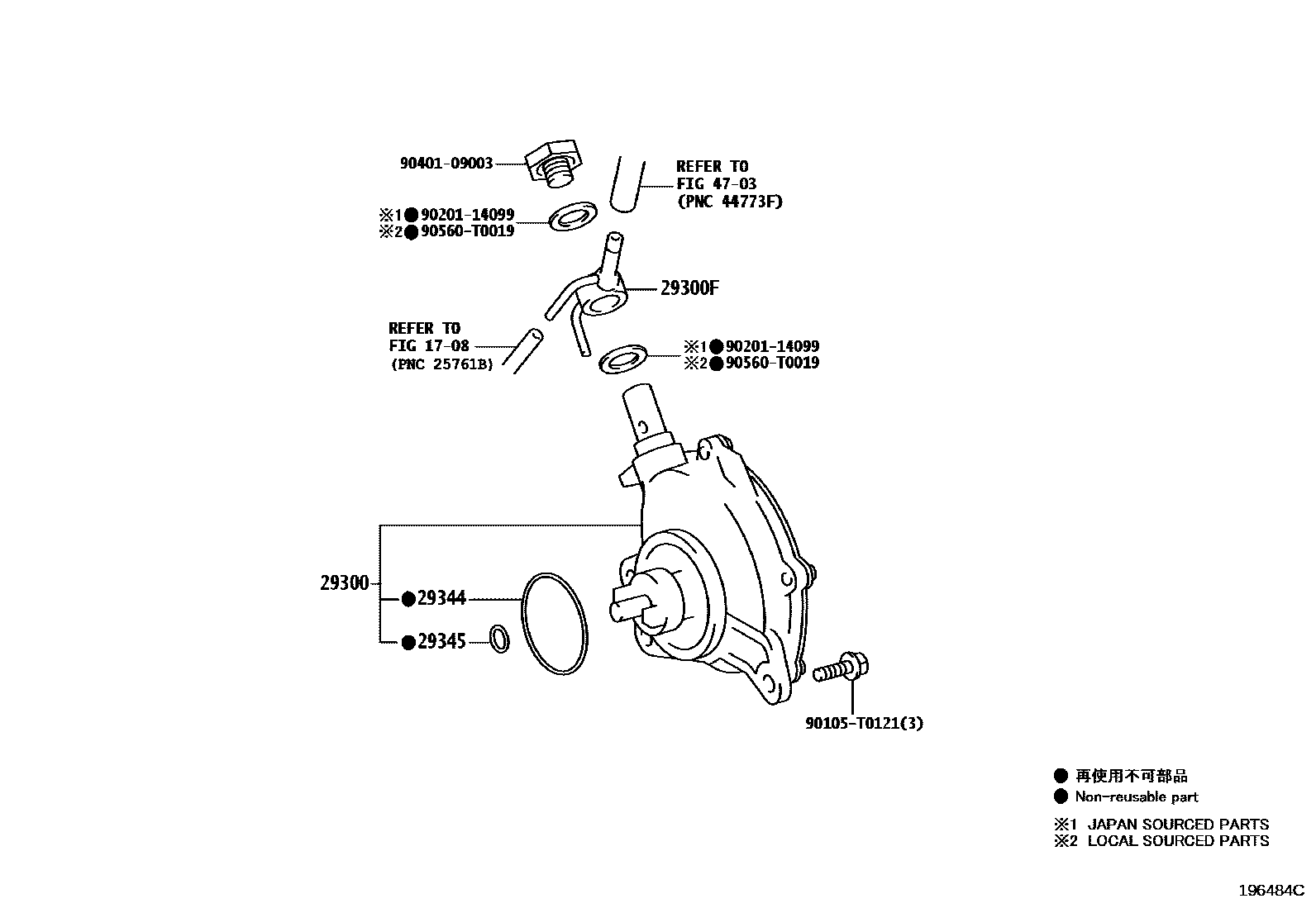

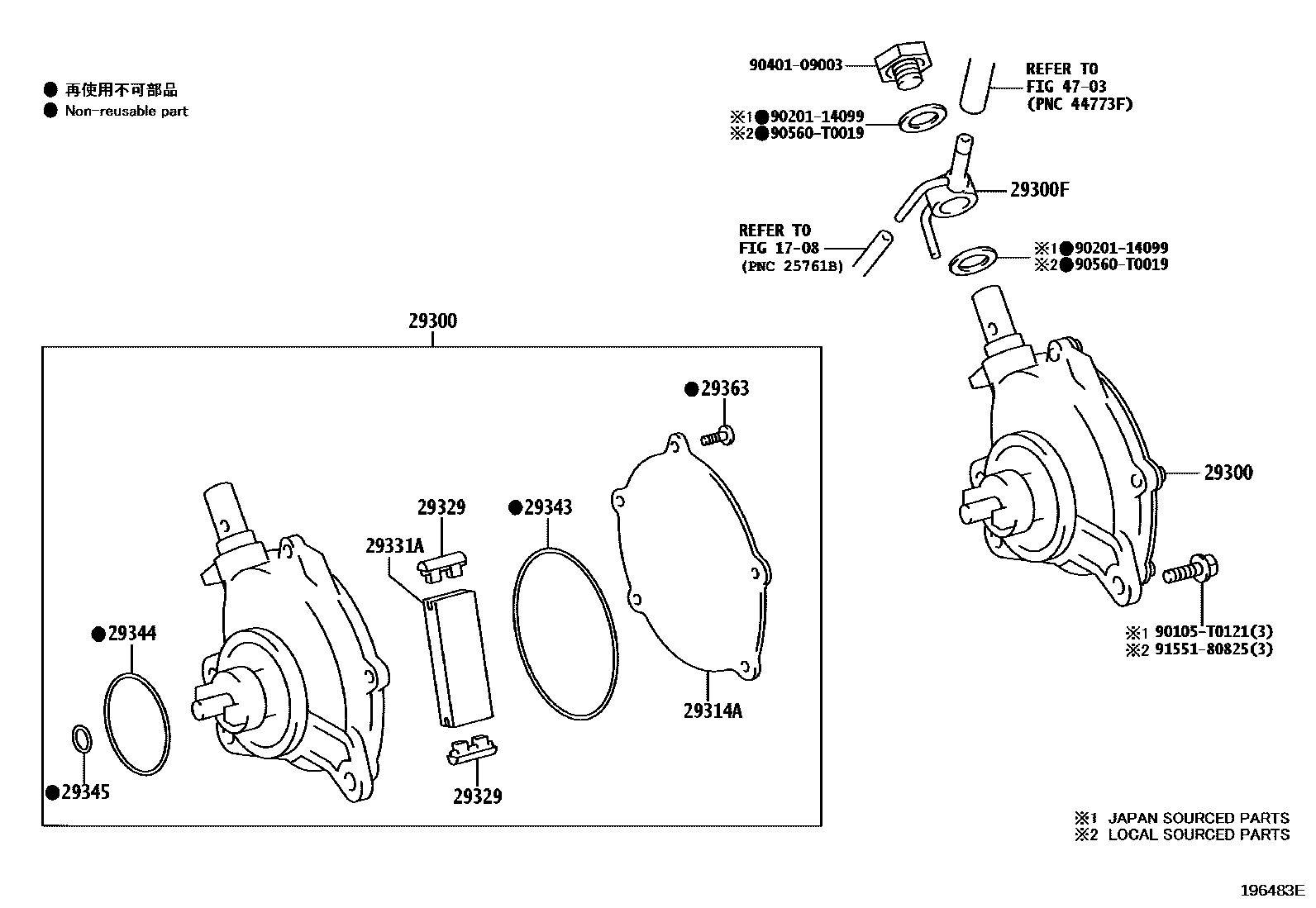

Toyota HILUX EPC diagram 1905, 真空泵, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 29300 | Vacuum pump assembly | 29300-08010 · 29300-0E011 · 29300-0E020 · 29300-11021 · 29300-35010 · 29300-54180 |
| 29300A | Vacuum pump oil inlet hose | 90923-02118 |
| 29300B | Vacuum pump oil hose | 29611-54100 |
| 29300F | Connector | 90405-09180 · 90405-09194 · 90405-T0001 · 90405-T0005 |
| 29314 | retaining ring | 29314-64030 |
| 29314A | end cap | 29314-0E010 · 29314-11020 |
| 29329 | Vane vacuum pump cover | 29329-0E010 · 29329-37010 |
| 29331 | Vacuum pump A blade | 29331-54130 |
| 29331A | vacuum pump blades | 29331-0E010 · 29331-11020 |
| 29336 | Vacuum pump shaft | 29336-64031 |
| 29341A | Oil seal | 29341-64030 |
| 29342B | O-ring | 29342-64030 |
| 29343 | Vacuum pump No. 1 O-ring | 29343-0E010 · 29343-11020 |
| 29344 | Vacuum pump No. 2 O-ring | 29344-0E010 · 29344-0E020 · 29344-22011 |
| 29345 | Vacuum pump No. 3 O-ring | 29345-0E010 · 29345-0E020 · 29345-22011 |
| 29363 | Hollow vacuum pump screws | 29363-0E010 · 29363-25010 |
| 29364 | vacuum pump gasket | 29364-66010 |
| 29366 | Vacuum pump pulley | 29366-54110 |
| 29369 | One-way valve sub-assembly | 29369-64030 |
