Toyota HILUX Engine Overhaul Gasket Kit — Figure 1103
Toyota HILUX EPC diagram 1103, Engine Overhaul Gasket Kit, with 14 images and 2 PNC and OE references.

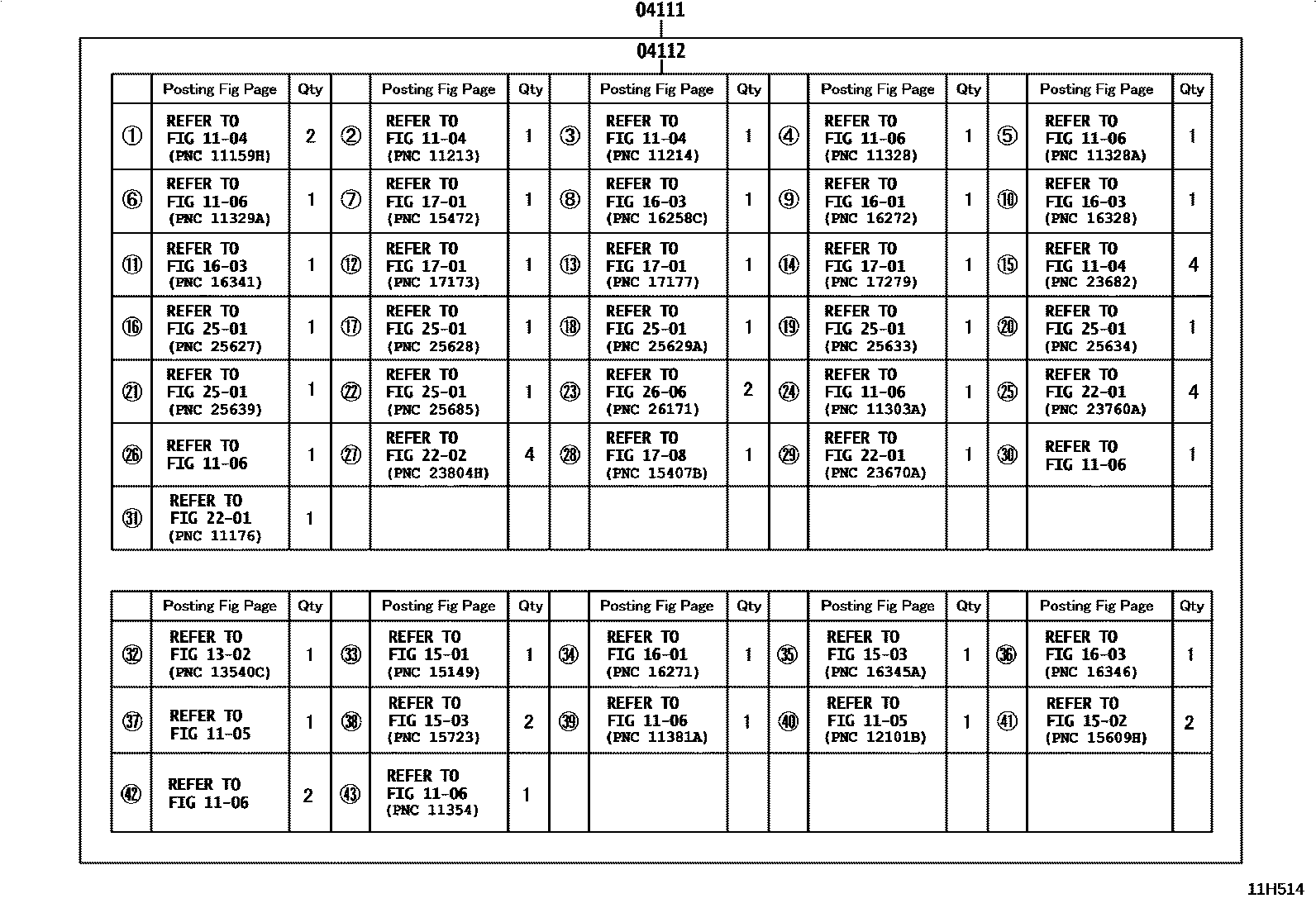

Engine Overhaul Gasket Kit — 11H514 (202308 – 999999)

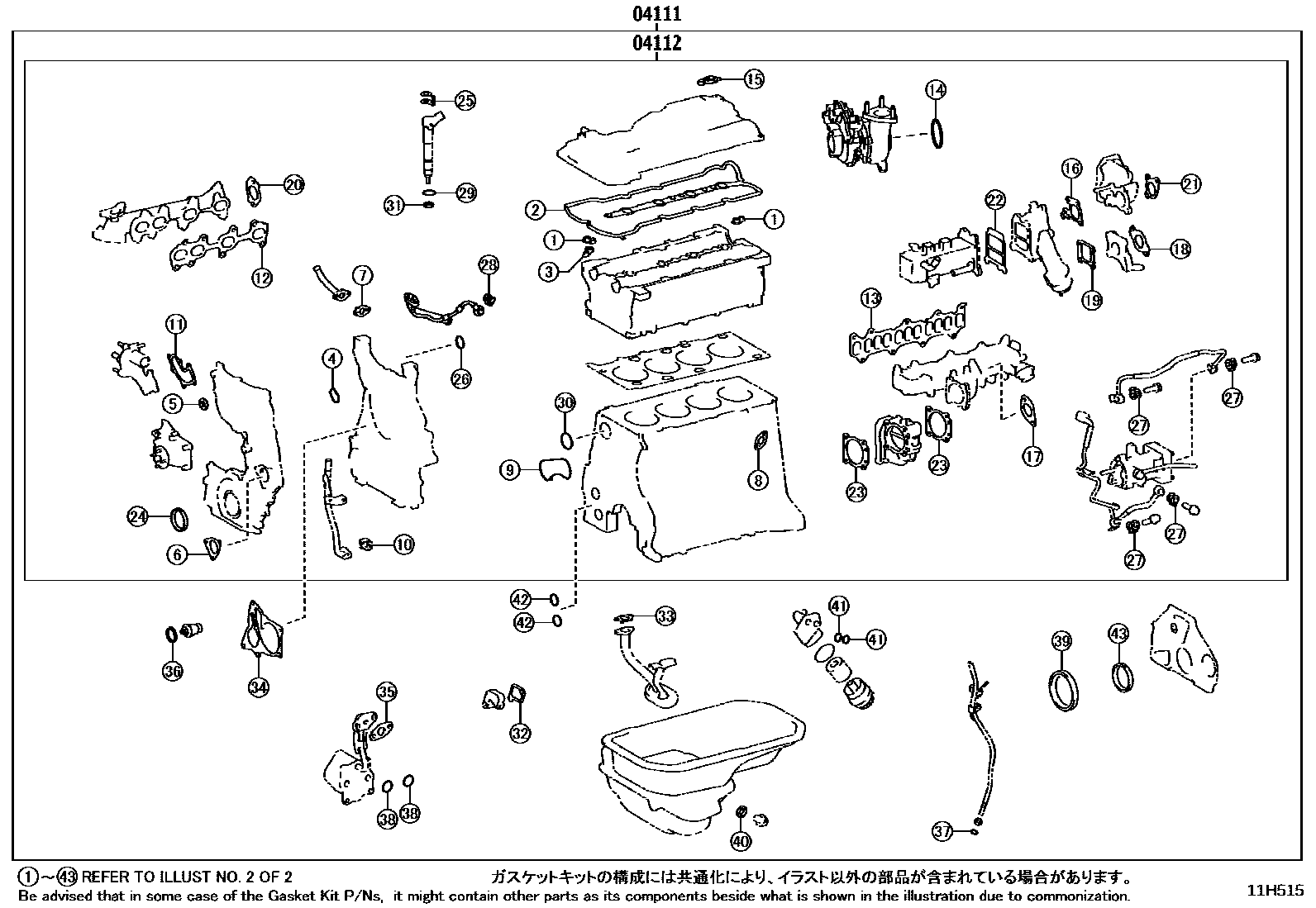

Engine Overhaul Gasket Kit — 11H515 (202308 – 999999)

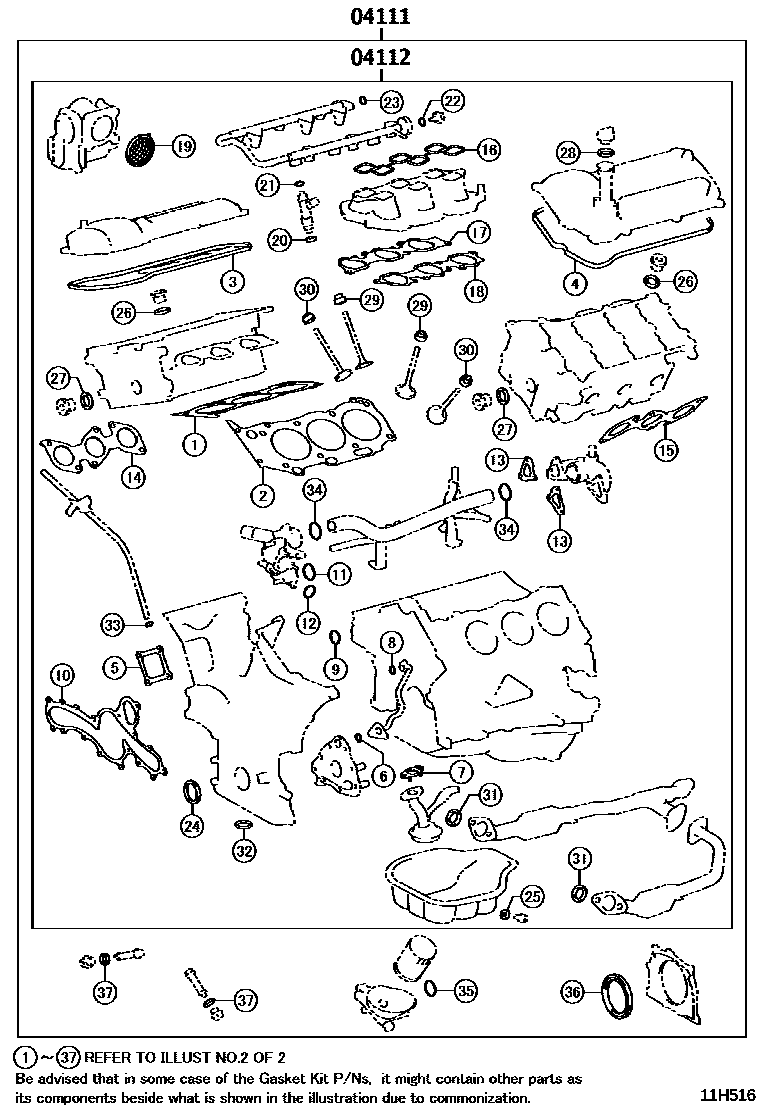

Engine Overhaul Gasket Kit — 11H516 (202308 – 999999)

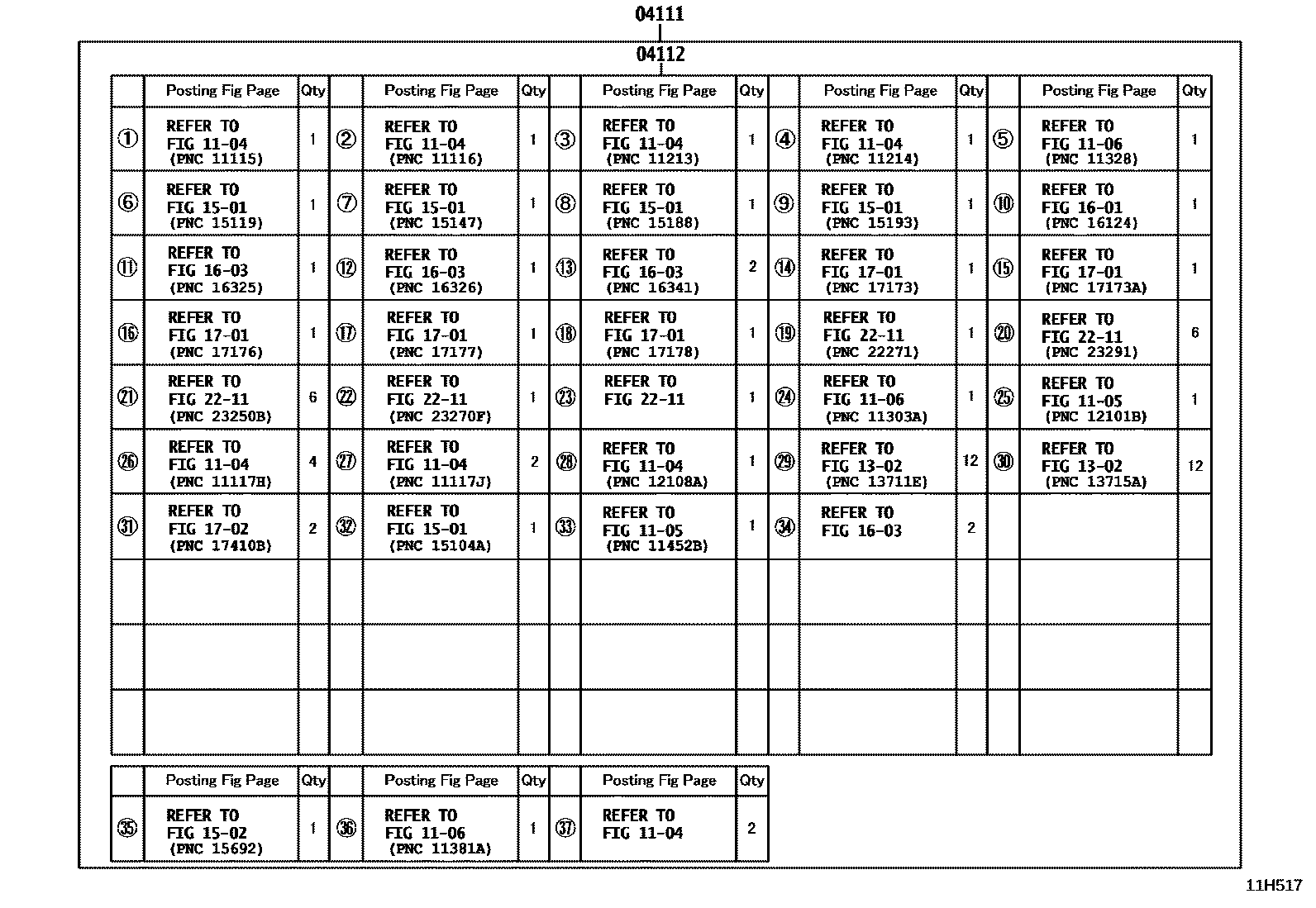

Engine Overhaul Gasket Kit — 11H517 (202308 – 999999)

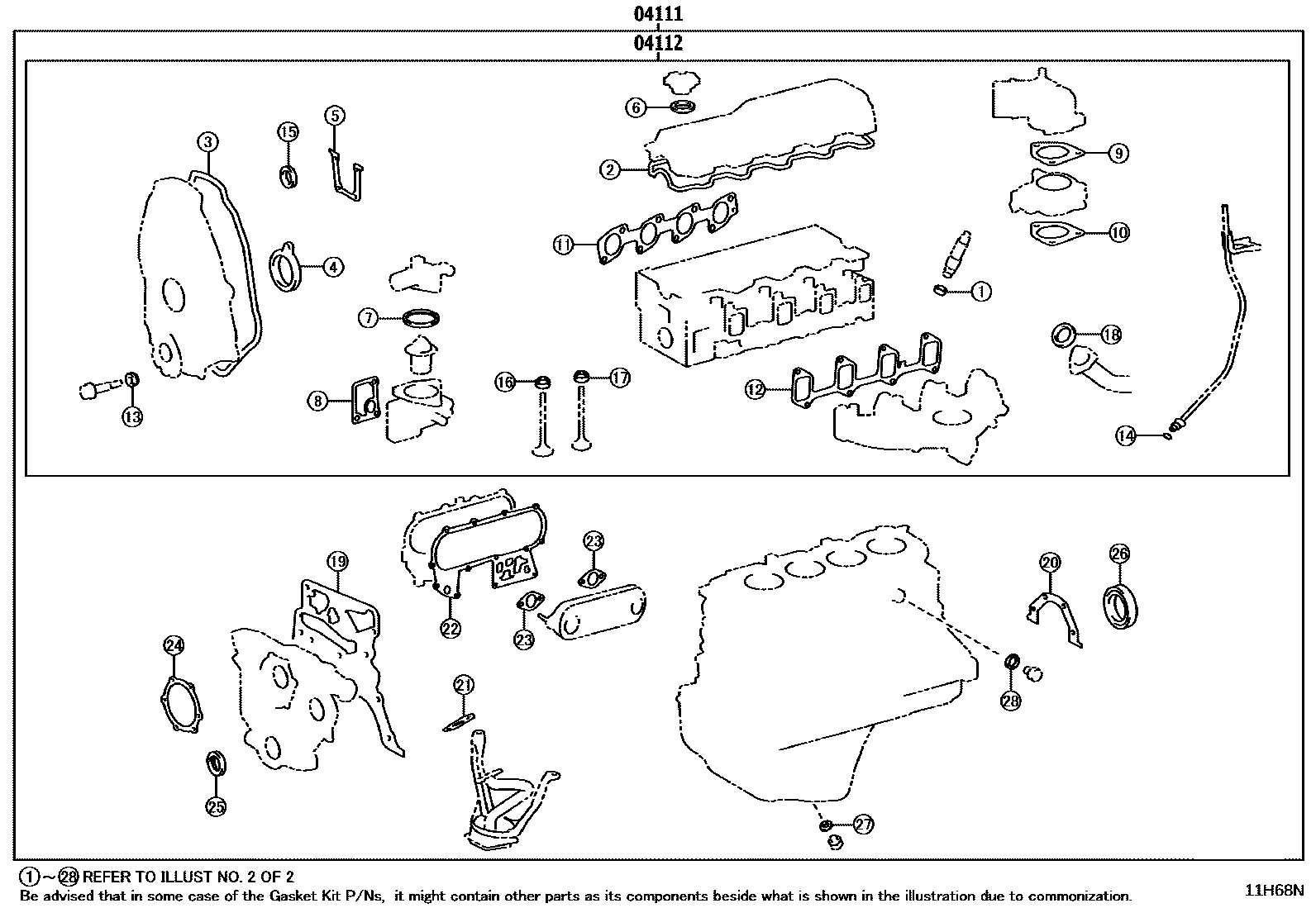

Engine Overhaul Gasket Kit — 11H68N (202402 – 999999)

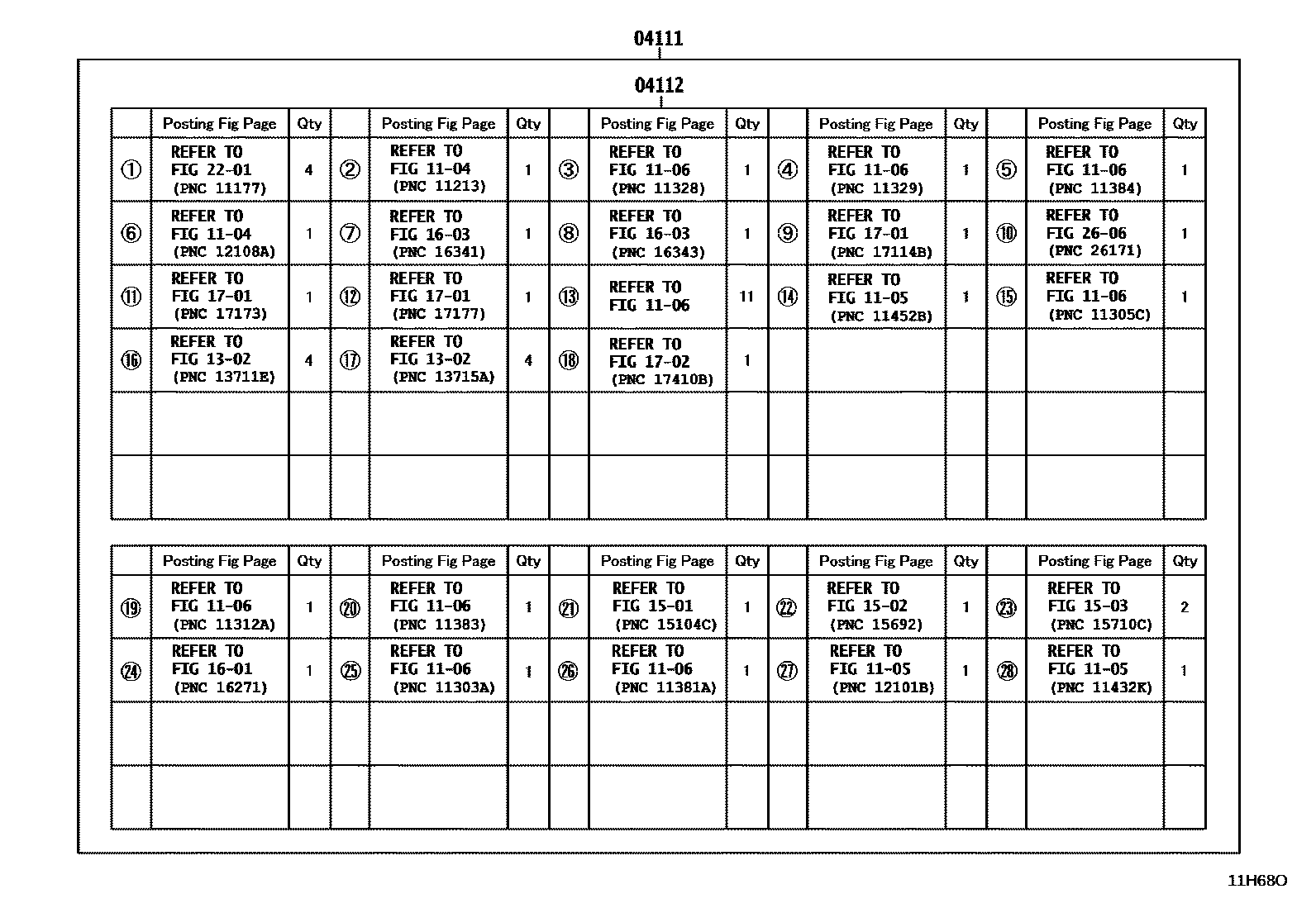

Engine Overhaul Gasket Kit — 11H68O (202402 – 999999)

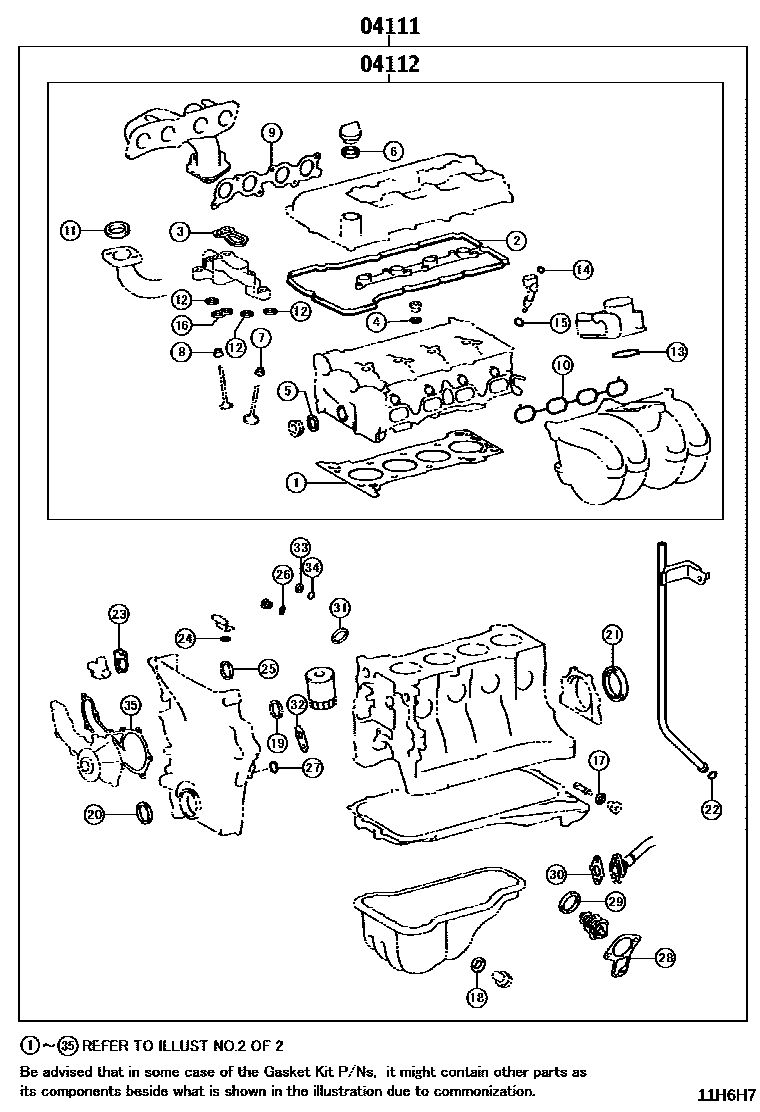

Engine Overhaul Gasket Kit — 11H6H7 (202308 – 999999)

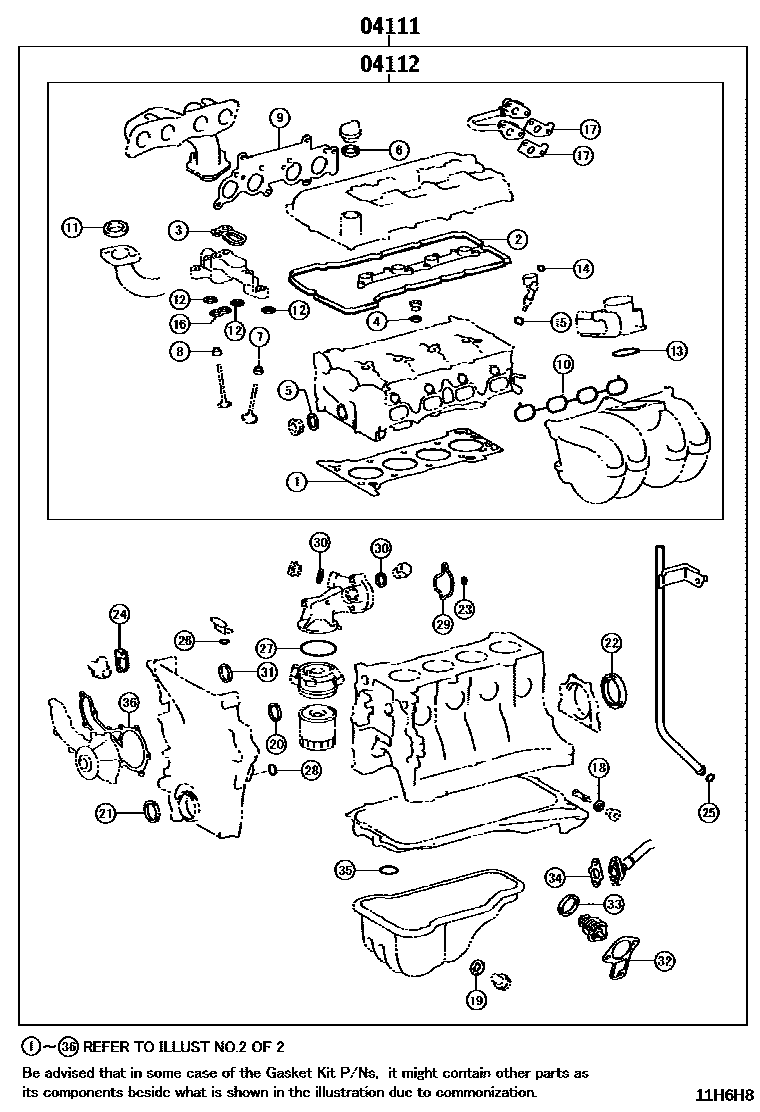

Engine Overhaul Gasket Kit — 11H6H8 (202308 – 999999)

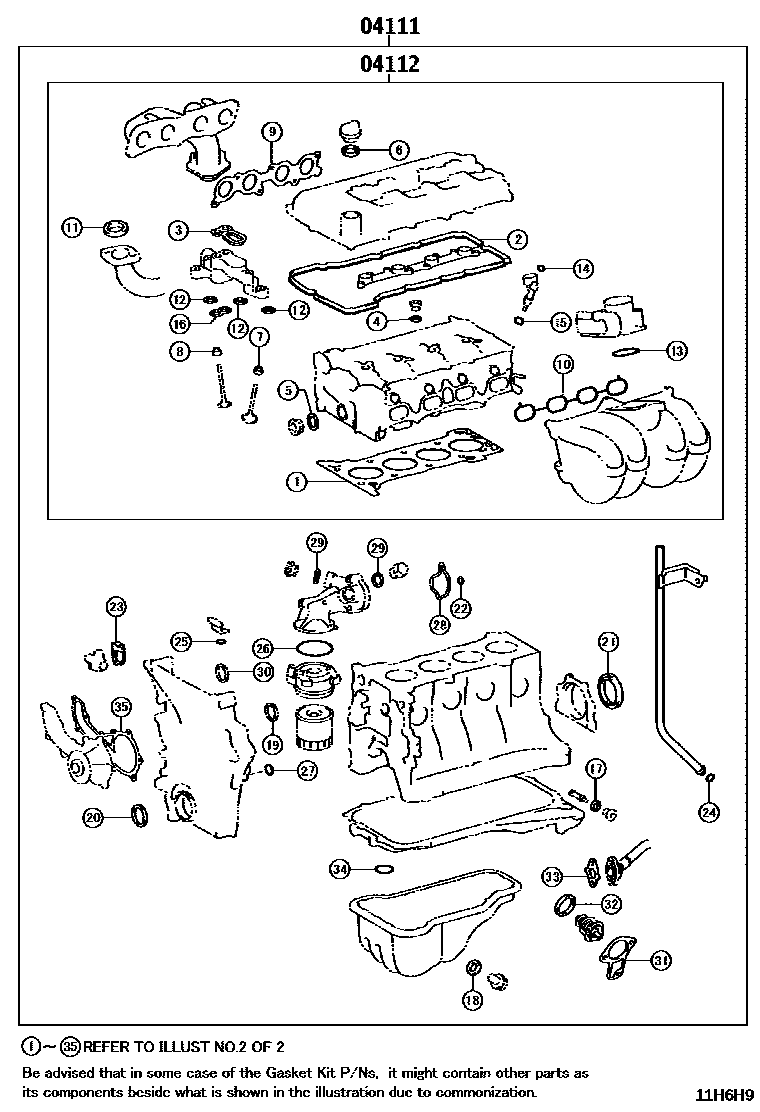

Engine Overhaul Gasket Kit — 11H6H9 (202308 – 999999)

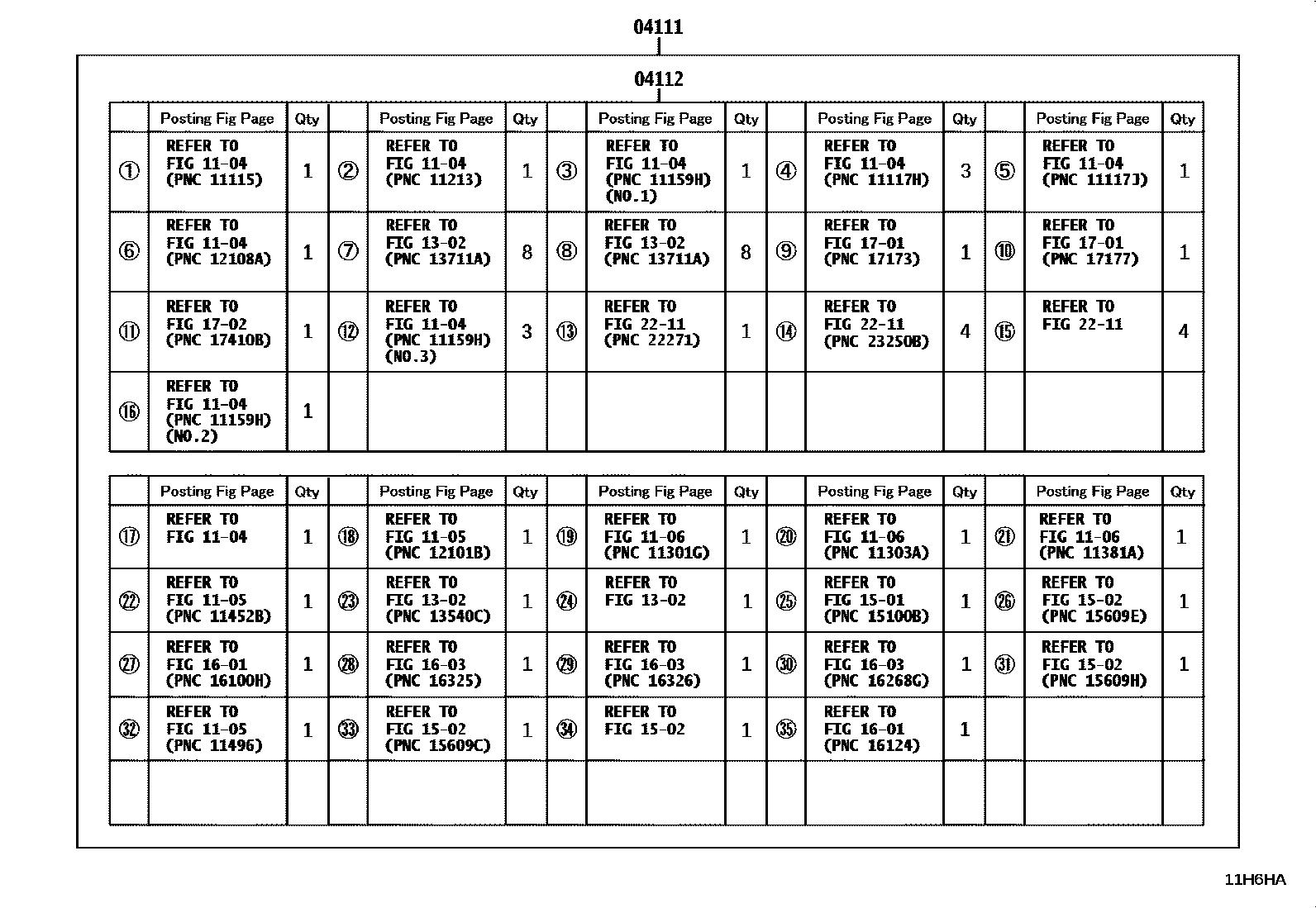

Engine Overhaul Gasket Kit — 11H6HA (202308 – 999999)

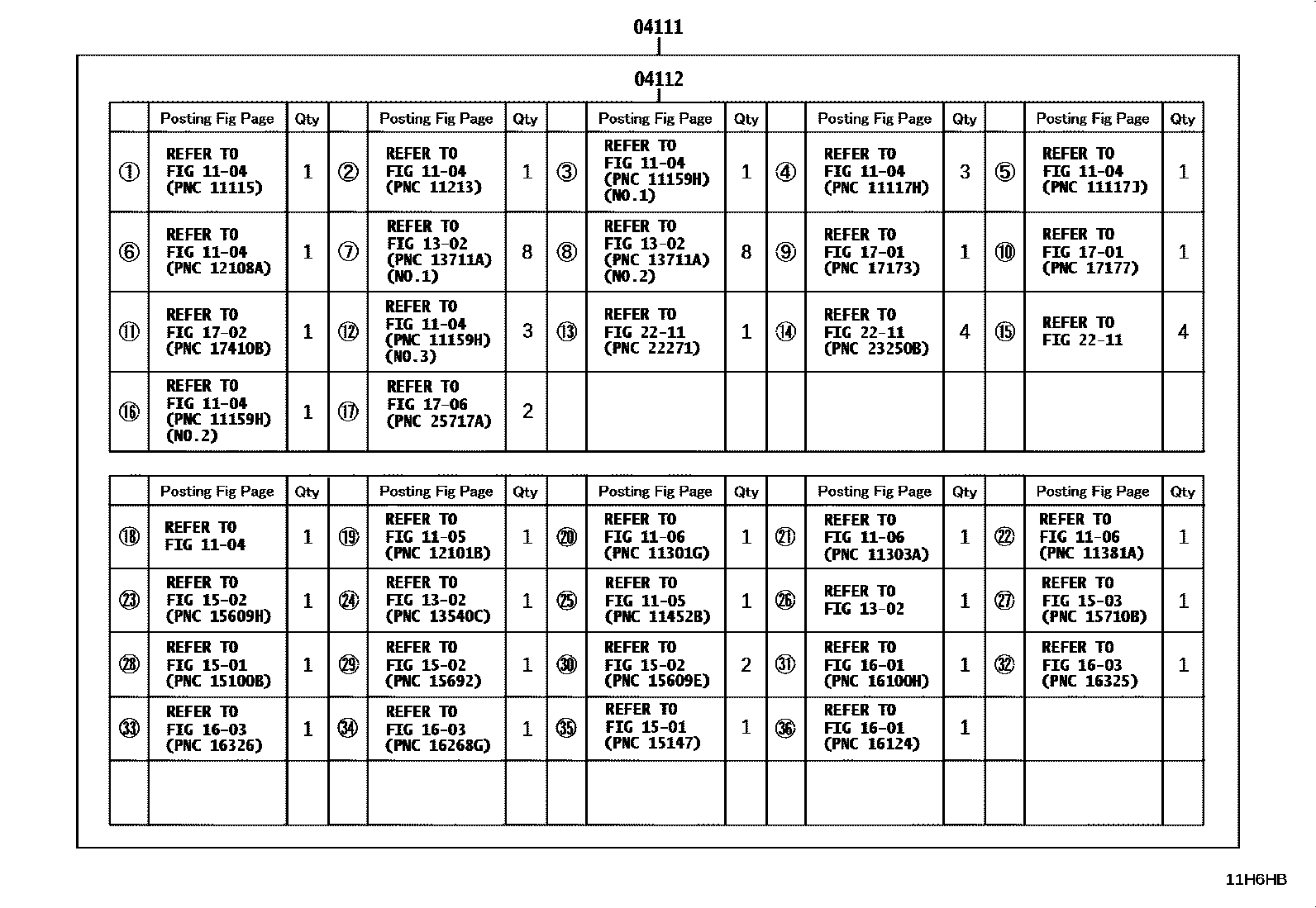

Engine Overhaul Gasket Kit — 11H6HB (202308 – 999999)

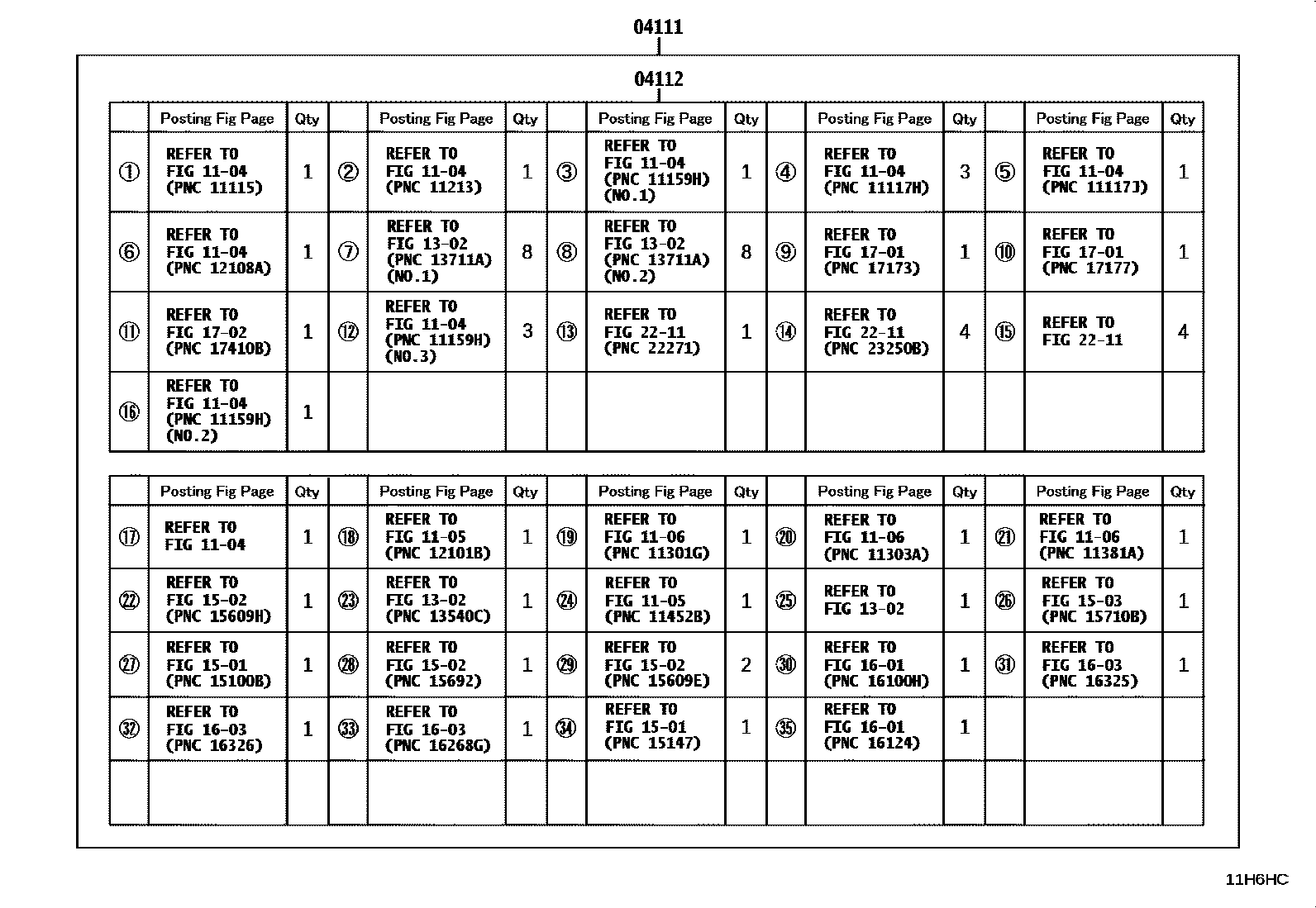

Engine Overhaul Gasket Kit — 11H6HC (202308 – 999999)

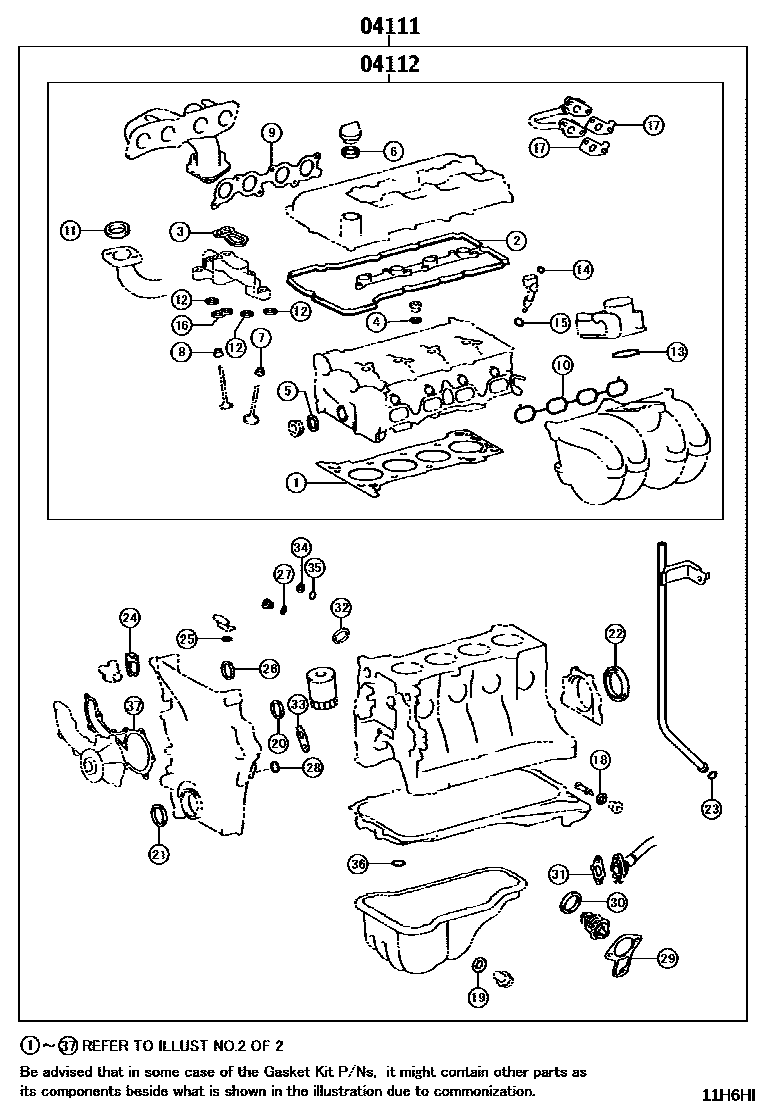

Engine Overhaul Gasket Kit — 11H6HI (202404 – 999999)
Engine Overhaul Gasket Kit — 11H6HJ (202404 – 999999)PNC and OE references
| PNC | Part name | OE numbers |
|---|
| 04111 | Engine overhaul gasket assembly | 04111-0C152 · 04111-0C222 · 04111-0C300 · 04111-0C310 · 04111-0E112 · 04111-0E161 · 04111-0E171 · 04111-0E191 · 04111-0E192 · 04111-0E221 · 04111-0E222 · 04111-0E241 · 04111-0E290 · 04111-31344 · 04111-54600 |
| 04112 | Engine valve grinding pad assembly | 04112-0C120 · 04112-0C130 · 04112-0C140 · 04112-0C170 · 04112-0E112 · 04112-0E161 · 04112-0E171 · 04112-0E191 · 04112-0E221 · 04112-0E241 · 04112-0E290 · 04112-31125 · 04112-54510 |
