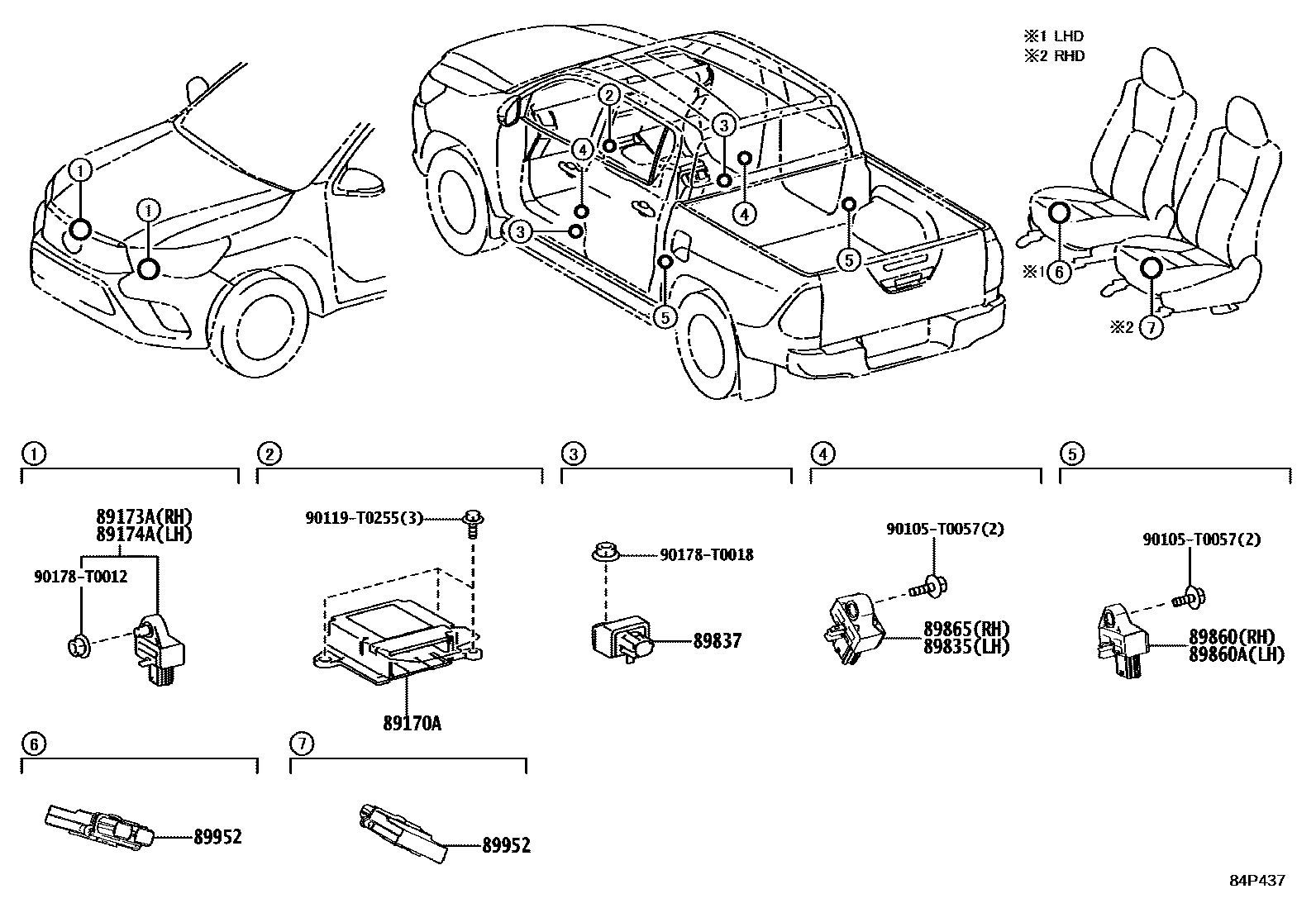

Toyota HILUX 空气囊 — Figure 8421
Toyota HILUX EPC diagram 8421, 空气囊, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-0K240 · 89170-0K400 · 89170-0K420 · 89170-0K510 · 89170-0K610 · 89170-0K710 · 89170-0K720 · 89170-0K780 · 89170-0K841 · 89170-0K851 · 89170-0KA60 · 89170-0KB20 · 89170-0KB30 · 89170-0KB50 · 89170-0KB60 · 89170-0KB80 · 89170-0KC00 · 89170-0KC10 · 89170-0KD00 · 89170-0KD10 · 89170-0KD20 · 89170-0KF60 · 89170-0KF70 · 89170-0KG10 · 89170-0KG30 · 89170-0KG40 · 89170-0KG90 · 89170-0KJ00 · 89170-0KJ20 · 89170-0KK10 |
| 89173A | Right front air bag sensor | 89173-09B20 |
| 89174A | Left front air bag sensor | 89173-09B20 |
| 89835 | Left door side air bag sensor | 89831-0K040 |
| 89837 | Front floor side air bag sensor | 89837-0K010 |
| 89860 | Right side airbag sensor assembly | 89831-0K050 |
| 89860A | Left side air bag sensor assembly | 89831-0K050 |
| 89865 | Right door side air bag sensor | 89831-0K040 |
| 89952 | Occupant detection ECU | 89952-71010 |
