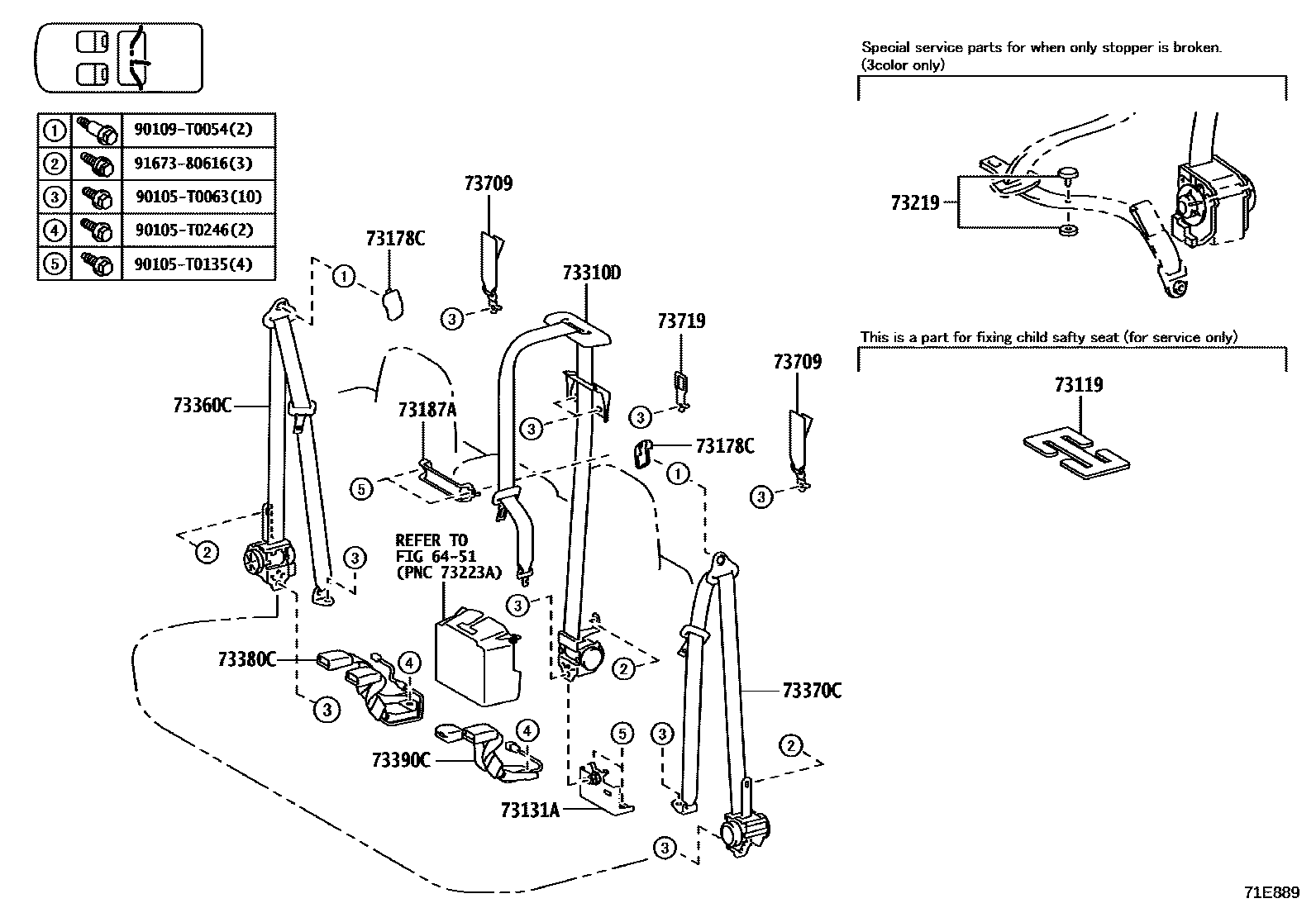

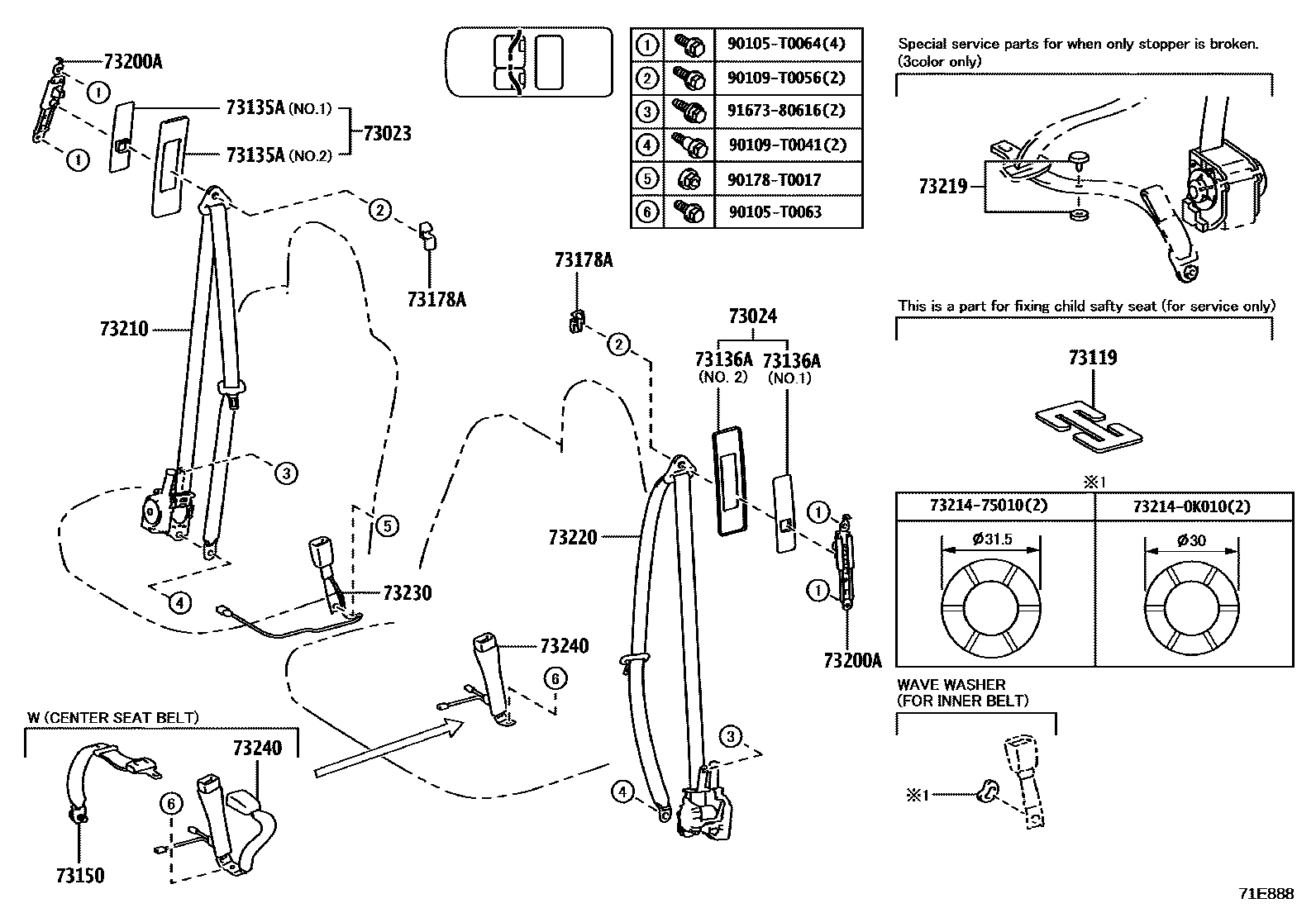

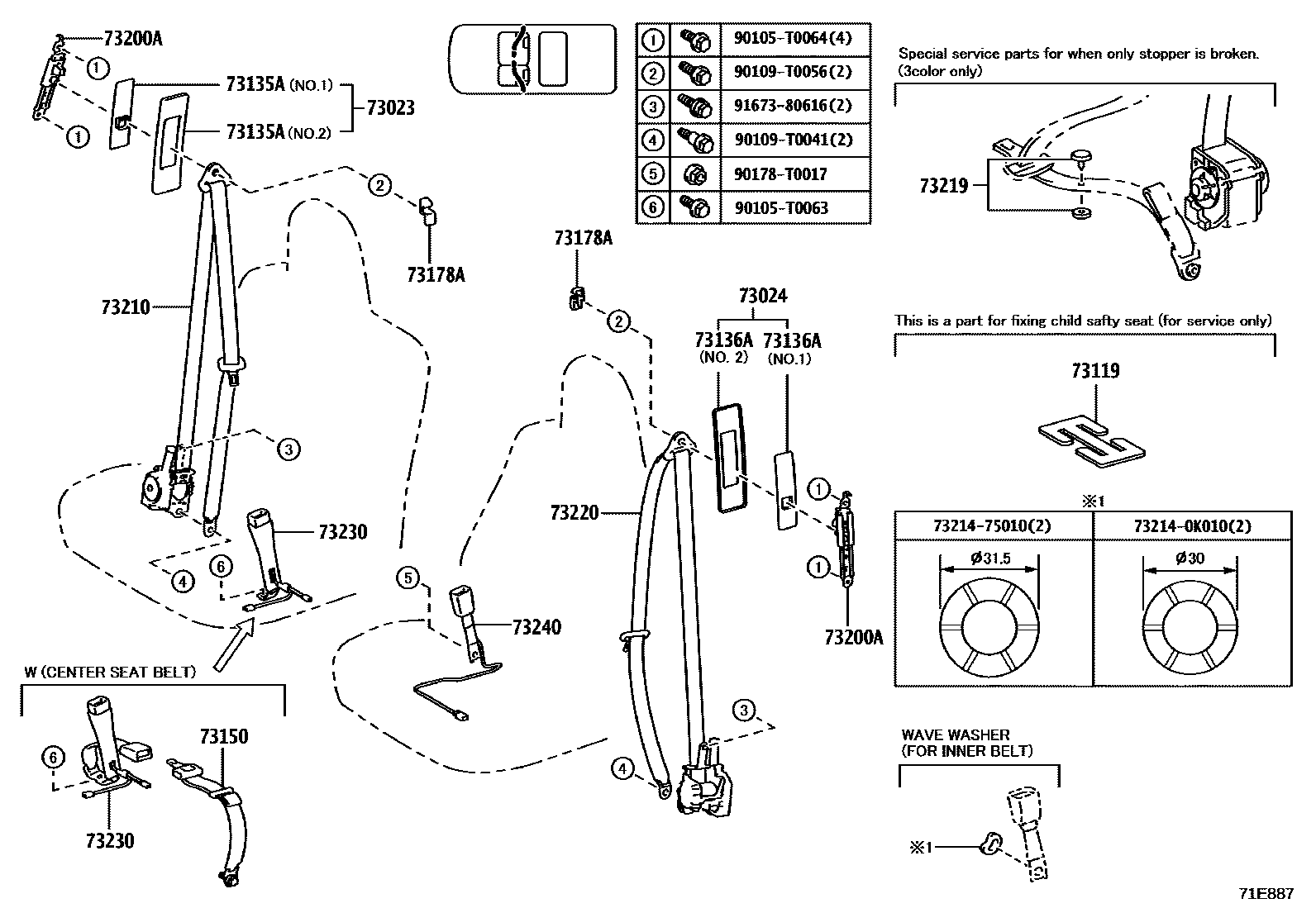

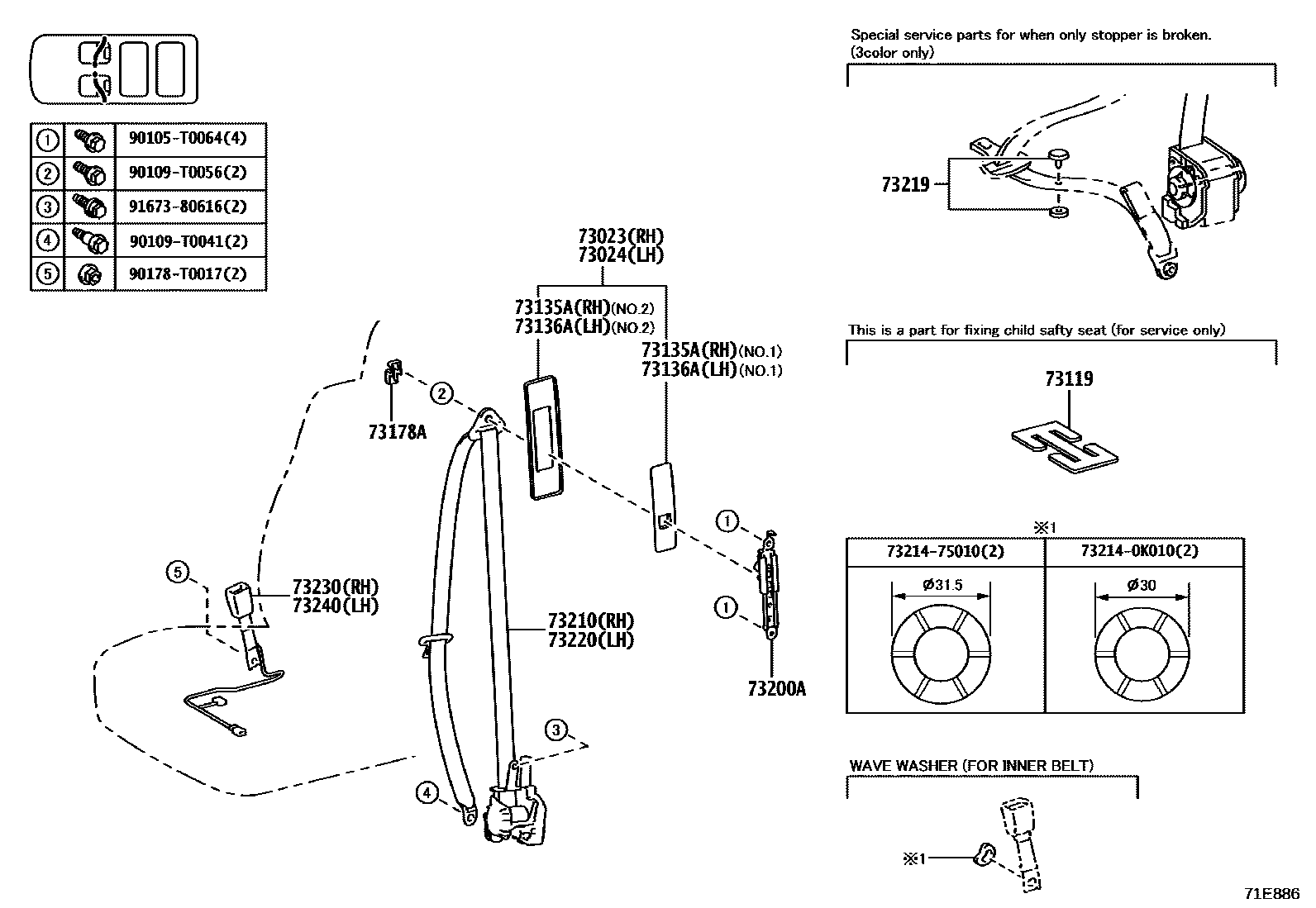

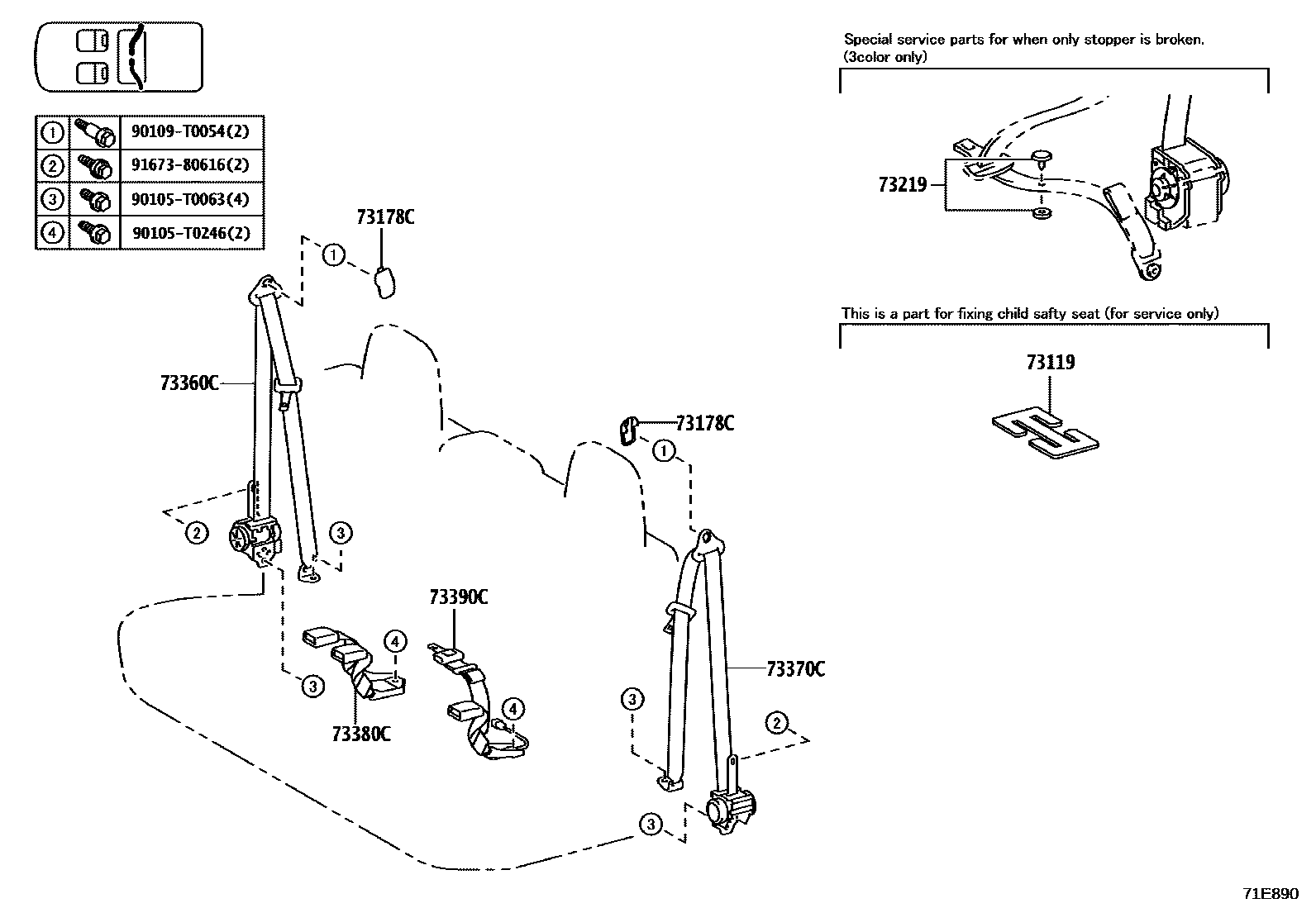

Toyota HILUX seat belt — Figure 7152
Toyota HILUX EPC diagram 7152, seat belt, with 5 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73119 | seat belt clip | 73119-22010 |
| 73131A | seat belt bracket | 73131-0K010 · 73131-0K020 |
| 73187A | Rear seat shoulder belt guides | 73187-KK020 |
| 73219 | Tongue plate stop | 73219-33010 · 73219-33020 · 73219-33030 |
| 73709 | Tie anchor bracket sub-assembly | 73709-0K010 · 73709-0K020 · 73709-0K030 |
| 73719 | Child restraint seat tether anchor bracket | 73719-0K010 · 73719-0K020 · 73719-0K030 |
