Toyota HILUX Steering Column & Shaft — Figure 4501

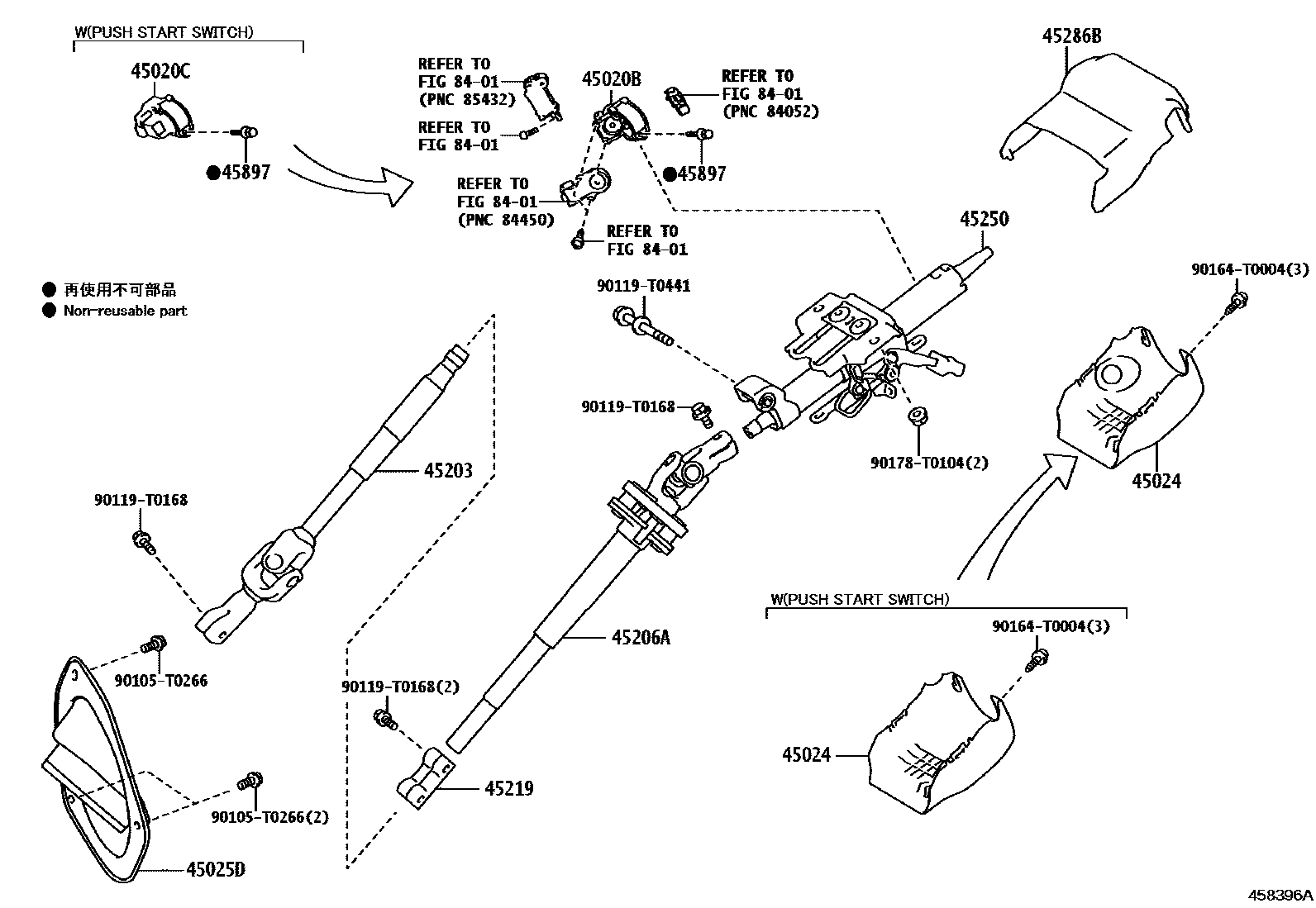

Toyota HILUX EPC diagram 4501, Steering Column & Shaft, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020B | Steering lock actuator or upper bracket assembly | 45280-0K120 · 45280-0K180 |
| 45020C | Steering lock actuator assembly with ECU | 45020-0K240 · 45020-0K260 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-KK010 · 45025-KK020 · 45025-KK030 · 45025-KK040 |
| 45203 | No. 2 steering intermediate shaft sub-assembly | 45203-0K150 · 45203-0K160 · 45203-0K180 · 45203-0K190 · 45203-0K200 |
| 45206A | Steering slip fork sub-assembly with coupling | 45206-0K080 · 45206-0K120 · 45206-0K140 |
| 45219 | steering fork | 45219-0K090 · 45219-0K100 |
| 45250 | Steering column assembly | 45250-0K060 · 45250-0K070 · 45250-0K080 · 45250-0K100 · 45250-0K110 · 45250-0K120 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
