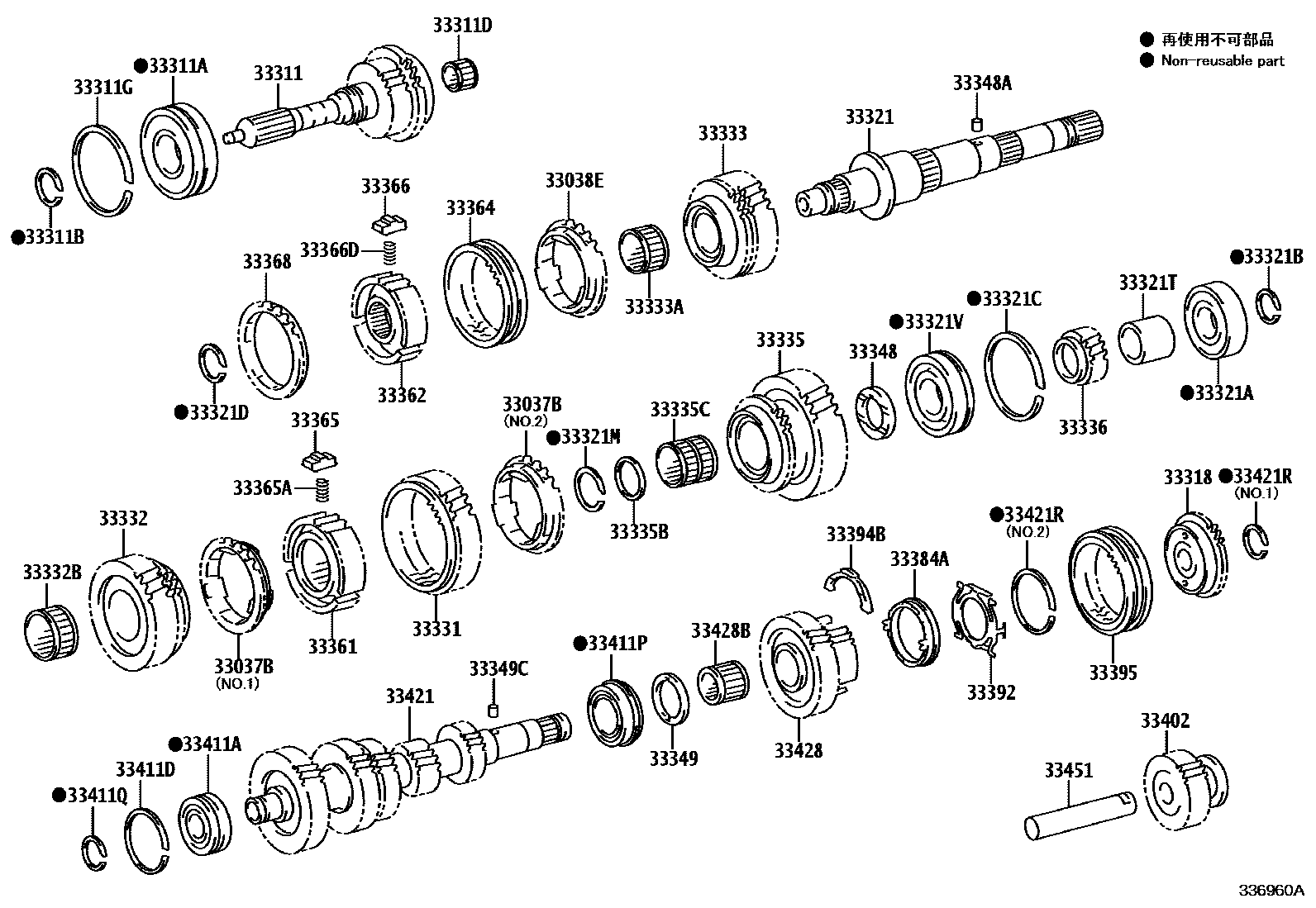

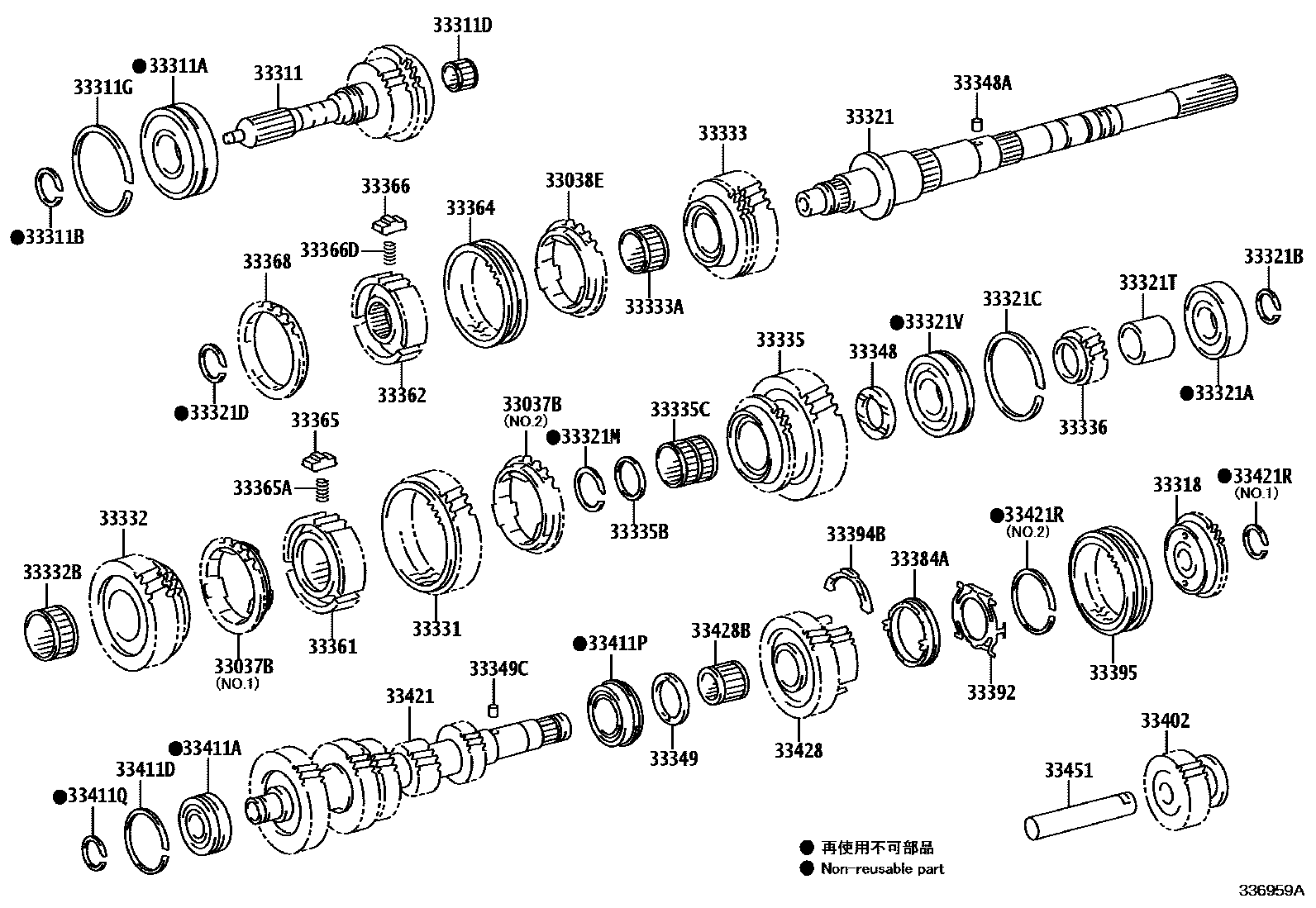

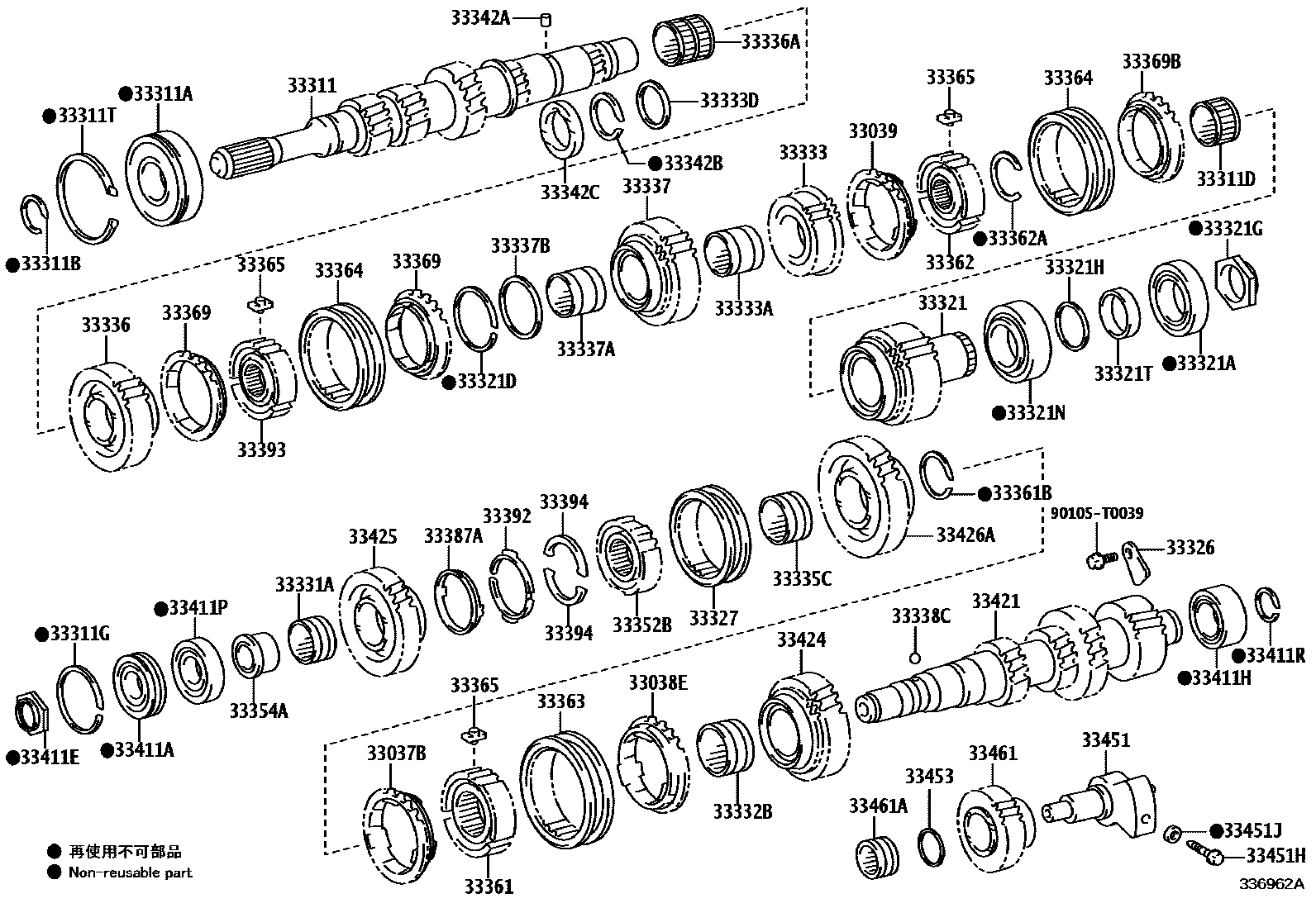

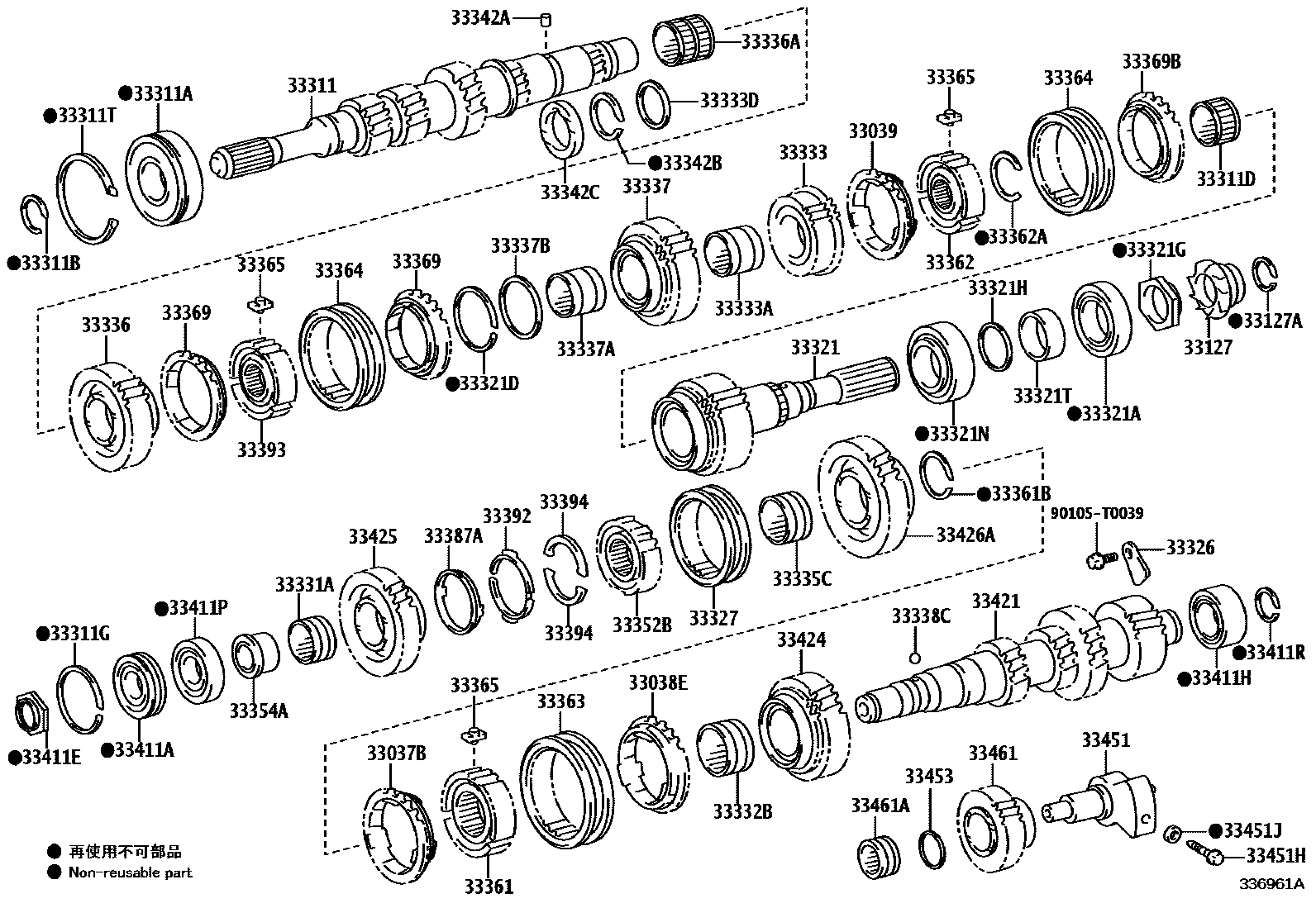

Toyota HILUX 变速器齿轮(MTM) — Figure 3305
Toyota HILUX EPC diagram 3305, 变速器齿轮(MTM), with 4 images and 91 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33037B | No. 1 synchronizer lock ring assembly | 33037-0K010 · 33037-0K030 · 33037-0K070 · 33037-0K130 · 33037-0K140 |
| 33038E | No. 2 synchronizer lock ring assembly | 33038-0K010 · 33038-0K030 · 33038-0K040 · 33038-0K080 · 33038-0K090 |
| 33039 | No. 3 synchronizer lock ring assembly | 33369-0K010 · 33369-0K030 |
| 33127 | Transmission oil guide | 33127-0K010 |
| 33127A | Snap ring (for output shaft) | 90520-33029 |
| 33311 | input shaft | 33301-0K052 · 33301-0K090 · 33311-0K070 · 33311-0K080 |
| 33311A | Bearing (for front input shaft) | 90363-T0030 · 90363-T0041 · 90363-T0048 |
| 33311B | Shaft snap ring (for front bearing) | 90520-38008 · 90520-38009 · 90520-38010 · 90520-38011 · 90520-38012 · 90520-38013 · 90520-38014 · 90520-T0142 · 90520-T0143 · 90520-T0144 · 90520-T0145 · 90520-T0146 · 90520-T0147 · 90520-T0239 · 90520-T0240 · 90520-T0241 · 90520-T0242 · 90520-T0243 · 90520-T0244 · 90520-T0245 |
| 33311D | Input shaft bearing | 90364-T0014 · 90364-T0024 · 90364-T0038 |
| 33311G | Shaft snap ring (for front bearing) | 90520-67003 · 90520-88001 · 90520-T0141 · 90520-T0284 |
| 33311T | Shaft snap ring (for input shaft) | 90520-81008 |
| 33318 | No. 5 gear spline | 33318-0K040 · 33318-0K060 |
| 33321 | output shaft | 33302-0K010 · 33302-0K020 · 33302-0K030 · 33302-0K040 · 33321-0K061 · 33321-0K071 · 33321-0K121 · 33321-0K131 |
| 33321A | Bearings (for rear output shaft) | 90363-T0032 · 90363-T0049 · 90366-T0074 · 90366-T0129 |
| 33321B | Shaft snap ring (for output shaft bearing) | 90520-28031 · 90520-28032 · 90520-28033 · 90520-28034 · 90520-28035 · 90520-28037 · 90520-28039 · 90520-28042 · 90520-28043 · 90520-28045 · 90520-28046 · 90520-28047 · 90520-28048 · 90520-28049 · 90520-28050 · 90520-28051 · 90520-28052 · 90520-T0252 · 90520-T0253 · 90520-T0254 · 90520-T0255 · 90520-T0256 · 90520-T0257 · 90520-T0258 · 90520-T0259 · 90520-T0260 · 90520-T0261 · 90520-T0262 · 90520-T0263 · 90520-T0264 · 90520-T0265 · 90520-T0266 · 90520-T0267 · 90520-T0268 |
| 33321C | Shaft snap ring (for output shaft bearing) | 90520-T0285 |
| 33321D | Shaft snap ring (for clutch hub assembly) | 90520-30014 · 90520-30015 · 90520-30016 · 90520-30017 · 90520-30018 · 90520-30019 · 90520-30020 · 90520-T0148 · 90520-T0149 · 90520-T0150 · 90520-T0151 · 90520-T0152 · 90520-T0153 · 90520-T0276 · 90520-T0277 · 90520-T0278 · 90520-T0279 · 90520-T0280 · 90520-T0281 · 90520-T0282 |
| 33321G | Nut (used to secure the manual transmission rear output shaft) | 90179-48004 |
| 33321H | Spacer (for output shaft rear bearing) | 90564-T0020 · 90564-T0021 · 90564-T0022 · 90564-T0023 · 90564-T0024 · 90564-T0025 · 90564-T0026 · 90564-T0027 · 90564-T0028 · 90564-T0029 · 90564-T0030 · 90564-T0031 · 90564-T0032 · 90564-T0033 · 90564-T0034 · 90564-T0035 · 90564-T0036 · 90564-T0037 · 90564-T0038 · 90564-T0039 · 90564-T0040 · 90564-T0041 · 90564-T0042 · 90564-T0043 · 90564-T0044 · 90564-T0045 · 90564-T0046 · 90564-T0047 · 90564-T0048 · 90564-T0049 · 90564-T0050 · 90564-T0051 · 90564-T0052 · 90564-T0053 · 90564-T0054 · 90564-T0055 · 90564-T0056 · 90564-T0057 · 90564-T0058 · 90564-T0059 · 90564-T0060 · 90564-T0061 · 90564-T0062 · 90564-T0063 · 90564-T0064 · 90564-T0065 · 90564-T0066 |
| 33321M | Shaft snap ring (for bearings) | 90520-36007 · 90520-36008 · 90520-36009 · 90520-36010 · 90520-36011 · 90520-36012 · 90520-36013 · 90520-T0269 · 90520-T0270 · 90520-T0271 · 90520-T0272 · 90520-T0273 · 90520-T0274 · 90520-T0275 |
| 33321N | Bearing (for front output shaft) | 90366-50155 · 90366-T0077 |
| 33321T | Spacer (for output shaft) | 35469-0K040 · 35469-0K050 · 90387-T0007 · 90387-T0010 |
| 33321V | Bearings (for center output shaft) | 90363-T0047 |
| 33326 | Bearing locking plate | 33326-0K010 · 33326-0K020 |
| 33327 | No. 4 transmission hub sleeve | 33327-0K010 · 33327-0K020 |
| 33331 | reverse gear | 33331-0K040 · 33331-0K060 |
| 33331A | Bearing (for reverse gear) | 90364-T0040 |
| 33332 | Second gear | 33033-0K050 · 33033-0K070 |
| 33332B | Needle roller bearing (for second gear gear) | 90364-T0011 · 90364-T0026 · 90364-T0035 |
| 33333 | Third gear | 33034-0K120 · 33034-0K140 · 33034-0K150 · 33034-0K160 |
| 33333A | Needle roller bearing (for third gear) | 90364-T0012 · 90364-T0027 · 90364-T0036 |
| 33333D | Spacer (for third gear) | 90560-T0025 |
| 33335 | first gear | 33032-0K071 · 33032-0K100 |
| 33335B | Spacer (for first gear bearing) | 90560-39002 |
| 33335C | Needle roller bearing (for first gear) | 90364-T0010 · 90364-T0025 · 90364-T0034 |
| 33336 | fifth gear | 33036-0K010 · 33036-0K020 · 33036-0K030 · 33036-0K040 · 33336-0K032 · 33336-0K130 |
| 33336A | Needle roller bearings (for fifth gear) | 90364-45018 · 90364-T0056 |
| 33337 | Sixth speed gear sub-assembly | 33037-0K080 · 33037-0K100 |
| 33337A | Needle roller bearing (for sixth gear) | 90364-T0039 |
| 33337B | Spacer (for sixth gear) | 90560-T0017 |
| 33338C | Reverse gear shift positioning steel ball | 90360-06004 · 90360-T0009 · 90360-T0011 |
| 33342A | Direct sales (for gear thrust washers) | 90250-05026 · 90250-T0021 |
| 33342B | Shaft snap ring (for gear thrust washer) | 90520-T0155 · 90520-T0156 · 90520-T0157 · 90520-T0158 · 90520-T0159 · 90520-T0160 |
| 33342C | Third gear thrust washer | 33342-0K011 |
| 33348 | First gear thrust washer | 33348-0K020 · 33348-0K030 |
| 33348A | Pin or steel ball (for first gear thrust washer) | 90250-05026 |
| 33349 | Fifth gear thrust washer | 33346-0K020 · 33346-0K030 |
| 33349C | Pin (for fifth gear thrust washer) | 90250-05026 |
| 33352B | No. 4 transmission clutch hub | 33352-0K010 |
| 33354A | Reverse gear bearing inner race | 33354-0K010 |
| 33361 | No. 1 transmission clutch hub | 33361-0K050 · 33361-0K070 · 33361-0K090 |
| 33361B | Shaft snap ring (for clutch hub No. 1) | 90520-T0168 · 90520-T0169 · 90520-T0170 · 90520-T0171 · 90520-T0172 · 90520-T0173 |
| 33362 | No. 2 transmission clutch hub | 33362-0K040 · 33362-0K050 |
| 33362A | Shaft snap ring (used to secure the No. 2 clutch hub) | 90520-T0161 · 90520-T0162 · 90520-T0163 · 90520-T0164 · 90520-T0165 · 90520-T0166 |
| 33363 | No. 1 transmission hub sleeve | 33363-0K010 · 33363-0K020 |
| 33364 | No. 2 transmission hub sleeve | 33364-0K030 · 33364-0K040 · 33364-0K050 · 33364-0K060 |
| 33365 | No. 1 synchromesh shift key | 33365-0K020 · 33365-0K030 · 33365-35060 |
| 33365A | compression spring | 90501-08212 · 90501-T0051 · 90501-T0063 |
| 33366 | No. 2 synchromesh shift key | 33365-30060 |
| 33366D | compression spring | 90501-08212 · 90501-T0051 · 90501-T0063 |
| 33368 | Synchronizer lock ring No. 2 | 33368-0K220 · 33368-0K230 |
| 33369 | No. 3 synchronizer lock ring | 33369-0K010 · 33369-0K030 |
| 33369B | No. 4 synchronizer lock ring | 33381-0K020 · 33381-0K030 |
| 33384A | No. 3 synchronizer outer locking ring | 33384-0K011 · 33384-0K031 |
| 33387A | Reverse synchronizer lock ring | 33387-0K020 |
| 33392 | No. 3 synchromesh shift key spring | 33392-0K010 · 33392-35010 · 33392-60040 |
| 33393 | No. 3 transmission clutch hub | 33393-0K010 |
| 33394 | No. 3 synchromesh shift key | 33394-20020 |
| 33394B | No. 3 synchromesh shift key | 33394-0K010 · 33394-0K020 |
| 33395 | No. 3 transmission hub sleeve | 33395-0K050 · 33395-0K060 |
| 33402 | Reverse idler gear sub-assembly | 33402-0K050 · 33402-0K060 |
| 33411A | Bearing or roller (for front countershaft gear) | 90365-T0006 · 90365-T0011 · 90369-T0011 |
| 33411D | No. 1 countershaft gear front bearing snap ring | 90520-56002 |
| 33411E | Nut (for intermediate shaft) | 90179-32002 |
| 33411H | Bearing or roller (for countershaft rear gear) | 90365-T0010 |
| 33411P | intermediate shaft intermediate bearing | 90365-T0007 · 90365-T0009 · 90365-T0012 |
| 33411Q | No. 2 countershaft gear front bearing snap ring | 90520-23057 · 90520-23058 · 90520-23059 · 90520-23060 · 90520-23061 · 90520-23062 · 90520-T0246 · 90520-T0247 · 90520-T0248 · 90520-T0249 · 90520-T0250 · 90520-T0251 |
| 33411R | Countershaft gear rear bearing snap ring | 90520-T0175 · 90520-T0176 · 90520-T0177 · 90520-T0178 · 90520-T0179 · 90520-T0180 · 90520-T0181 |
| 33421 | countershaft gear | 33421-0K082 · 33421-0K100 · 33421-0K110 · 33421-0K120 · 33421-0K130 · 33421-0K160 |
| 33421R | Shaft snap ring (for countershaft rear gear) | 90520-22016 · 90520-22017 · 90520-22018 · 90520-22019 · 90520-22020 · 90520-22021 · 90520-22022 · 90520-33021 |
| 33424 | Countershaft second gear | 33424-0K010 · 33424-0K020 |
| 33425 | countershaft reverse gear | 33425-0K010 · 33425-0K020 |
| 33426A | Countershaft first gear | 33426-0K010 · 33426-0K020 |
| 33428 | Countershaft fifth gear | 33428-0K062 · 33428-0K120 |
| 33428B | Bearings (for countershaft fifth gear) | 90364-T0013 · 90364-T0028 |
| 33451 | Reverse gear idler shaft | 33450-0K010 · 33451-0K010 · 33451-0K040 |
| 33451H | Bolt (for reverse idler shaft) | 90109-10178 |
| 33451J | Gasket (for reverse idler shaft) | 90430-T0016 |
| 33453 | Reverse gear idler shaft spacer | 90560-T0034 |
| 33461 | reverse idler gear | 33461-0K080 · 33461-0K090 |
| 33461A | Reverse idler bearing | 90364-T0057 |
