Toyota HILUX 文氏管 — Figure 2606

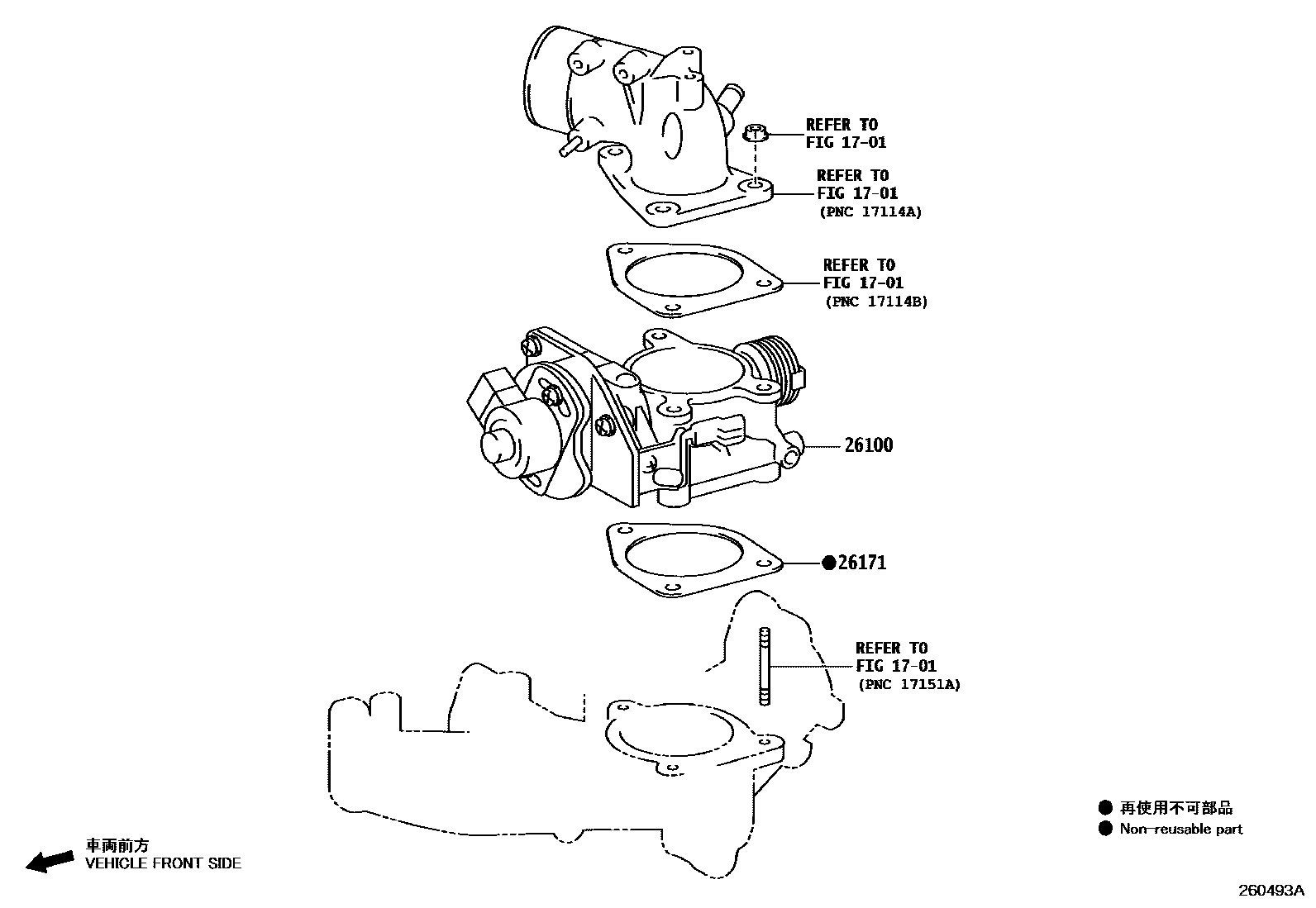

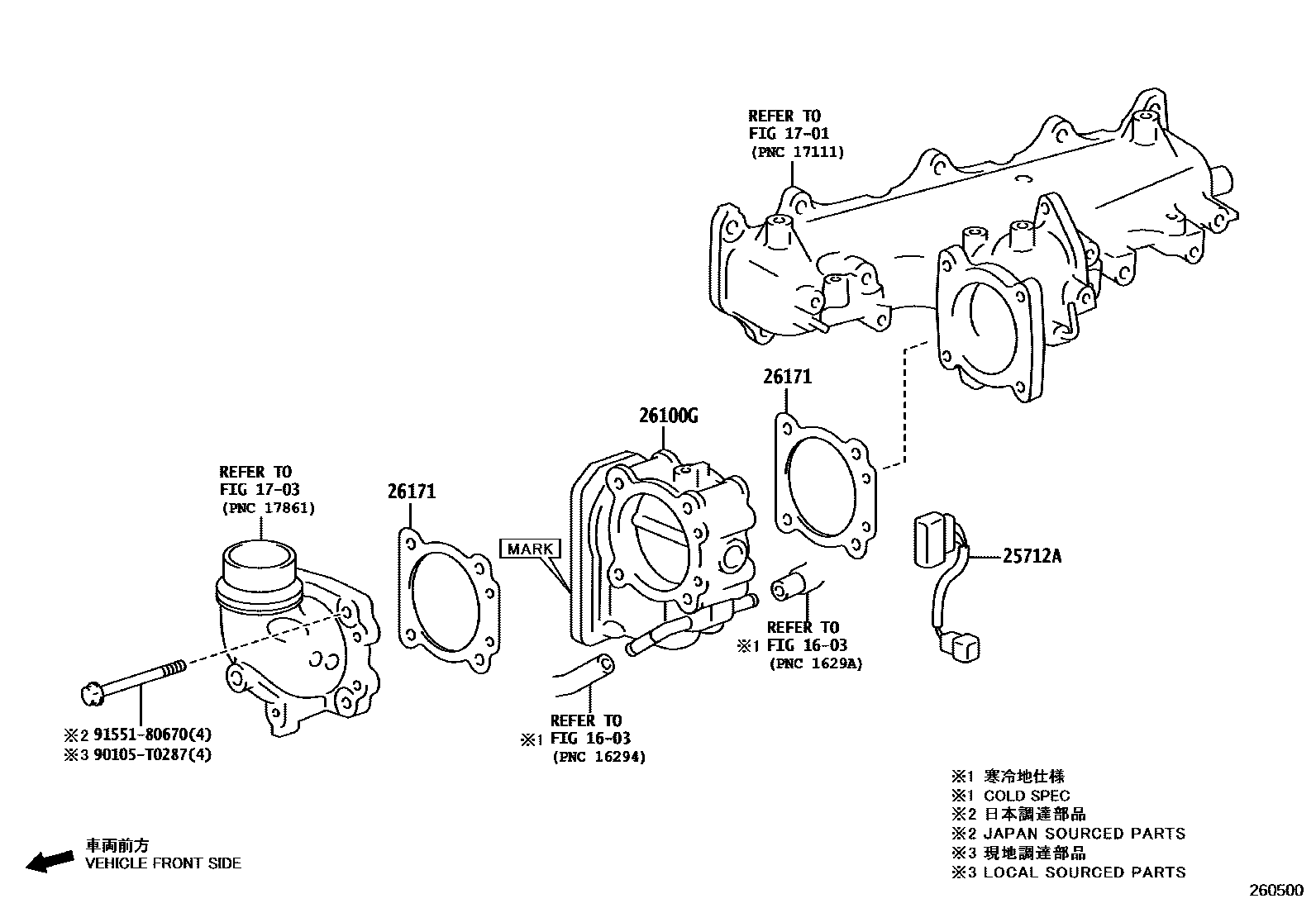

Toyota HILUX EPC diagram 2606, 文氏管, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25712A | Emission control valve wiring harness | 25712-0E010 · 25712-0E020 · 25712-11010 |
| 26100 | Venturi assembly | 26100-54300 |
| 26100G | Diesel engine throttle body assembly | 26100-0E040 · 26100-0E050 · 26100-0E060 · 26100-11040 |
| 26171 | Venturi gasket | 17116-54030 · 26171-0E030 · 26171-0E040 · 26171-11020 |
