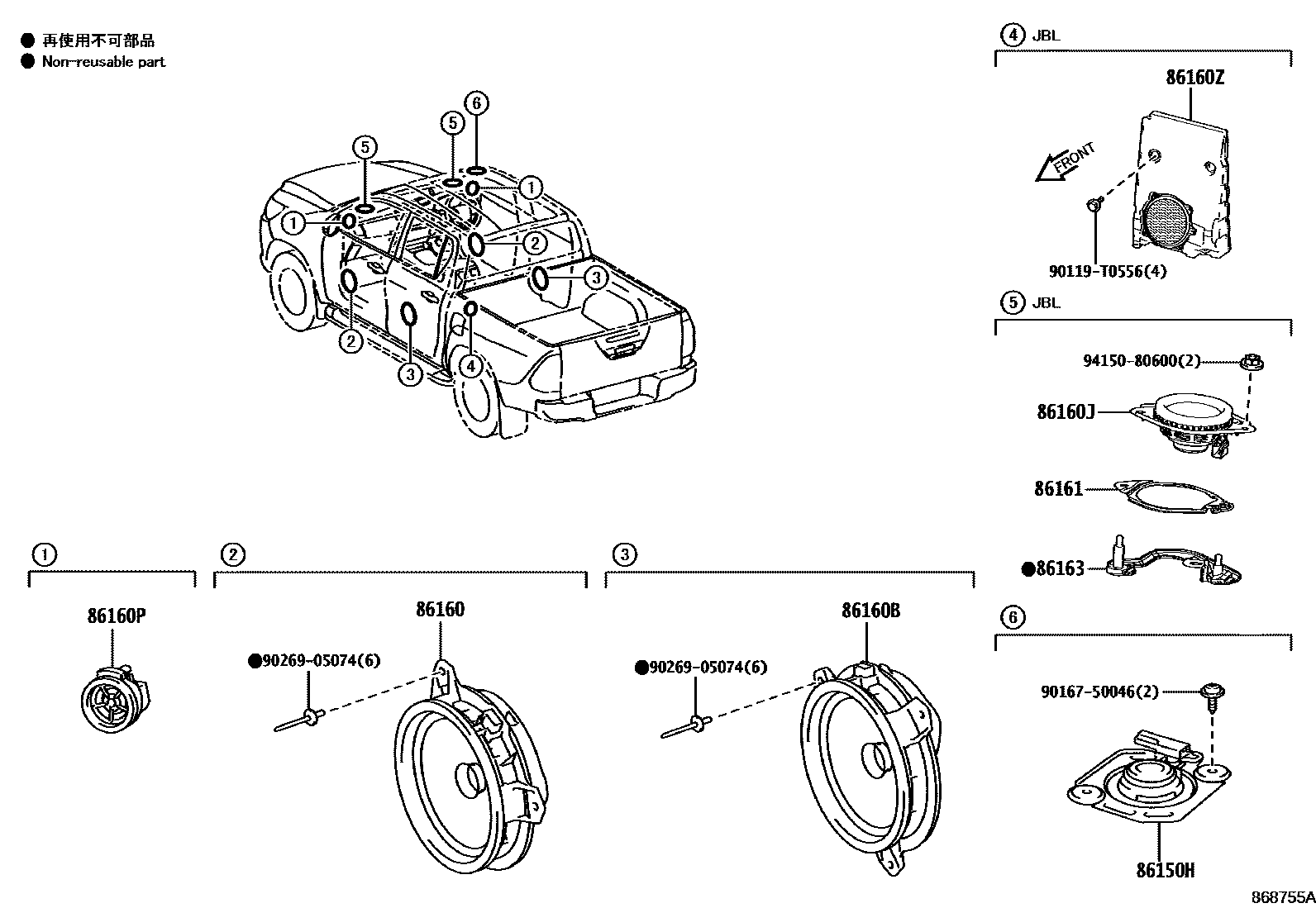

Toyota HILUX 扬声器 — Figure 8602
Toyota HILUX EPC diagram 8602, 扬声器, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86150H | Speaker assembly with stand | 86150-0K390 |
| 86160 | No. 1 front speaker assembly | 86160-0K380 · 86160-0K500 · 86160-0K520 · 86160-0K530 · 86160-0K570 |
| 86160B | Rear speaker assembly | 86160-0K390 · 86160-0K500 · 86160-0K520 · 86160-0K550 |
| 86160J | No. 3 front speaker assembly | 86160-0K370 · 86160-0K540 |
| 86160P | No. 2 front speaker assembly | 86150-0K160 · 86150-0K260 · 86150-0K340 · 86150-0K380 · 86150-0K420 |
| 86160Z | No. 3 rear speaker assembly | 86150-0K170 · 86150-0K410 |
| 86161 | Front speaker bracket No. 1 | 86161-KK020 · 86161-KK030 · 86161-KK040 |
| 86163 | Speaker stand No. 2 | 86163-KK010 · 86163-KK020 · 86163-KK030 · 86163-KK040 |
