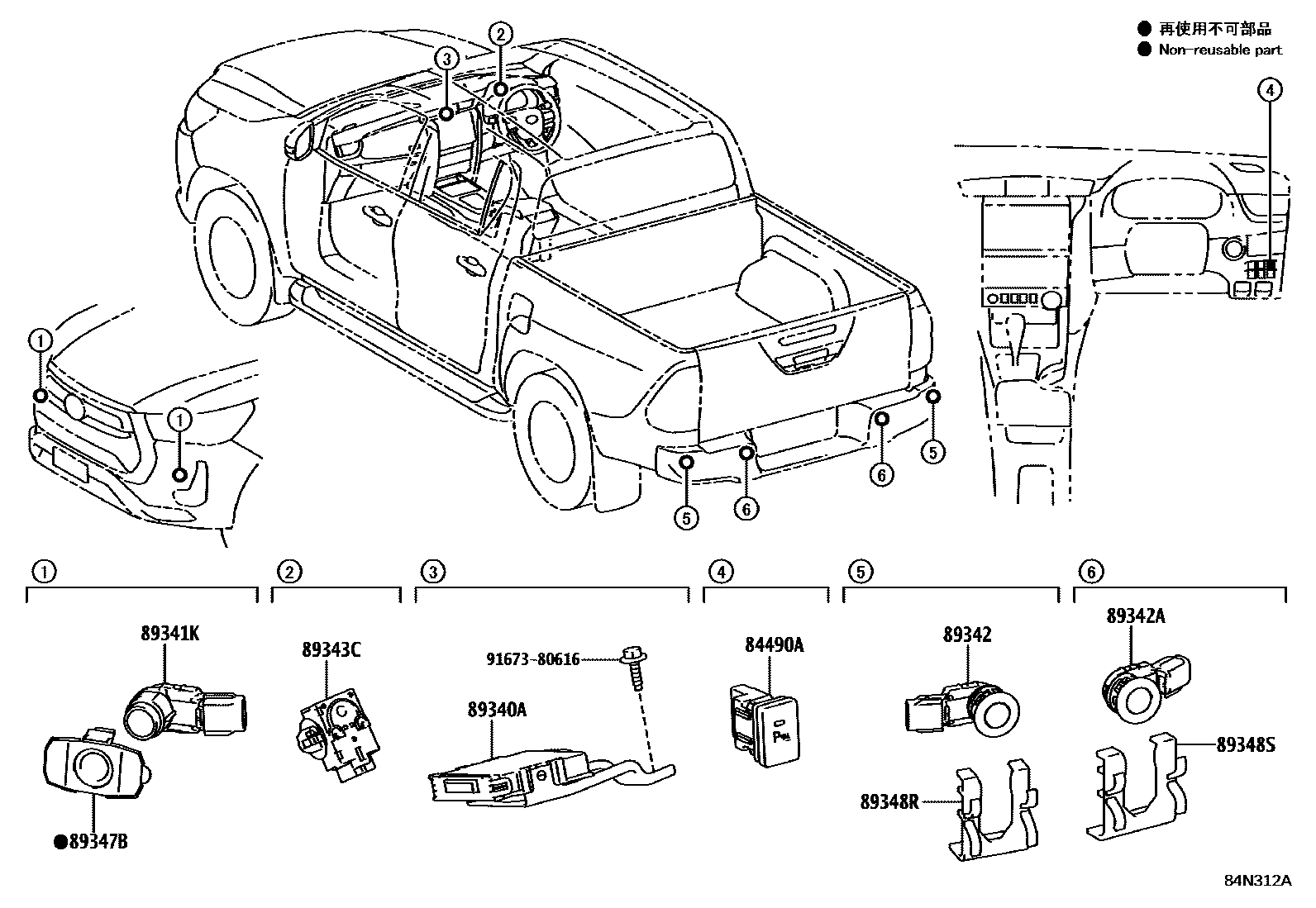

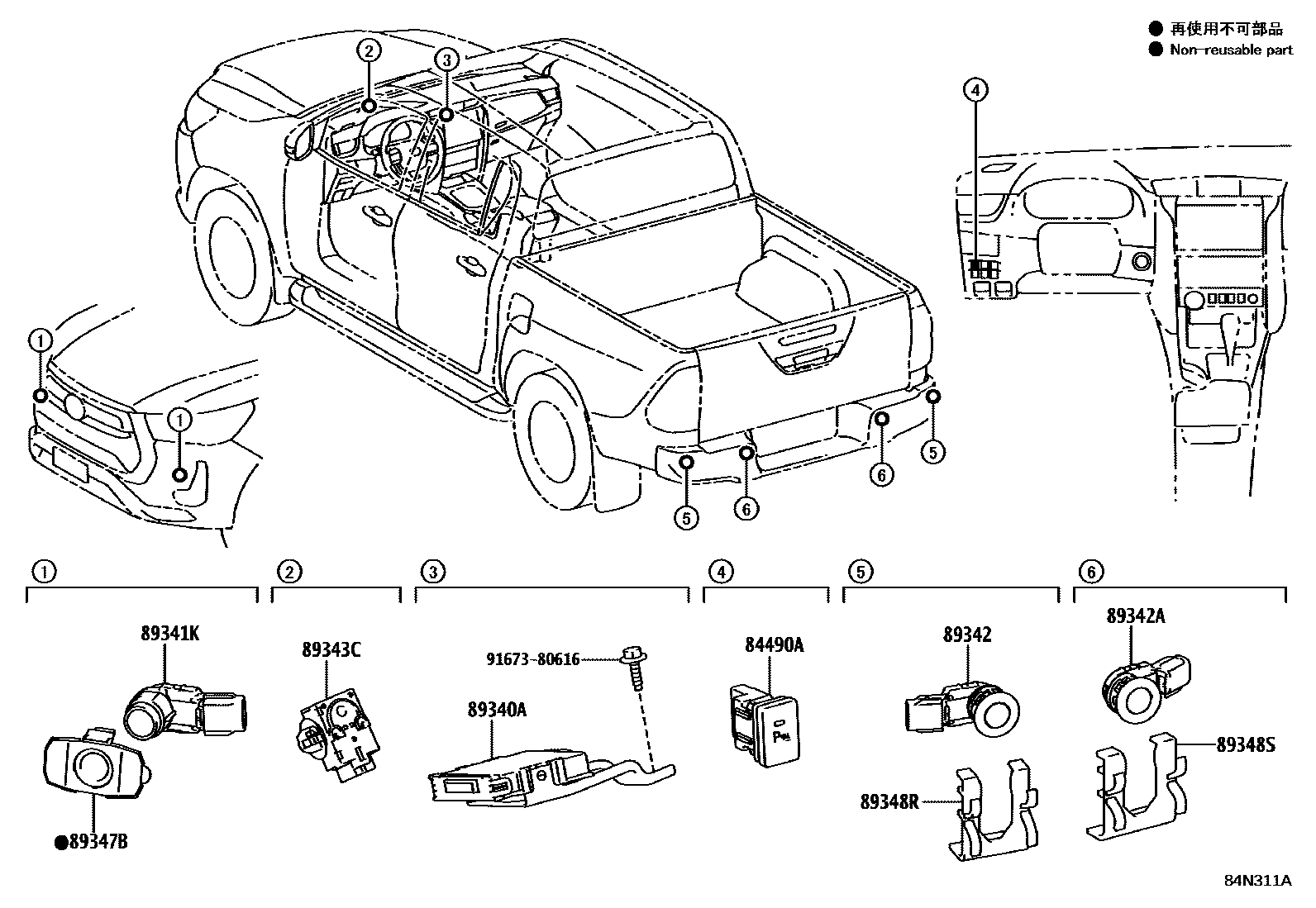

Toyota HILUX 测距雷达和倒车雷达 — Figure 8417
Toyota HILUX EPC diagram 8417, 测距雷达和倒车雷达, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84490A | Reversing radar or ranging radar switch assembly | 84490-0K030 · 84490-0K050 · 84490-0K060 |
| 89340A | Distance warning ECU assembly | 89340-0K030 · 89340-0K100 · 89340-0K130 |
| 89341K | Front angle ultrasonic sensor | 89341-06080 |
| 89342 | Back corner ultrasonic sensor | 89341-71040 |
| 89342A | Rear center ultrasonic sensor | 89341-71030 |
| 89343C | No. 1 distance warning buzzer | 89343-48010 |
| 89347B | Front angle ultrasonic sensor holder | 89348-06110 · 89348-0K020 |
| 89348R | Ultrasonic sensor rear corner fixing bracket | 89348-71020 |
| 89348S | Ultrasonic sensor rear central fixing bracket | 89348-71030 |
