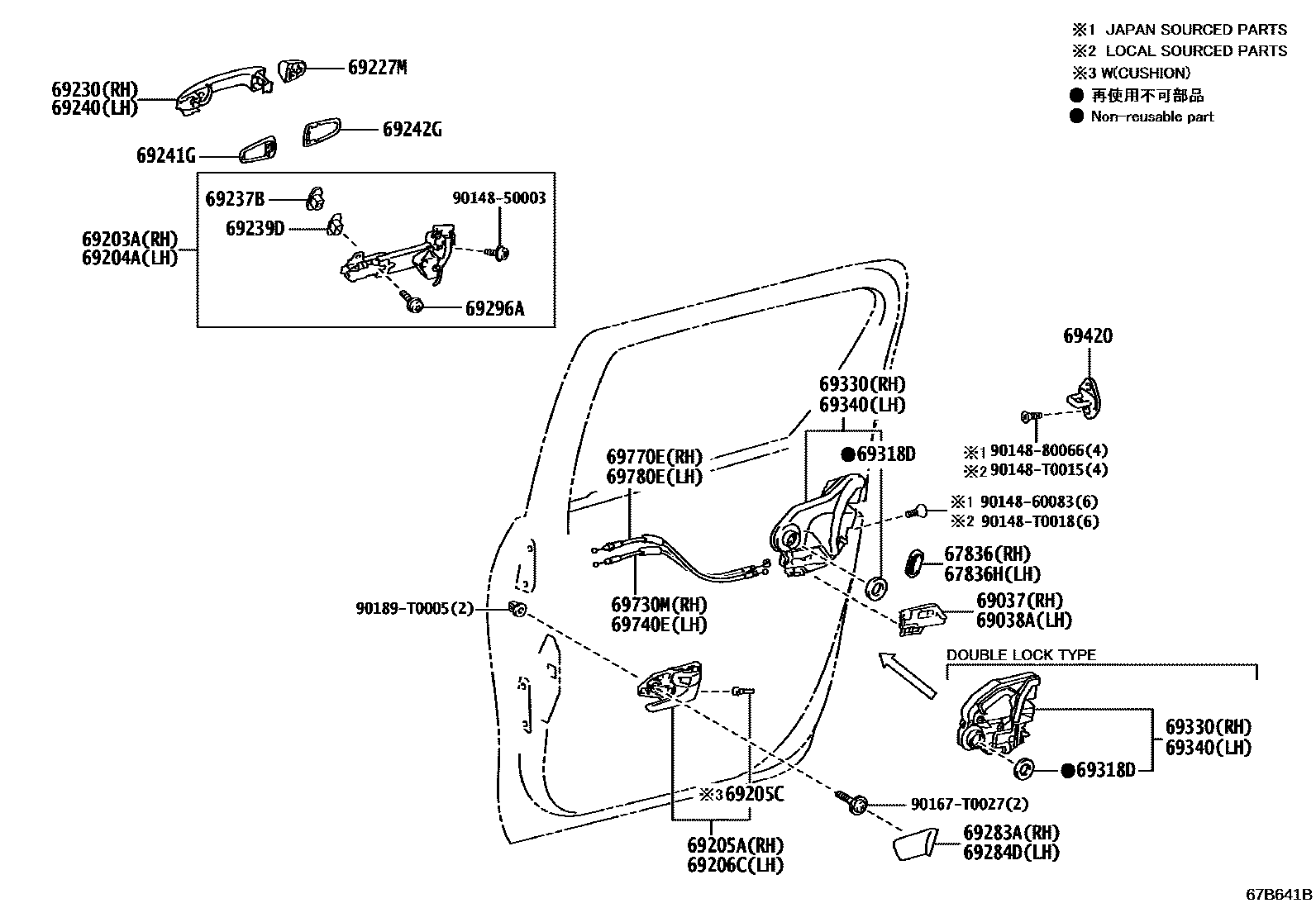

Toyota HILUX 后门锁和后门把手 — Figure 6756
Toyota HILUX EPC diagram 6756, 后门锁和后门把手, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67836 | Right rear door lock child restraint cover | 67836-02030 · 67836-0K020 · 67836-0K030 · 67836-12040 |
| 67836H | Left rear door lock child restraint cover | 67836-02030 · 67836-0K020 · 67836-0K030 · 67836-12040 |
| 69037 | Right rear door door lock cover sub-assembly | 69037-02010 · 69037-02040 · 69037-02080 |
| 69038A | Left rear door door lock cover sub-assembly | 69038-02010 · 69038-02040 · 69038-02080 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-0K080 · 69203-0K092 · 69203-0K100 · 69203-0K110 · 69203-0K120 · 69203-0K130 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-0K080 · 69204-0K092 · 69204-0K100 · 69204-0K110 · 69204-0K120 · 69204-0K130 |
| 69205C | Cushion pad (for rear door inner handle) | 90541-04027 |
| 69227M | Rear door outer handle cover | 69227-0K190 · 69227-0K200 · 69227-0K210 · 69227-0K230 · 69227-0K250 · 69227-0K300 · 69227-0K320 · 69227-0K330 · 69227-0K350 · 69227-0K905 · 69227-0K907 · 69227-0K910 · 69227-YP010 · 69227-YP020 |
| 69230 | Right rear door outer handle assembly | 69210-0K190 · 69210-0K200 · 69210-0K210 · 69210-0K220 · 69210-0K250 · 69210-0K260 · 69210-0K300 · 69210-0K340 · 69210-0K350 · 69210-0K370 · 69210-0K901 · 69210-0K903 · 69210-0K924 · 69210-YP030 · 69210-YP040 |
| 69237B | Rear door handle nut | 69237-0E010 · 69237-0K040 · 69237-0K060 · 69237-0K070 |
| 69239D | Rear door handle bushing | 69239-0K040 · 69239-0K070 · 69239-0K080 · 69239-0K100 |
| 69240 | Left rear door outer handle assembly | 69210-0K190 · 69210-0K200 · 69210-0K210 · 69210-0K220 · 69210-0K250 · 69210-0K260 · 69210-0K300 · 69210-0K340 · 69210-0K350 · 69210-0K370 · 69210-0K901 · 69210-0K903 · 69210-0K924 · 69210-YP030 · 69210-YP040 |
| 69241G | Rear door front exterior handle pad | 69241-0K041 · 69241-0K060 · 69241-0K080 · 69241-0K100 |
| 69242G | Rear door rear outer handle pad | 69242-0K030 · 69242-0K050 · 69242-0K070 · 69242-0K090 |
| 69296A | Car door inner handle screws | 69296-0K040 · 69296-0M010 · 69296-30010 |
| 69318D | door lock harness seal | 69318-51010 |
| 69330 | Right rear door door lock assembly | 69050-0K070 · 69050-0K080 · 69050-0K090 · 69050-0K110 · 69050-0K120 · 69050-60110 · 69330-0K070 · 69330-0K080 |
| 69340 | Left rear door lock assembly | 69060-0K080 · 69060-0K090 · 69060-0K100 · 69060-0K120 · 69060-0K130 · 69060-60110 · 69340-0K070 · 69340-0K080 |
| 69420 | Rear door lock plate assembly | 69410-02090 · 69410-0D050 · 69410-0D060 · 69410-0K070 |
| 69730M | Right rear door lock remote control cable (for opening lever) | 69730-0K170 · 69730-0K180 · 69730-0K190 |
| 69740E | Left rear door lock remote control cable (for opening lever) | 69730-0K170 · 69730-0K180 · 69730-0K190 |
| 69770E | Right rear door inner locking cable (for locking/unlocking handle) | 69770-0K150 · 69770-0K160 · 69770-0K170 |
| 69780E | Left rear door inner lock cable (for locking/unlocking handle) | 69770-0K150 · 69770-0K160 · 69770-0K170 |
