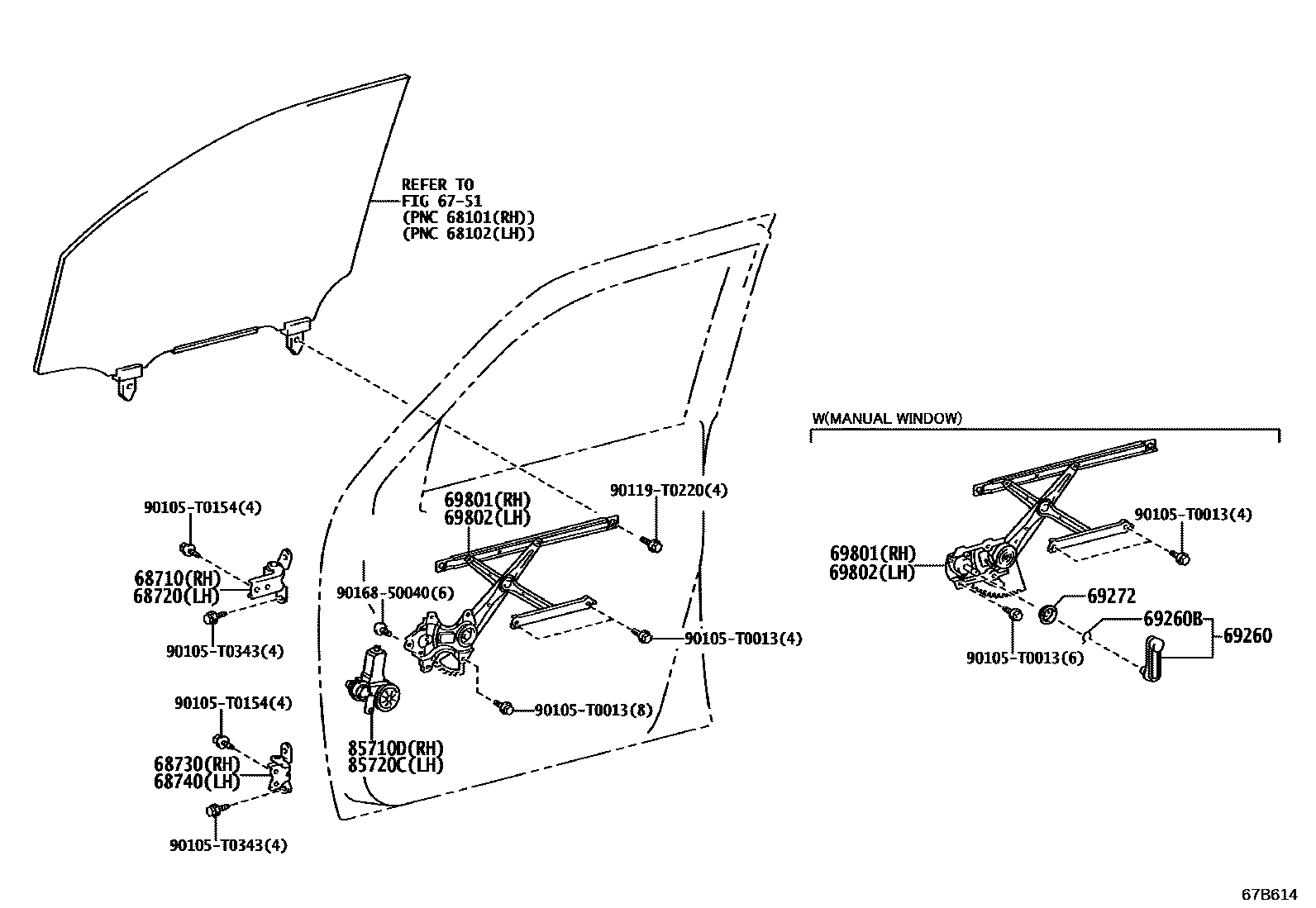

Toyota HILUX 前门车窗升降器和合页 — Figure 6754
Toyota HILUX EPC diagram 6754, 前门车窗升降器和合页, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-02070 · 68710-0D050 · 68710-0K010 · 68710-12151 |
| 68720 | Left front door upper hinge assembly | 68720-02070 · 68720-0D050 · 68720-0K010 · 68720-12151 |
| 68730 | Right front door lower hinge assembly | 68730-02070 · 68730-02100 · 68730-0K050 |
| 68740 | Left front door lower hinge assembly | 68740-02070 · 68740-02100 · 68740-0K050 |
| 69260 | Front door window lift handle assembly | 69260-0K040 |
| 69260B | Shaft snap ring (for front door window regulator handle) | 90080-52152 · 90520-01274 |
| 69272 | Front door window lift inner handle plate | 69268-02022 · 69268-04020 |
| 69801 | Right front door window lifter sub-assembly | 69801-0D351 · 69801-0K140 · 69801-0K150 · 69801-0K160 · 69801-0K180 · 69810-0K240 · 69810-0K270 · 69810-0K310 |
| 69802 | Left front door window lifter sub-assembly | 69802-0D331 · 69802-0K140 · 69802-0K150 · 69802-0K160 · 69802-0K180 · 69820-0K260 · 69820-0K290 · 69820-0K320 |
| 85710D | Right power window lift motor assembly | 85710-0D570 · 85710-0K180 · 85710-0K190 · 85710-0K200 · 85710-0K280 · 85710-0K290 · 85710-0K310 |
| 85720C | Left electric window lift motor assembly | 85720-0D570 · 85720-0K170 · 85720-0K180 · 85720-0K190 · 85720-0K280 · 85720-0K290 · 85720-0K310 |
