Toyota HILUX 车架 — Figure 5151

Toyota HILUX EPC diagram 5151, 车架, with 4 images and 49 PNC and OE references.

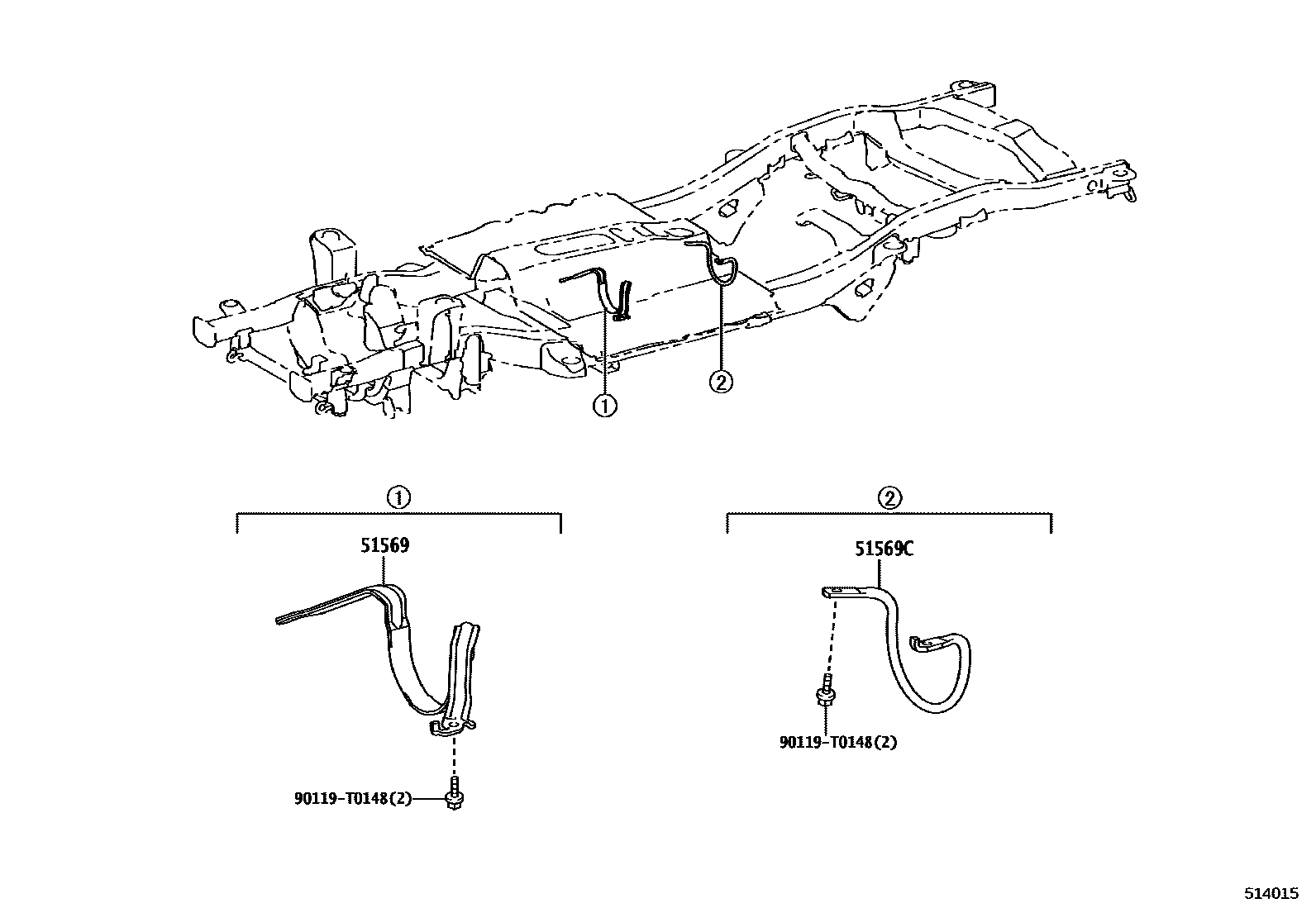

Toyota HILUX 车架 EPC diagram — 514015
车架 — 514015 (202108 – 999999)

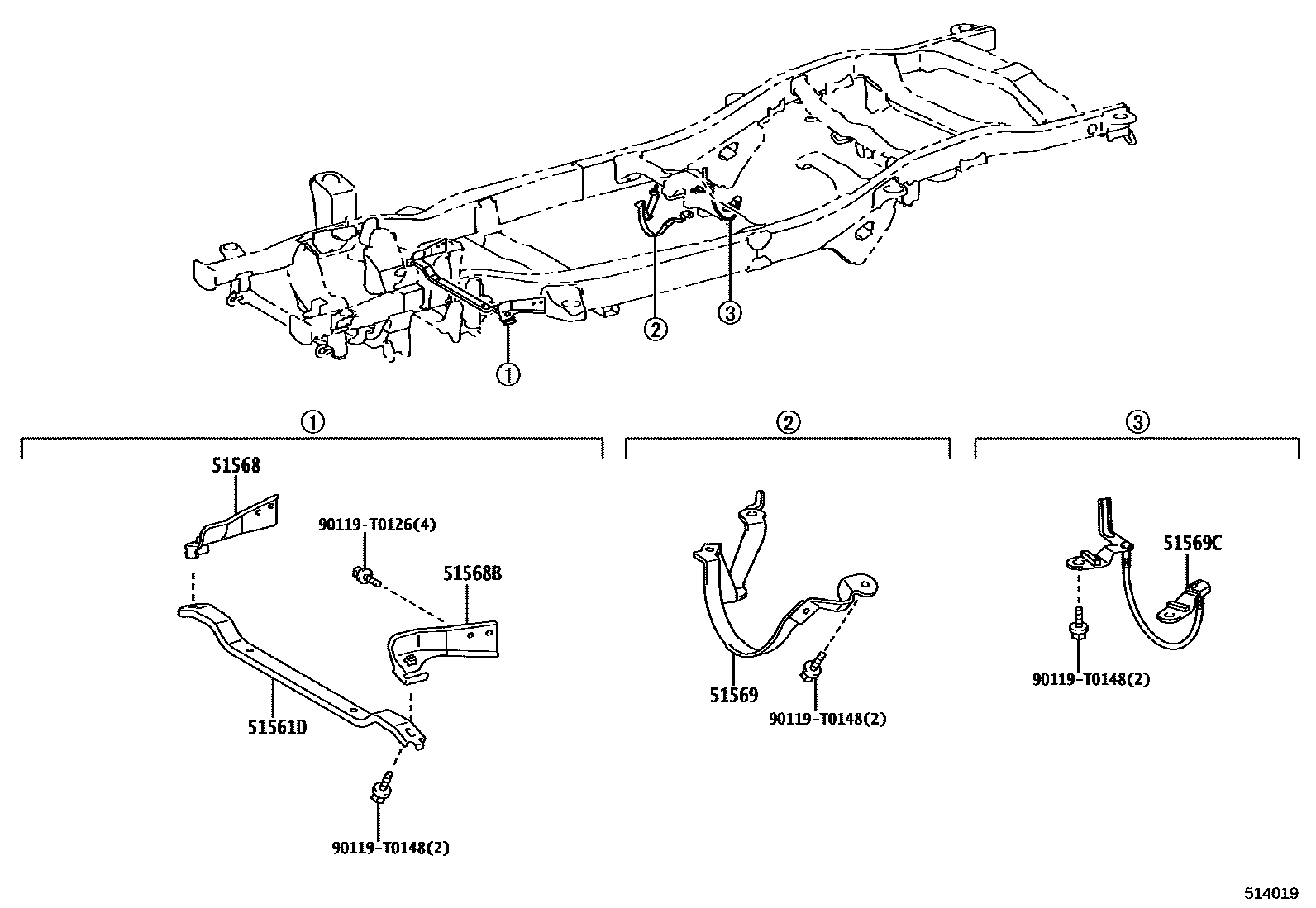

Toyota HILUX 车架 EPC diagram — 514019
车架 — 514019 (202108 – 999999)

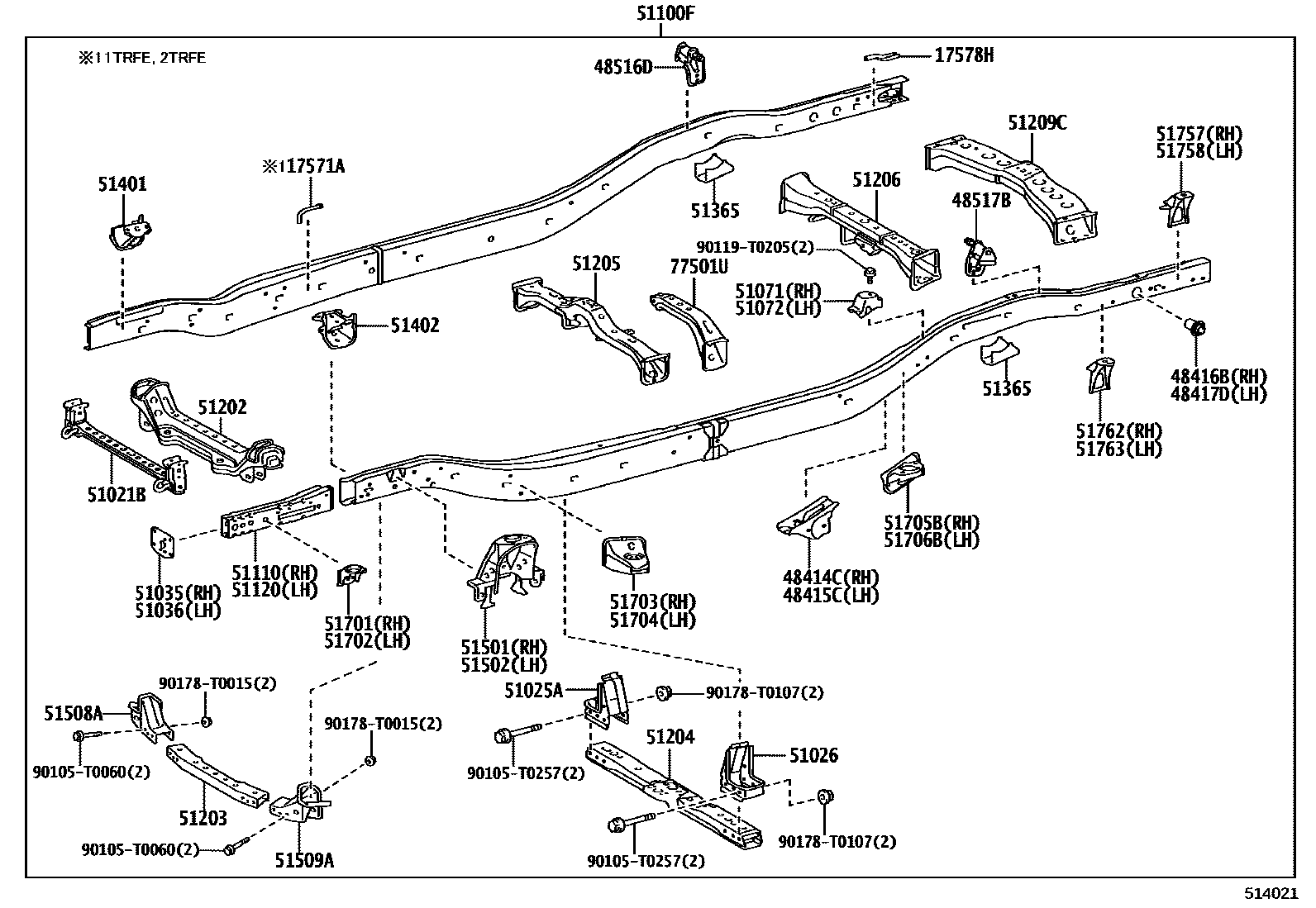

Toyota HILUX 车架 EPC diagram — 514021
车架 — 514021 (202108 – 999999)

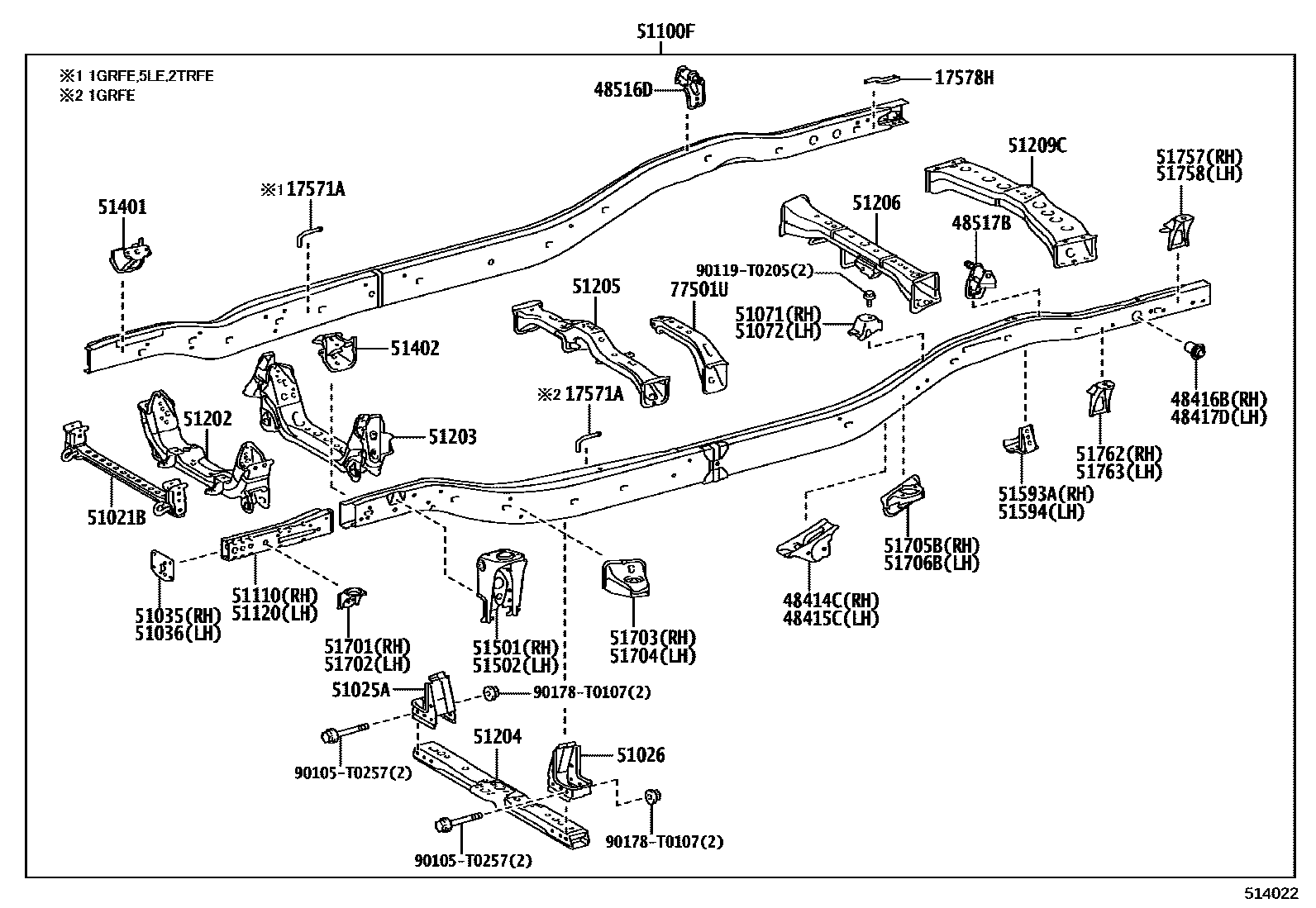

Toyota HILUX 车架 EPC diagram — 514022
车架 — 514022 (202108 – 999999)

PNC and OE references

PNCPart nameOE numbers
17571ANo. 9 exhaust pipe bracket17571-0L010
17578HNo. 10 exhaust pipe bracket17505-0L020
48414CRight No. 3 spring bracket48404-KK030 · 48404-KK040
48415CNo. 3 spring bracket on the left48407-KK030 · 48407-KK040
48416BRight No. 4 spring bracket48405-KK010
48417DNo. 4 spring bracket on the left48405-KK010
48516DRight rear shock absorber upper bracket sub-assembly48505-KK010
48517BLeft rear shock absorber upper bracket sub-assembly48506-KK010
51021BFrame auxiliary cross member sub-assembly51021-KK010 · 51021-KK020
51025AFrame No. 3 beam right side bracket sub-assembly51025-KK010
51026Frame No. 3 crossbeam left side bracket sub-assembly51026-KK010
51035Frame right longitudinal beam plate sub-assembly51035-KK010
51036Frame left longitudinal beam plate sub-assembly51036-KK010
51071Right rear body No. 1 mounting bracket sub-assembly51071-KK010
51072Left rear body No. 1 mounting bracket sub-assembly51072-KK010
51100FFrame sub-assembly51001-KK242 · 51001-KK252 · 51001-KK282 · 51001-KK351 · 51001-KK352 · 51001-KK361 · 51001-KK362 · 51001-KK371 · 51001-KK372 · 51001-KK381 · 51001-KK382 · 51001-KK452 · 51001-KK453 · 51001-KK471 · 51001-KK472 · 51001-KK482 · 51001-KK483 · 51001-KK681 · 51001-KK682 · 51001-KK691 · 51001-KK692 · 51001-KK701 · 51001-KK702 · 51001-KK703 · 51001-KK731 · 51001-KK732 · 51001-KK741 · 51001-KK742 · 51001-KK751 · 51001-KK752 · 51001-KK781 · 51001-KK791 · 51001-KKA32 · 51001-KKA33 · 51001-KKA42 · 51001-KKA43 · 51001-KKA72 · 51001-KKA73 · 51001-KKA82 · 51001-KKA83 · 51001-KKA92 · 51001-KKA93 · 51001-KKB02 · 51001-KKB03 · 51001-KKC02 · 51001-KKC03 · 51001-KKC31 · 51001-KKL00
51110Right longitudinal beam extension section assembly51110-KK906 · 51110-KK907
51120Left longitudinal beam extension section assembly51122-KK906 · 51122-KK907
51202Frame No. 1 cross member sub-assembly51201-KK010 · 51201-KK020 · 51201-KK050
51203Frame No. 2 cross member sub-assembly51202-0K010 · 51202-KK010
51204Frame No. 3 beam sub-assembly51203-KK010 · 51203-KK020 · 51203-KK030 · 51203-KK040 · 51203-KK050 · 51203-KK130 · 51203-KK140 · 51203-KK150 · 51203-KK190 · 51203-KK200 · 51203-KK250
51205Frame No. 4 beam sub-assembly51204-KK030 · 51204-KK040 · 51204-KK050
51206Frame No. 5 beam sub-assembly51205-KK040
51209CFrame rear cross member sub-assembly51209-KK010
51365rear bumper stop57081-KK010
51401Engine right front mounting bracket sub-assembly51401-KK010 · 51401-KK020 · 51401-KK030 · 51401-KK040
51402Engine left front mounting bracket sub-assembly51402-KK010 · 51402-KK020 · 51402-KK030 · 51402-KK040
51501Right suspension arm bracket sub-assembly51501-KK010 · 51501-KK020
51502Left suspension arm bracket sub-assembly51502-KK010 · 51502-KK020
51508ARight lower arm bracket sub-assembly51508-KK020
51509ALeft lower arm bracket sub-assembly51509-KK020
51561DDrive shaft anti-collision block51569-KK010 · 51569-KK070 · 51569-KK080 · 51569-KK090
51568Drive shaft anti-collision block bracket51568-KK020 · 51568-KK060
51568BDrive shaft anti-collision block bracket51568-KK030 · 51568-KK040 · 51568-KK070
51569Drive shaft anti-collision block51569-KK020 · 51569-KK060
51569CDrive shaft anti-collision block51569-0K020 · 51569-KK050
51593ARight rear spring buffer block bracket57081-KK020
51594Left rear spring buffer block bracket57082-KK010
51701Cab suspension No. 1 right side bracket sub-assembly51701-KK010
51702Cab suspension No. 1 left side bracket sub-assembly51701-KK010
51703Cab suspension No. 2 right side bracket sub-assembly51703-KK010
51704Cab suspension No. 2 left side bracket sub-assembly51704-KK010
51705BCab suspension No. 3 right side bracket sub-assembly51705-KK020
51706BCab suspension No. 3 left bracket sub-assembly51706-KK020
51757Right body No. 4 bracket51077-KK010
51758Left body No. 4 bracket51078-KK010
51762Right body No. 5 bracket51075-KK010
51763Left body No. 5 bracket51076-KK010
77501UFuel tank bracket sub-assembly77501-0K020
