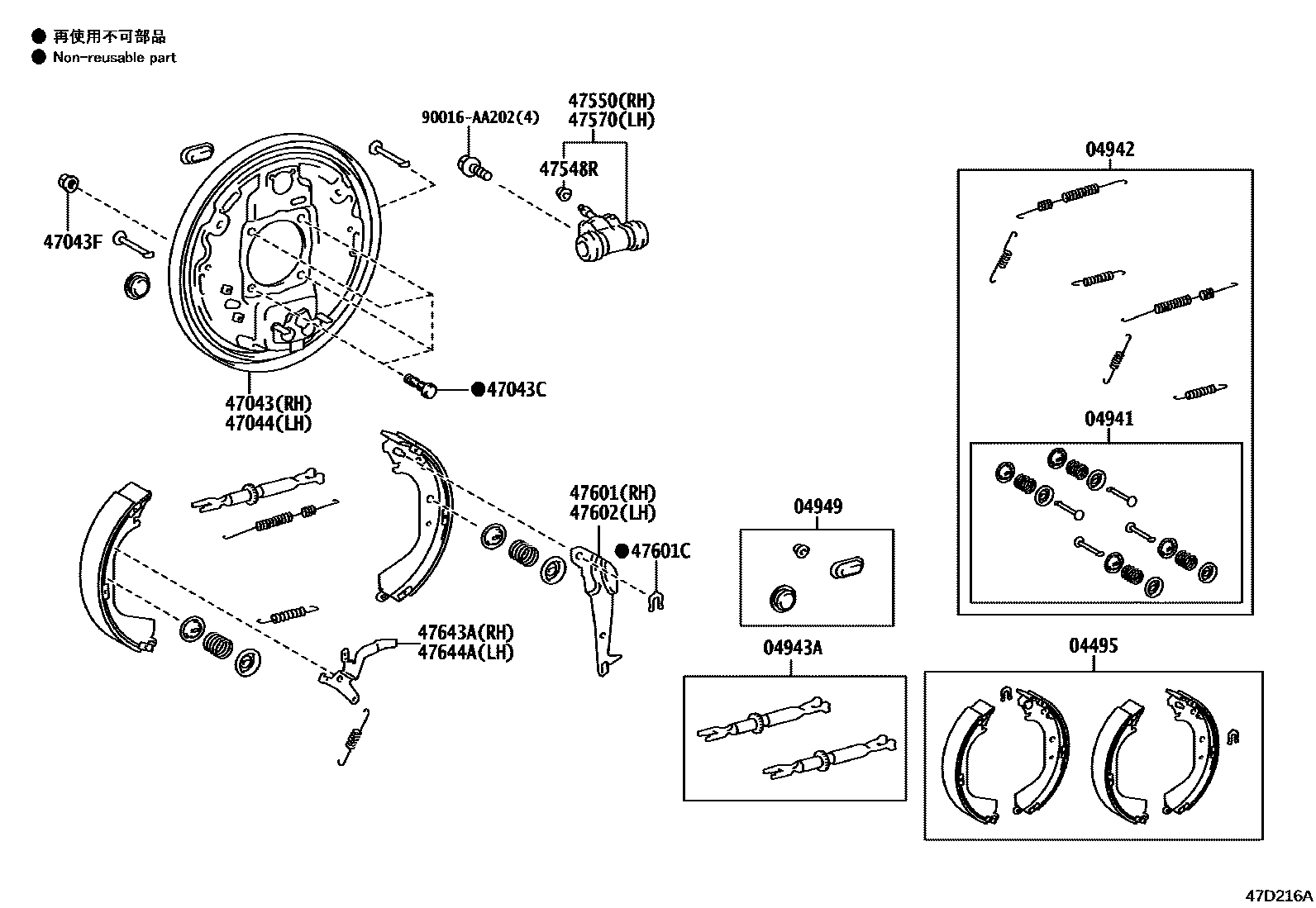

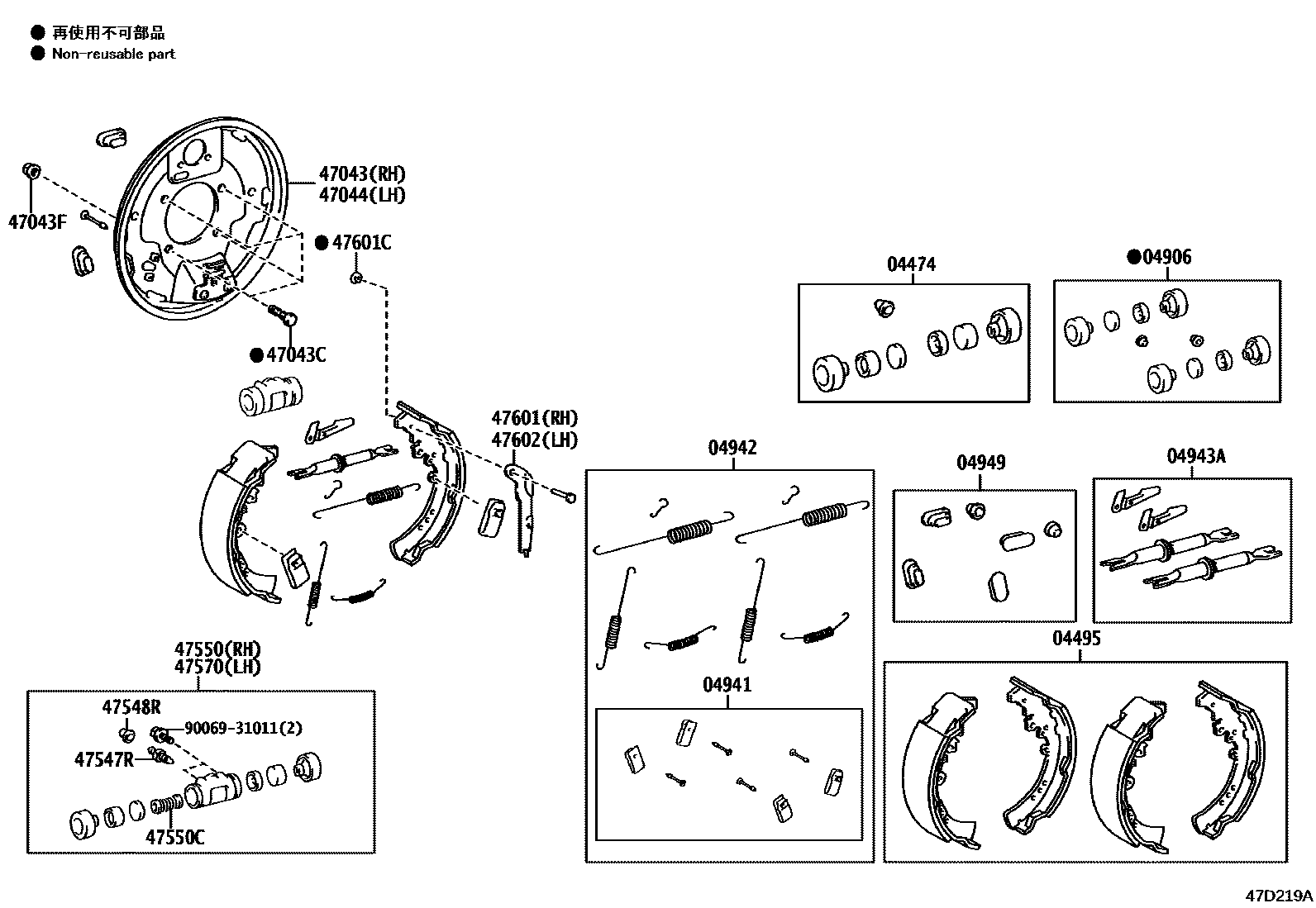

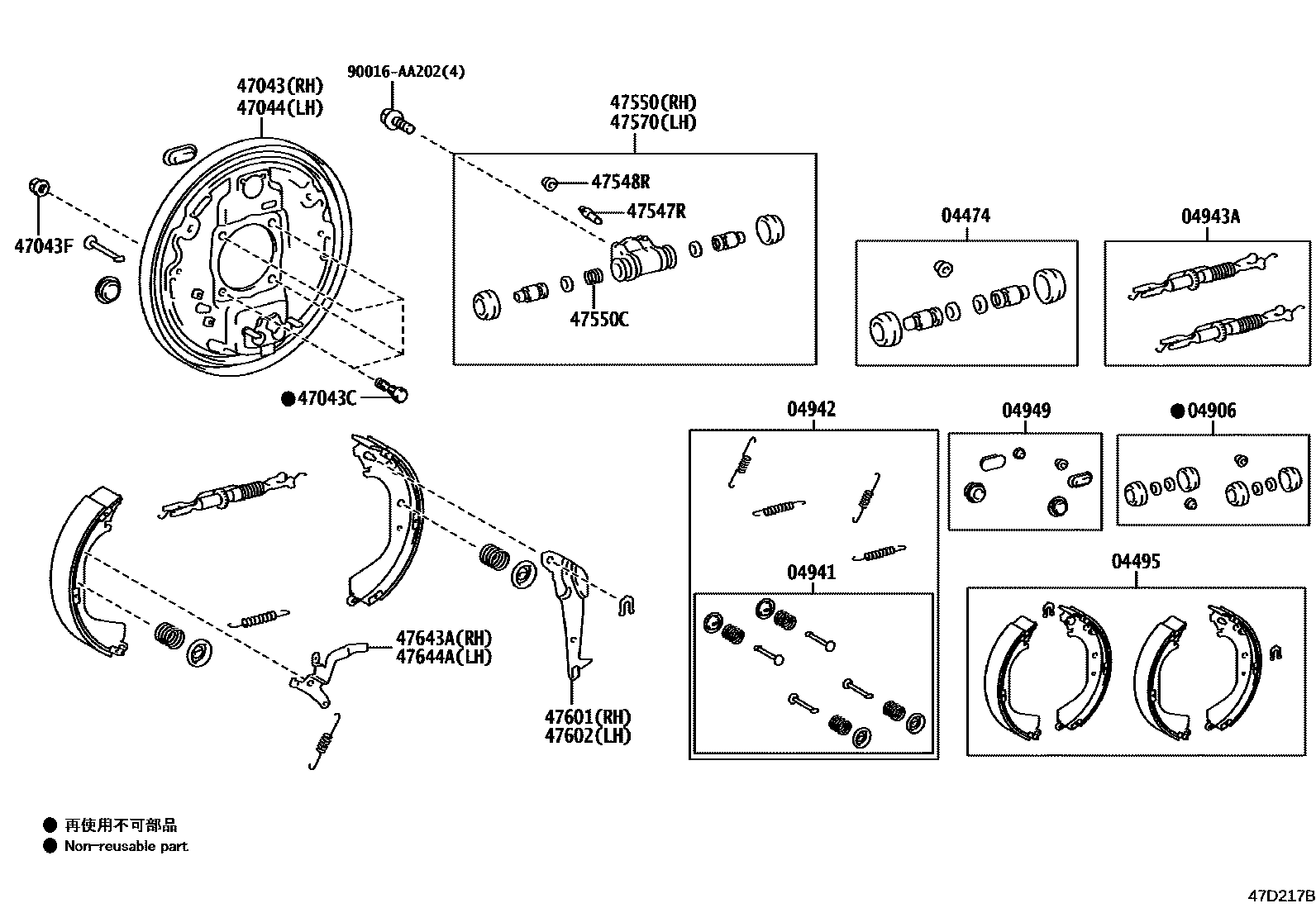

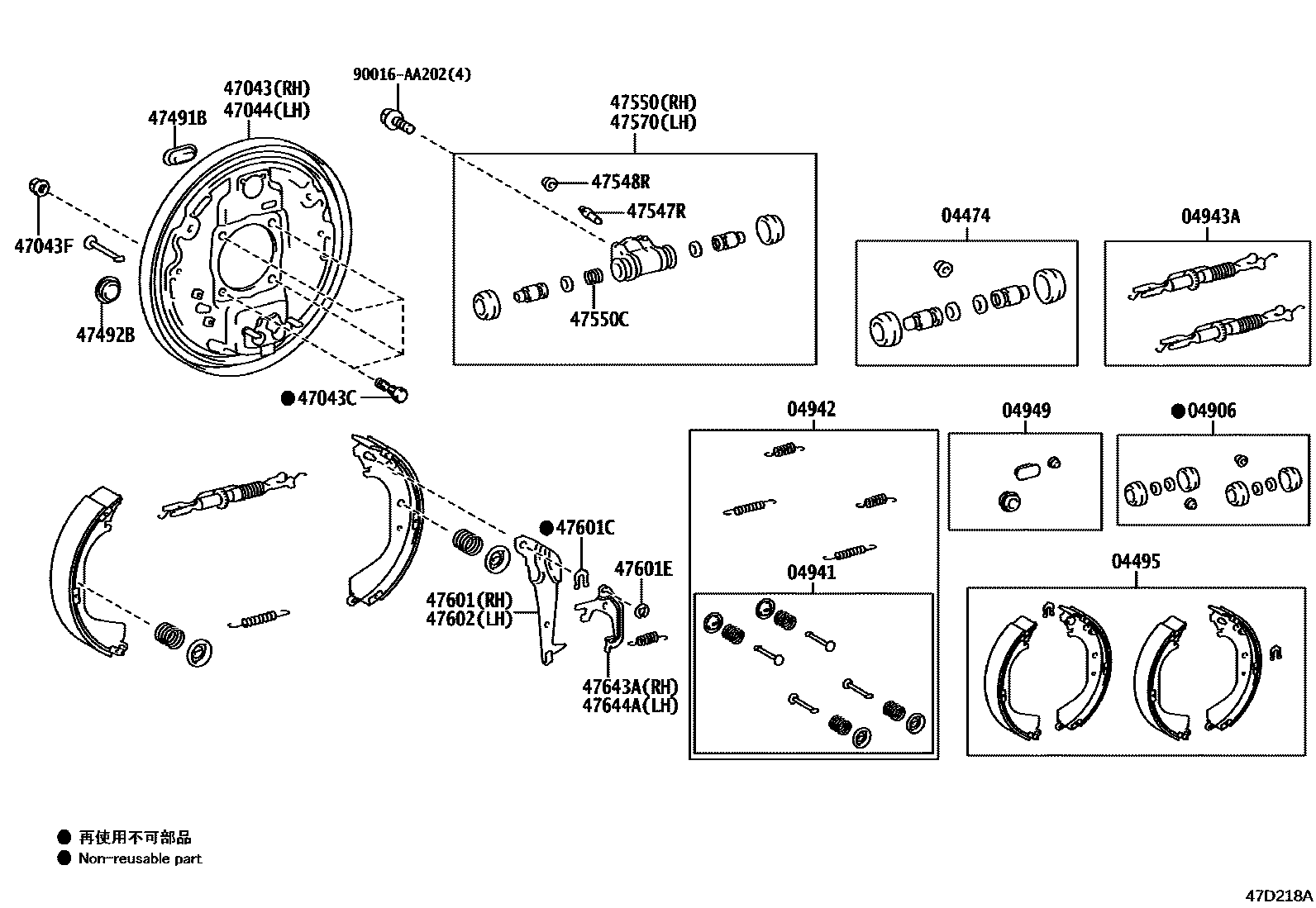

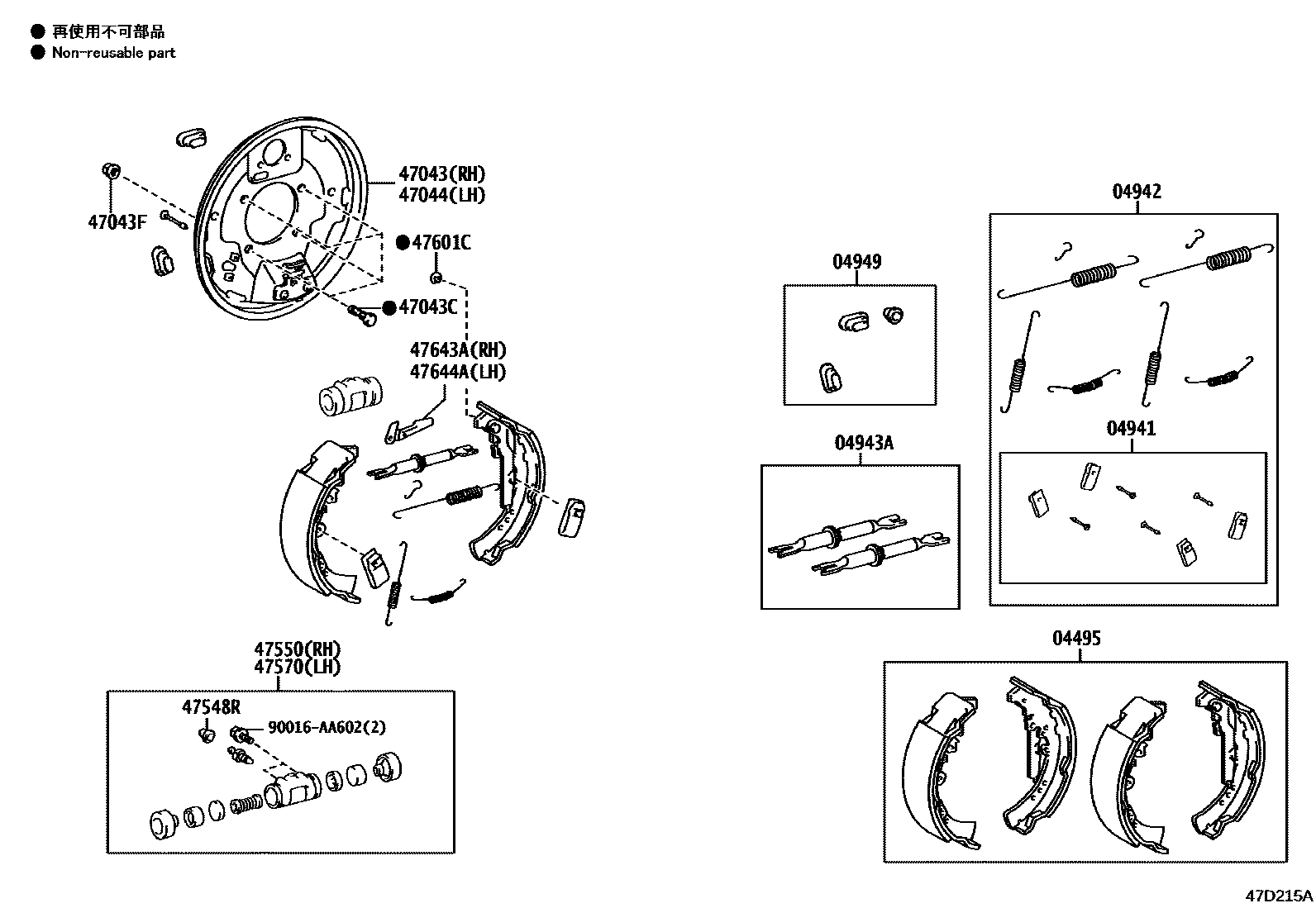

Toyota HILUX 后鼓式制动器分泵和底板 — Figure 4706
Toyota HILUX EPC diagram 4706, 后鼓式制动器分泵和底板, with 5 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04474 | rear wheel pump assembly | 04474-0K010 · 04474-0K050 |
| 04495 | Rear brake shoe assembly | 04495-0K050 · 04495-0K060 · 04495-0K120 · 04495-0K130 · 04495-0K160 |
| 04906 | Rear wheel pump cup assembly | 04906-0K060 · 04906-0K090 · 04906-43040 |
| 04941 | Rear brake shoe limit spring assembly | 04941-0K030 · 04941-0K060 · 04941-0K070 · 04941-0K100 · 04941-0K110 |
| 04942 | Rear brake spring assembly | 04942-0K130 · 04942-0K160 · 04942-0K180 · 04942-0K210 · 04942-0K220 |
| 04943A | Rear brake bracket assembly | 04943-0K030 · 04943-0K040 · 04943-0K050 · 04943-0K080 · 04943-0K110 |
| 04949 | Rear brake plug assembly | 04949-0D010 · 04949-0K070 · 04949-0K130 · 04949-0K150 |
| 47043 | Right rear brake base plate sub-assembly | 47043-0K020 · 47043-0K091 · 47043-0K120 · 47043-0K130 · 47043-0K140 |
| 47043C | Bolts (used to secure the base plate to the rear axle housing) | 90114-T0011 |
| 47043F | Nut (used to fix the base plate to the rear axle housing) | 90178-T0077 |
| 47044 | Left rear brake base plate sub-assembly | 47044-0K020 · 47044-0K091 · 47044-0K120 · 47044-0K130 · 47044-0K140 |
| 47491B | Hole plug (for rear brake) | 47491-0K120 |
| 47492B | Brake shoe inspection plug (for rear brake) | 47492-0K120 |
| 47547R | Bleed plug (for rear drum brake) | 47547-20030 · 90069-0K072 |
| 47548R | Bleeder plug cap (for rear drum brake) | 31478-0K030 · 31478-30010 |
| 47550 | Rear wheel brake cylinder assembly (for front right or upper right) | 47550-09070 · 47550-09080 · 47550-0K010 · 47550-71010 · 47550-71030 |
| 47550C | Compression spring (for rear wheel brake cylinder) | 90016-AY002 · 90029-60009 · 90069-51002 |
| 47570 | Rear wheel brake cylinder assembly (for front left or upper left) | 47550-09070 · 47550-09080 · 47550-0K010 · 47550-71010 · 47550-71030 |
| 47601 | Right parking brake shoe lever sub-assembly (for rear wheel brake) | 47611-0K010 · 47611-0K020 · 47611-0K070 · 47611-0K120 |
| 47601C | C-shaped washer (for rear brake) | 90016-AD501 · 90016-DD002 · 90069-52023 |
| 47601E | E-ring (for rear brake) | 96160-00500 |
| 47602 | Left parking brake shoe lever sub-assembly (for rear wheel brake) | 47612-0K010 · 47612-0K020 · 47612-0K070 · 47612-0K120 |
| 47643A | Right rear wheel brake automatic adjustment lever | 47643-0K020 · 47643-0K050 · 47643-45010 · 47644-35040 |
| 47644A | Left rear wheel brake automatic adjustment lever | 47643-35040 · 47644-0K020 · 47644-0K050 · 47644-45010 |
