Toyota HILUX 3号制动器、一档和倒档制动器(ATM) — Figure 3509

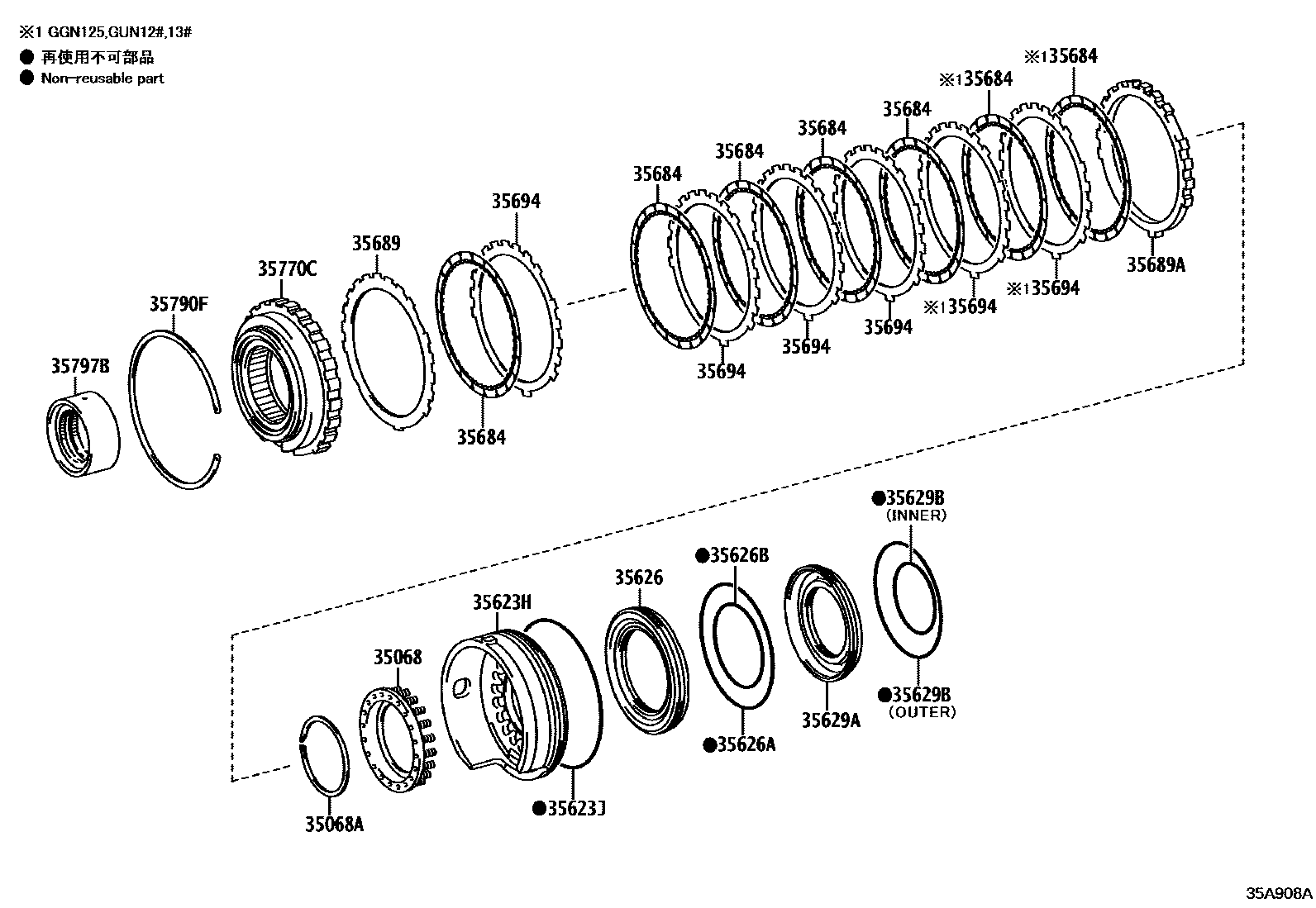

Toyota HILUX EPC diagram 3509, 3号制动器、一档和倒档制动器(ATM), with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35068 | First and reverse brake return spring sub-assembly | 35068-0K010 · 35068-60010 |
| 35068A | Shaft snap ring (for first and reverse brake return spring) | 90520-61001 |
| 35623H | First and reverse brake piston | 35623-0K010 · 35623-0K020 · 35623-71010 · 35623-71020 |
| 35623J | O-ring (for first and reverse brakes) | 90301-99087 · 90301-T0072 |
| 35626 | Brake reaction sleeve | 35626-50010 |
| 35626A | Outer ring (for brake reaction sleeve) | 90301-99144 · 90301-T0073 |
| 35626B | Inner ring (for brake reaction sleeve) | 90301-79003 · 90301-T0074 |
| 35629A | No. 4 brake piston | 35629-50020 |
| 35629B | O-ring (for brake piston No. 4) | 90301-67006 · 90301-99084 · 90301-T0075 · 90301-T0076 |
| 35684 | No. 4 brake disc | 35684-0K010 · 35684-60030 |
| 35689 | No. 4 brake flange | 35689-60270 · 35689-60280 · 35689-60290 · 35689-60300 · 35689-60310 · 35689-60320 · 35689-60330 · 35689-60340 · 35689-60350 · 35689-60360 · 35689-60370 |
| 35689A | No. 4 brake flange | 35689-71010 |
| 35694 | No. 4 brake pad | 35694-0K010 · 35694-60011 |
| 35770C | No. 3 one-way clutch assembly | 35770-0K020 · 35770-60030 |
| 35790F | Hole snap ring (for one-way clutch) | 90521-99131 |
| 35797B | One-way clutch inner race | 35797-60020 |
