Toyota HILUX 尿素罐和管 — Figure 2502

Toyota HILUX EPC diagram 2502, 尿素罐和管, with 1 images and 14 PNC and OE references.

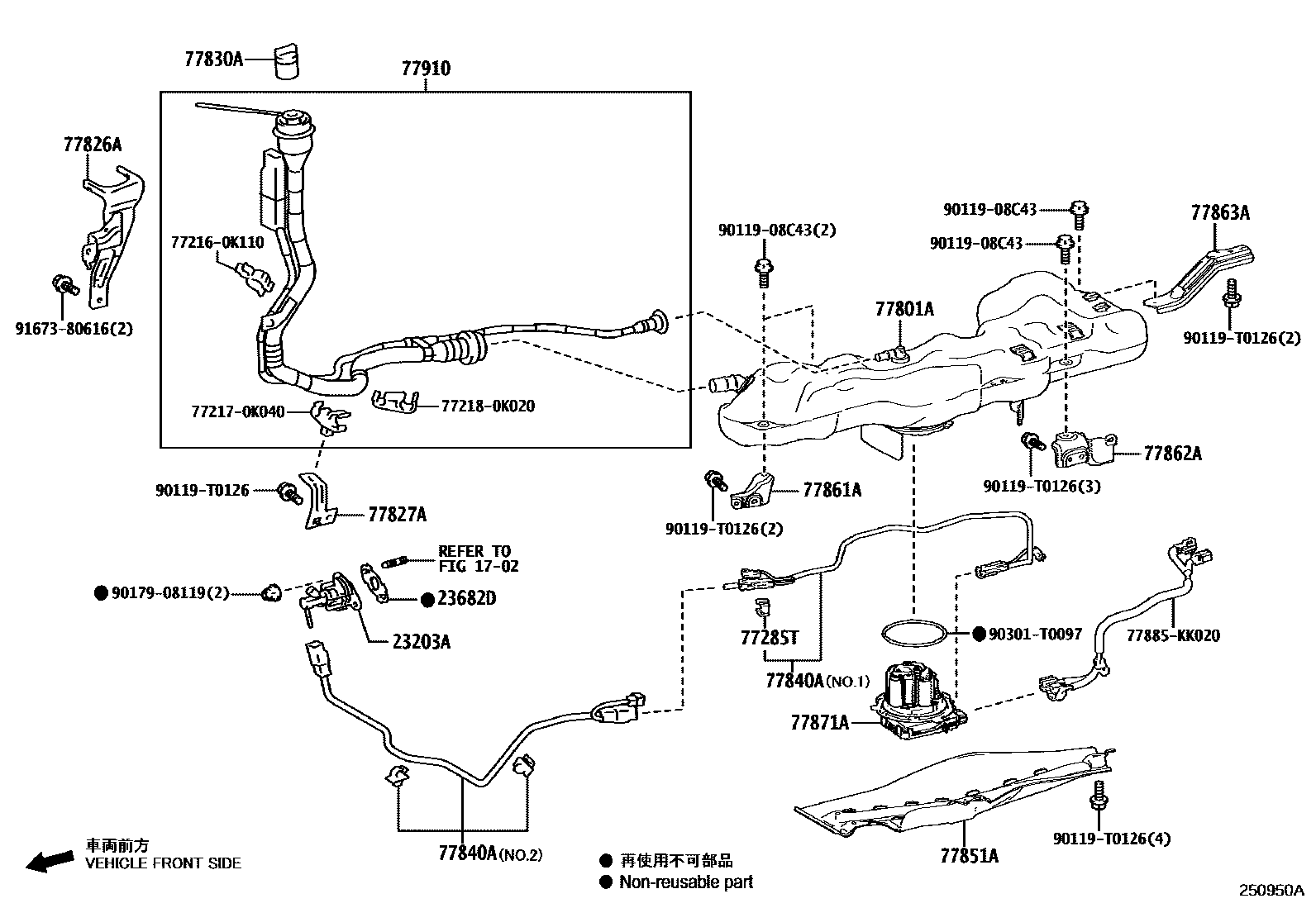

Toyota HILUX 尿素罐和管 EPC diagram — 250950A
尿素罐和管 — 250950A (202108 – 999999)

PNC and OE references

PNCPart nameOE numbers
23203AUrea injector components23203-11021
23682DInjector body gasket23682-11010
77285TUrea tube No. 1 clamp77285-0K140
77801AUrea tank sub-assembly77801-0K150 · 77801-0K160
77826AUrea tank filling pipe No. 1 bracket77826-KK010
77827AUrea tank filling pipe No. 2 bracket77827-KK010
77830AUrea tank cover assembly77830-0K030 · 77830-0K050
77840AUrea pipe assembly with heater77840-0K021 · 77841-0K030
77851AUrea tank protection parts77851-KK050
77861AUrea tank No. 1 bracket77861-KK030
77862AUrea tank No. 2 bracket77862-KK030
77863AUrea tank No. 3 bracket77863-KK050
77871AUrea pump77870-0K010
77910Urea tank filling pipe assembly77910-0K021
