Toyota HILUX Engine Overhaul Gasket Kit — Figure 1103

Toyota HILUX EPC diagram 1103, Engine Overhaul Gasket Kit, with 14 images and 2 PNC and OE references.

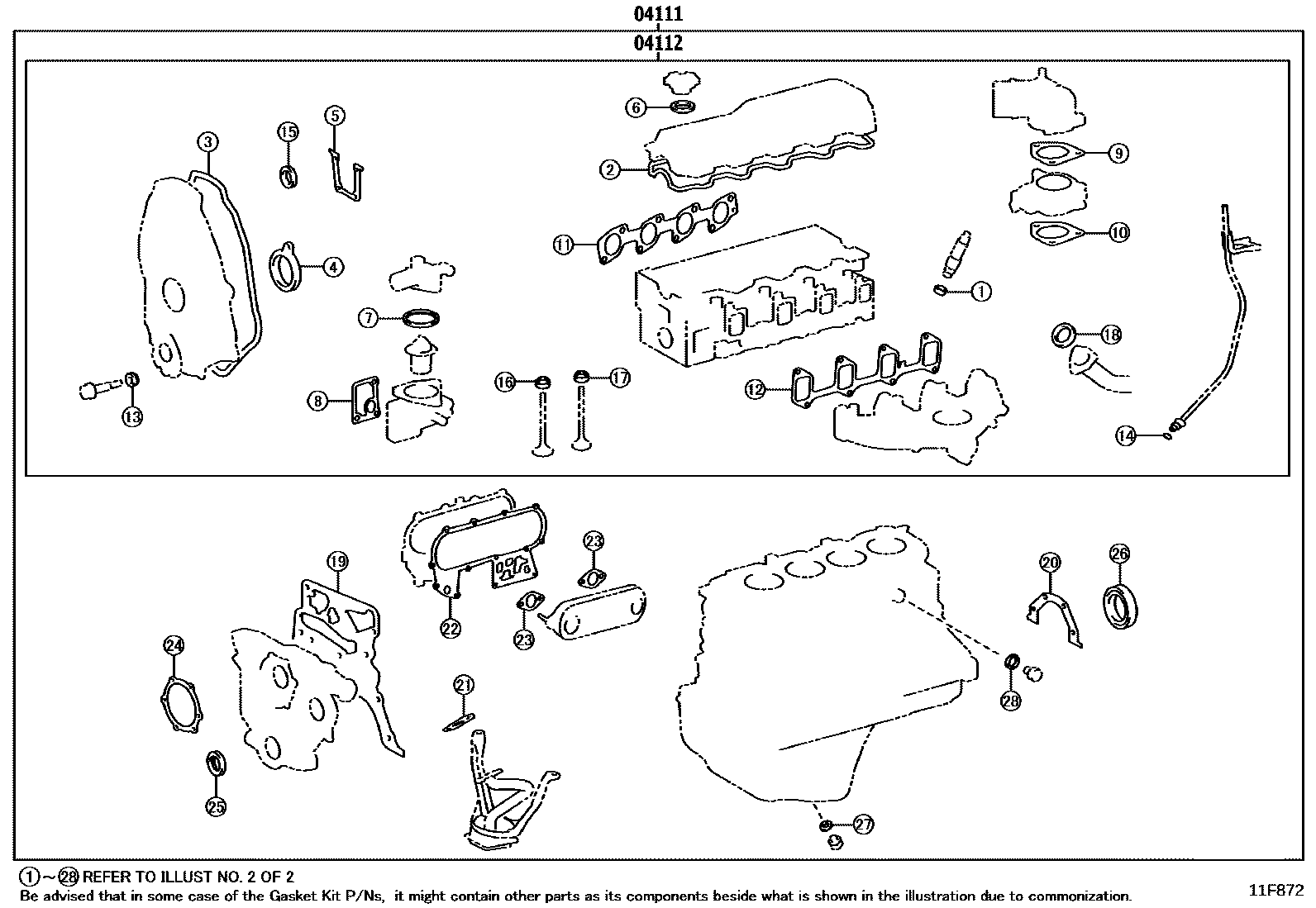

Toyota HILUX Engine Overhaul Gasket Kit EPC diagram — 11F872
Engine Overhaul Gasket Kit — 11F872 (202109 – 999999)

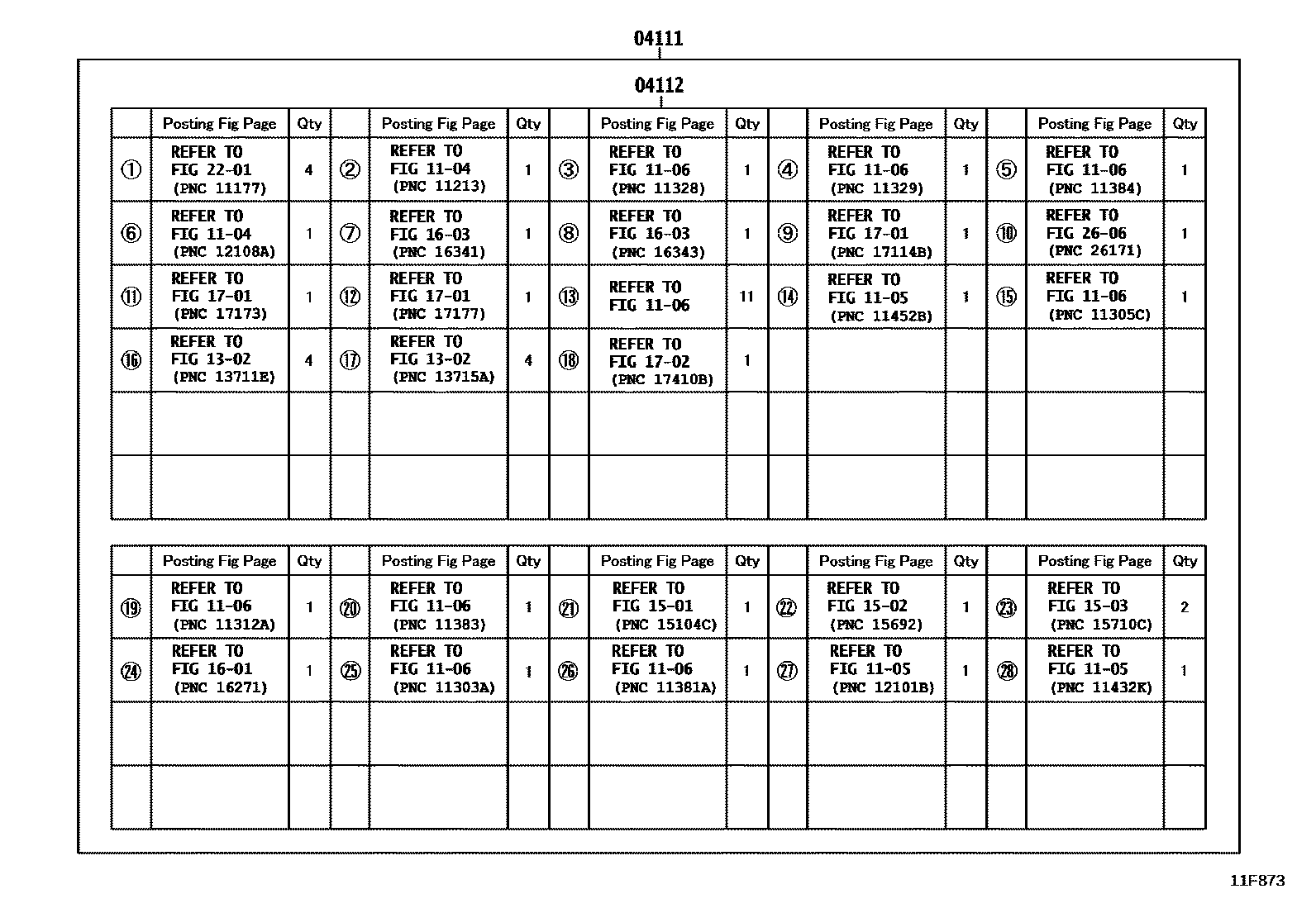

Toyota HILUX Engine Overhaul Gasket Kit EPC diagram — 11F873
Engine Overhaul Gasket Kit — 11F873 (202109 – 999999)

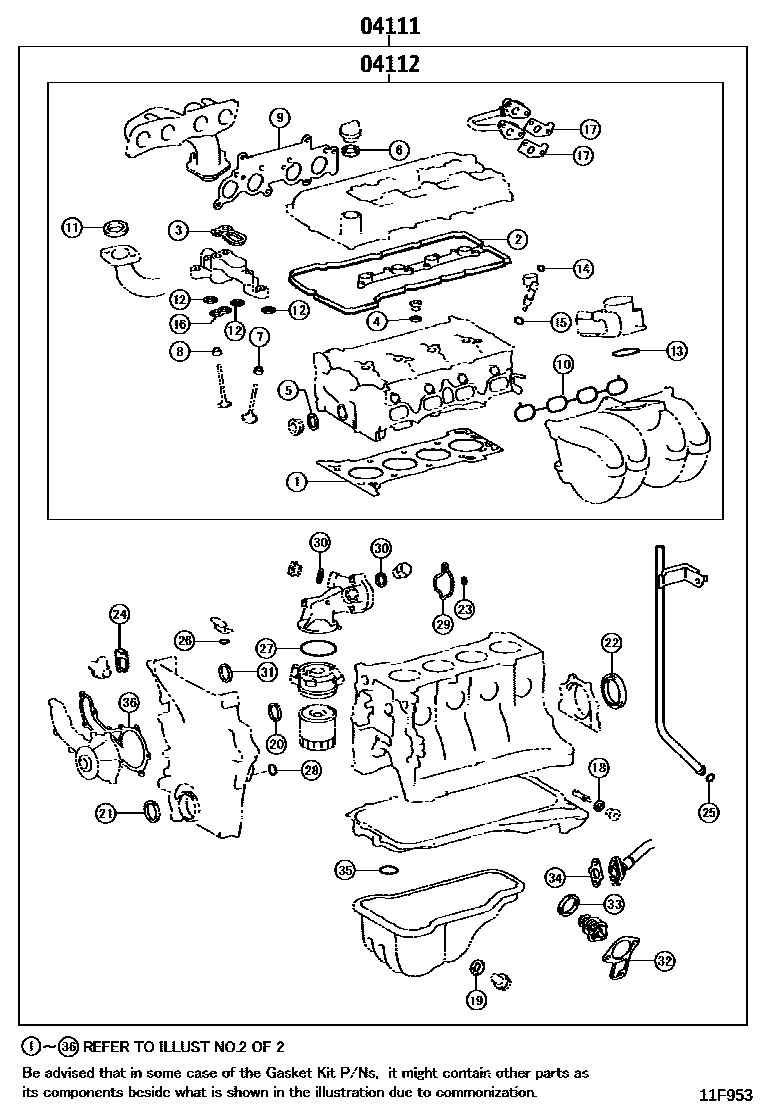

Toyota HILUX Engine Overhaul Gasket Kit EPC diagram — 11F953
Engine Overhaul Gasket Kit — 11F953 (202108 – 999999)

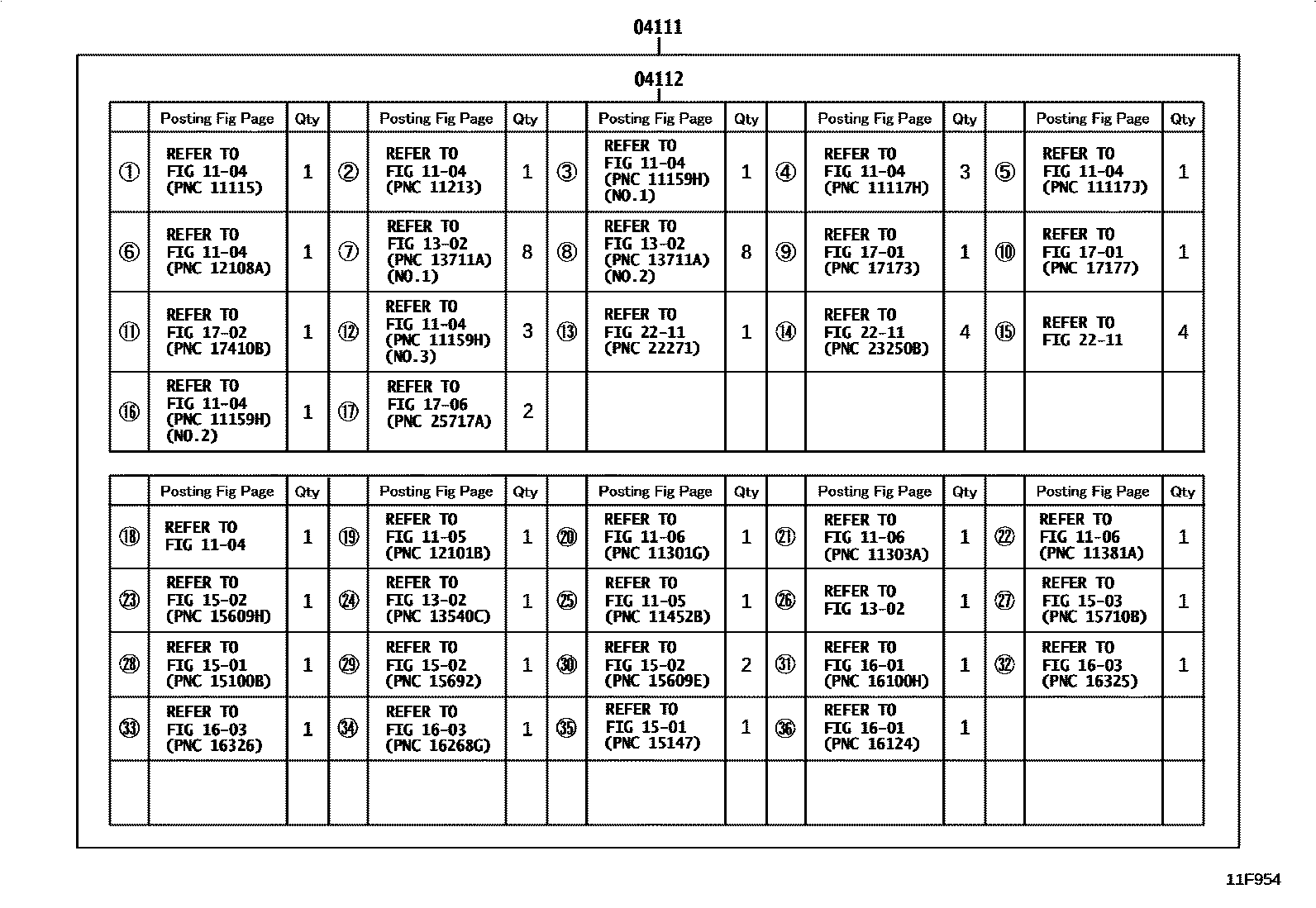

Toyota HILUX Engine Overhaul Gasket Kit EPC diagram — 11F954
Engine Overhaul Gasket Kit — 11F954 (202108 – 999999)

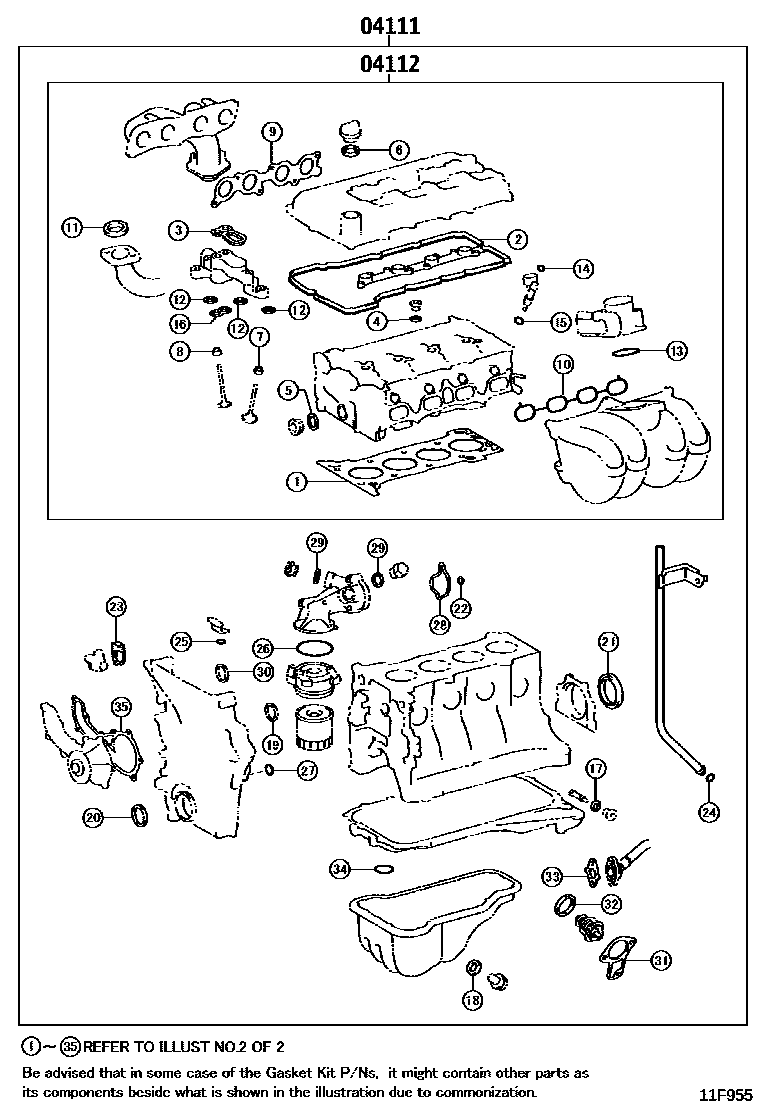

Toyota HILUX Engine Overhaul Gasket Kit EPC diagram — 11F955
Engine Overhaul Gasket Kit — 11F955 (202108 – 999999)

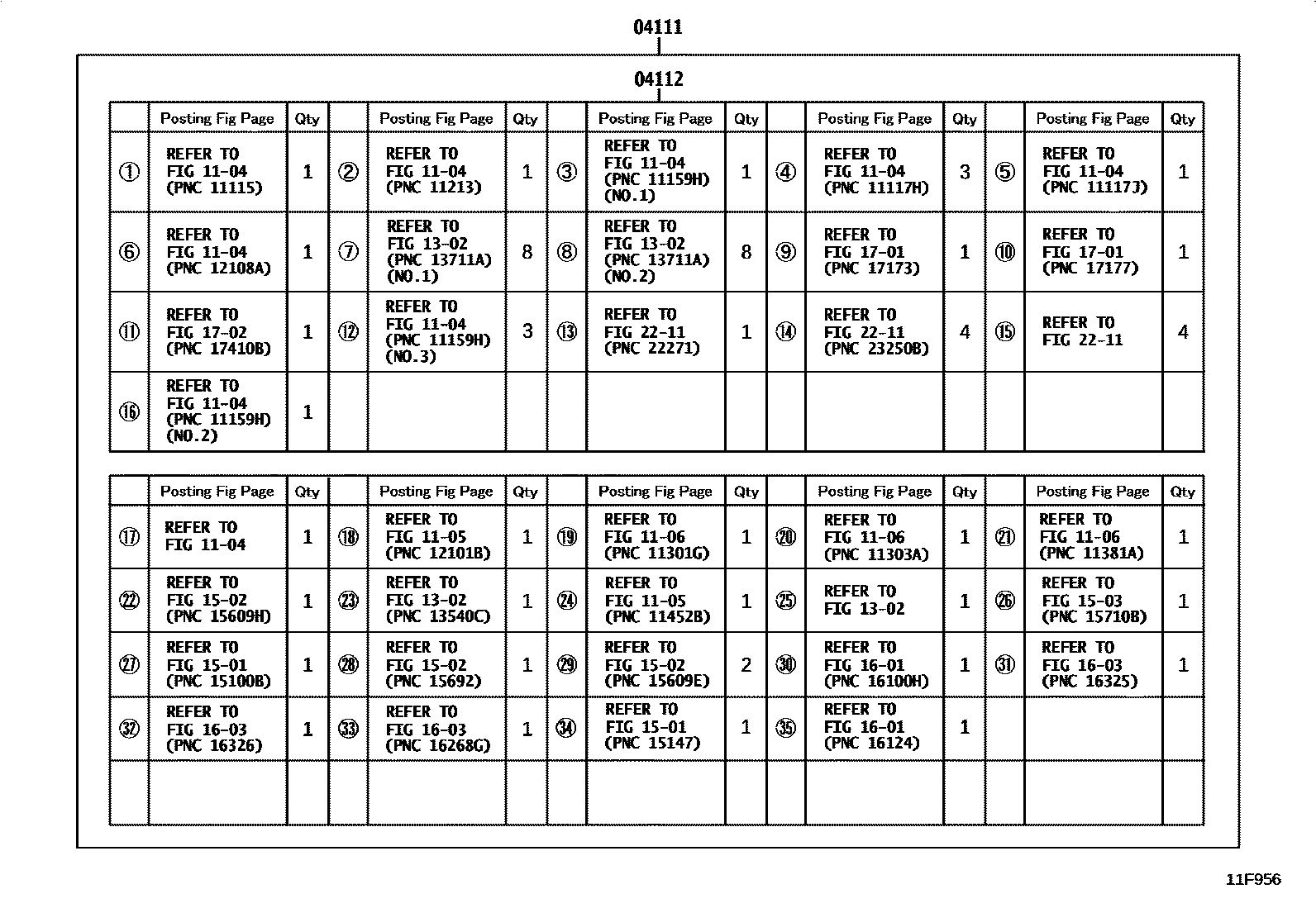

Toyota HILUX Engine Overhaul Gasket Kit EPC diagram — 11F956
Engine Overhaul Gasket Kit — 11F956 (202108 – 999999)

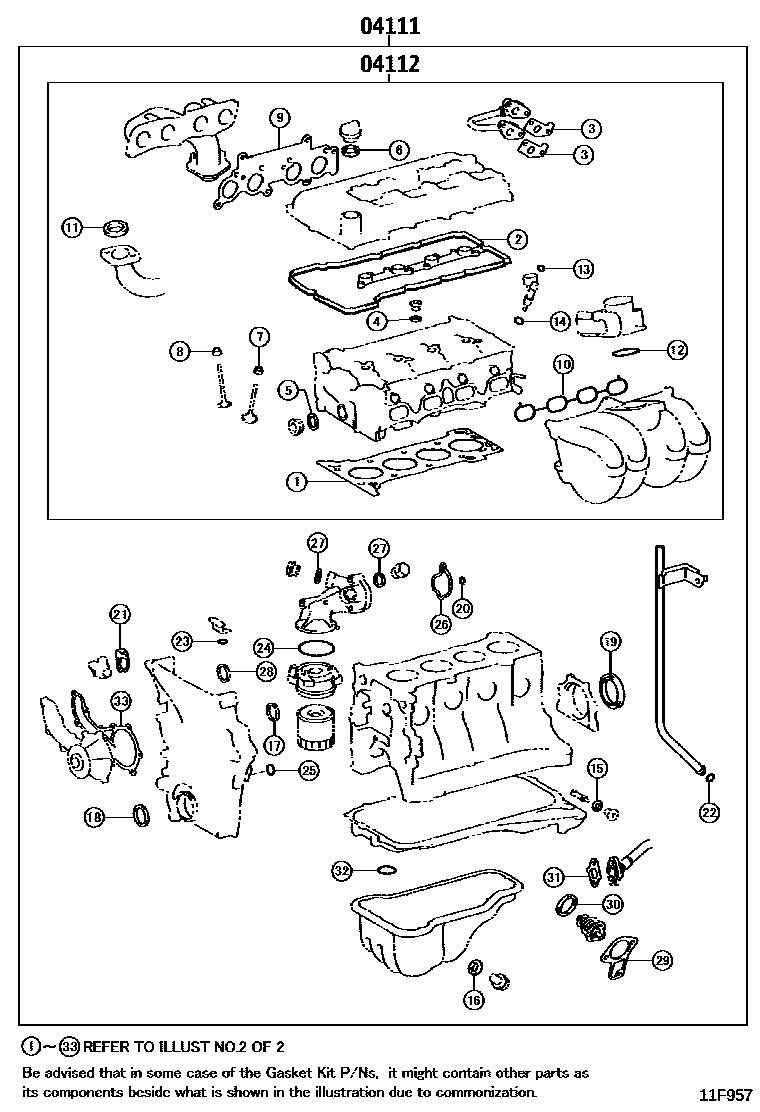

Toyota HILUX Engine Overhaul Gasket Kit EPC diagram — 11F957
Engine Overhaul Gasket Kit — 11F957 (202108 – 999999)

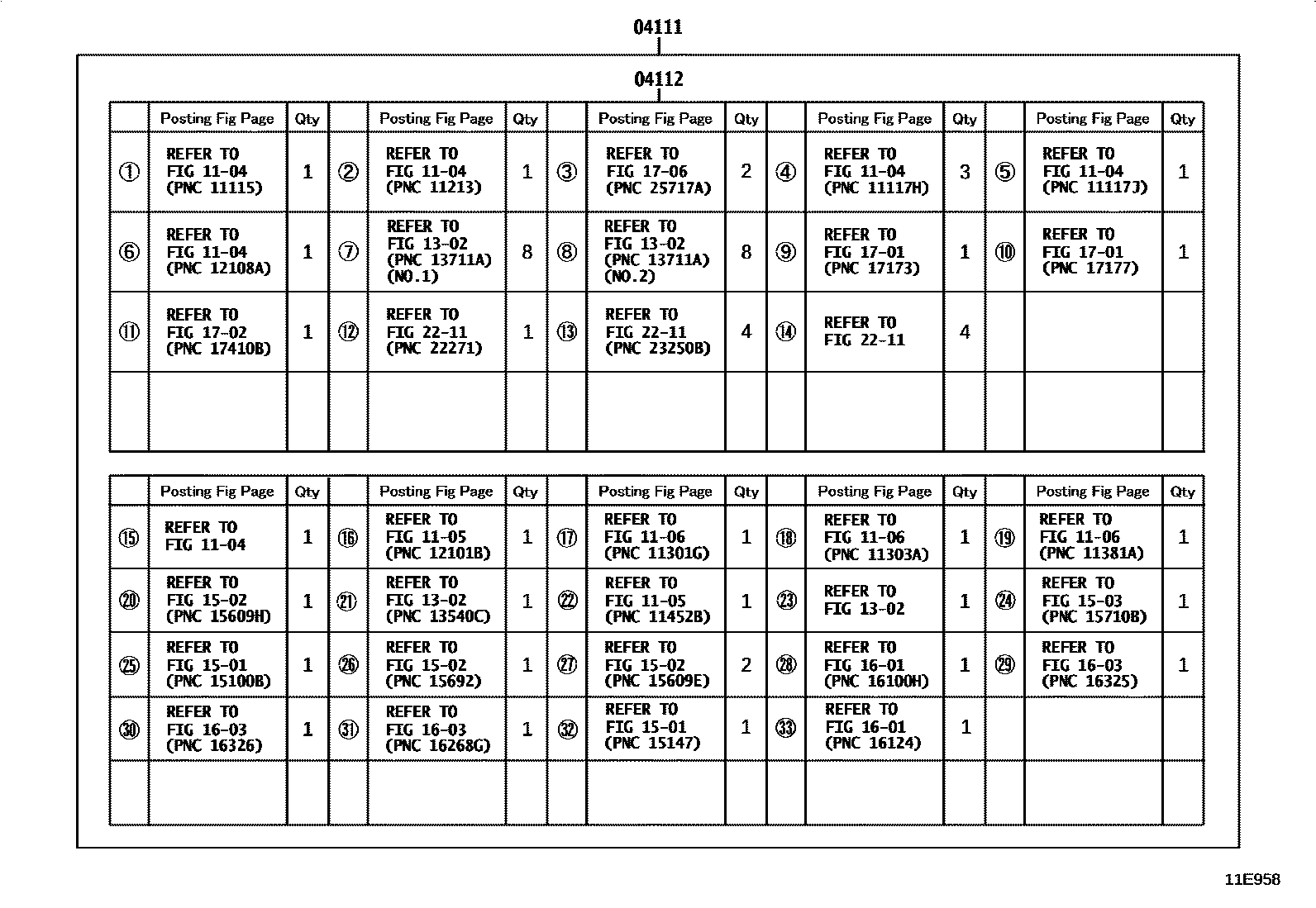

Toyota HILUX Engine Overhaul Gasket Kit EPC diagram — 11F958
Engine Overhaul Gasket Kit — 11F958 (202108 – 999999)

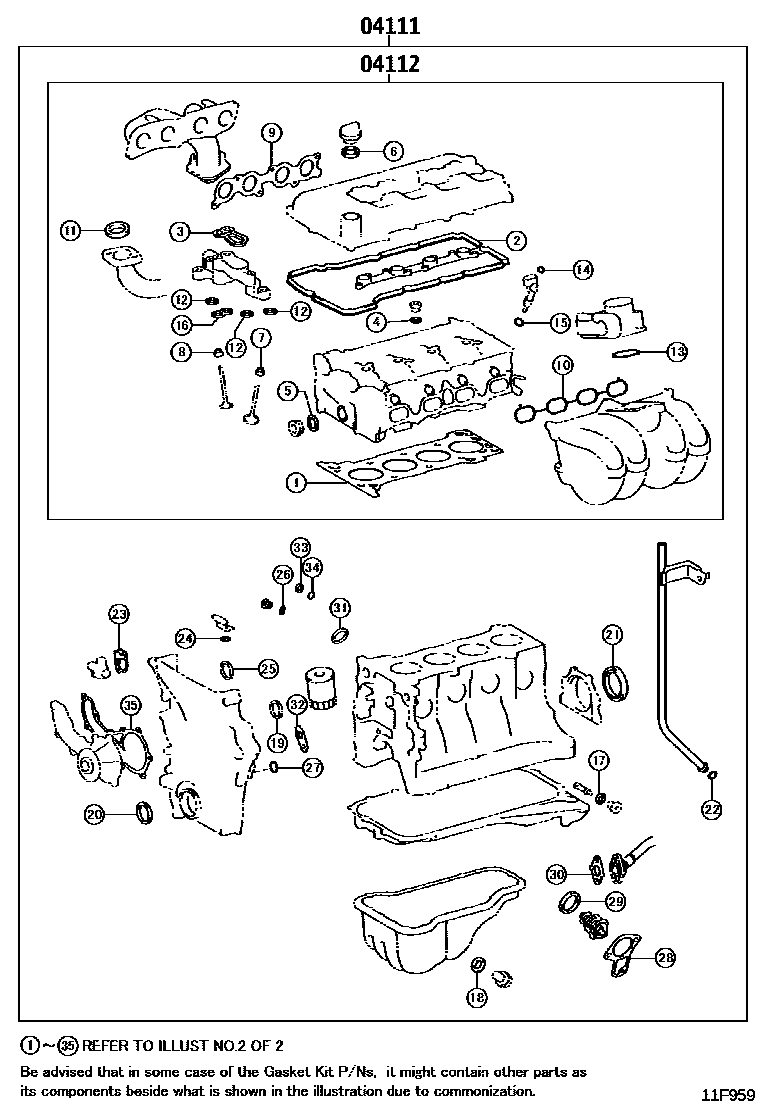

Toyota HILUX Engine Overhaul Gasket Kit EPC diagram — 11F959
Engine Overhaul Gasket Kit — 11F959 (202108 – 999999)

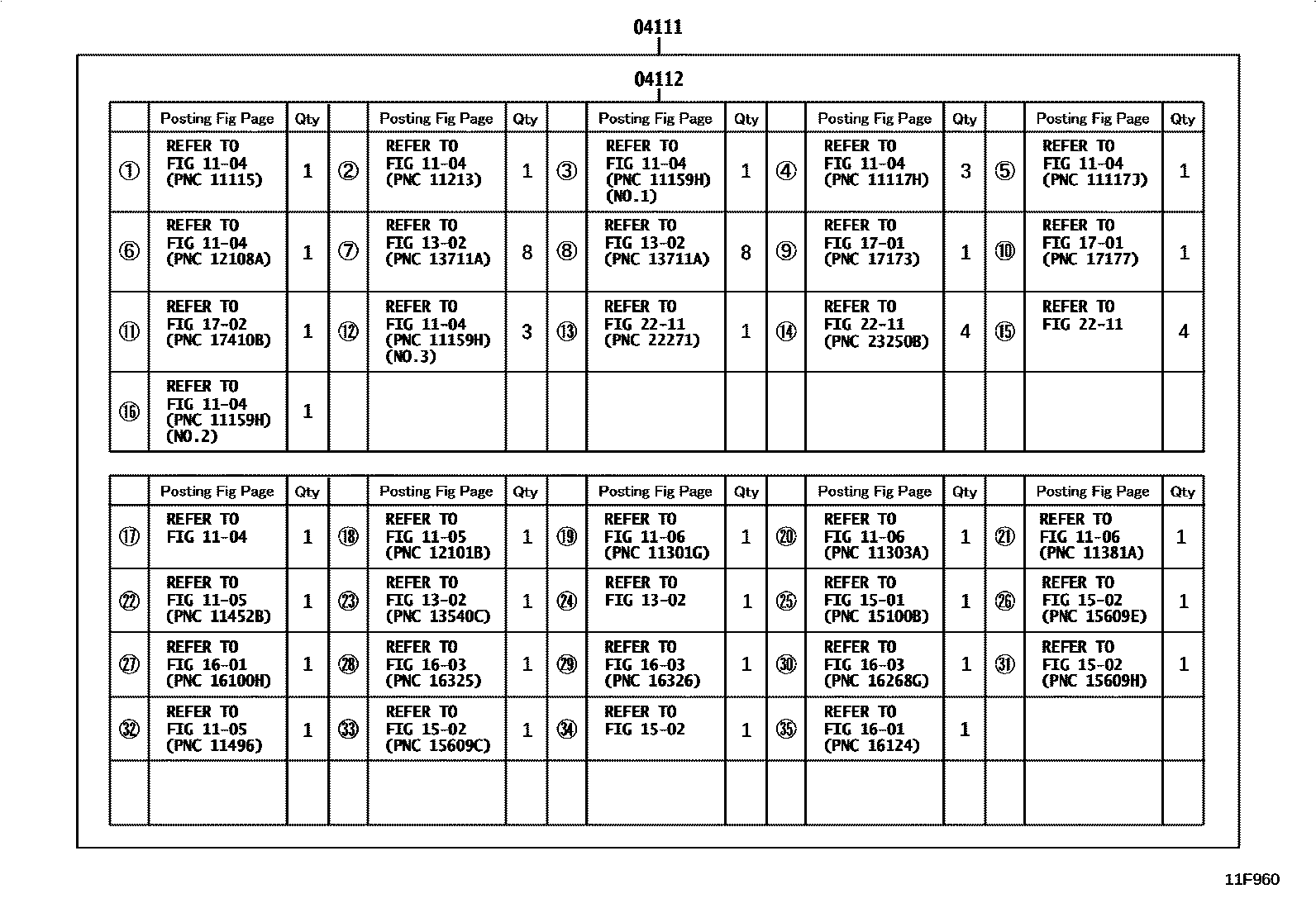

Toyota HILUX Engine Overhaul Gasket Kit EPC diagram — 11F960
Engine Overhaul Gasket Kit — 11F960 (202108 – 999999)

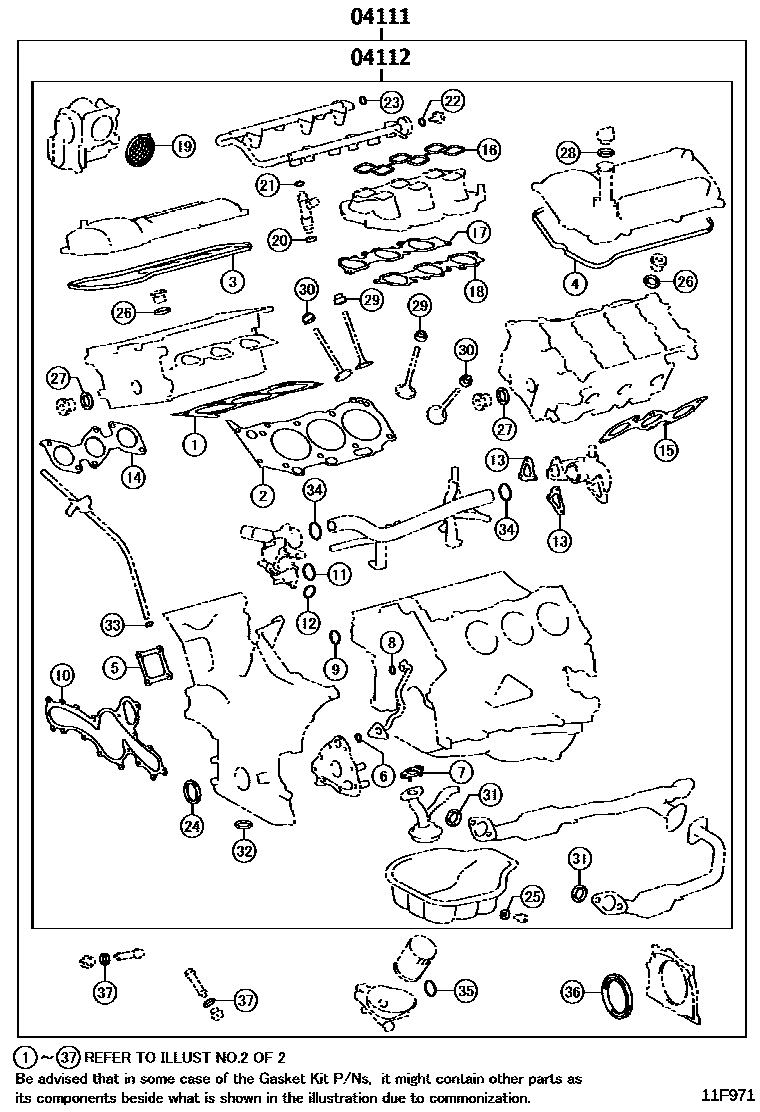

Toyota HILUX Engine Overhaul Gasket Kit EPC diagram — 11F971
Engine Overhaul Gasket Kit — 11F971 (202108 – 999999)

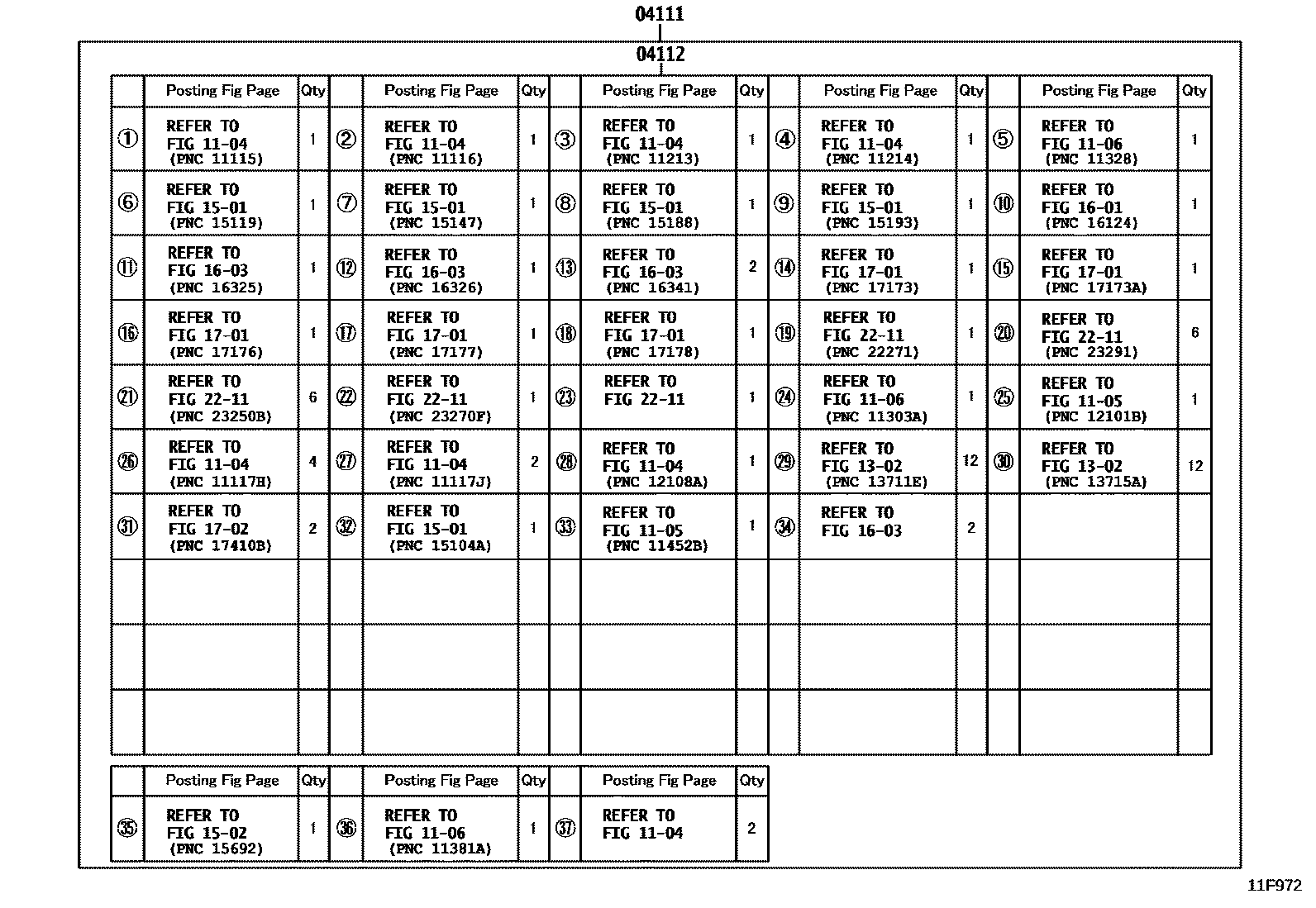

Toyota HILUX Engine Overhaul Gasket Kit EPC diagram — 11F972
Engine Overhaul Gasket Kit — 11F972 (202108 – 999999)

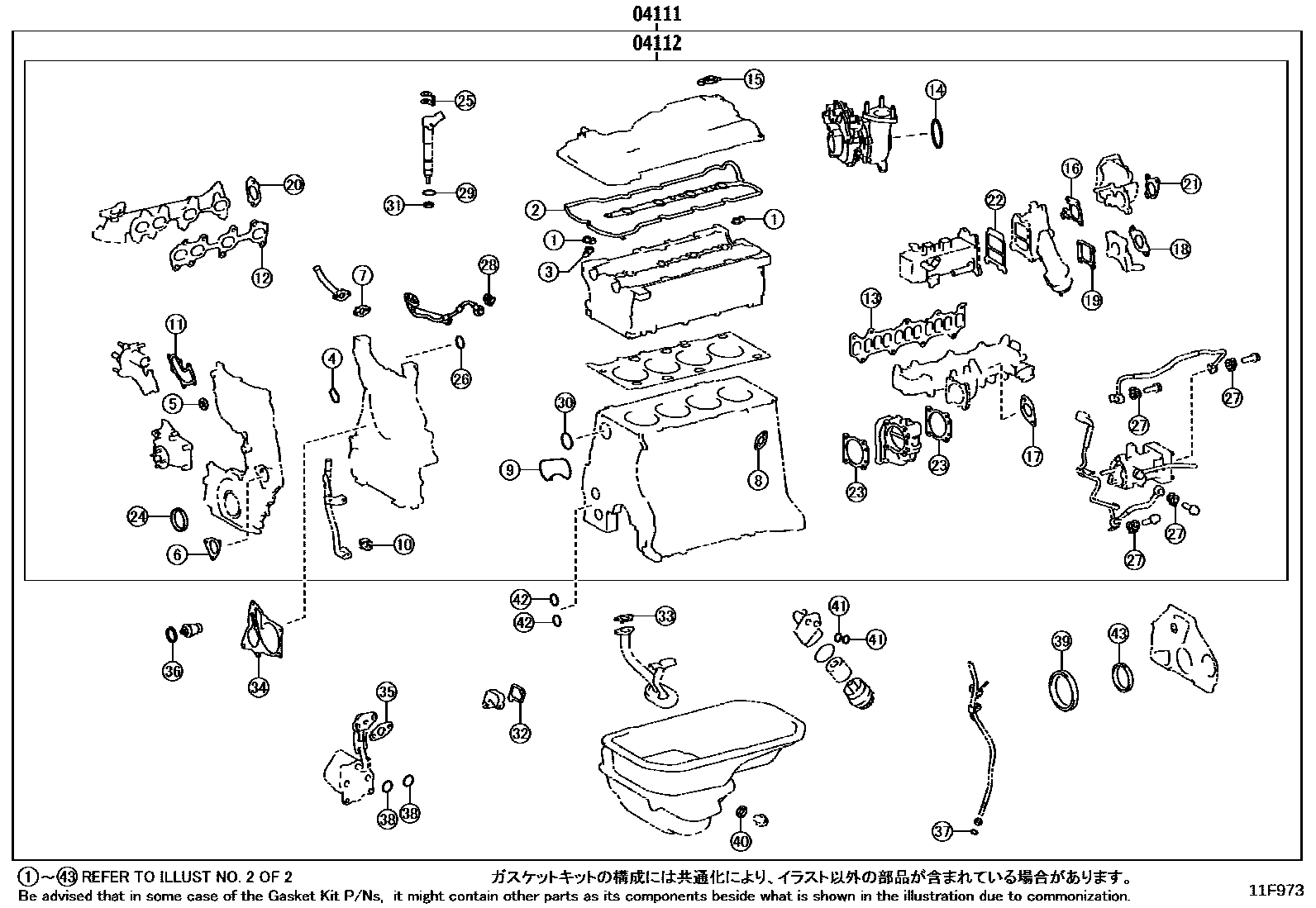

Toyota HILUX Engine Overhaul Gasket Kit EPC diagram — 11F973
Engine Overhaul Gasket Kit — 11F973 (202108 – 999999)

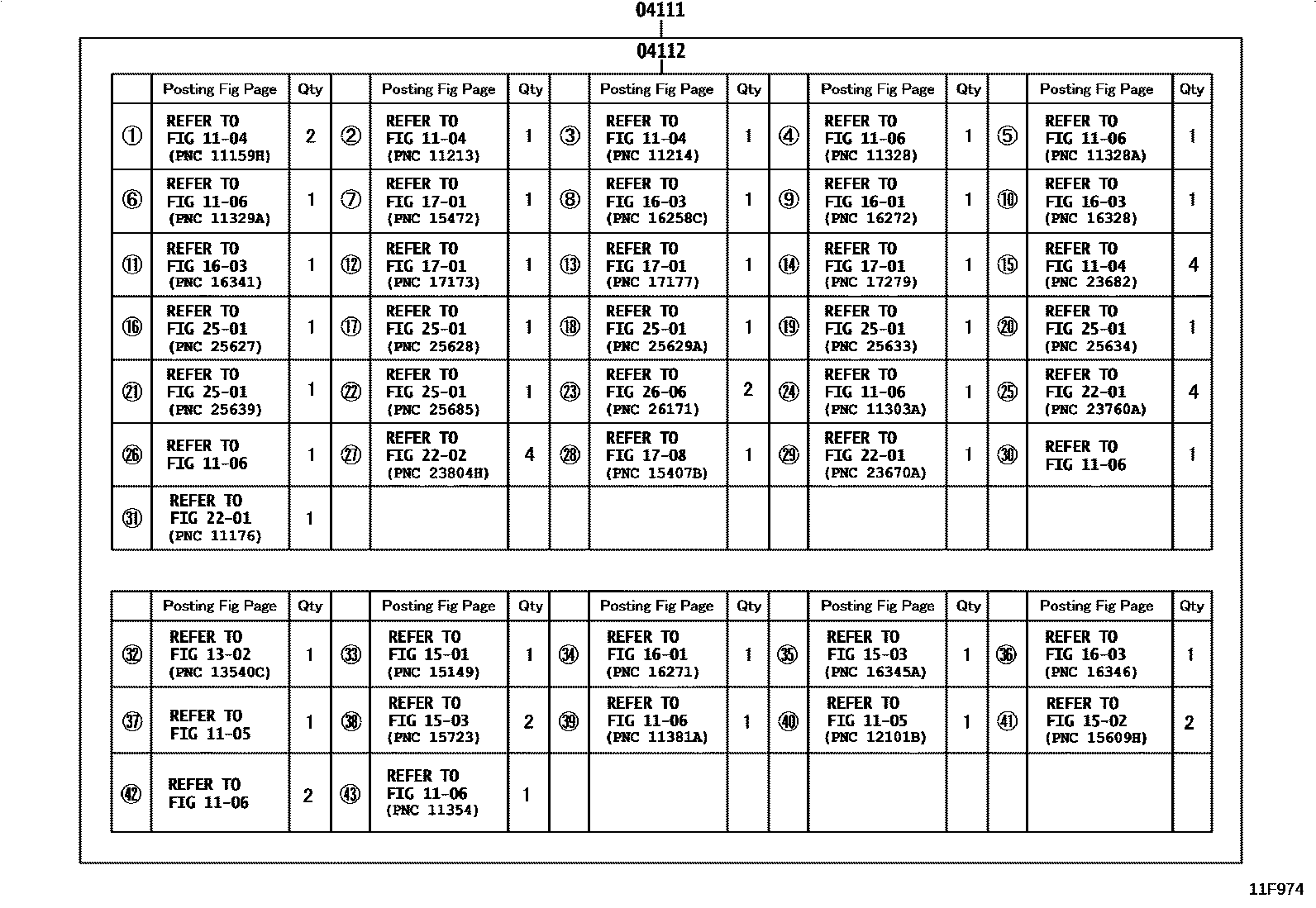

Toyota HILUX Engine Overhaul Gasket Kit EPC diagram — 11F974
Engine Overhaul Gasket Kit — 11F974 (202108 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0C152 · 04111-0C291 · 04111-0C300 · 04111-0C310 · 04111-0E111 · 04111-0E112 · 04111-0E160 · 04111-0E161 · 04111-0E170 · 04111-0E171 · 04111-0E190 · 04111-0E191 · 04111-0E220 · 04111-0E221 · 04111-0E240 · 04111-0E241 · 04111-31344 · 04111-54600
04112Engine valve grinding pad assembly04112-0C120 · 04112-0C130 · 04112-0C140 · 04112-0C151 · 04112-0E111 · 04112-0E112 · 04112-0E160 · 04112-0E161 · 04112-0E170 · 04112-0E171 · 04112-0E190 · 04112-0E191 · 04112-0E220 · 04112-0E221 · 04112-0E240 · 04112-0E241 · 04112-31125 · 04112-54510
