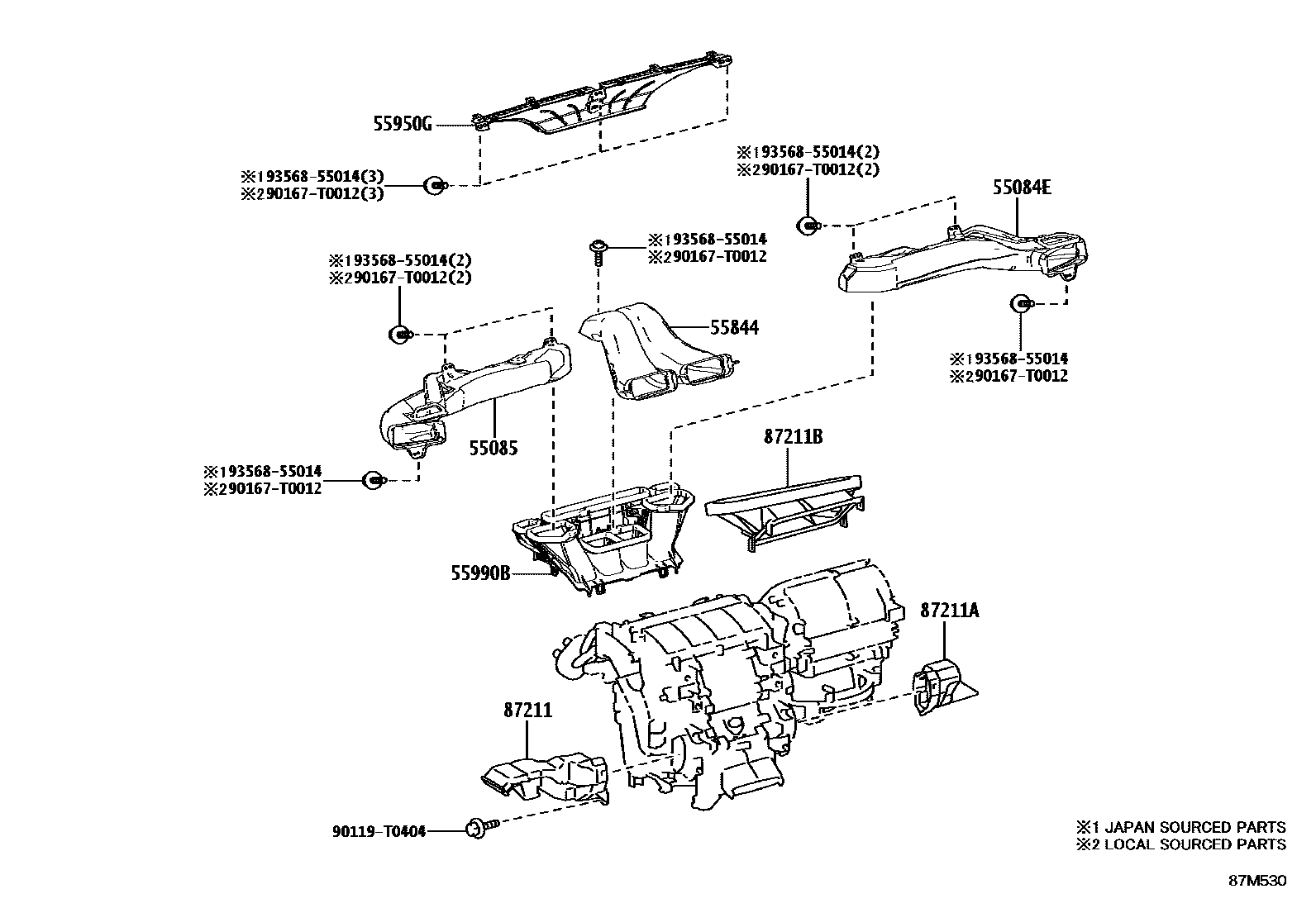

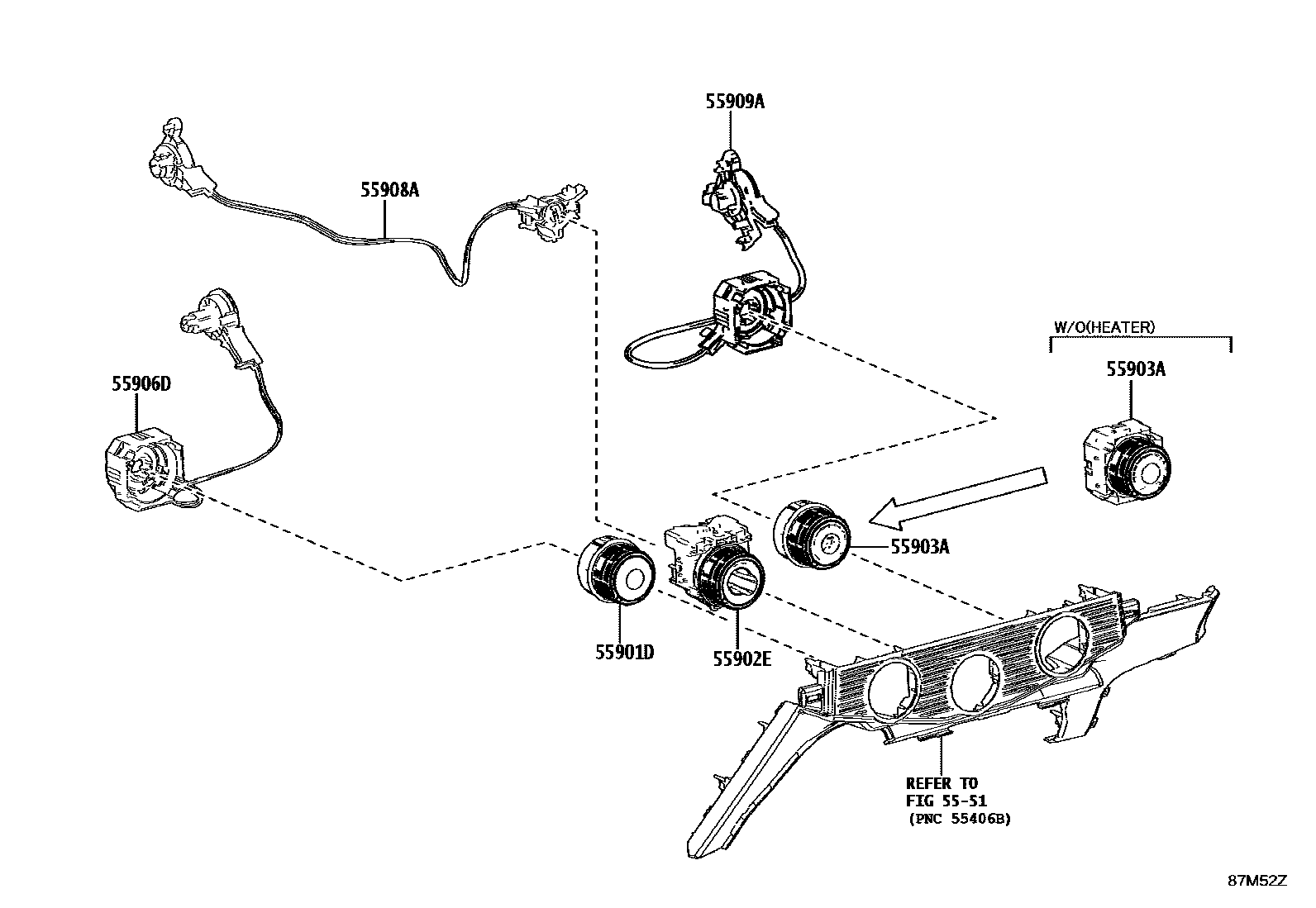

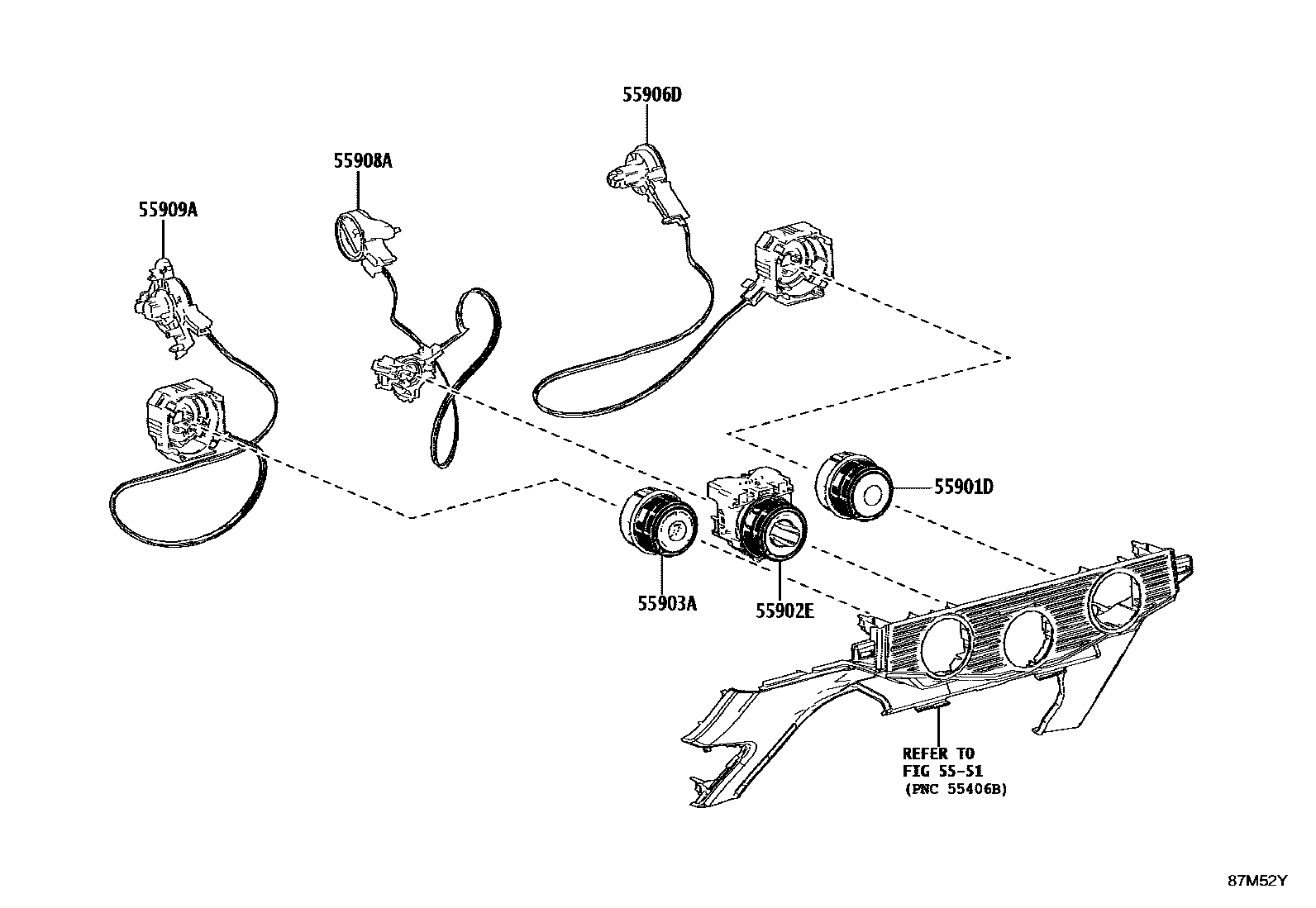

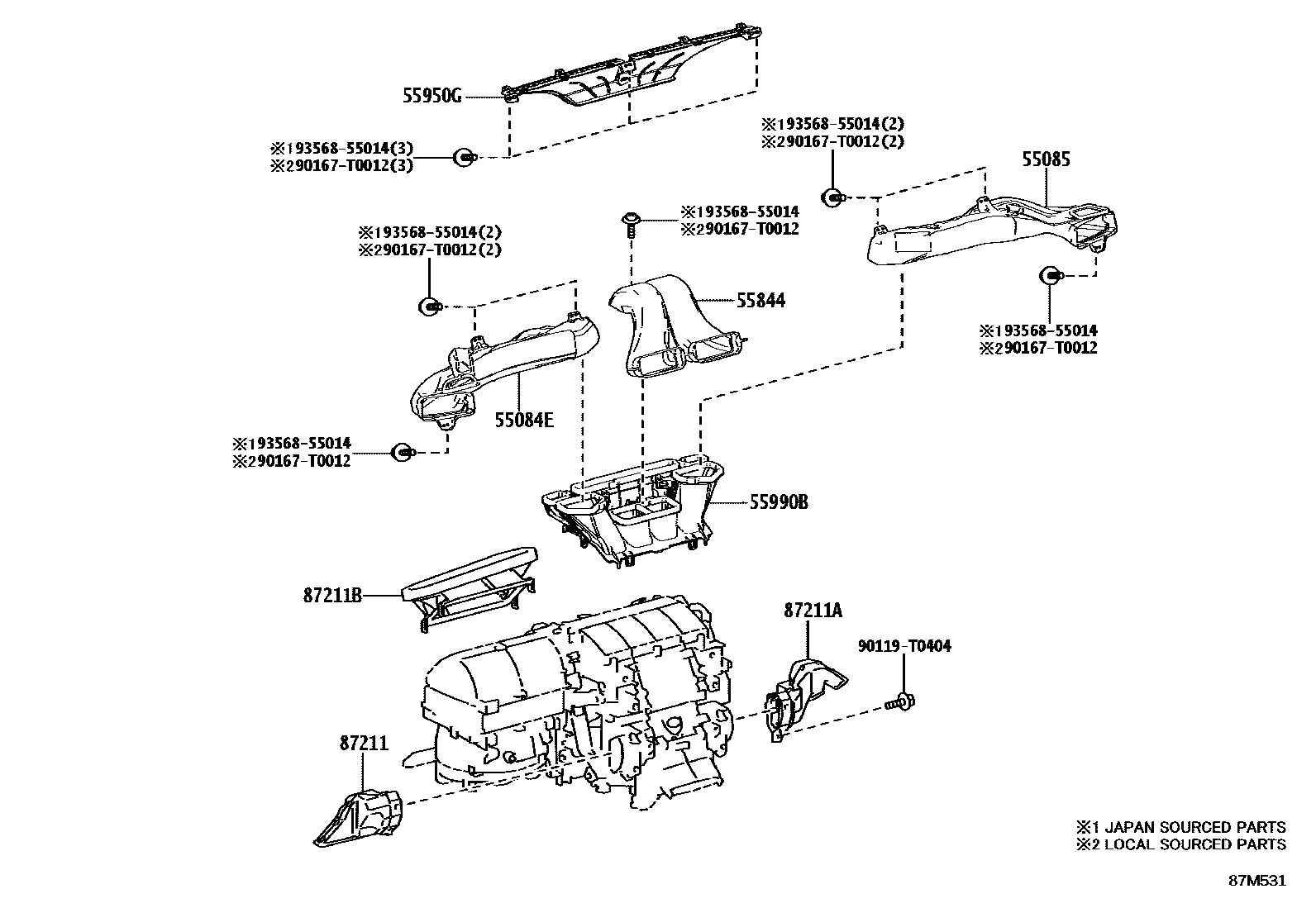

Toyota HILUX 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota HILUX EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55085-KK160 · 55085-KK180 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55084-KK080 · 55084-KK100 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-KK100 · 55844-KK110 |
| 55901D | No. 1 heater control sub-assembly | 55901-0K040 · 55901-VT010 |
| 55902E | No. 2 heater control sub-assembly | 55902-VT010 |
| 55903A | No. 3 heater control sub-assembly | 55903-VT010 · 55903-VT020 |
| 55906D | No. 2 heater control cable sub-assembly | 55906-0K070 · 55906-0K080 |
| 55908A | Intake air valve control cable sub-assembly | 55908-0K090 · 55908-0K120 |
| 55909A | Air mix damper control cable sub-assembly | 55909-0K070 · 55909-0K080 |
| 55950G | Defroster nozzle assembly | 55950-KK030 |
| 55990B | Lower defroster nozzle assembly | 55990-KK040 |
| 87211 | No. 1 air duct | 87211-0K760 · 87211-0K820 |
| 87211A | Duct No. 2 | 87211-0K780 · 87211-0K800 |
| 87211B | No. 3 air duct | 87211-0K750 · 87211-0K790 |

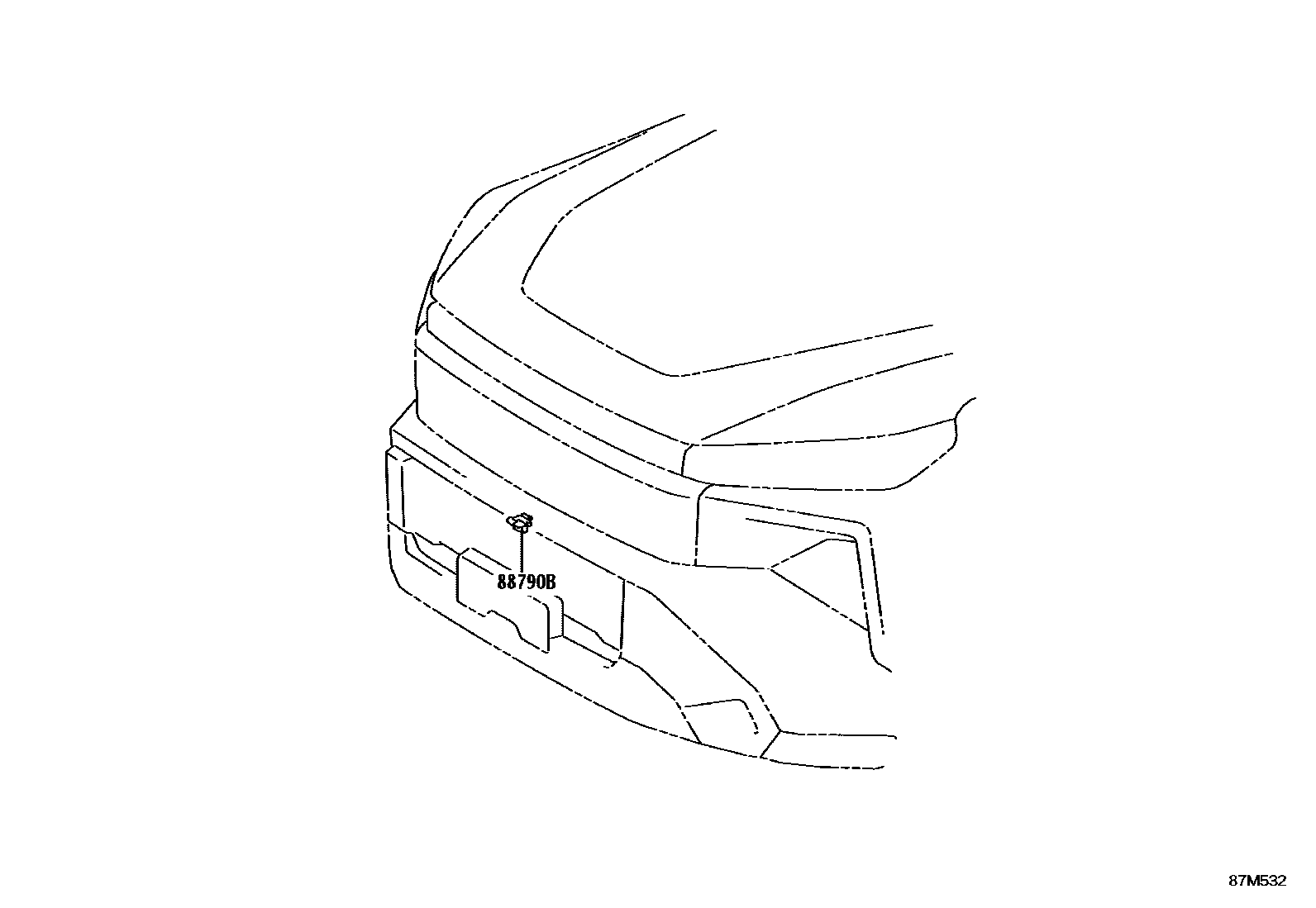

| 88790B | Thermistor assembly | 88790-0K010 · 88790-28100 |
