Toyota HILUX 后视镜 — Figure 8701

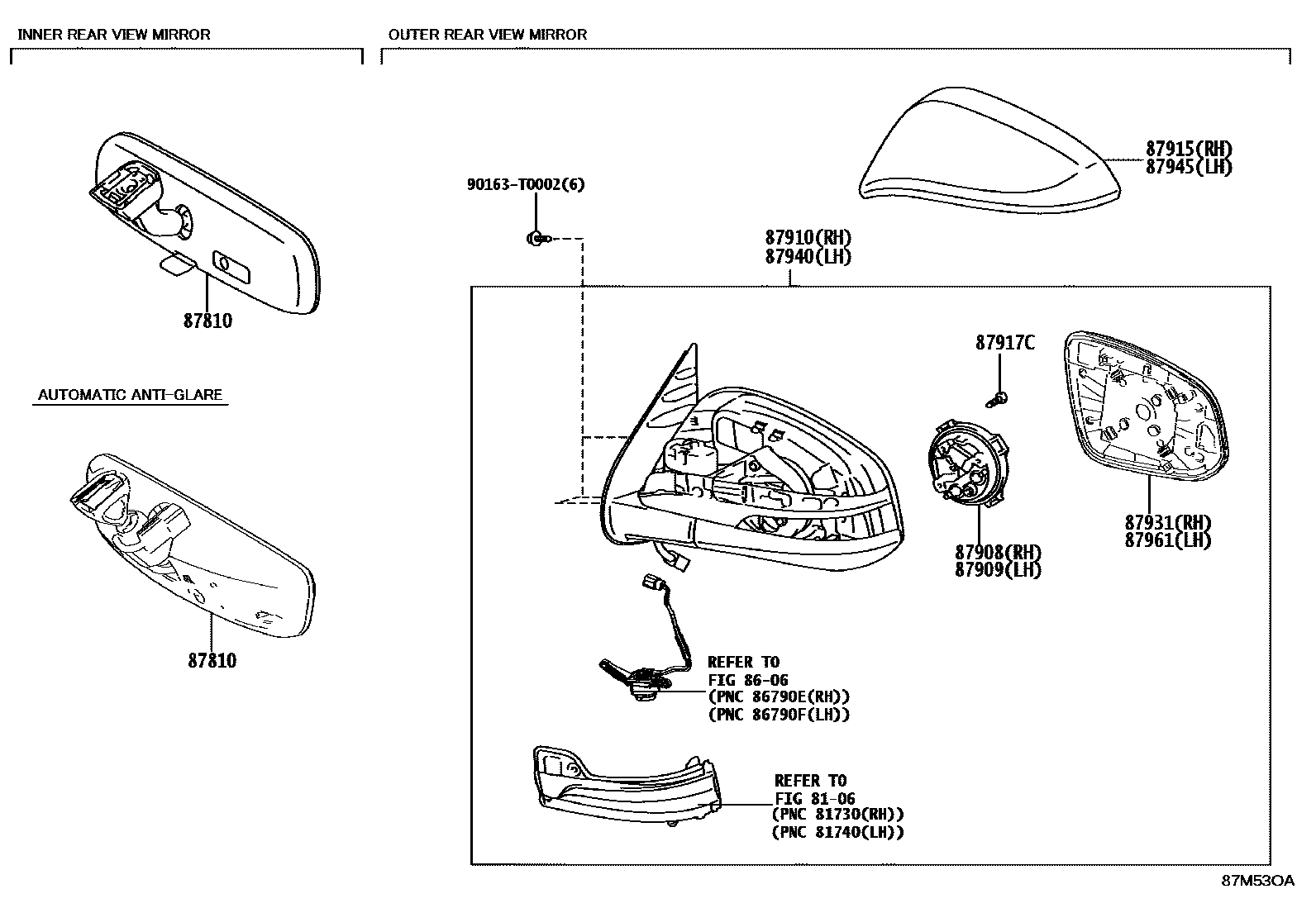

Toyota HILUX EPC diagram 8701, 后视镜, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-02260 |
| 87908 | Right exterior rearview mirror actuator assembly | 87908-F0390 |
| 87909 | Left exterior rearview mirror actuator assembly | 87908-F0390 |
| 87910 | Right exterior rearview mirror assembly | 87910-0KT80 · 87910-F0360 · 87910-F0390 |
| 87915 | Right exterior rearview mirror cover | 87915-0K390 |
| 87931 | Right exterior rearview mirror | 87931-0A060 · 87931-0KC60 |
| 87940 | Left exterior rearview mirror assembly | 87940-0KT80 · 87940-F0360 · 87940-F0390 |
| 87945 | Left exterior rearview mirror cap | 87945-0K390 |
| 87961 | Left exterior rearview mirror | 87961-0A050 · 87961-0KB20 |
