Toyota HILUX antenna — Figure 8604

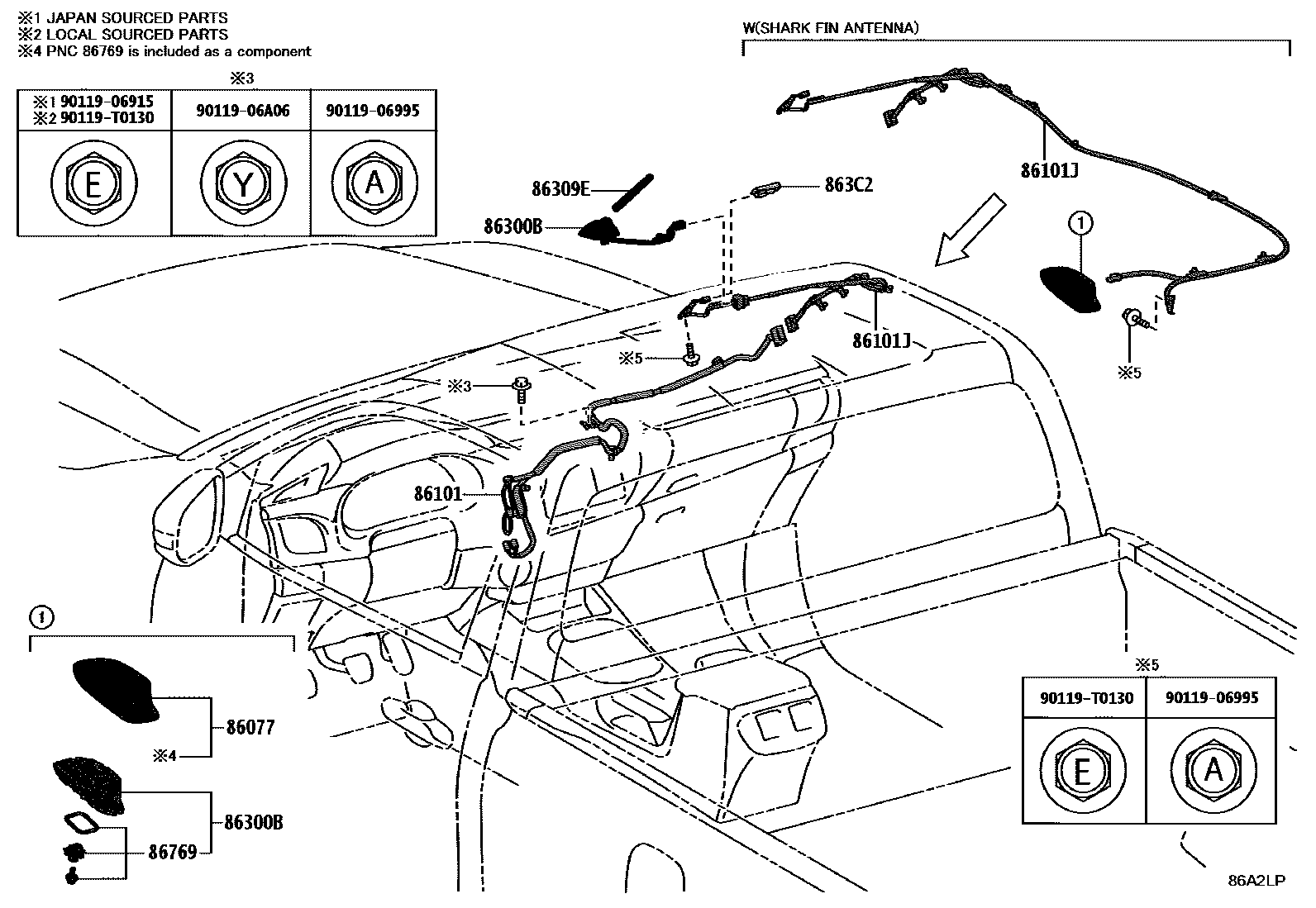

Toyota HILUX EPC diagram 8604, antenna, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-0KV70 · 86101-0KV90 · 86101-0KW10 · 86101-0KW20 · 86101-0KX80 |
| 86101J | Antenna No. 2 wire sub-assembly | 86101-0KA21 · 86101-0KA51 · 86101-0KU70 |
| 86300B | No. 1 amplifier antenna assembly | 86300-0K290 · 86760-0K051 |
| 86309E | Roof antenna sub-assembly | 86309-0K100 |
| 863C2 | Digital audio broadcasting receiver antenna base | 863C2-0K010 |
| 86769 | roof radome | 86769-0K030 |
