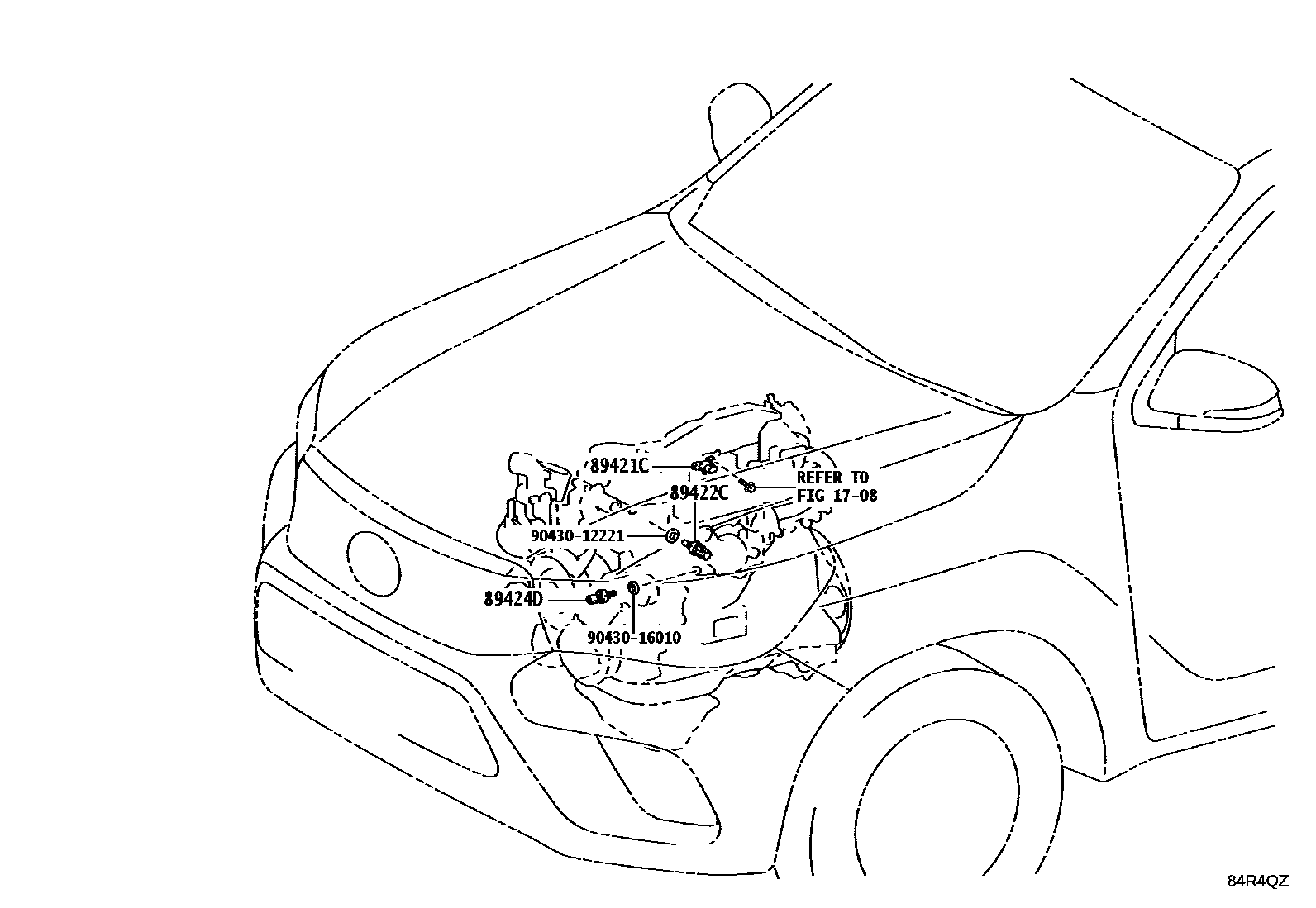

Toyota HILUX 电子控制柴油机(ECD) — Figure 8405
Toyota HILUX EPC diagram 8405, 电子控制柴油机(ECD), with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89421C | Turbo pressure sensor (for diesel turbines) | 89421-71050 |
| 89422C | Diesel engine water temperature sensor | 89422-33030 |
| 89424D | Intake air temperature sensor | 89424-60010 |
| 89661A | Engine control ECU | 89661-FBW50 · 89661-FBZ50 · 89661-FBZ70 · 89661-FC440 |
| 89667A | No. 1 engine control ECU bracket | 89667-0K230 · 89667-0K261 · 89667-0K271 · 89667-0K301 · 89667-0K331 |
| 89668A | No. 2 engine control ECU bracket | 89668-0K280 · 89668-0K290 · 89668-0K330 · 89668-0K350 · 89668-0K370 · 89668-0K390 · 89668-0K400 |
