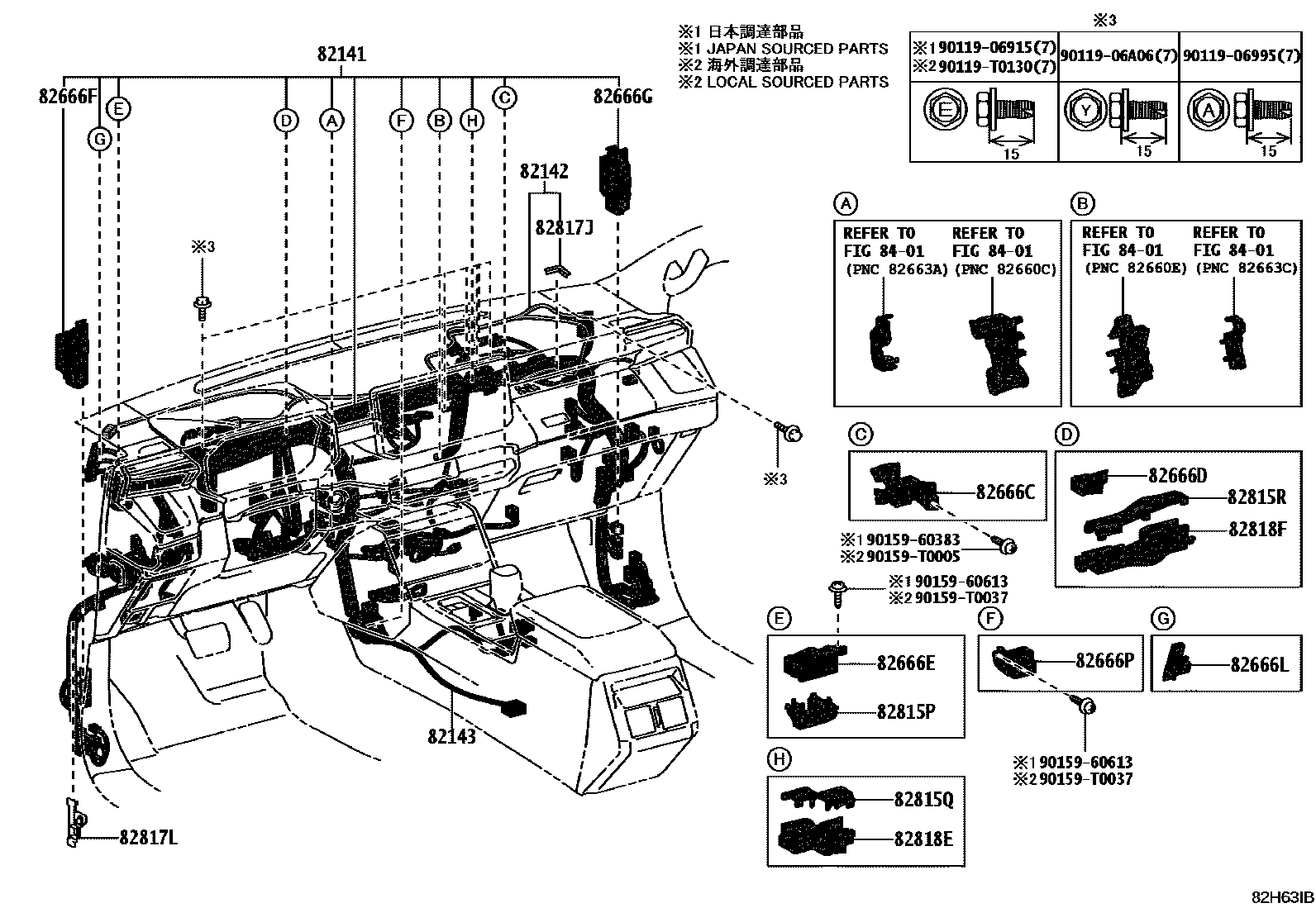

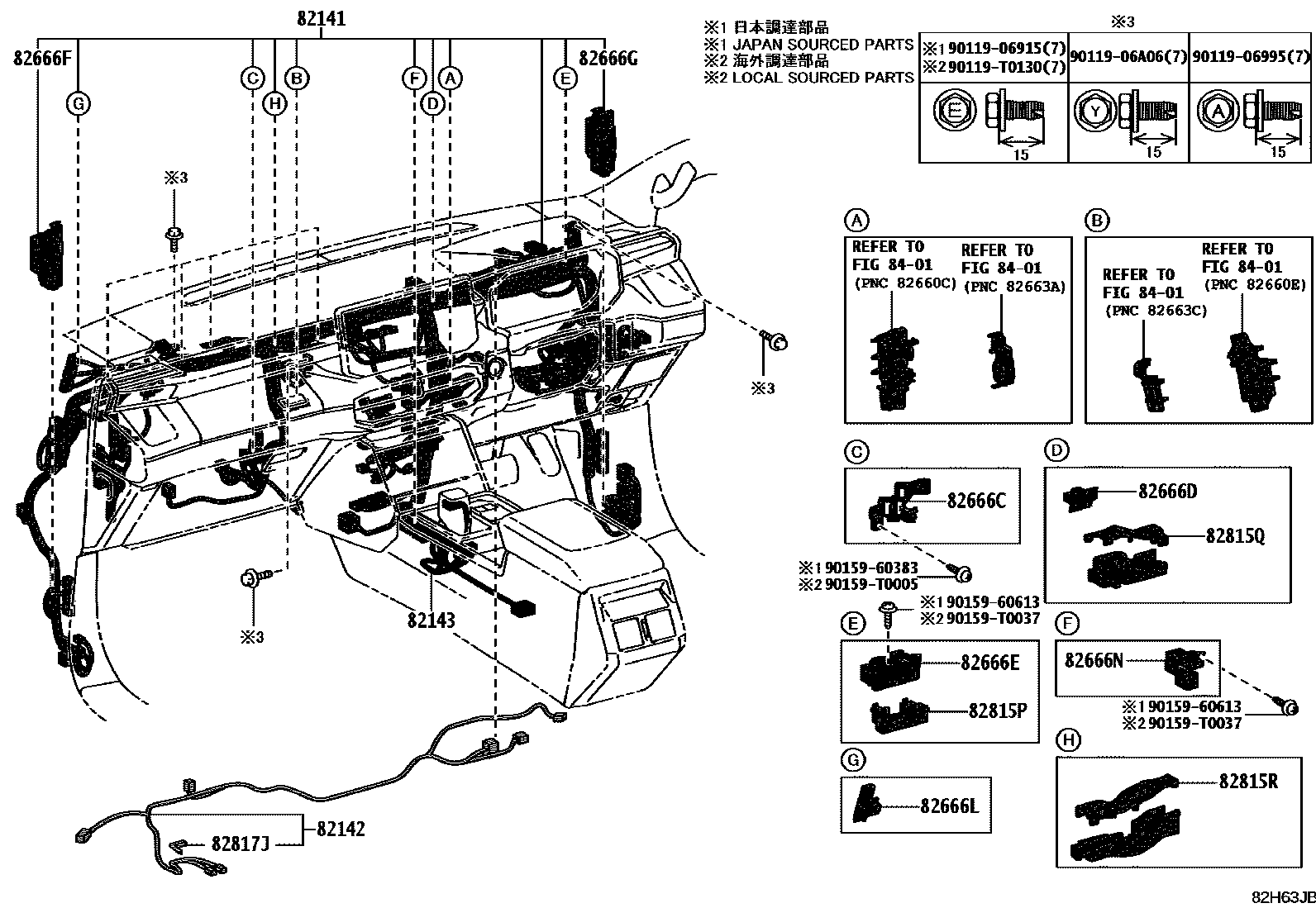

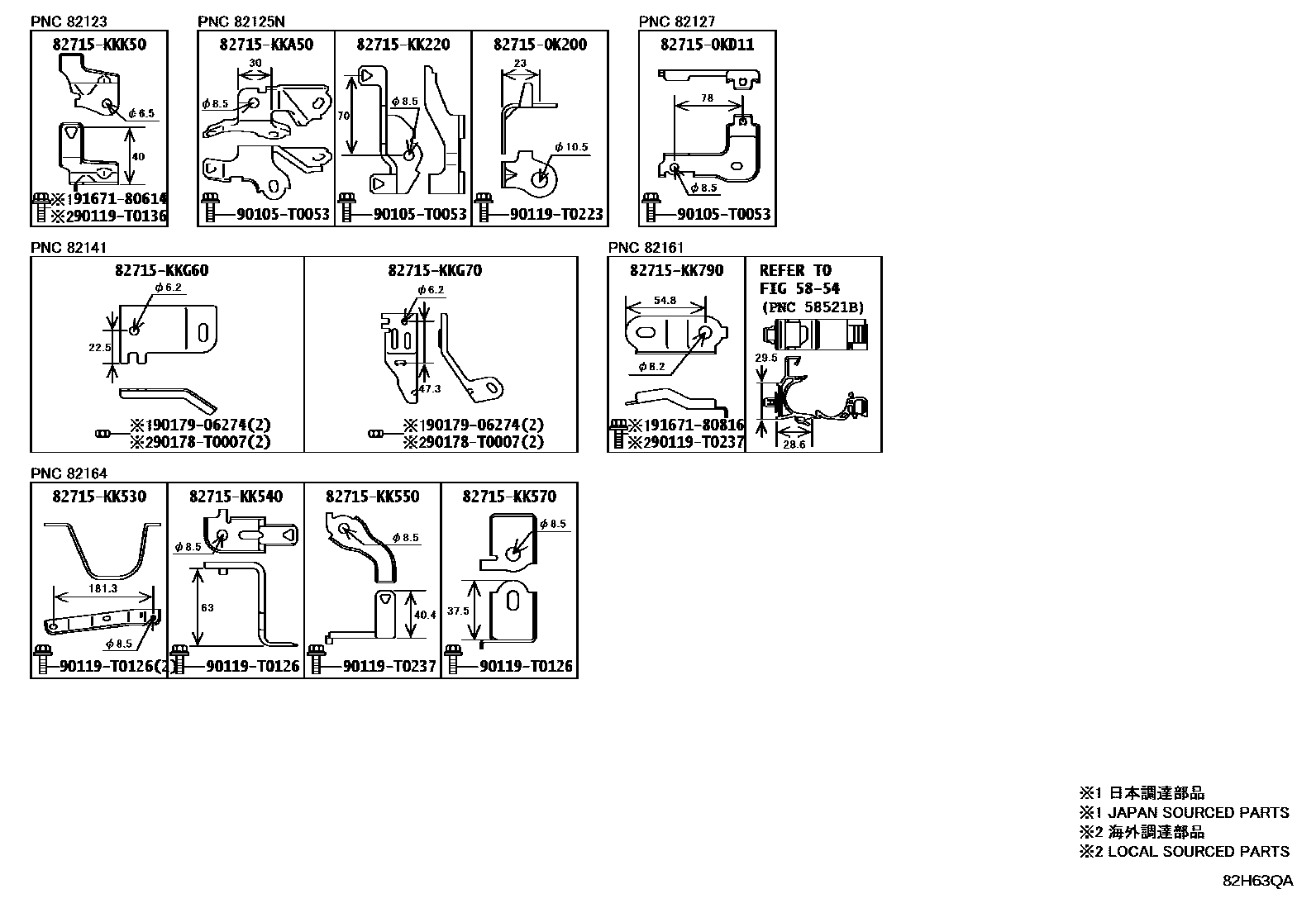

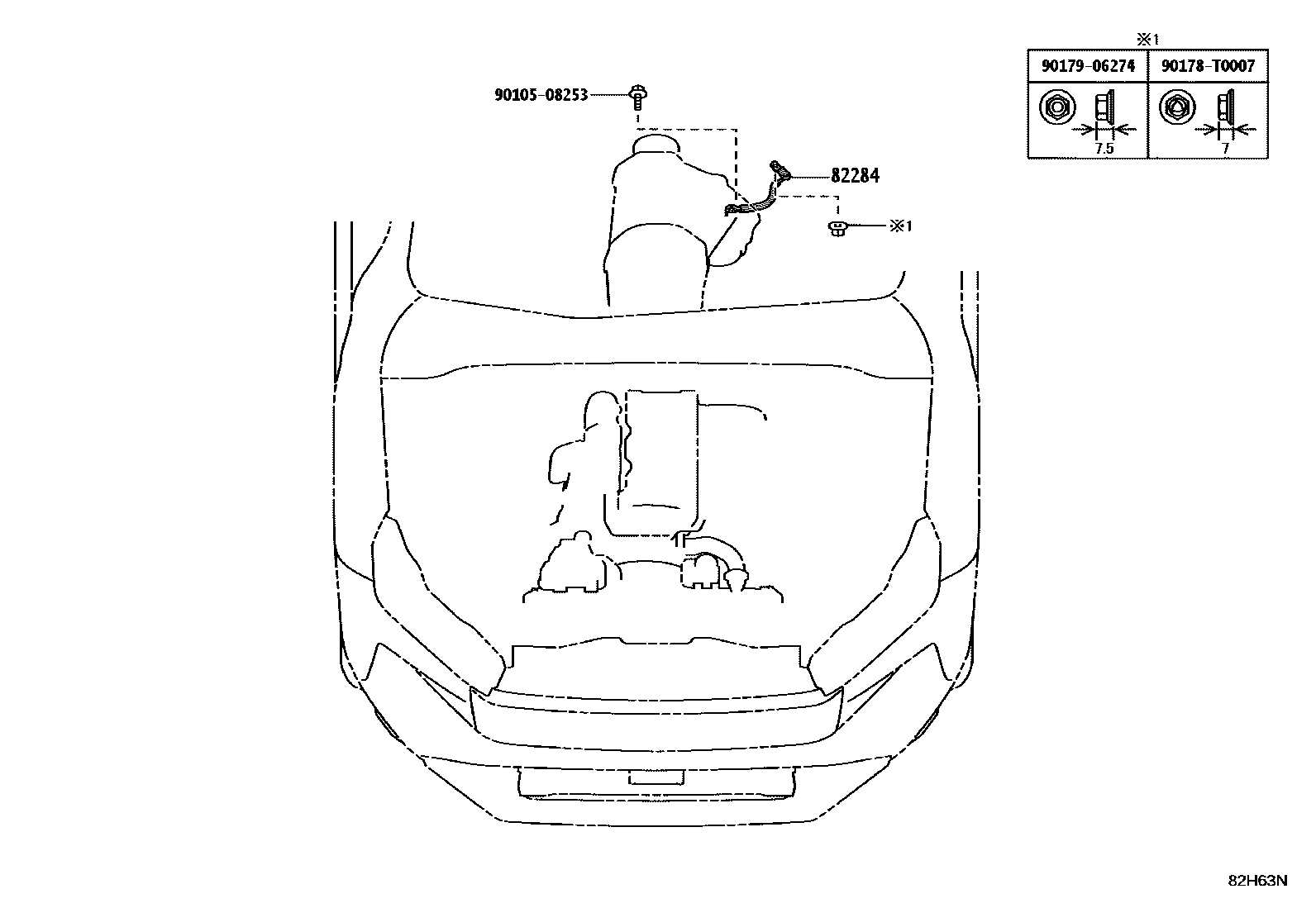

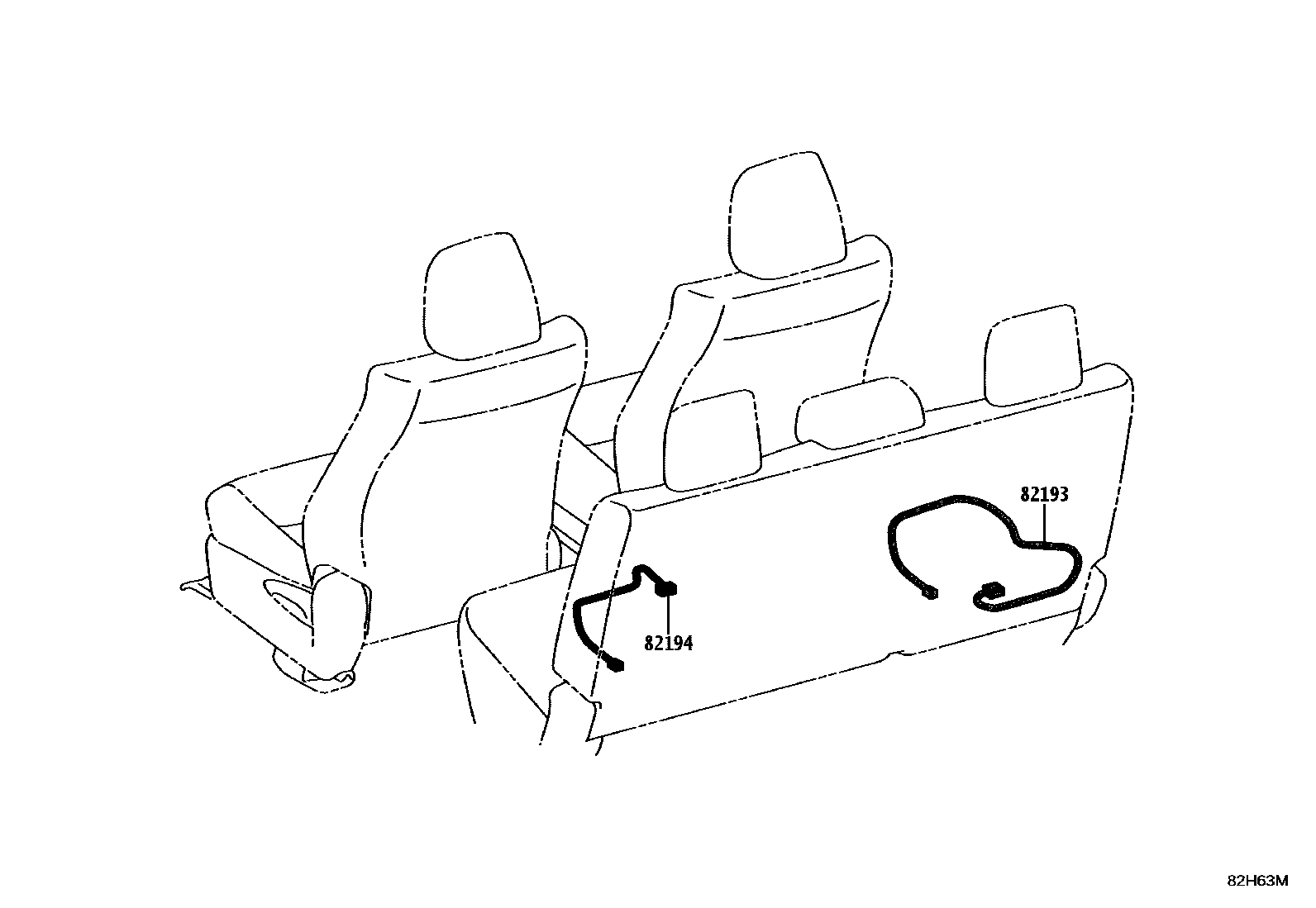

Toyota HILUX 线束和卡夹 — Figure 8202
Toyota HILUX EPC diagram 8202, 线束和卡夹, with 12 images and 81 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

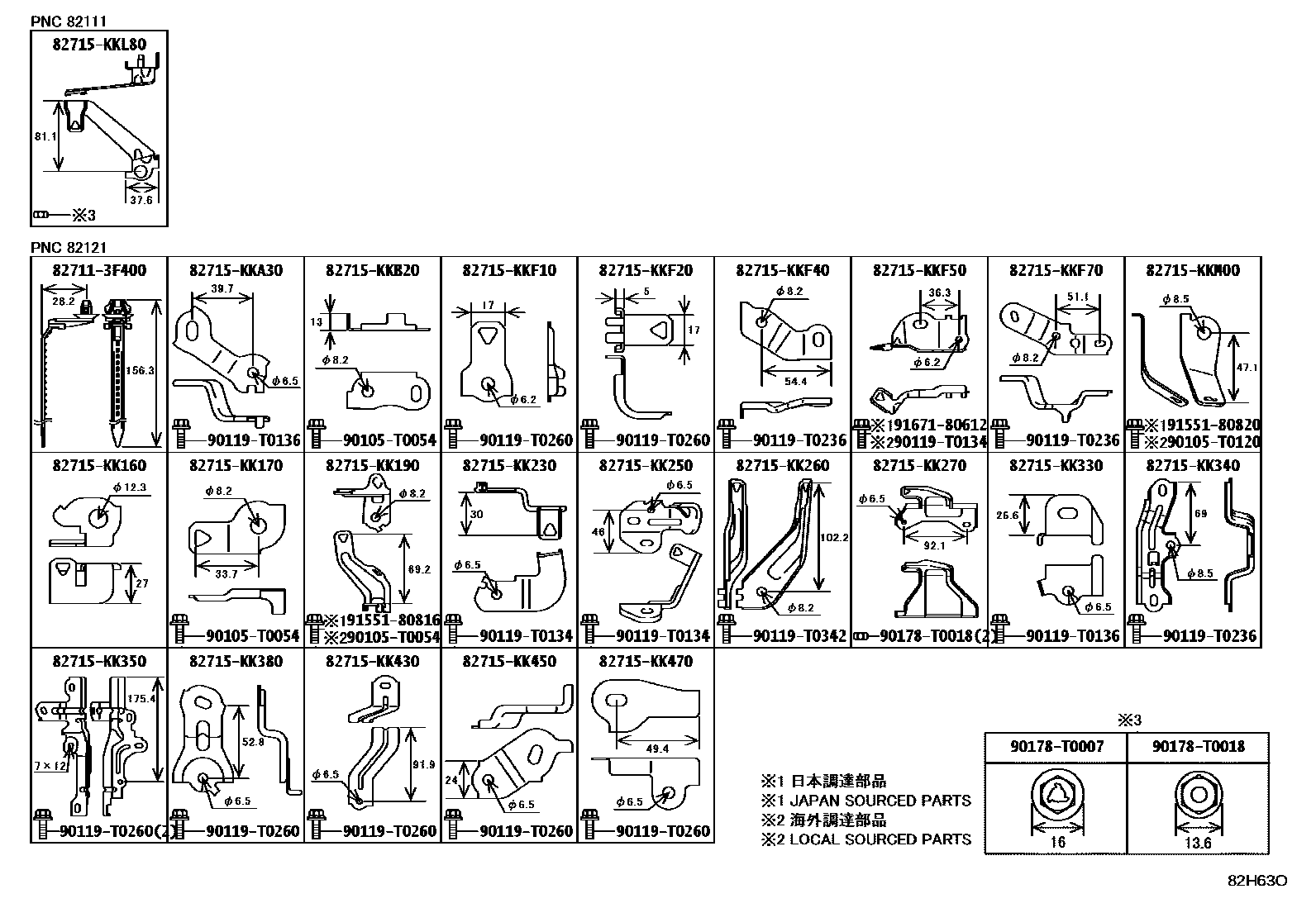

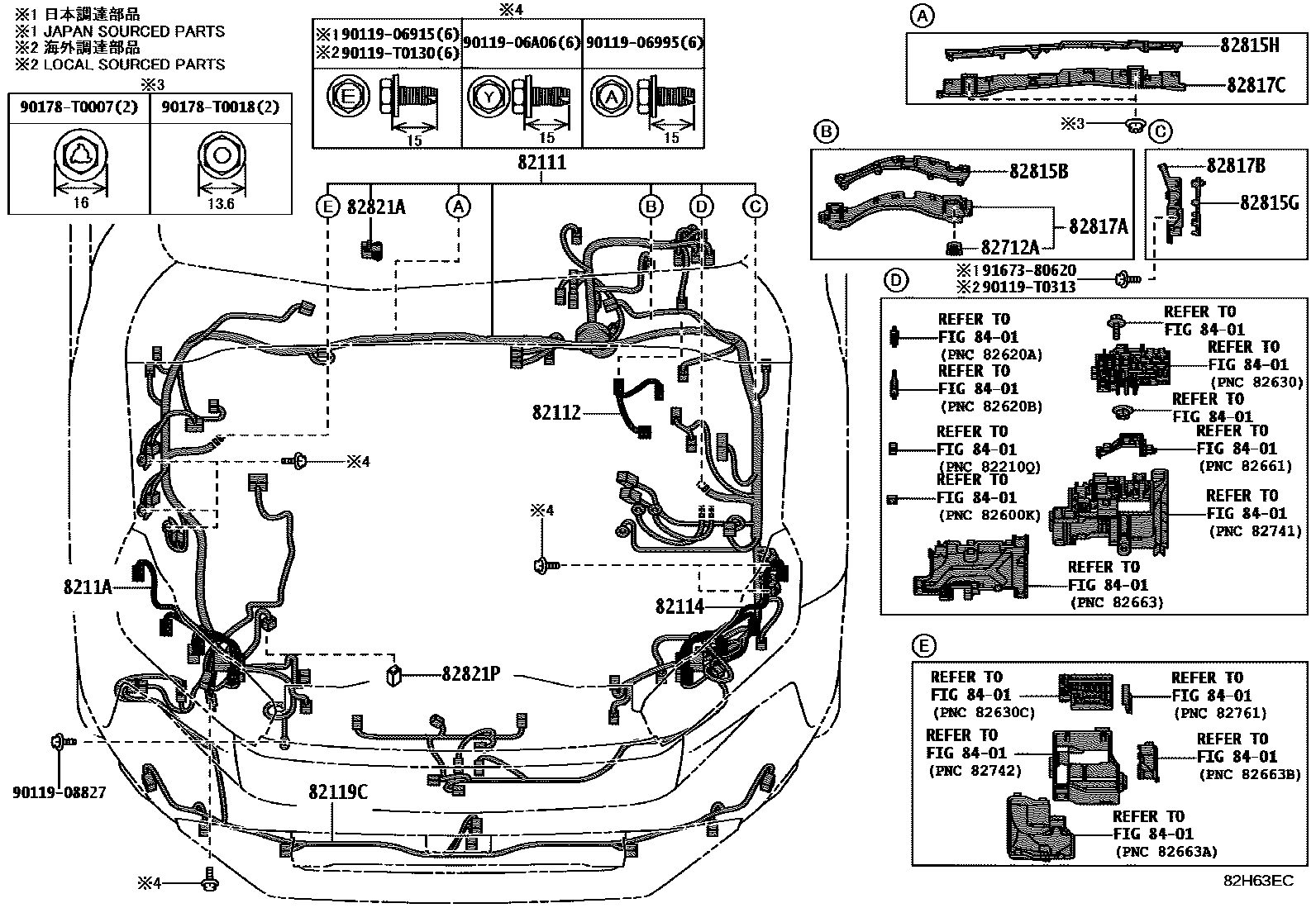

| 82111 | Engine room main wiring harness | 8211J-KK670 · 8211J-KKR90 · 8211L-KK190 · 8211L-KK330 · 8211L-KK620 |
| 82111B | condenser | 90980-04206 |
| 82112 | Engine room wiring harness No. 2 | 82112-KK070 |
| 82114 | Engine room wiring harness No. 4 | 82114-KK150 · 82114-KK180 |
| 82119C | Engine room wiring harness No. 5 | 82119-KK530 · 82119-KK550 |
| 8211A | Engine room wiring harness No. 6 | 8211A-KK340 · 8211A-KK370 |

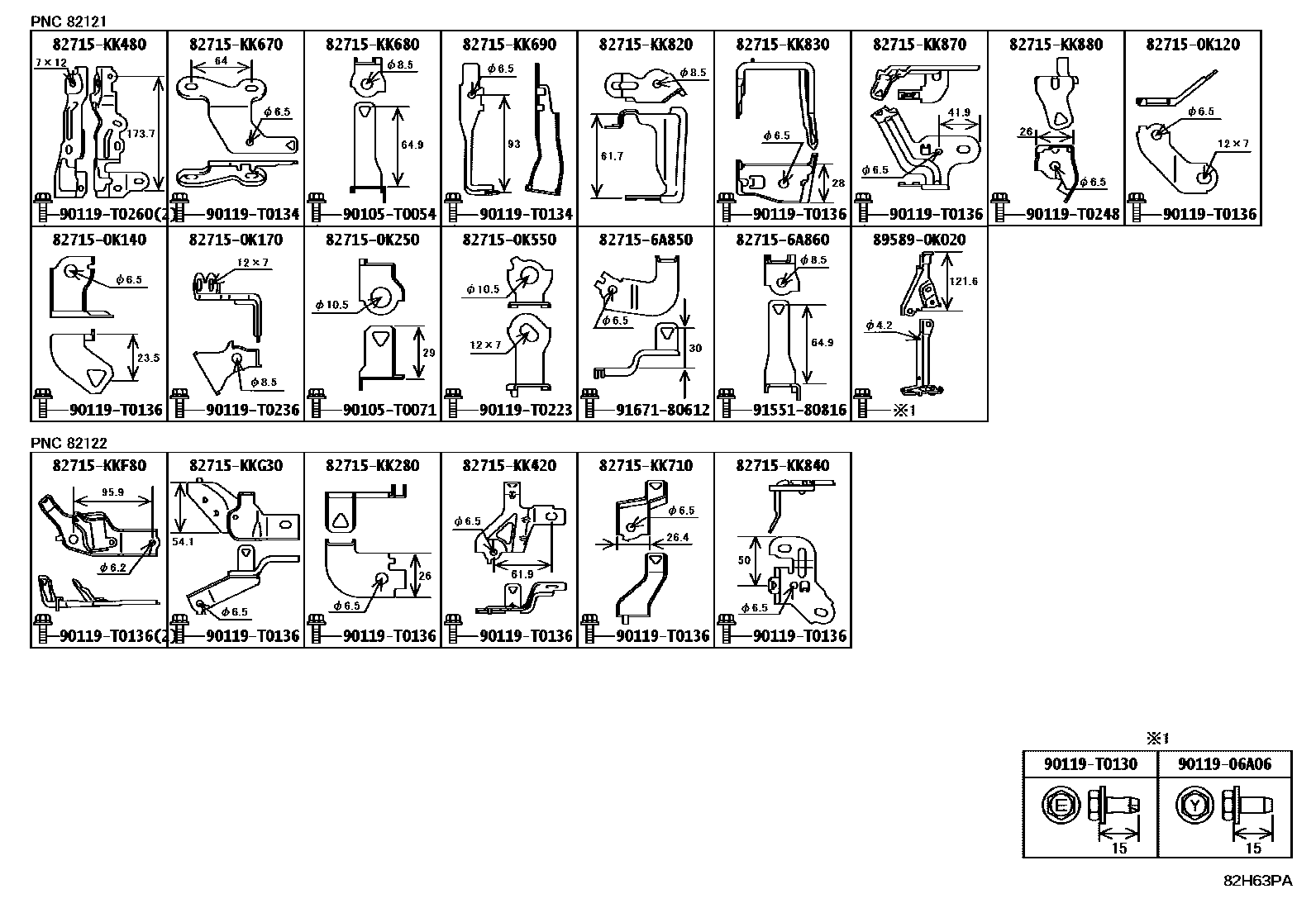

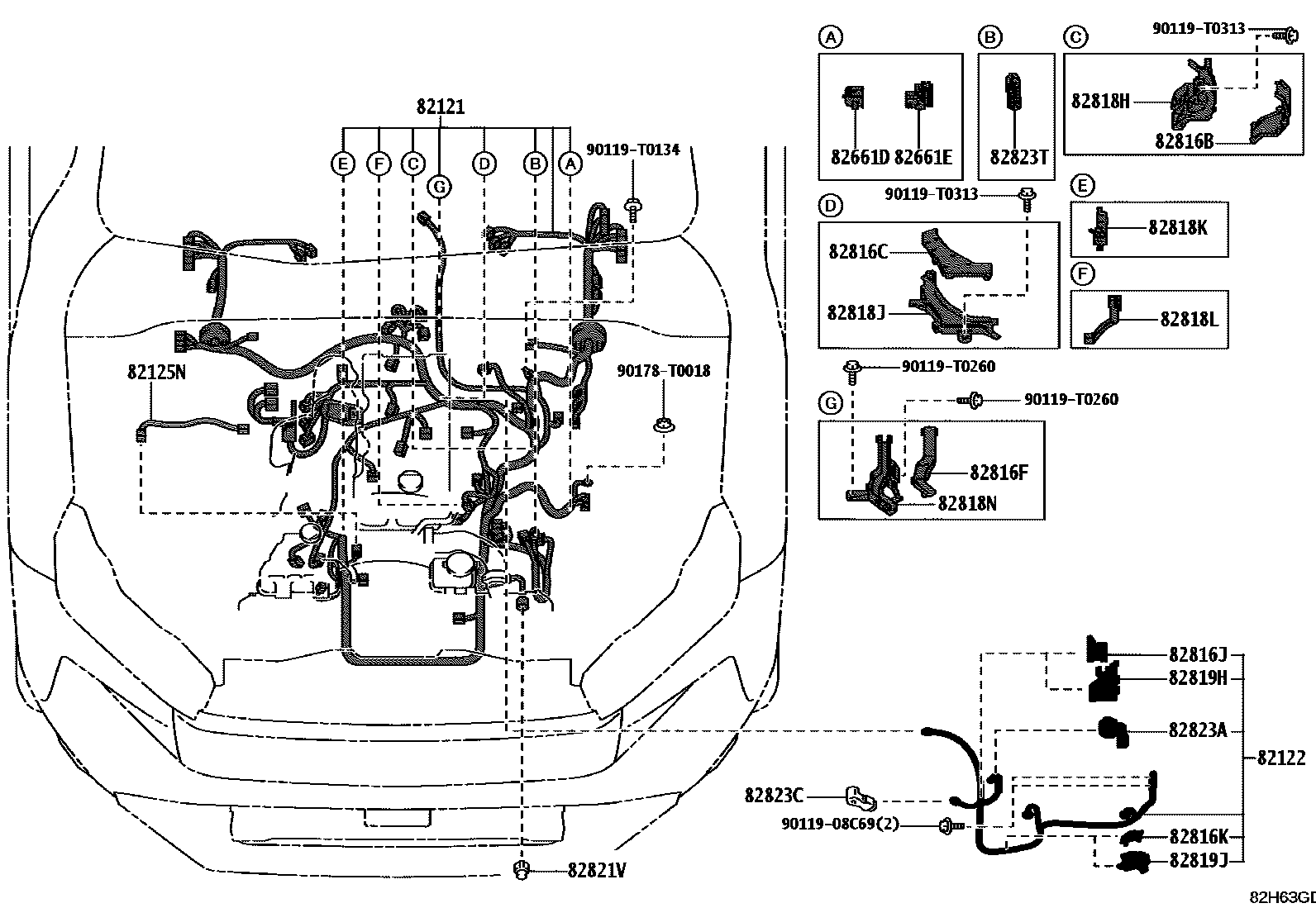

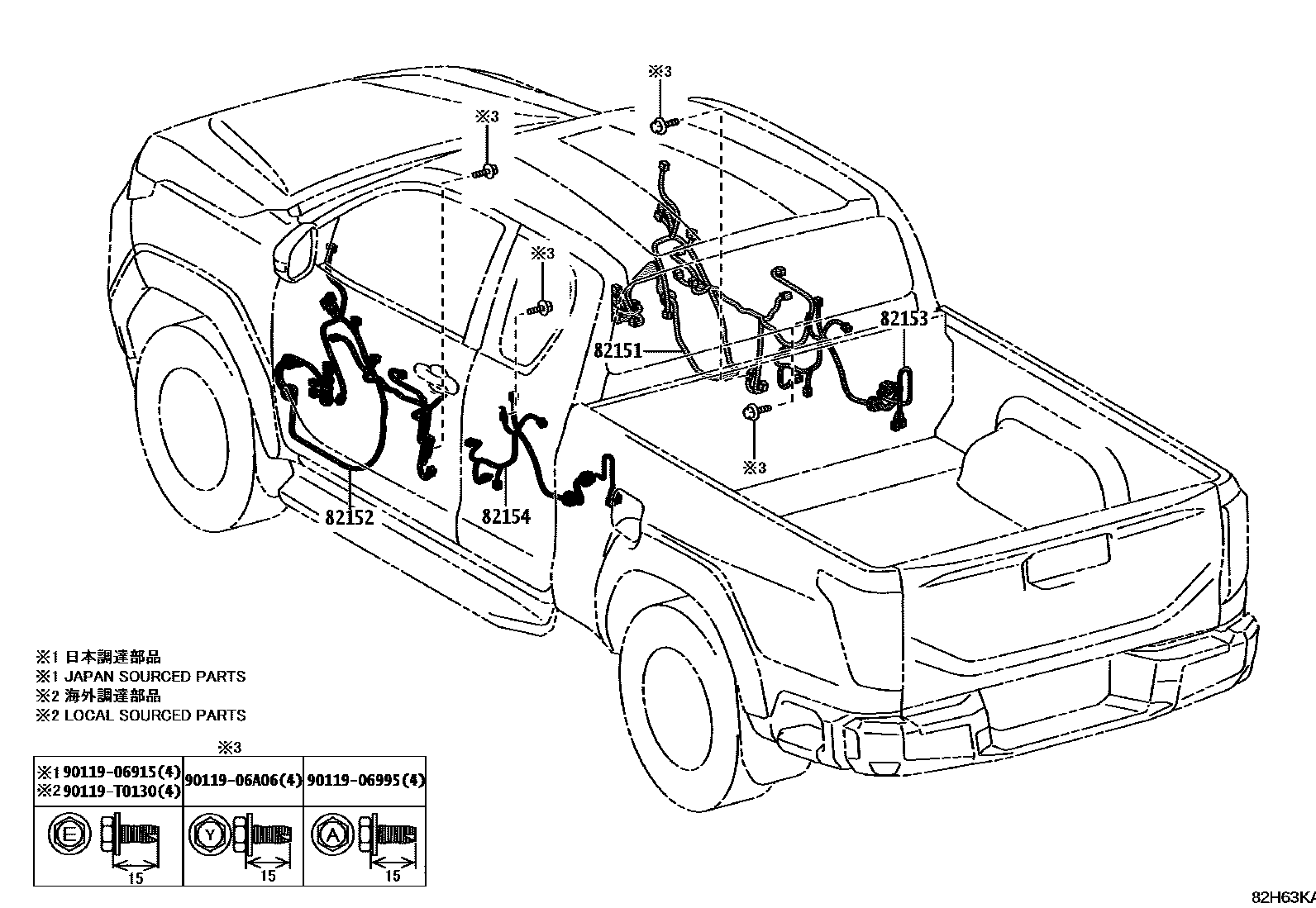

| 82121 | Engine wiring harness | 8213D-KK680 · 8213D-KKB40 · 8213D-KKC10 · 8213D-KKC30 · 8213D-KKC50 · 8213D-KKC90 · 8213D-KKP30 · 8213D-KKR80 · 8213D-KKZ20 · 8213D-KKZ80 · 8213E-KK580 |
| 82122 | Engine No. 2 wiring harness | 82122-KK670 · 82122-KK800 |
| 82123 | Engine No. 3 wiring harness | 8211U-KK010 |
| 82124 | Engine No. 4 wiring harness | 8211V-KK030 |
| 82125N | Engine No. 5 wiring harness | 82125-KK010 |
| 82127 | Differential harness | 82127-0K011 |
| 82141 | Dashboard wiring harness | 821C1-KK470 · 821C1-KKD50 · 821C1-KKP30 · 821C1-KKQ20 · 821C1-KKU80 · 821C1-KKU90 · 821C3-KKA90 · 821C3-KKK20 · 821C3-KKL80 · 821C3-KKL90 · 821C3-KKT50 · 821C3-KKU20 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-KKF10 · 82142-KKF40 · 82142-KKF70 · 82142-KKG30 |
| 82143 | Instrument panel wiring harness No. 3 | 82143-KKM80 |
| 82151 | Right front door wiring harness | 821B7-KK080 · 821B7-KK360 · 821B7-KK720 |
| 82152 | Left front door wiring harness | 821B8-KKK40 · 821B8-KKN30 · 821B8-KKR90 |
| 82161 | floor wiring harness | 8219K-KKY30 · 8219K-KKY50 · 8219L-KKC00 · 8219M-KK290 · 8219M-KK470 · 8219M-KKJ00 · 8219M-KKK00 |

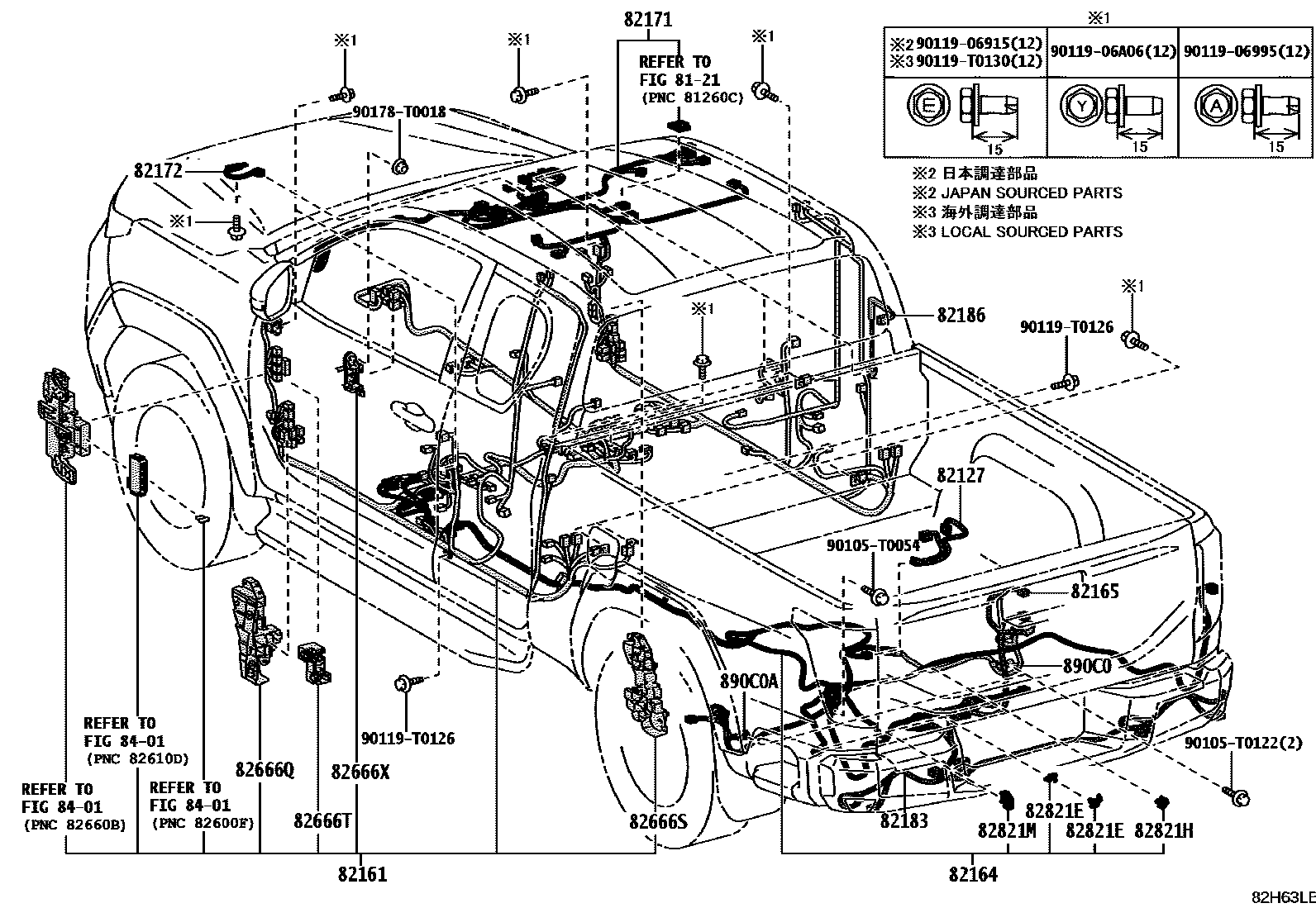

| 82164 | Frame wiring harness set | 82137-KK690 · 82137-KK710 · 82137-KKC20 · 82137-KKC50 |
| 82165 | No. 2 frame wiring harness | 82165-KK180 · 82165-KK310 |
| 82171 | Roof No. 1 wiring harness | 82171-KKQ80 · 8217A-KK440 · 8217A-KK450 · 8217A-KK470 |
| 82172 | Roof No. 2 wiring harness | 82172-KK010 |
| 82183 | Luggage No. 3 wiring harness | 82183-KK190 |
| 82186 | Rear window wiring harness No. 1 | 82186-KK030 |
| 82661D | No. 1 relay box side cover | 82661-0K160 |
| 82661E | No. 2 relay box side cover | 82661-0K200 |
| 82666C | No. 4 connector holder | 82666-0K230 · 82666-0K240 |
| 82666D | No. 5 connector holder | 82666-0K540 · 82666-0K550 |
| 82666E | No. 6 connector holder | 82666-0K560 · 82666-0K570 |
| 82666F | No. 7 connector holder | 82666-0K580 |
| 82666G | No. 8 connector holder | 82666-0K590 |
| 82666L | No. 9 connector holder | 82666-0K640 |
| 82666N | No. 10 connector holder | 82666-0K630 |
| 82666P | No. 11 Connector Block | 82666-0K620 |
| 82666Q | No. 12 connector holder | 82666-0K660 |
| 82666S | No. 13 connector holder | 82666-0K670 |
| 82666T | No. 14 connector socket | 82666-0K680 |
| 82712A | Wire harness bracket | 82712-33190 |
| 82815A | Wiring harness protector cover | 82815-0K560 |
| 82815B | Wiring harness protector cover | 82815-0K520 |
| 82815G | No. 5 wire harness protector cover | 82815-0K540 |
| 82815H | No. 6 wire harness protector cover | 82815-0KB00 |
| 82815M | No. 10 wire harness protector cover | 82815-0KB80 |
| 82815P | No. 12 wire harness protector cover | 82815-0KC00 · 82815-0KC10 |
| 82815Q | No. 13 wire harness protector cover | 82815-0KC20 · 82815-0KC30 |
| 82815R | No. 14 wire harness protector cover | 82815-0KC40 · 82815-0KC50 |
| 82815Y | No. 4 wire harness protector cover | 82815-0KB60 |
| 82816B | No. 1 wire harness protector cover | 82815-0K270 |
| 82816C | No. 2 wire harness protector cover | 82815-0K280 |
| 82816F | No. 4 wire harness protector cover | 82815-0K340 · 82815-0K350 |
| 82816J | No. 7 wire harness protector cover | 82815-0K070 |
| 82816K | No. 8 wire harness protector cover | 82815-0K400 |
| 82816V | No. 18 wire harness protector cover | 82815-0KB10 |
| 82817 | No. 1 wire harness protection device | 82817-0K560 |
| 82817A | No. 2 wire harness protection device | 82817-0K520 |
| 82817B | No. 3 wire harness protection device | 82817-0K540 |
| 82817C | No. 4 wire harness protection device | 82817-0KE90 |
| 82817G | No. 8 wire harness protection device | 82817-0KF70 |
| 82817J | No. 9 wire harness protection device | 82817-12860 |
| 82817L | No. 11 wire harness protection device | 82817-0K240 · 82817-0K840 · 82817-0K860 · 82817-0KA40 |
| 82818E | No. 6 wire harness protection device | 82817-0KF90 |
| 82818F | No. 7 wire harness protection device | 82817-0KG10 |
| 82818G | No. 8 wire harness protection device | 82817-2A790 |
| 82818H | No. 9 wire harness protection device | 82817-0K270 |
| 82818J | No. 10 wire harness protection device | 82817-0K280 |
| 82818K | No. 11 wire harness protection device | 82817-0K300 |
| 82818L | No. 12 wire harness protection device | 82817-0K310 |
| 82818N | No. 14 wire harness protection device | 82817-0K340 · 82817-0K350 |
| 82819H | No. 24 wire harness protection device | 82817-0K290 |
| 82819J | No. 25 wire harness protection device | 82817-0K400 |
| 8281AA | No. 2 wire harness protection device | 82817-0KF50 |
| 8281AB | No. 3 wire harness protection device | 82818-0K030 |
| 82821A | Connector cover | 82821-35050 |
| 82821E | Connector cover | 82821-30600 |
| 82821H | Connector cover | 82821-33780 |
| 82821M | Connector cover | 82821-58110 |
| 82823A | Terminal cover No. 2 | 82823-0K060 · 82823-30100 |
| 82823C | No. 4 terminal cover | 82823-0K030 · 82823-35050 |
| 82823T | Generator terminal cover | 82823-0K080 |
| 82H17B | No. 1 wire harness protection device | 82817-0KF00 |
| 89623 | CABLE, CAPTEUR DIRECTION ASSISTEE | 89623-0K010 |
