Toyota HILUX 防护条 — Figure 7552

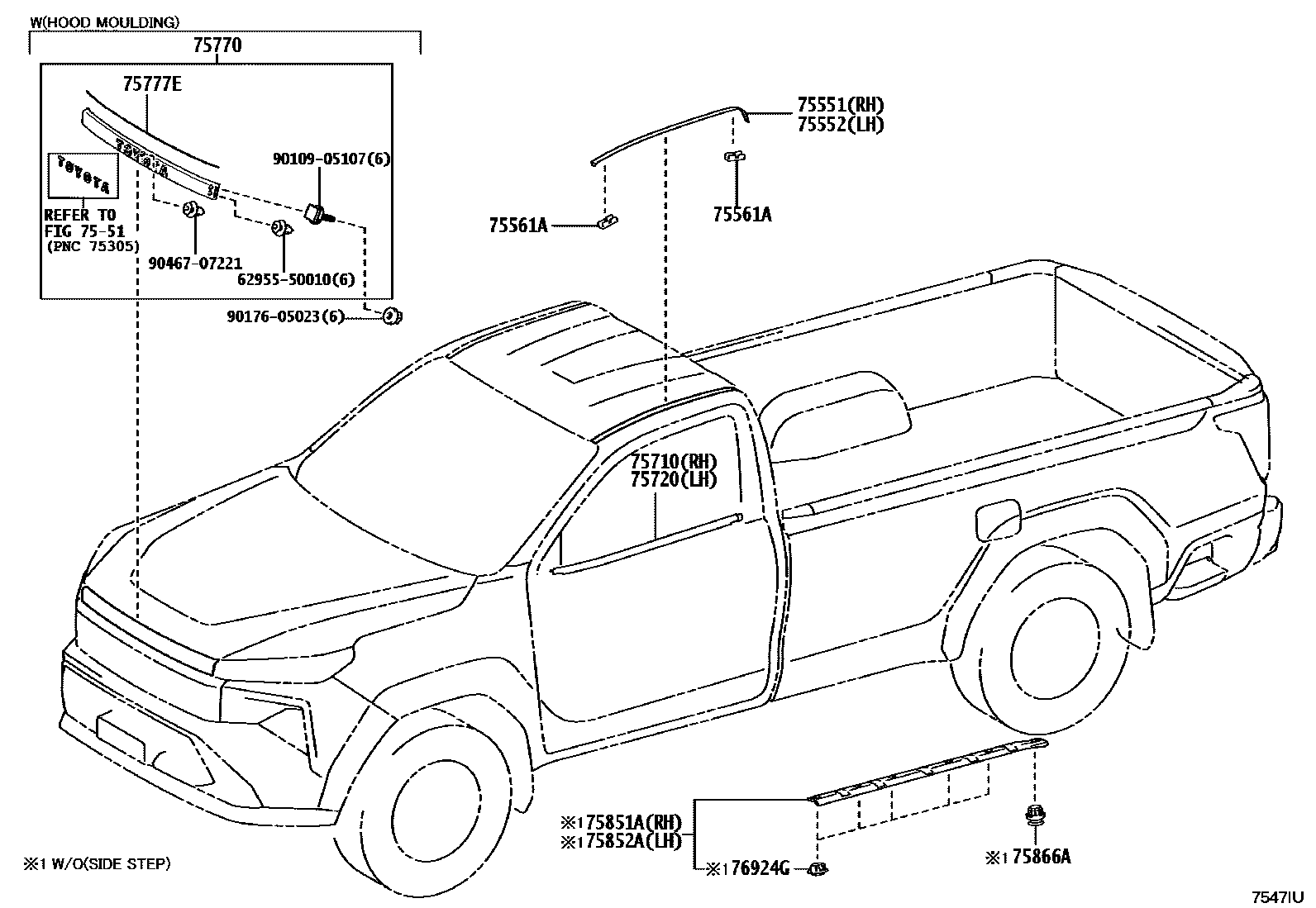

Toyota HILUX EPC diagram 7552, 防护条, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75551 | Drainage groove side decorative strip on the right side of the roof | 75551-0K170 |
| 75552 | Drainage groove side decorative strip on the left side of the roof | 75552-0K170 |
| 75561A | Roof drain channel side decorative strip clip | 75561-33030 |
| 75710 | Right front door waistline protection strip assembly | 68160-0K040 |
| 75720 | Left front door waistline protection strip assembly | 68210-0K040 |
| 75770 | Engine cover front protective strip assembly | 75770-0K550 |
| 75777E | Engine cover front protective strip liner | 75777-0K170 |
| 75851A | Right front door sill panel protective strip | 75851-0K020 |
| 75852A | Left front door sill panel protective strip | 75852-0K020 |
| 75866A | Door sill panel protective strip fixings | 76923-52021 |
| 76924G | Door sill panel protective strip fixings | 76924-0K010 |
