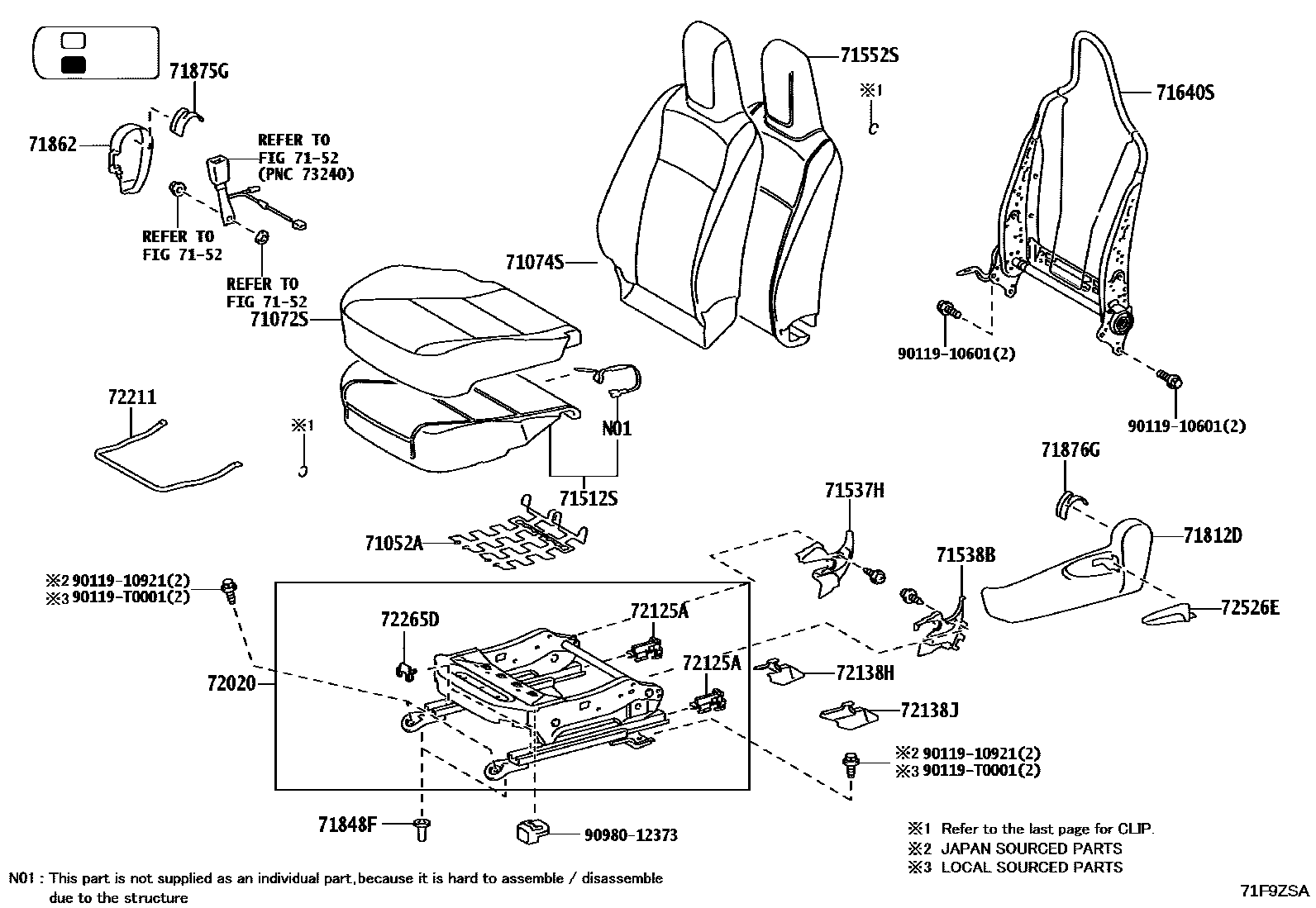

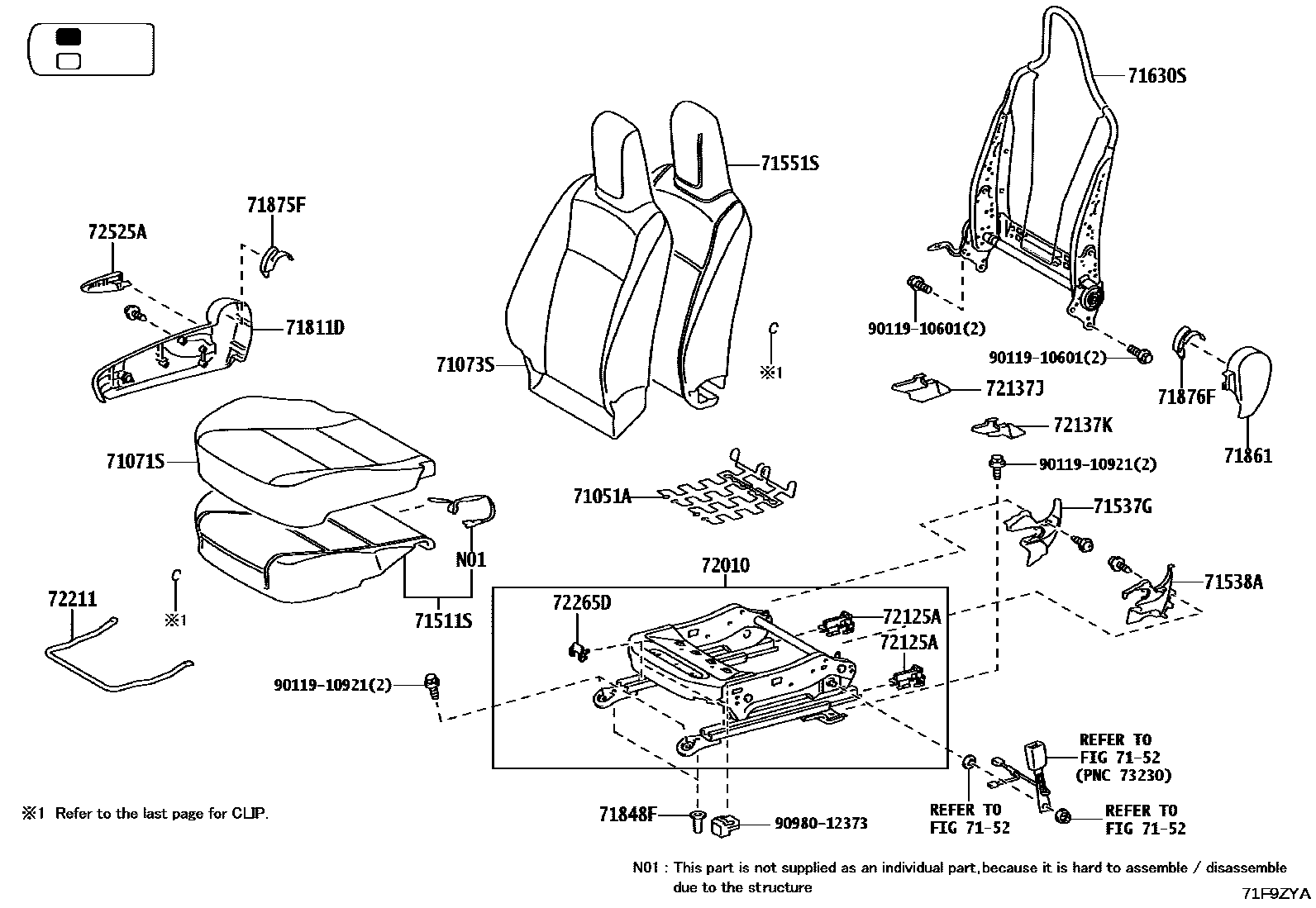

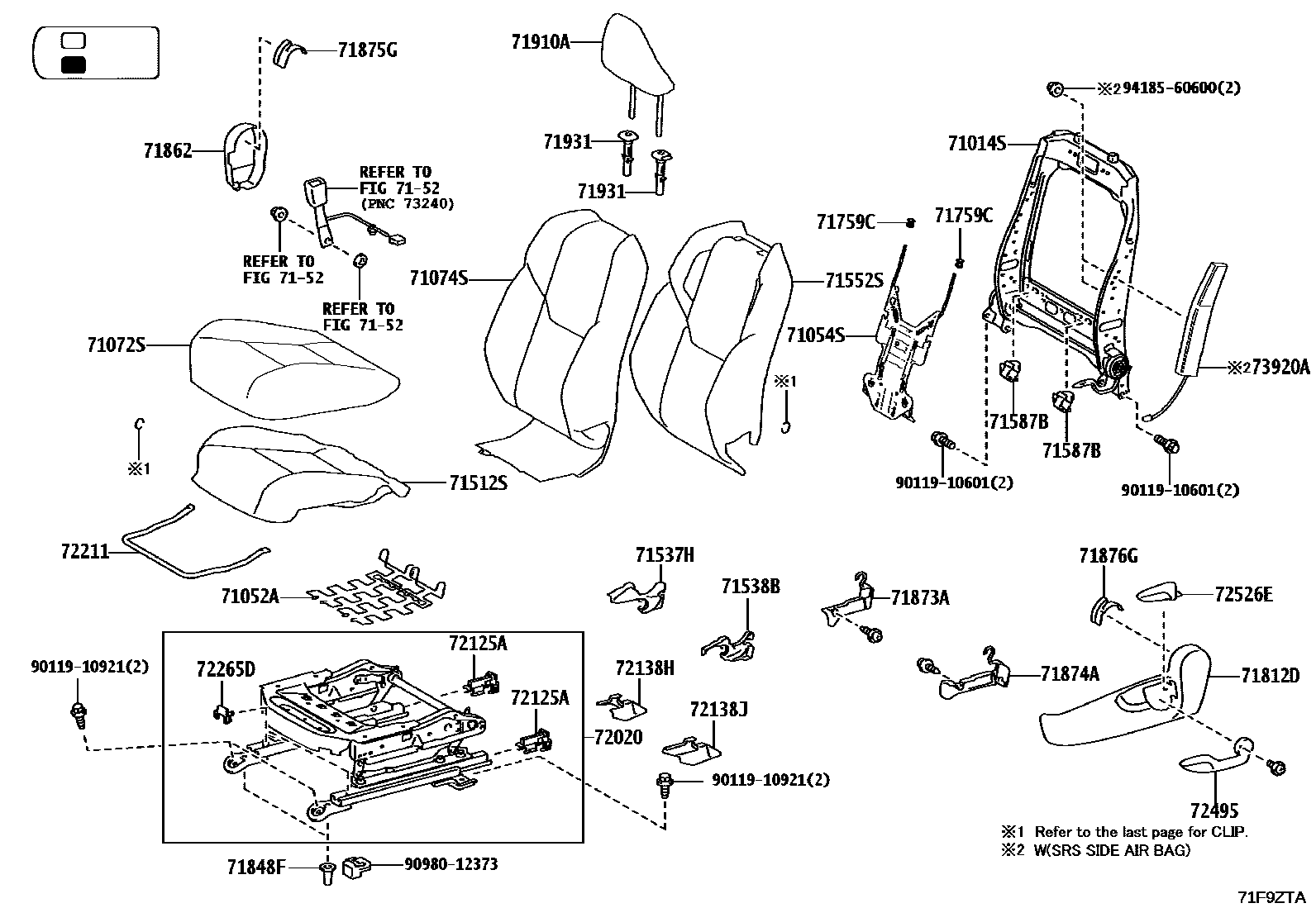

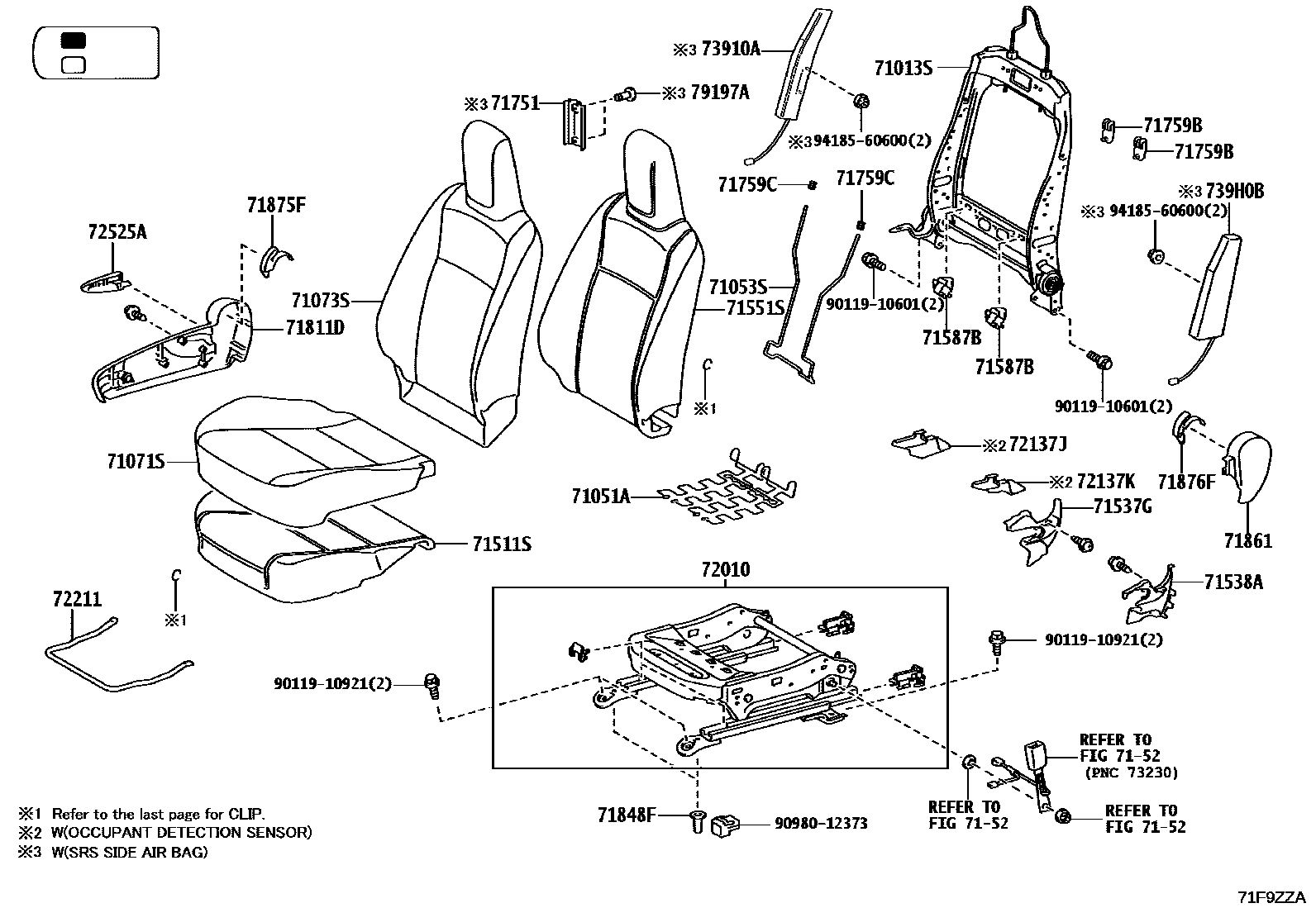

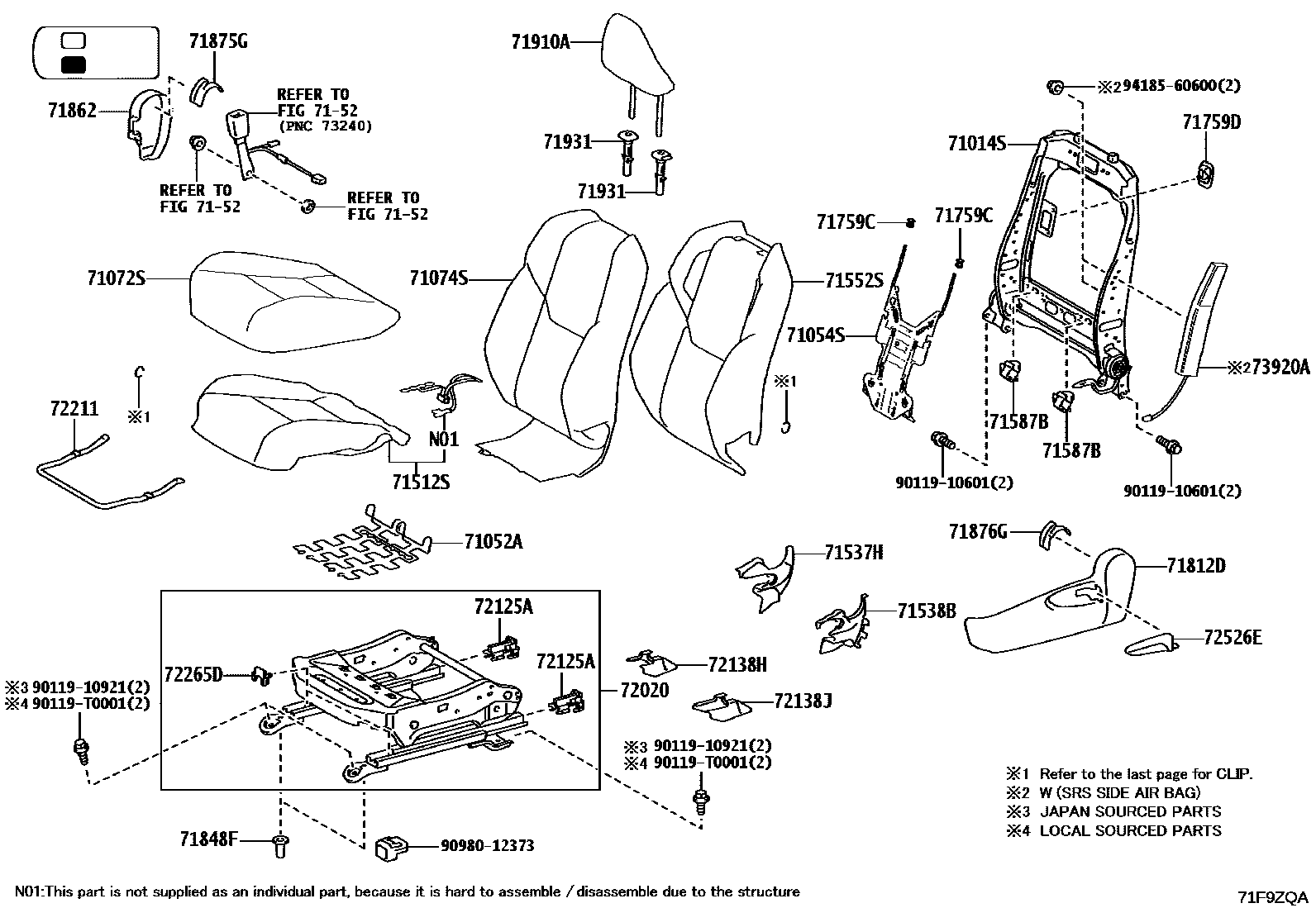

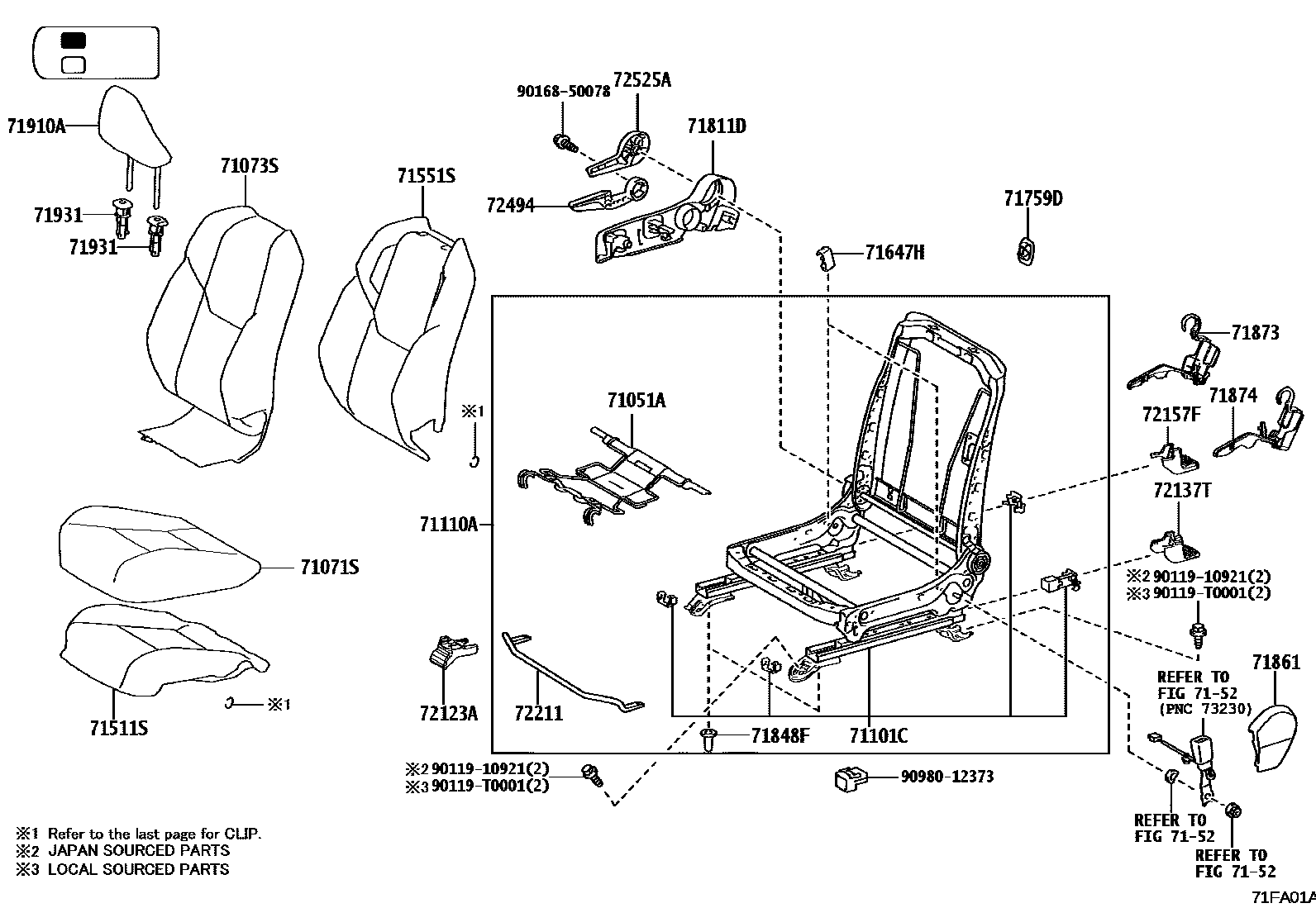

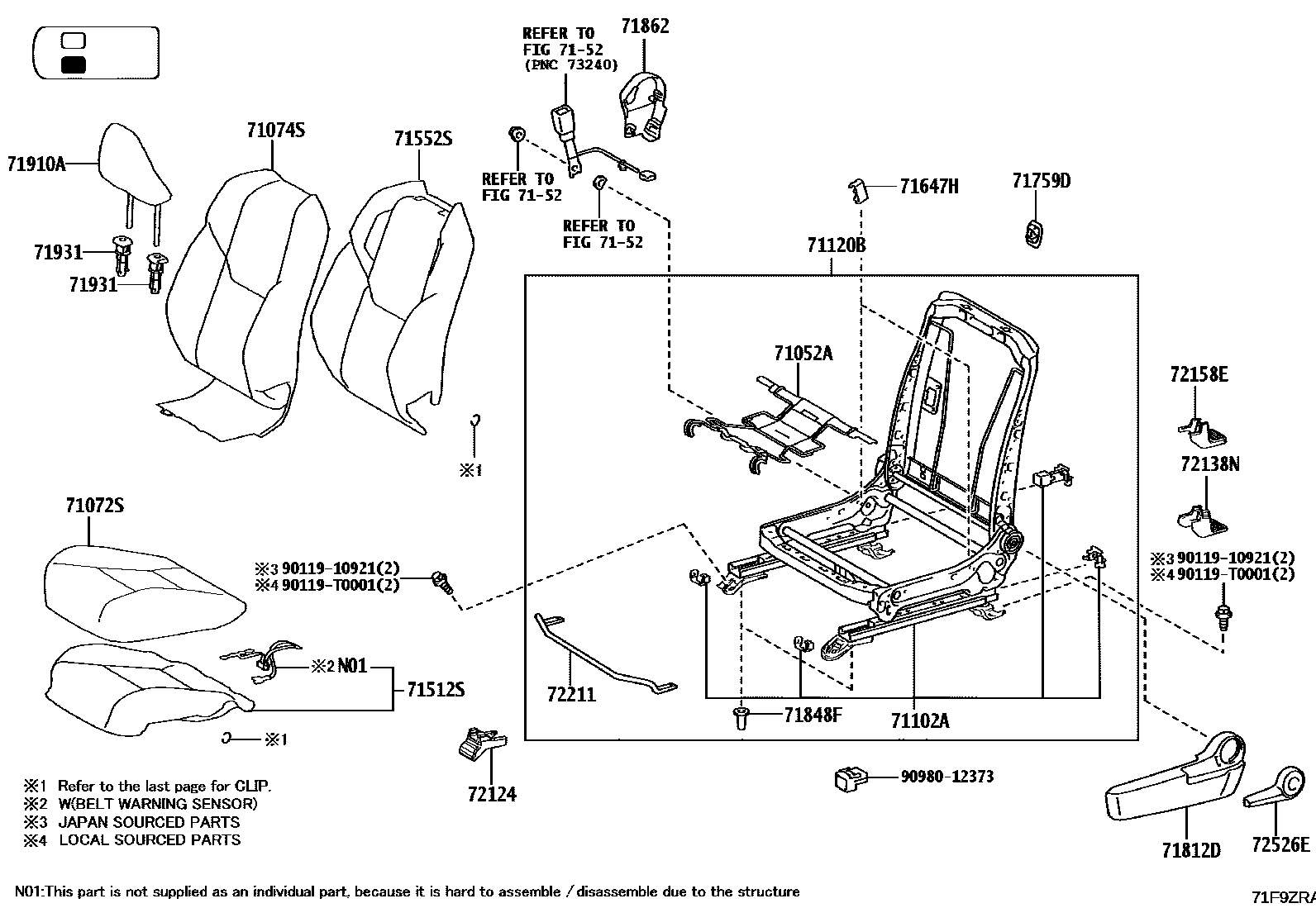

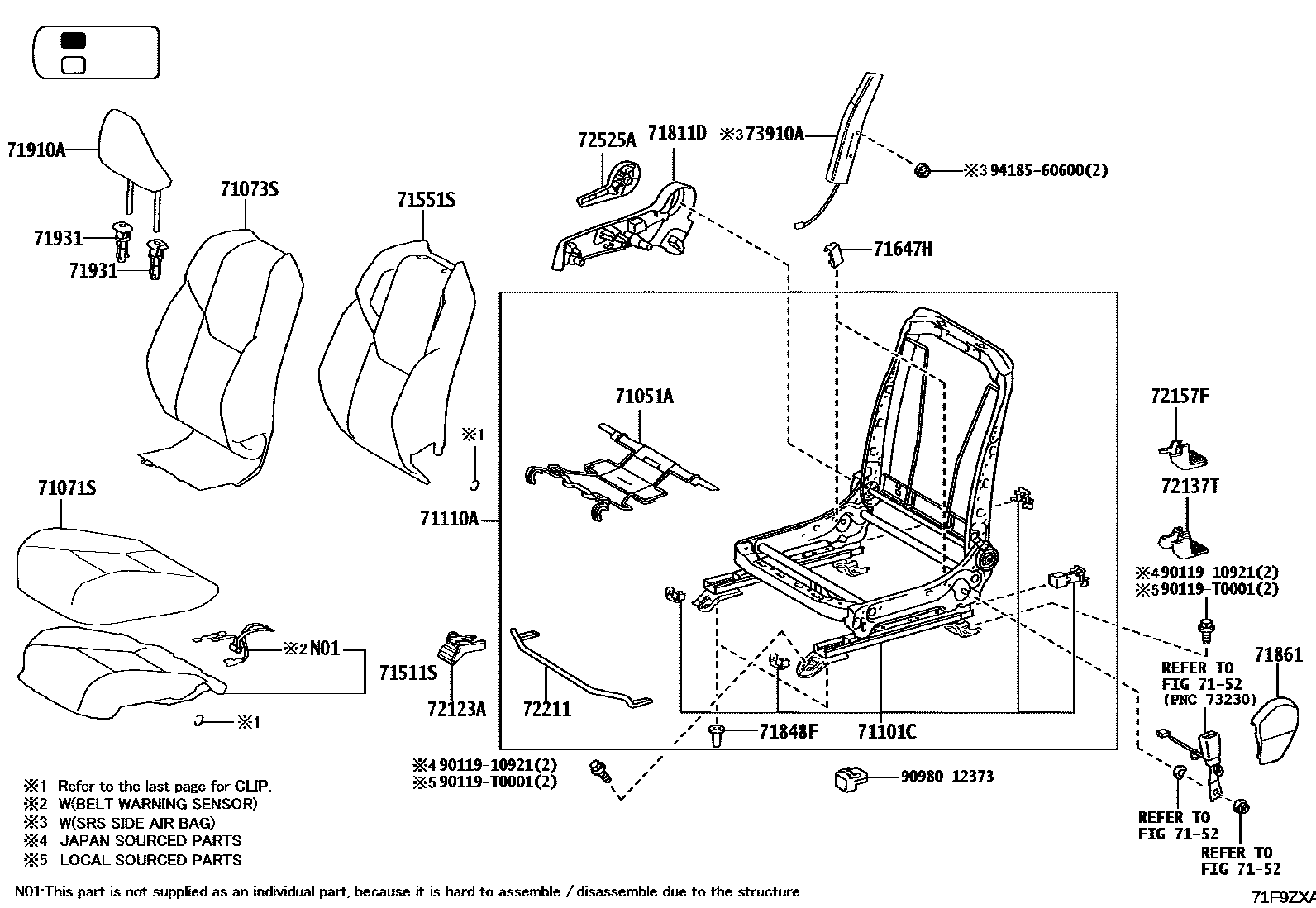

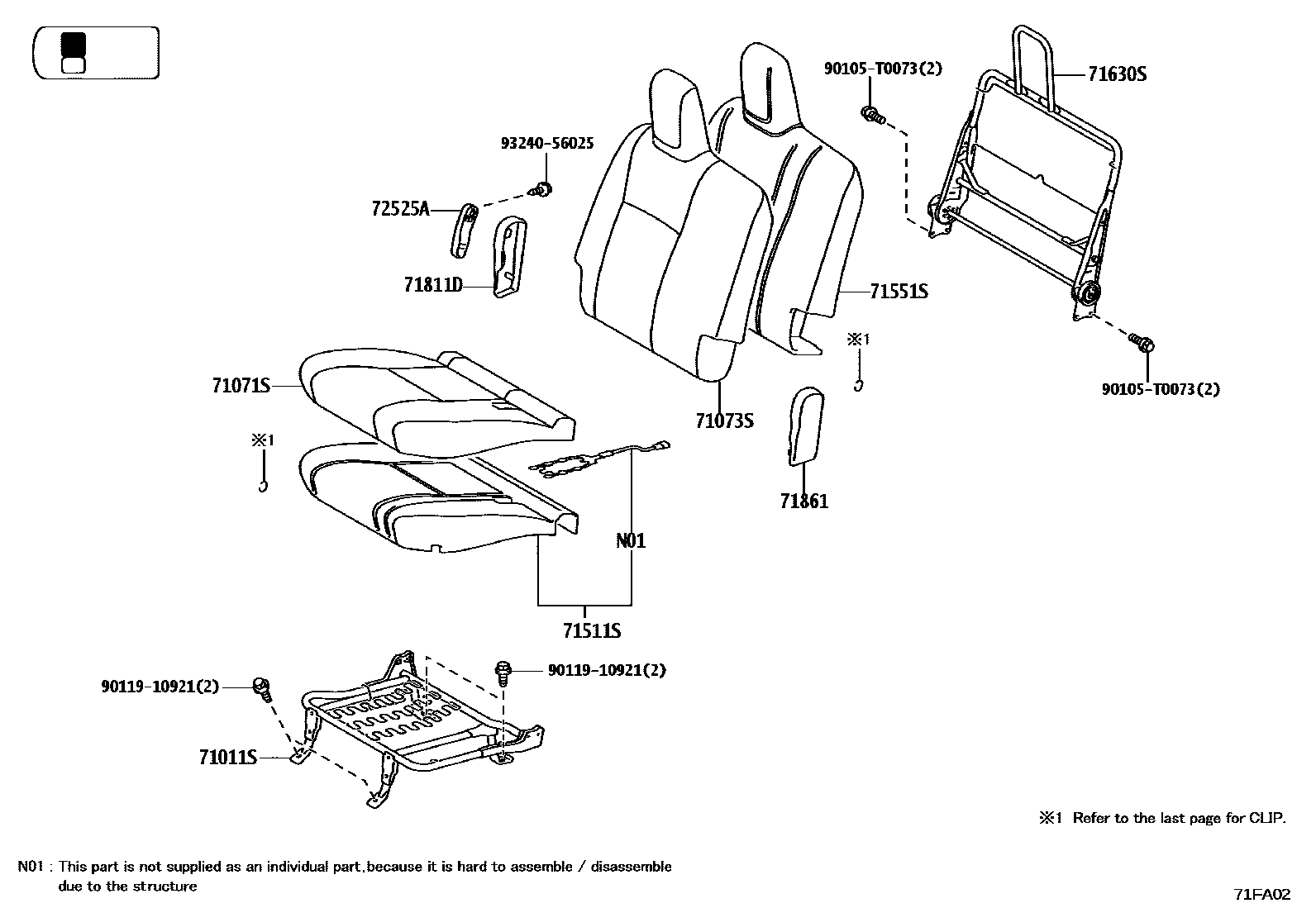

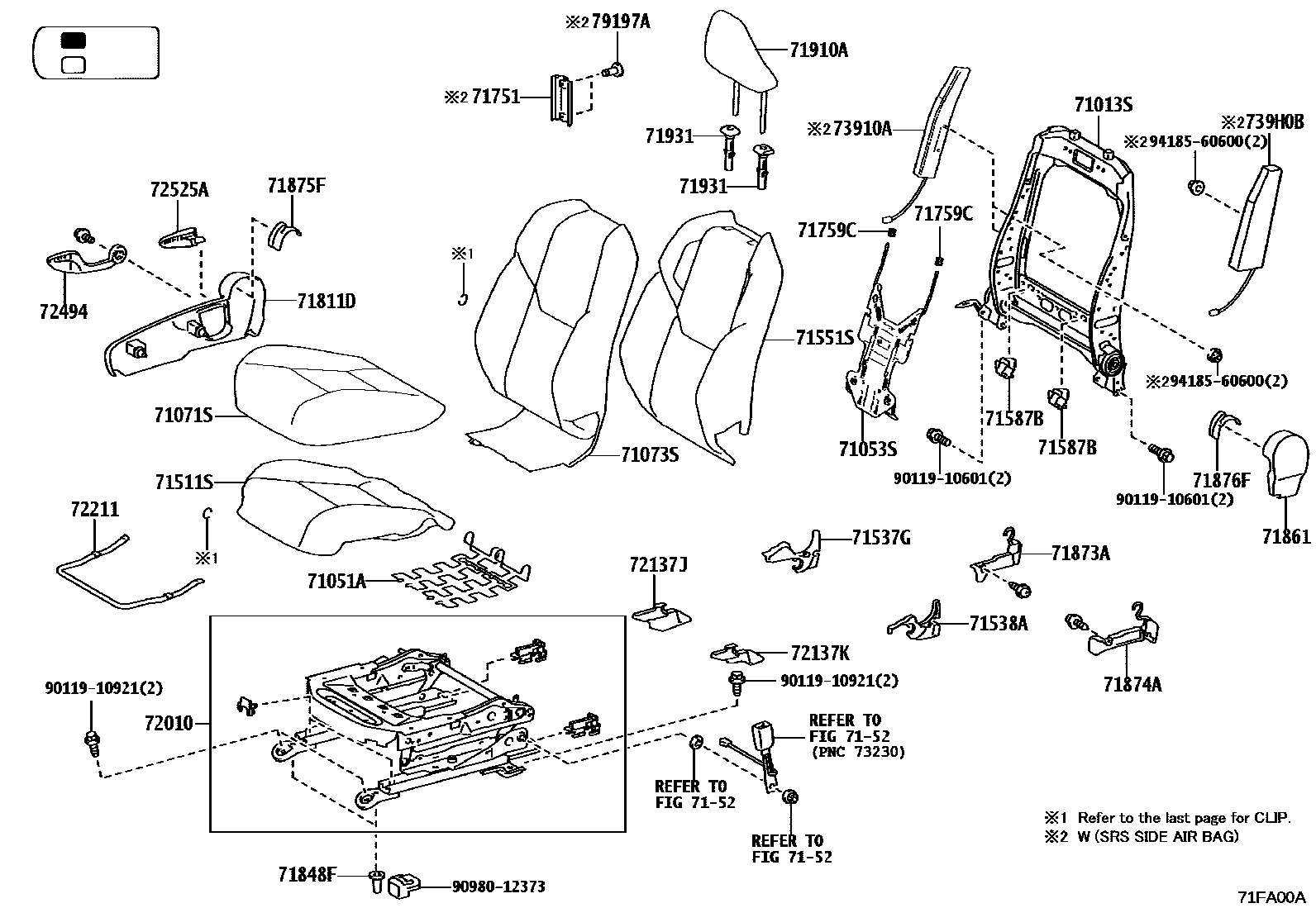

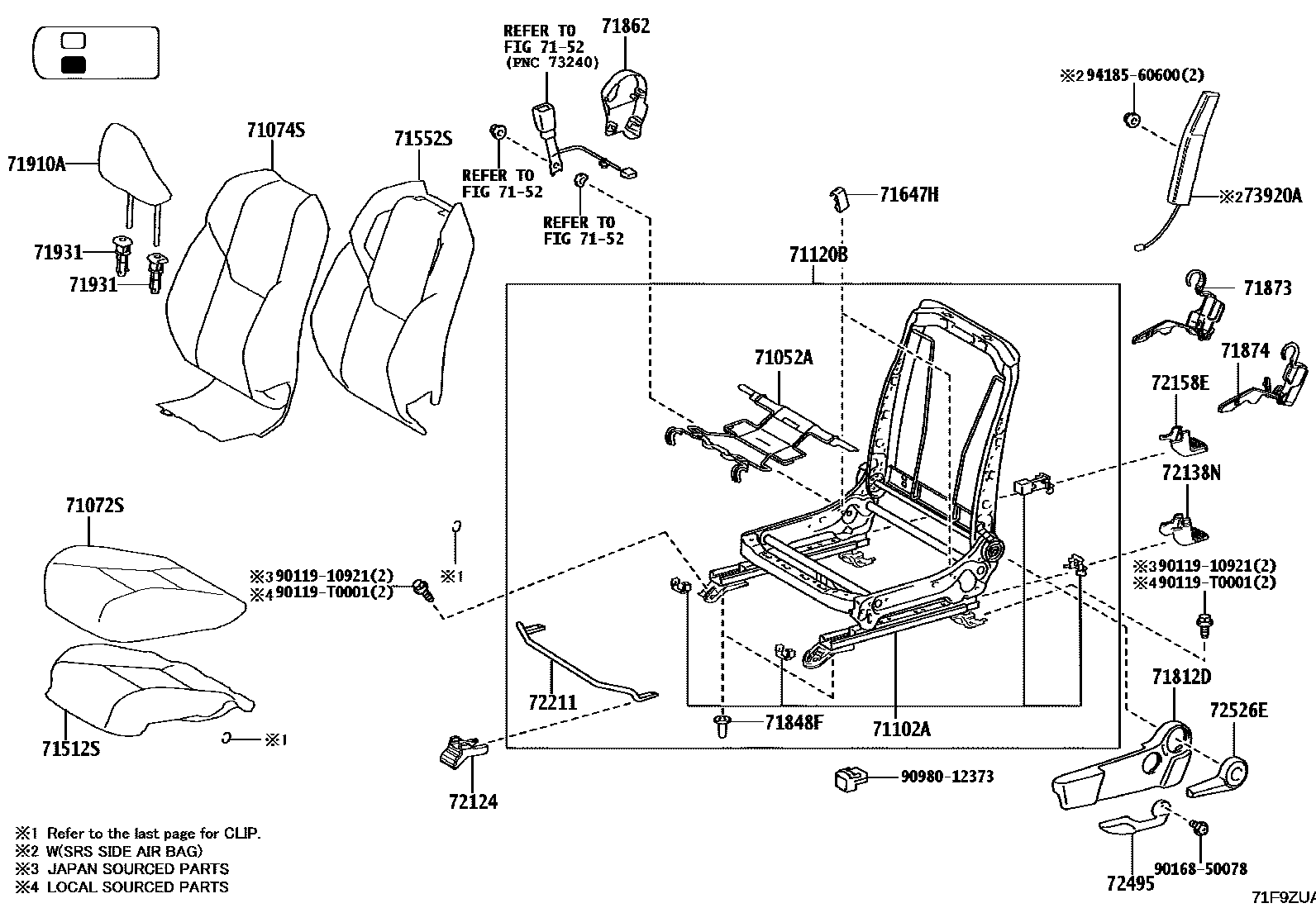

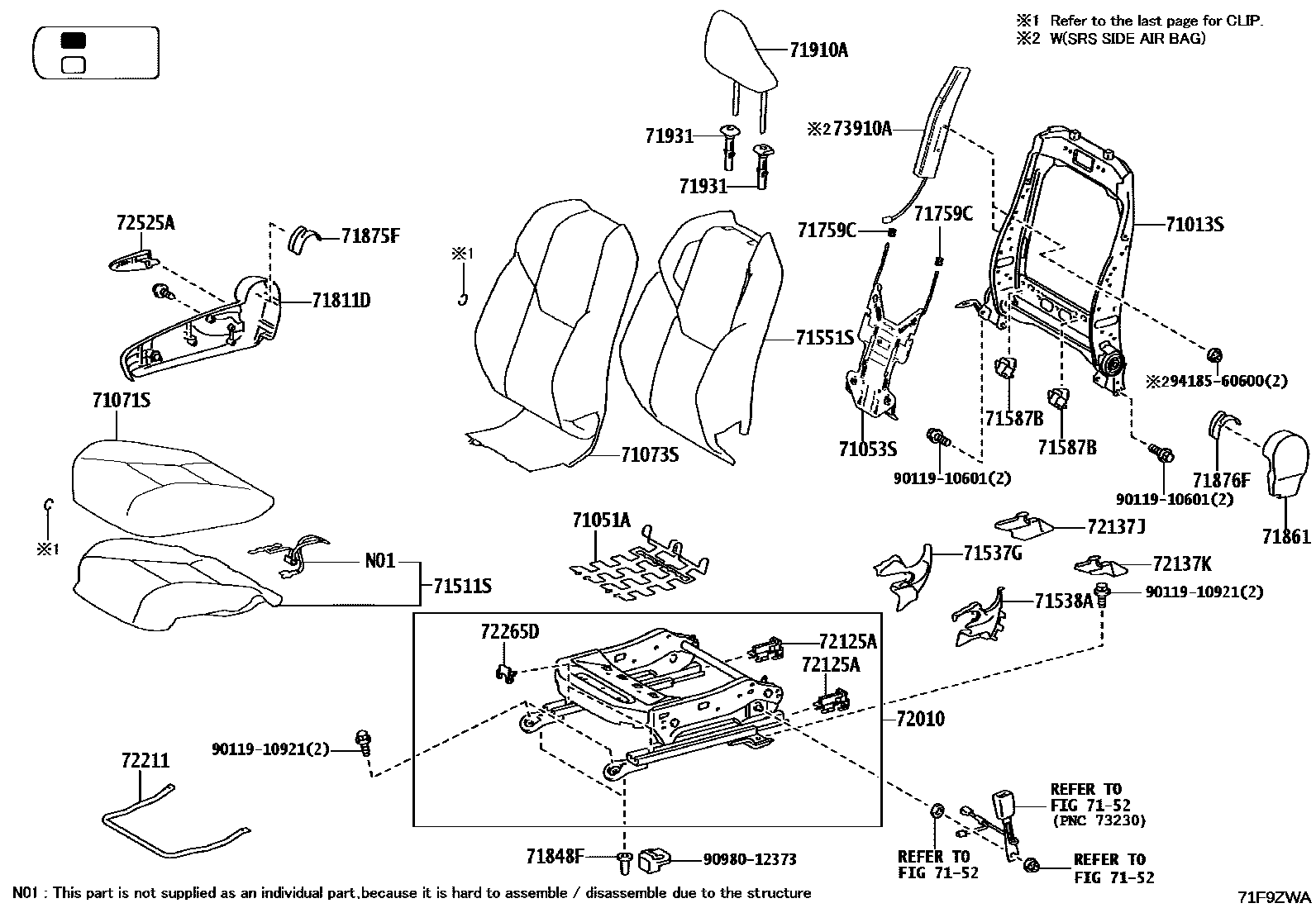

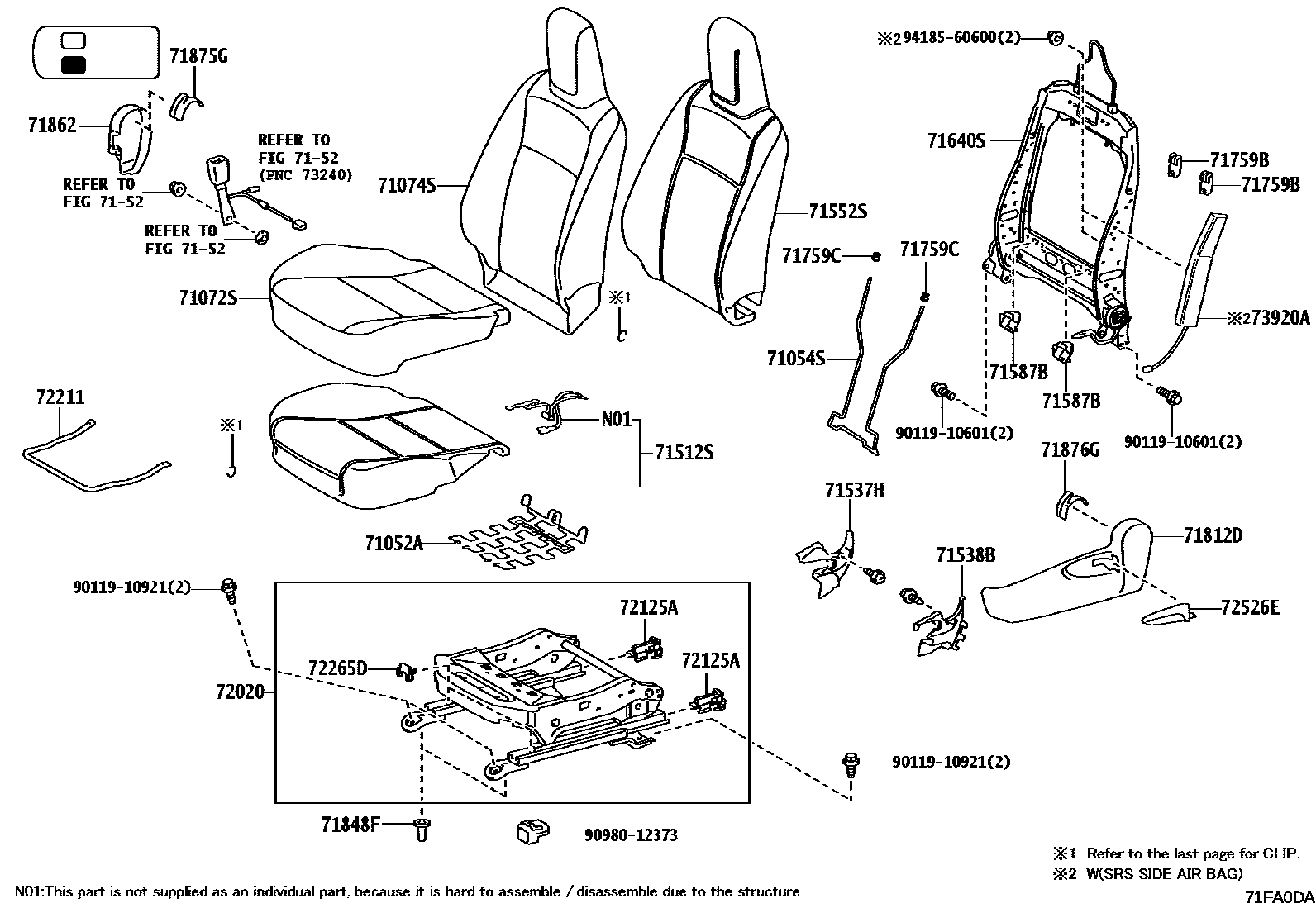

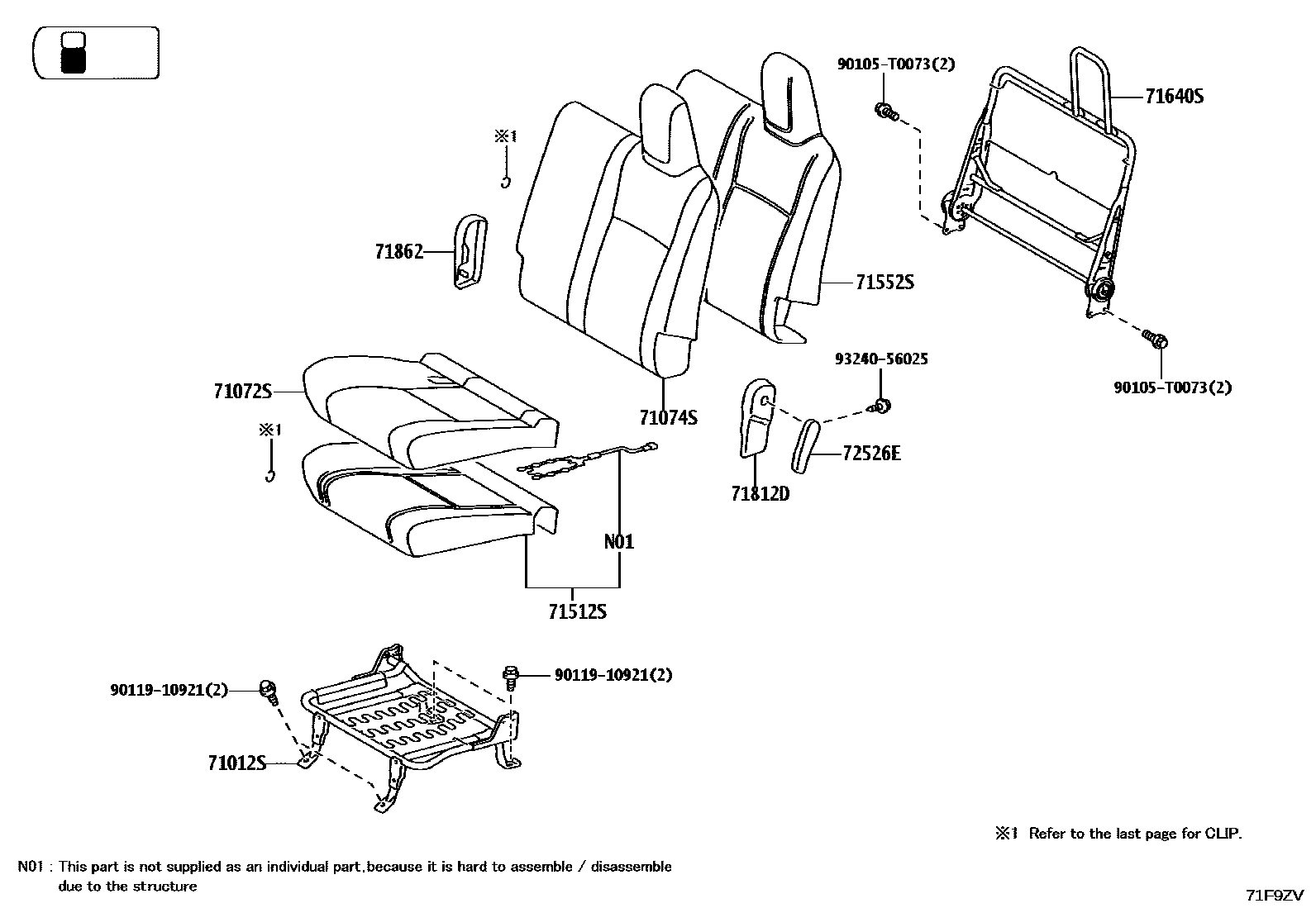

Toyota HILUX 座椅和座椅滑轨 — Figure 7151
Toyota HILUX EPC diagram 7151, 座椅和座椅滑轨, with 15 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71011S | Front right seat cushion frame sub-assembly | 71011-0K090 |
| 71012S | Front left seat cushion frame sub-assembly | 71012-0K110 |
| 71013S | Front right seat back frame sub-assembly | 71013-0KB70 |
| 71014S | Front left seat back frame sub-assembly | 71014-0KA90 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-06070 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-06070 |
| 71053S | Front right seat back spring sub-assembly | 71053-0K130 |
| 71054S | Front left seat back spring sub-assembly | 71053-0K130 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-0K040 · 71501-0K231 · 71511-0K591 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-0K050 · 71502-0K231 · 71512-0K571 |
| 71551S | Front right seat back cushion (for split seats) | 71551-0K190 · 71551-0K210 · 71551-0KQ60 |
| 71552S | Front left seat back cushion (for split seats) | 71552-0K120 · 71552-0K140 · 71552-0KR20 |
| 71587B | Front seat back edge protective cover | 71587-F4030 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-0K210 · 71630-0K230 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-0K200 · 71640-0K220 |
| 71751 | Seat cover hanger | 71751-0K070 |
| 71759B | Front seat back hook | 71759-0K140 |
| 71759C | Front seat back hook No. 1 | 71759-0K060 |
| 71848F | Seat adjuster cover No. 1 | 71848-47010 |
| 72010 | Front right seat adjuster assembly | 72010-0K080 · 72010-0K550 |
| 72020 | Front left seat adjuster assembly | 72020-0K060 |
| 72125A | Rear seat upper slide rail cover | 72125-0D030 |
| 72211 | Seat slide adjustment handle | 72211-0D160 |
| 72265D | Seat rail upper rail cover | 72265-0D080 |
| 73910A | Front right seat airbag assembly | 73910-0K170 |
| 73920A | Front left seat airbag assembly | 73920-0K170 |
| 739H0B | ENS. AIRBAG, CENTRAL SIEGE AVANT | 739H0-0K020 |
| 79197A | rivets | 79197-0K010 |
