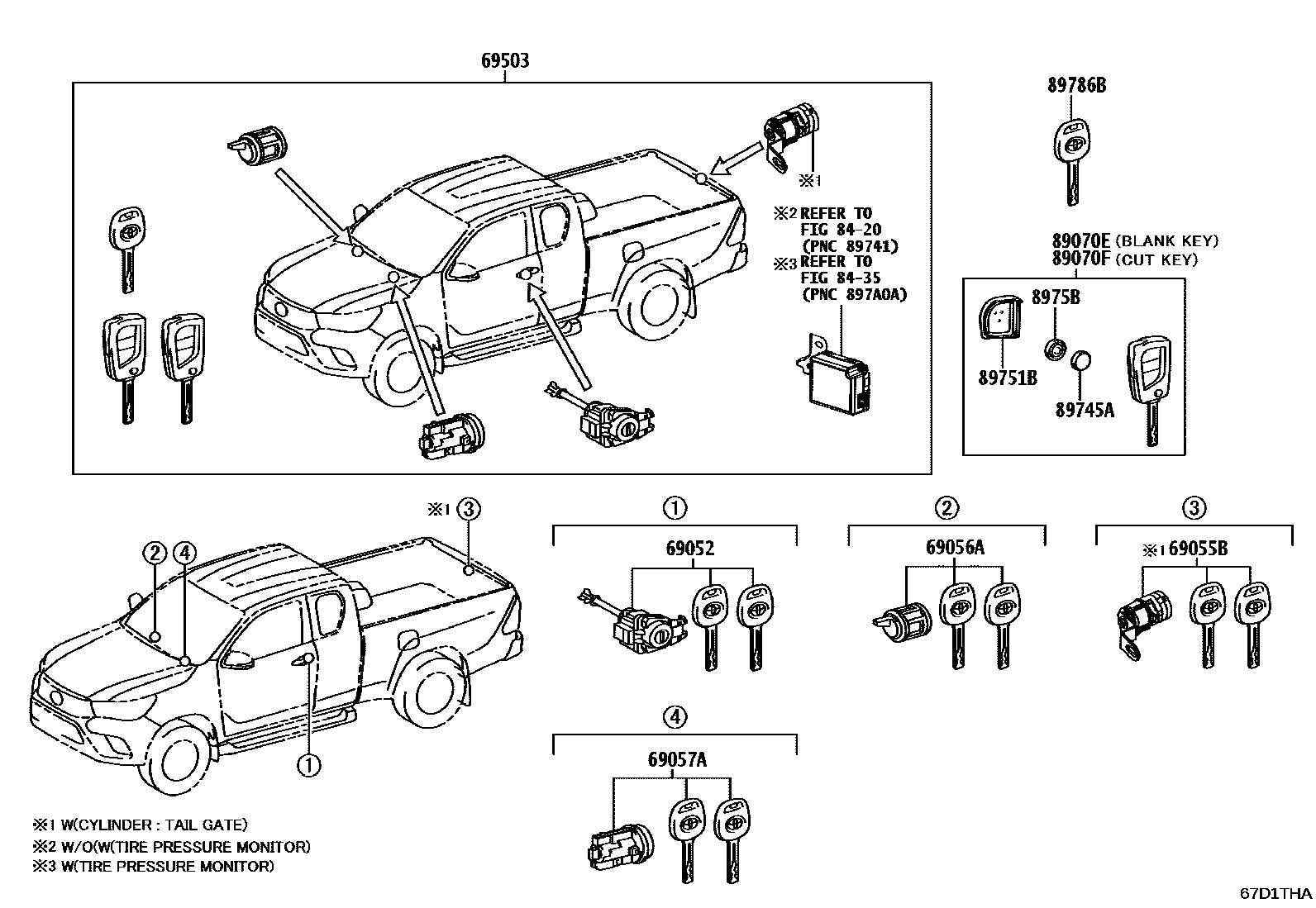

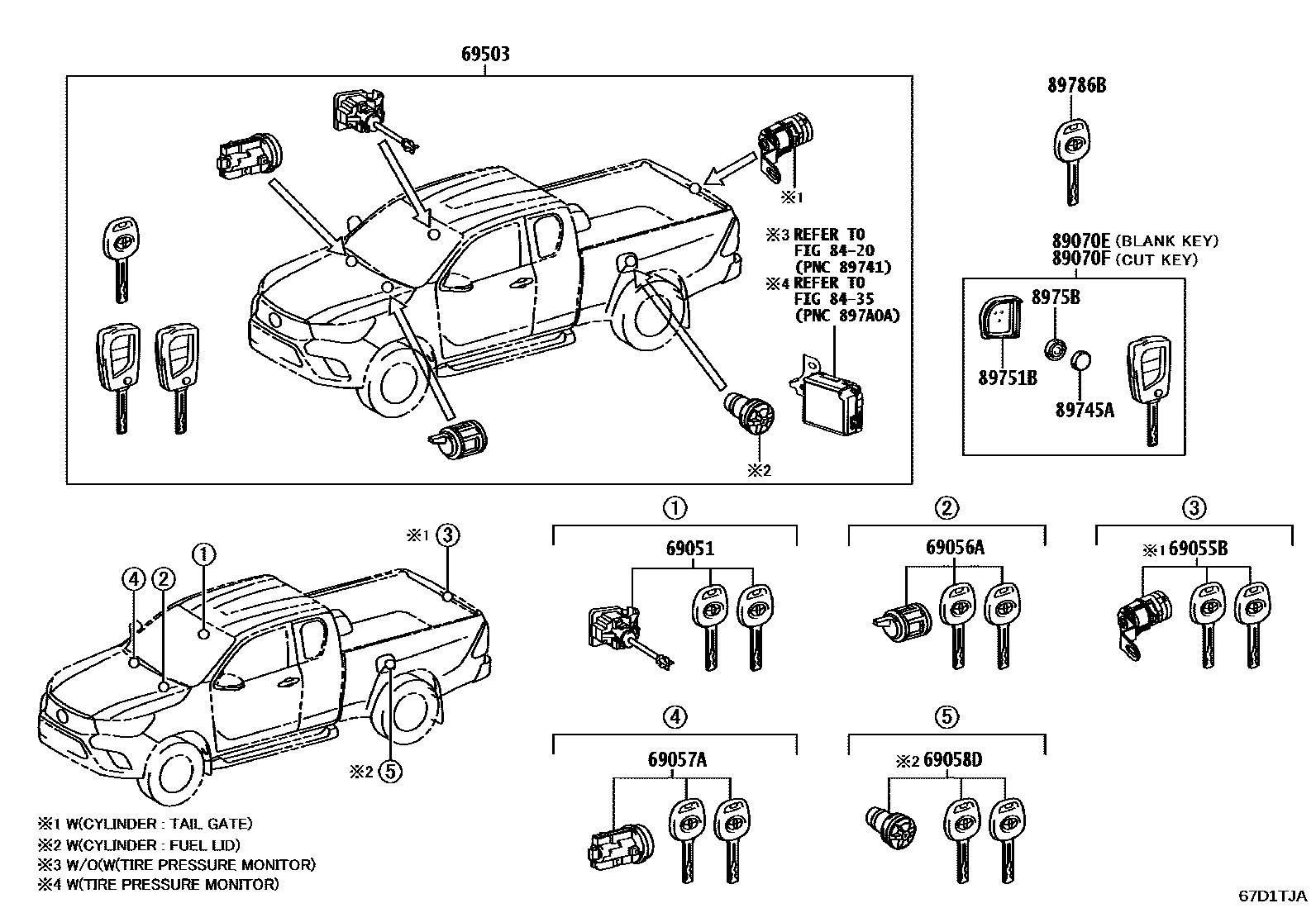

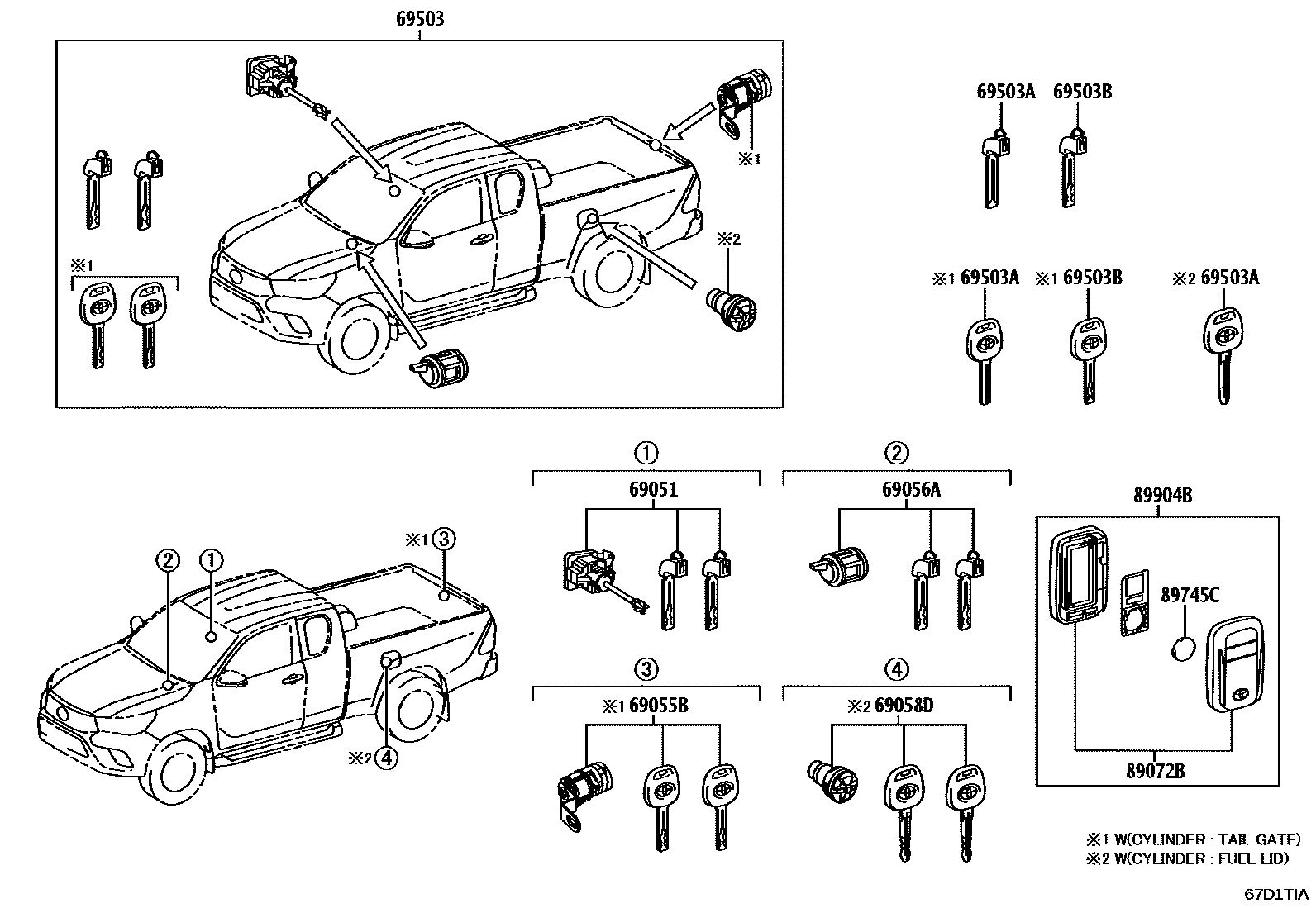

Toyota HILUX 锁芯组件 — Figure 6765
Toyota HILUX EPC diagram 6765, 锁芯组件, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-0K070 |
| 69052 | Left door lock cylinder and key assembly | 69052-0K060 |
| 69056A | Glove box lock cylinder and key assembly | 69056-0K050 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-0K390 |
| 69058D | Fuel tank filler cap lock cylinder and key assembly | 69058-0K040 |
| 69503 | Door lock cylinder components | 89704-F0880 · 89704-F0A30 · 89704-F0B10 · 89704-F0C60 · 89704-F0C80 |
| 89070E | Remote key assembly | 89070-0KS70 · 89070-0KS90 |
| 89070F | Remote key assembly (internal tooth key) | 89070-0KS30 · 89070-0KS50 |
| 89745A | Transmitter battery | 89745-0K010 |
| 89751B | Transmitter housing cover | 89751-02280 |
| 8975B | Remote control battery case cover | 8975B-02030 |
| 89786B | transceiver key secondary transmitter | 89786-0K130 · 89786-0K180 |
