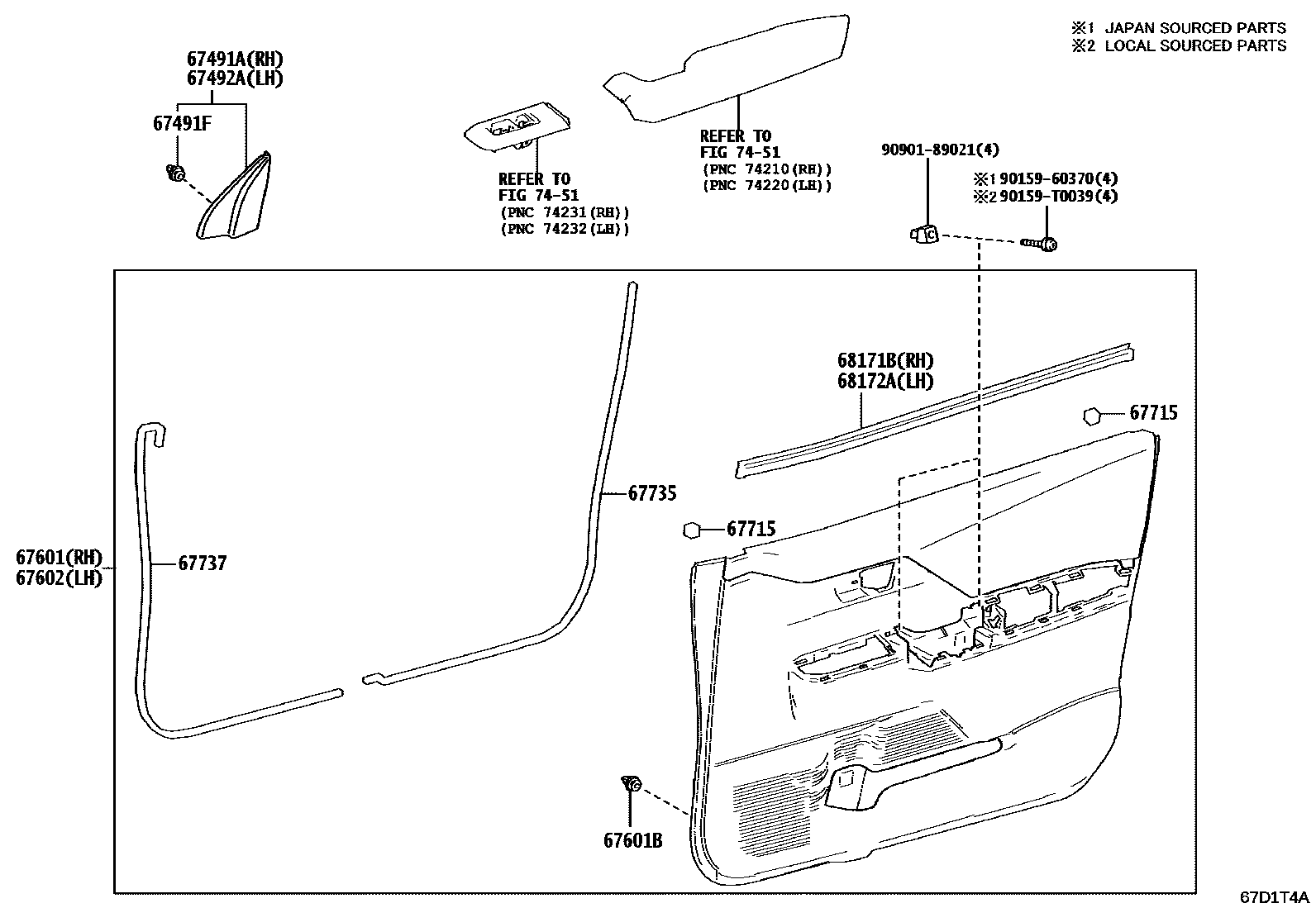

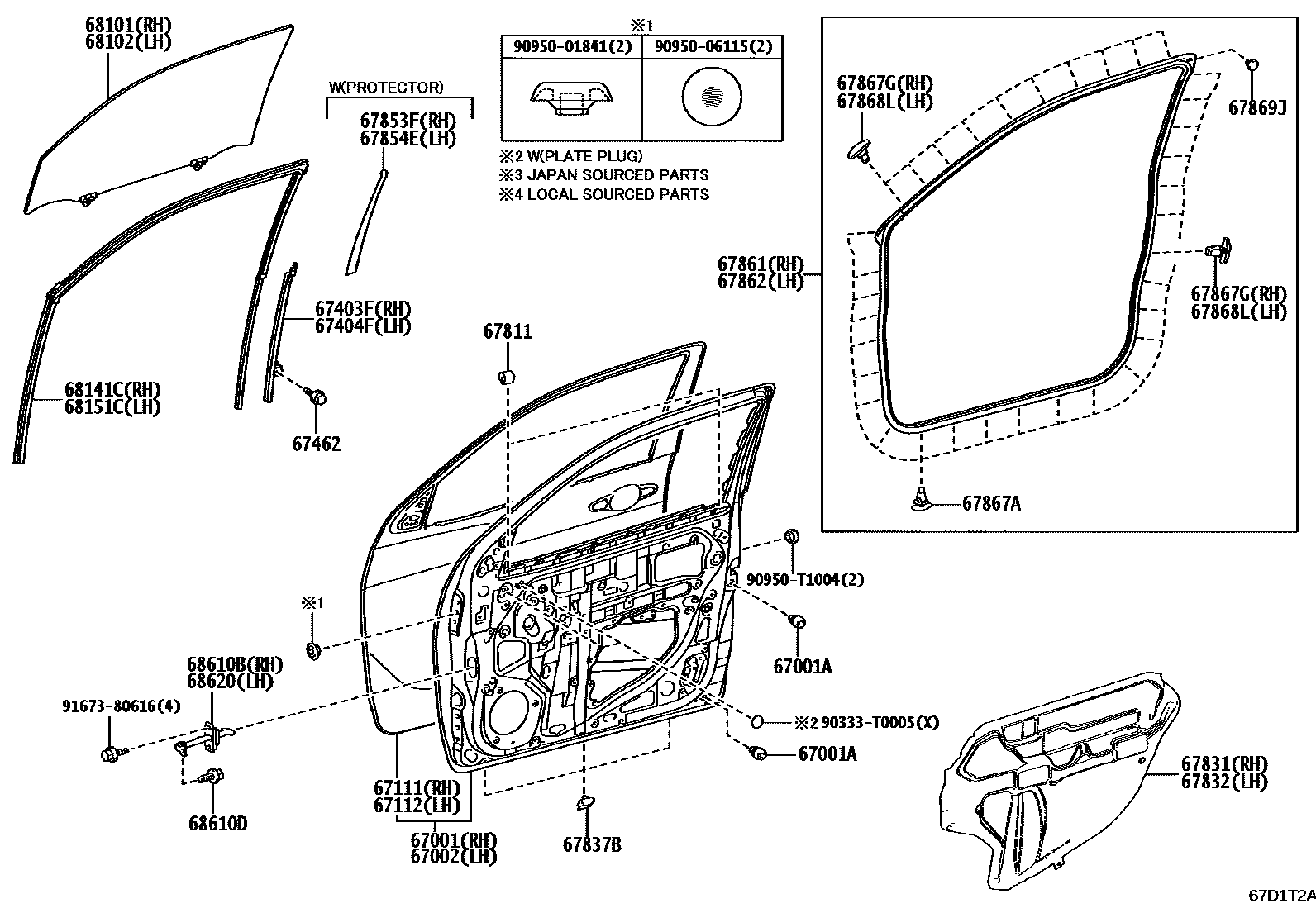

Toyota HILUX 前门板和前门玻璃 — Figure 6751
Toyota HILUX EPC diagram 6751, 前门板和前门玻璃, with 2 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-KK020 |
| 67001A | Front door panel cushion | 90541-09131 |
| 67002 | Left front door panel sub-assembly | 67002-KK020 |
| 67111 | Outer right front door panel | 67111-KK020 |
| 67112 | Outer left front door panel | 67112-KK020 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-0K070 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-0K070 |
| 67462 | Front door window frame bolts | 90119-06983 · 90119-T0141 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-KK080 |
| 67491F | Catch (for door trim panel) | 90467-T0019 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-KK080 |
| 67601B | Catch (for front door trim panel) | 90467-T0019 |
| 67715 | Door decorative mat No. 1 | 67713-KK010 |
| 67735 | Right front door lower decorative mat | 67735-KK010 |
| 67737 | Right front door No. 2 lower decorative mat | 67735-KK010 |
| 67811 | Front door silencer pad | 69759-0K030 |
| 67831 | Right front door access hole cover | 67831-0K260 |
| 67832 | Left front door access hole cover | 67832-0K260 |
| 67837B | Front door dust seal retainer | 67837-0K093 |
| 67861 | Right front door seal | 67861-0K130 |
| 67862 | Left front door seal | 67862-0K130 |
| 67867A | Door seal strip clip (for front door) | 67867-12150 |
| 67867G | Right door sealing strip fixing | 67867-52020 |
| 67868L | Left door seal strip fixing | 67867-52030 |
| 67869J | Front door seal strip clip | 67869-22030 |
| 68101 | Right front door glass sub-assembly | 68101-0K221 |
| 68102 | Left front door glass sub-assembly | 68102-0K221 |
| 68141C | Right front door glass lift channel | 68141-0K080 |
| 68151C | Left front door glass lift channel | 68151-0K080 |
| 68171B | Right front door glass inner sealing strip | 68171-0K110 |
| 68172A | Left front door glass inner sealing strip | 68172-0K110 |
| 68610B | Right front door opening limiter assembly | 68610-0K091 |
| 68610D | Front door opening limiter bolt | 90109-T0011 |
| 68620 | Left front door opening limiter assembly | 68610-0K091 |
