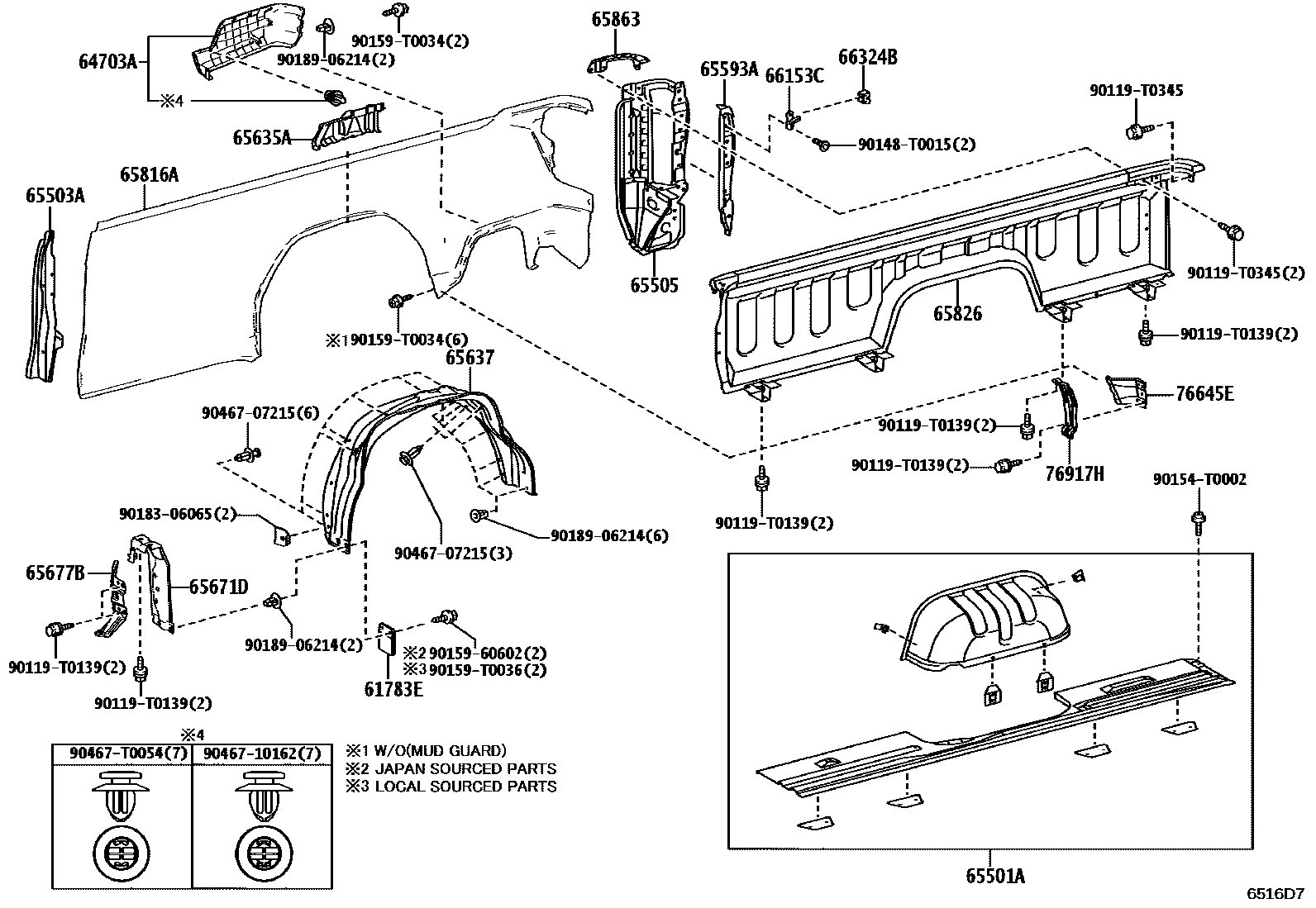

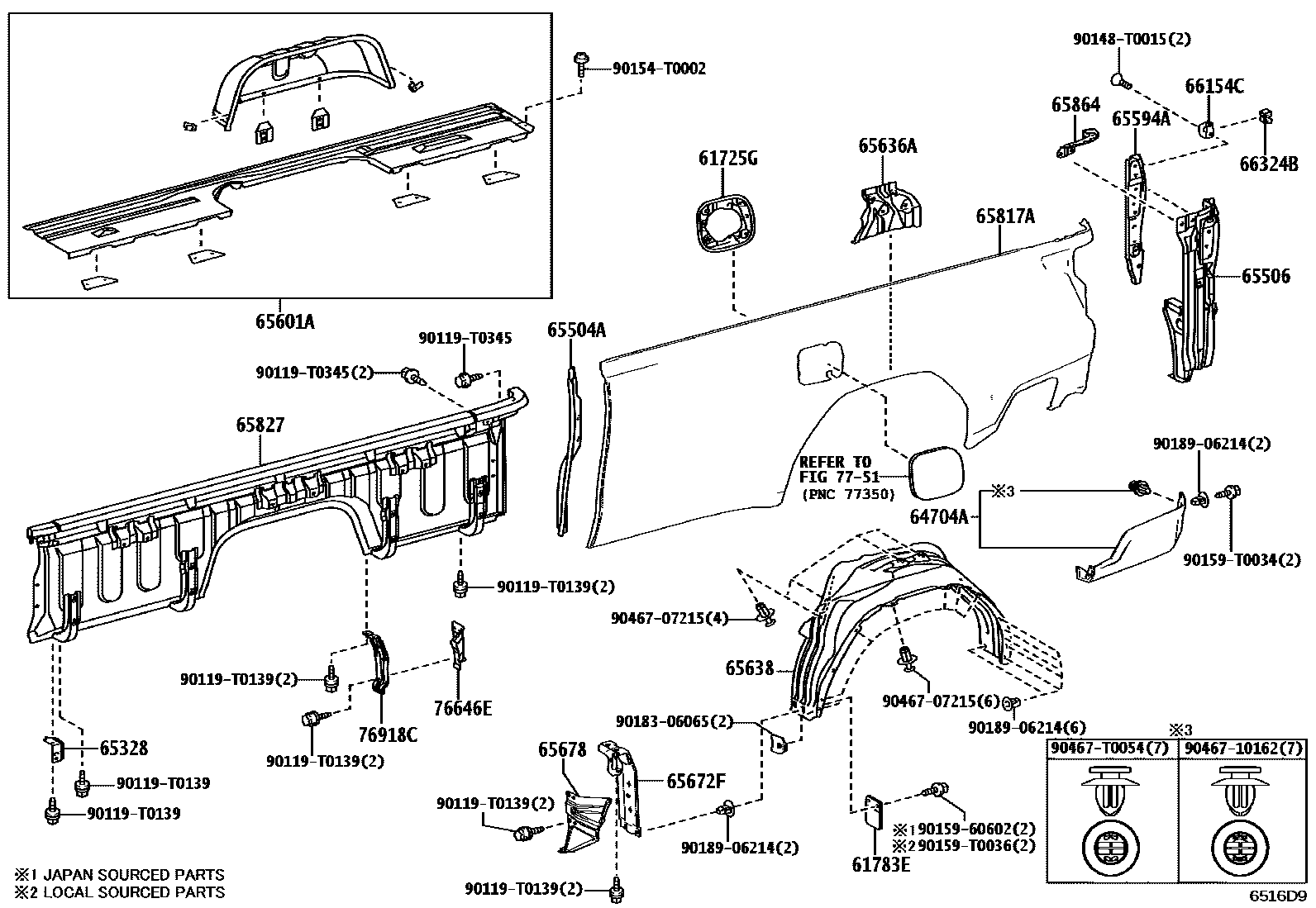

Toyota HILUX 后车身侧面板 — Figure 6554
Toyota HILUX EPC diagram 6554, 后车身侧面板, with 2 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61725G | No. 1 fuel inlet | 61725-KK110 |
| 61783E | No. 1 rear fender outer panel pad | 61783-0K160 |
| 64703A | Decorative cover sub-assembly on the right side of the base plate | 64073-0K040 |
| 64704A | Decorative cover sub-assembly on the left side of the base plate | 64074-0K040 |
| 65328 | Floor left panel | 65328-KK010 |
| 65501A | Right rear body side panel sub-assembly | 65501-KK901 |
| 65503A | Right side panel front end column sub-assembly | 65551-KK030 |
| 65504A | Left side panel front end column sub-assembly | 65552-KK030 |
| 65505 | Right side panel rear end column sub-assembly | 65505-KK100 |
| 65506 | Left side panel rear end column sub-assembly | 65506-KK100 |
| 65593A | Right side panel rear end column inner panel | 65593-KK050 |
| 65594A | Left side panel rear end column inner panel | 65594-KK050 |
| 65601A | Left rear body side panel sub-assembly | 65601-KK901 |
| 65635A | Right rear wheel housing panel | 65635-KK030 |
| 65636A | Left rear wheel housing panel | 65636-KK030 |
| 65637 | Right rear wheel house lining | 65637-0K150 |
| 65638 | Left rear wheel house lining | 65638-0K150 |
| 65671D | Right front side panel skirt bracket | 65608-KK050 |
| 65672F | Left front side panel skirt bracket | 65609-KK050 |
| 65677B | Right rear wheel house lining | 65677-KK060 |
| 65678 | Left rear wheel house lining | 65678-KK060 |
| 65816A | Right rear body side panel | 65816-KK170 |
| 65817A | Left rear body side panel | 65817-KK170 |
| 65826 | Right rear body inner panel | 65826-KK908 |
| 65827 | Left rear body inner panel | 65827-KK909 |
| 65863 | Right rear body upper side panel | 65863-KK030 |
| 65864 | Left rear body upper side panel | 65864-KK030 |
| 66153C | Rear door latch No. 1 right hook | 66153-KK020 |
| 66154C | Rear door latch No. 1 left hook | 66154-KK020 |
| 66324B | Back door side cushion | 66324-0K020 |
| 76645E | Right rear body fender bracket | 76645-KK030 |
| 76646E | Left rear body fender bracket | 76646-KK030 |
| 76917H | Right rear fender | 76607-KK010 |
| 76918C | Left rear fender | 76607-KK010 |
