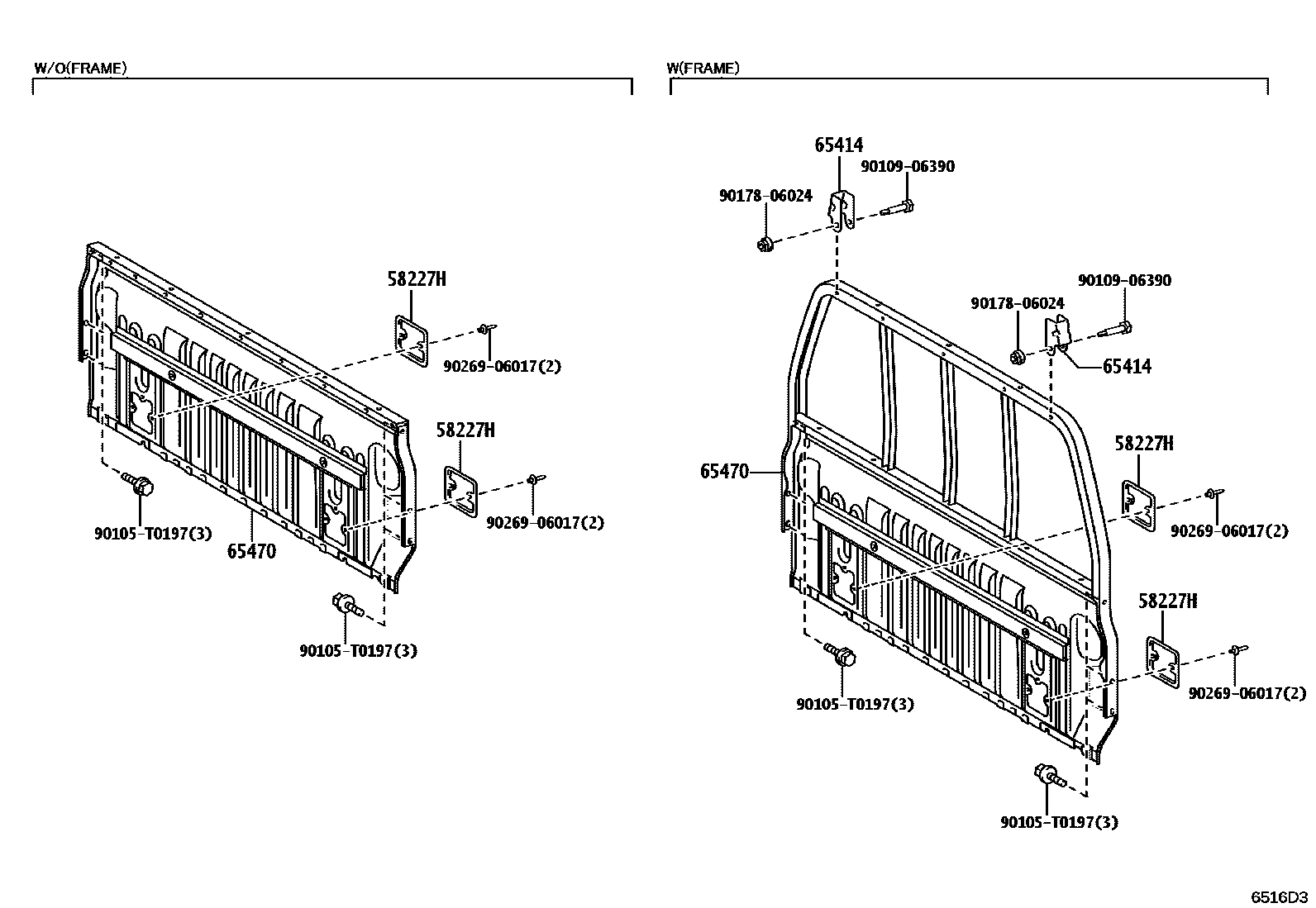

Toyota HILUX 后车身防护架和背门 — Figure 6553
Toyota HILUX EPC diagram 6553, 后车身防护架和背门, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58227H | Top cover No. 1 | 58227-0K031 |
| 65414 | guardrail frame stop | 65414-KK010 |
| 65470 | Top plate assembly | 65470-KK020 · 65470-KK030 |
| 65700 | Rear body back door assembly | 65700-KK100 · 65700-KK170 |
| 65747A | Back door right seal plate | 65747-0K020 |
| 65748A | Rear door left seal plate | 65747-0K020 |
| 65759 | Rear door access hole cover | 65759-KK020 |
| 65770A | Back door support rod assembly | 65770-0K090 |
| 65778 | Back door support rod stop | 65778-0K020 |
| 66110F | Back door right hinge assembly | 66110-0K020 |
| 66120F | Back door left hinge assembly | 66120-0K020 |
| 66170 | Rear body back door lock bolt assembly | 66170-KK011 |
| 68965B | Back door support rod shaft | 68965-0K020 |
