Toyota HILUX 车内装饰板 — Figure 6451

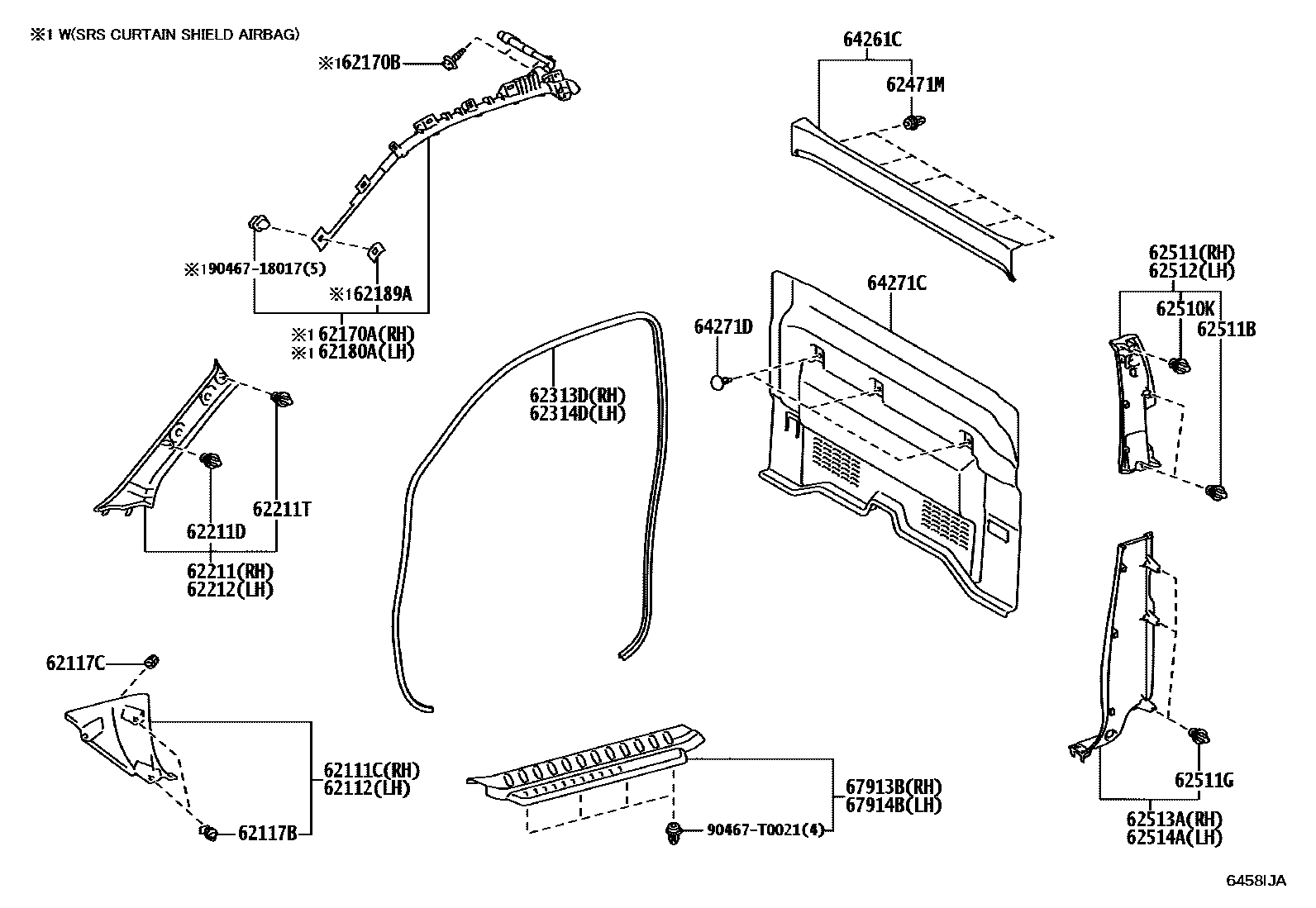

Toyota HILUX EPC diagram 6451, 车内装饰板, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62117C | No. 2 clip (for cowl side trim panel) | 90467-06147 |
| 62170A | Right curtain air bag assembly | 62170-0K190 |
| 62170B | Bolts with washers | 91673-80616 |
| 62180A | Left curtain air bag assembly | 62180-0K190 |
| 62189A | Curtain air bag clip spacer | 62189-42010 |
| 62211D | Clip (for body front pillar decorative panel) | 90467-T0021 |
| 62211T | Clip (for front pillar decorative panel) | 90467-10188 · 90467-T0021 |
| 62313D | Right front door waterproof strip | 62313-0K050 |
| 62314D | Left front door waterproof strip | 62314-0K050 |
| 62471M | clip | 90467-T0021 |
| 62510K | Clip (for front side panel) | 90467-10188 |
| 62511B | Clip (for the inner decorative panel of the side panel) | 90467-T0021 |
| 62511G | Clip (for the inner decorative panel of the side panel) | 90467-T0021 |
| 64271C | Back panel decorative panel | 64271-0K090 |
