Toyota HILUX 侧梁 — Figure 6151

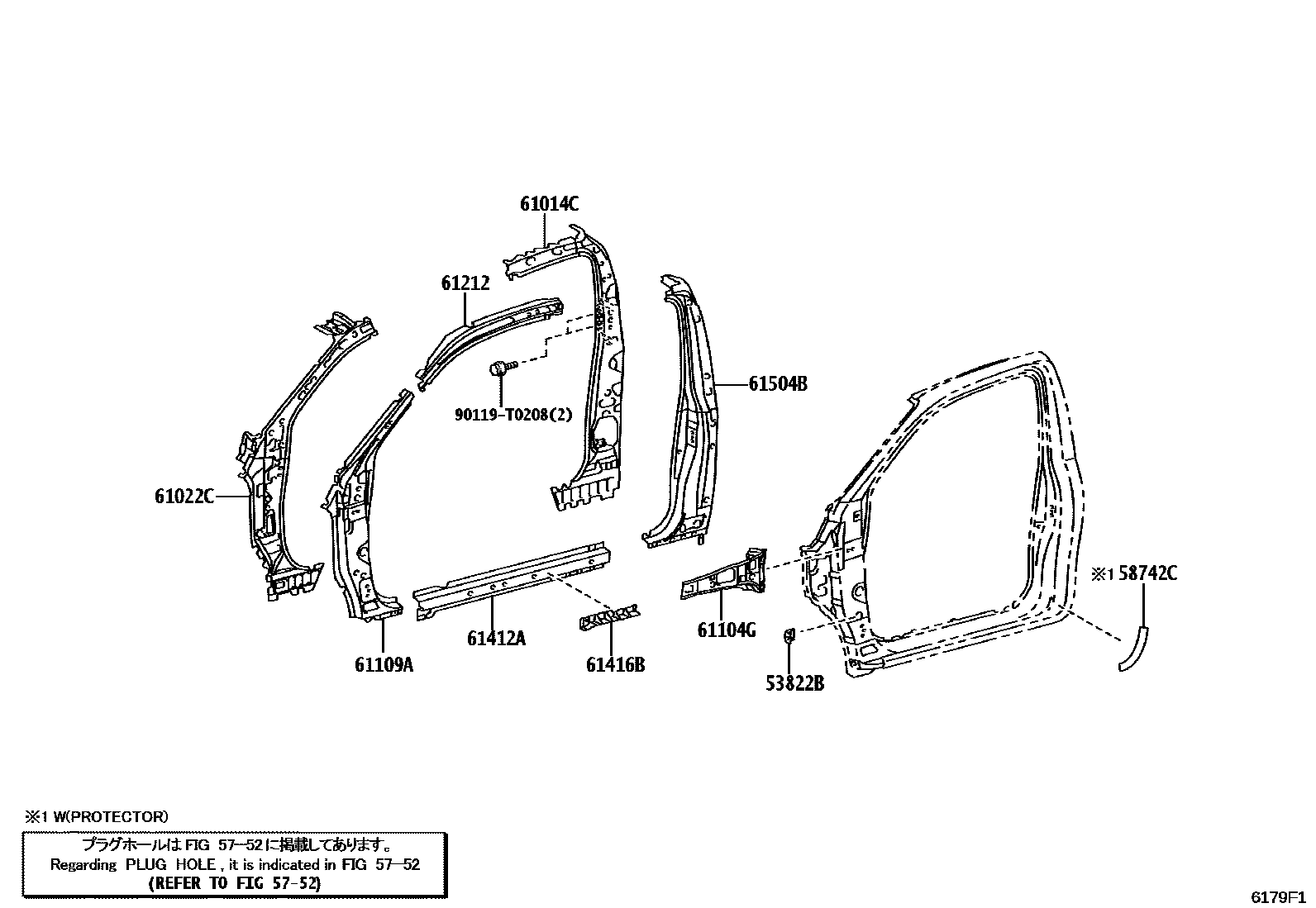

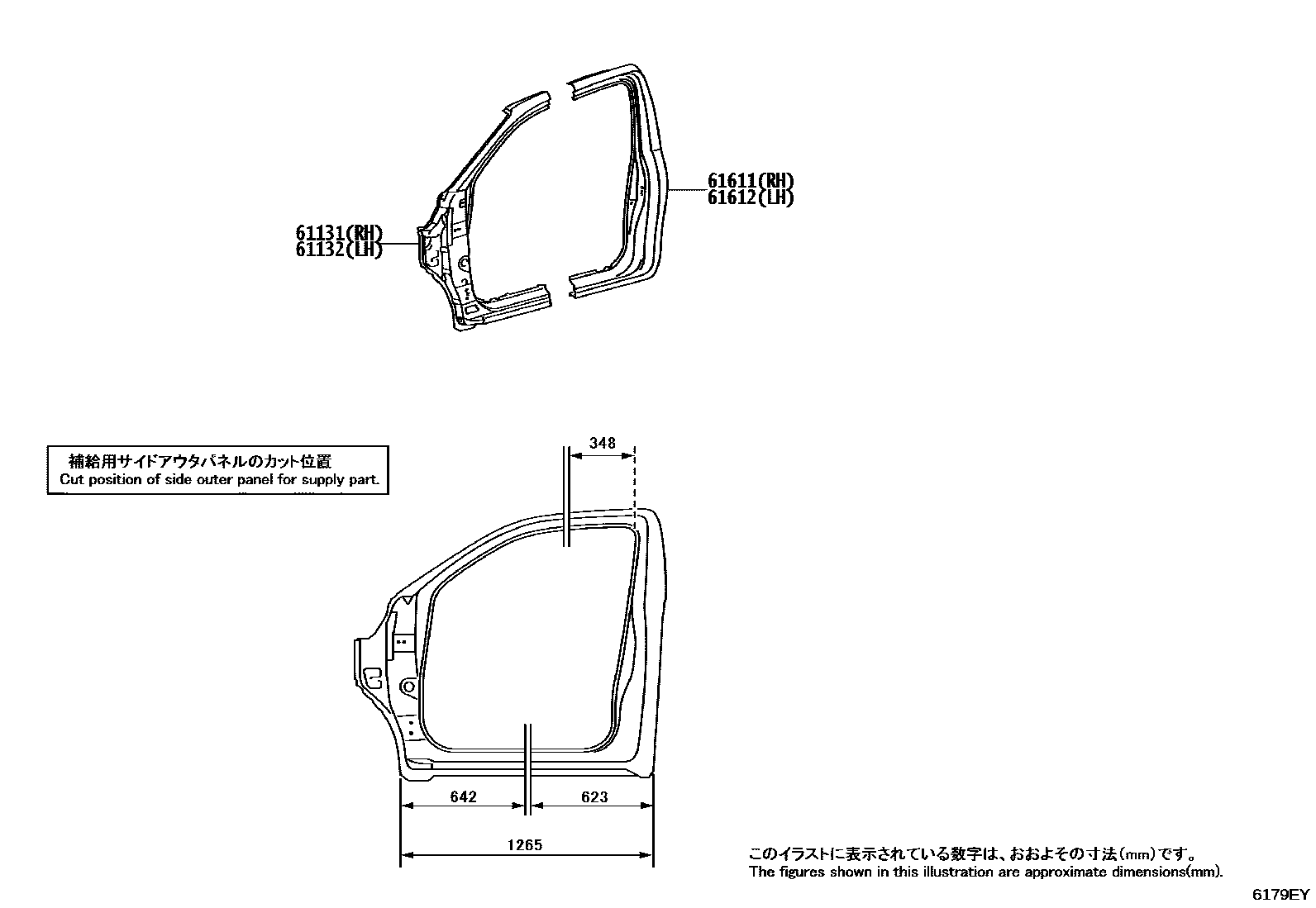

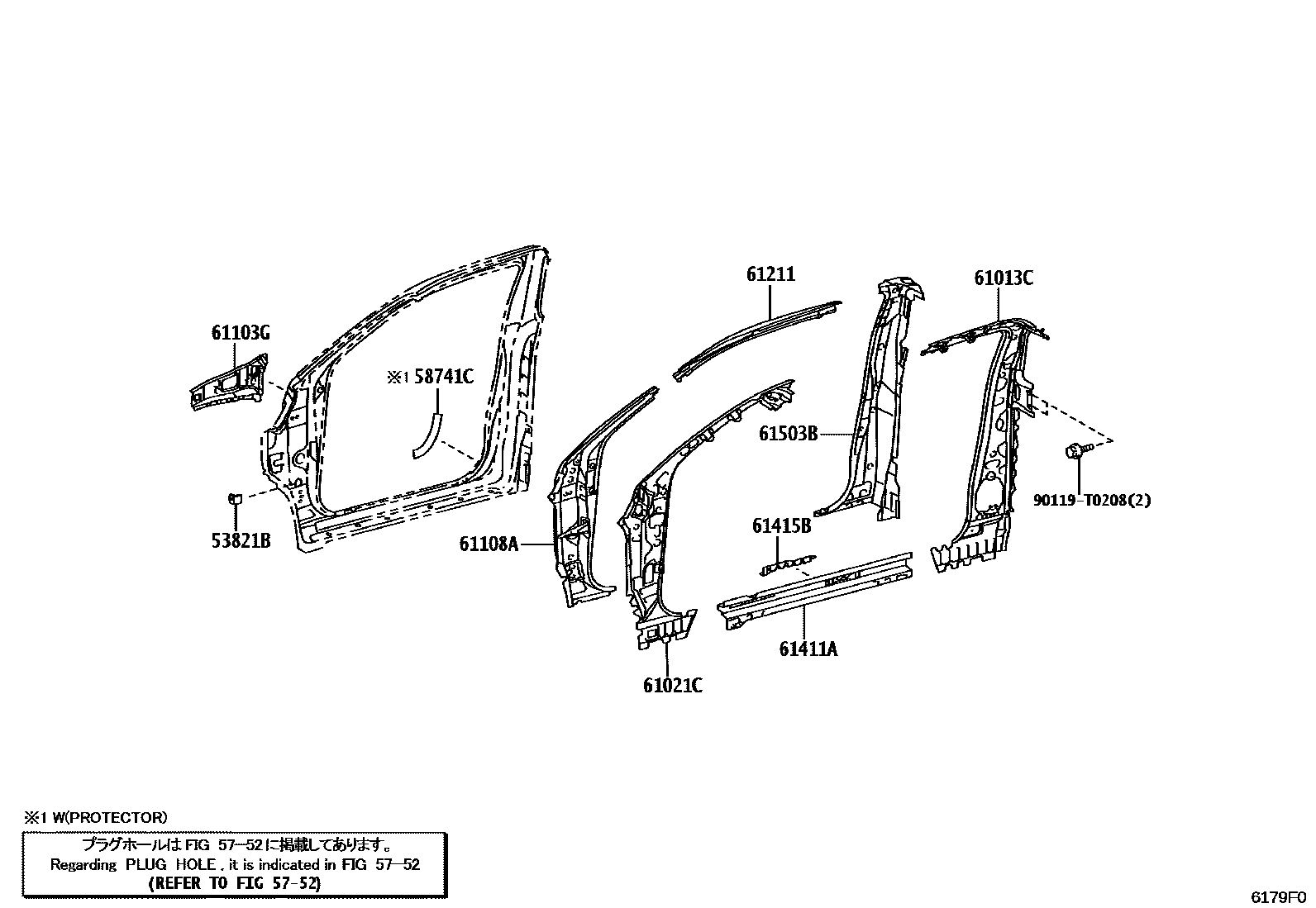

Toyota HILUX EPC diagram 6151, 侧梁, with 3 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53821B | Right front fender rear support | 53257-35030 |
| 53822B | Left front fender rear support | 53257-35030 |
| 58741C | Right side enclosure protection panel | 58741-0K070 |
| 58742C | Left side enclosure protection panel | 58742-0K070 |
| 61013C | Right inner panel sub-assembly | 61013-KK090 |
| 61014C | Left inner panel sub-assembly | 61014-KK040 |
| 61021C | Right body front pillar sub-assembly | 61021-KK030 |
| 61022C | Left body front pillar sub-assembly | 61022-KK030 |
| 61103G | Right body front pillar lower corner panel sub-assembly | 61103-KK010 |
| 61104G | Left side body front pillar lower corner panel sub-assembly | 61104-KK010 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-KK900 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-KK900 |
| 61131 | Right body outer front upper pillar | 61131-KK020 |
| 61132 | Left body outer front upper pillar | 61132-KK020 |
| 61211 | Roof right outer longitudinal beam | 61211-KK020 |
| 61212 | Roof left outer longitudinal beam | 61212-KK020 |
| 61411A | Right side door sill panel No. 1 reinforcement | 61401-KK901 |
| 61412A | Left side door sill panel reinforcement No. 1 | 61402-KK901 |
| 61415B | Right door outer sill extension | 61415-KK010 |
| 61416B | Left door outer sill extension | 61416-KK010 |
| 61503B | Right side locking column reinforcement sub-assembly | 61503-KK900 |
| 61504B | Left side locking column reinforcement sub-assembly | 61504-KK900 |
| 61611 | Right side hoarding | 61611-KK020 |
| 61612 | left side panel | 61612-KK020 |
