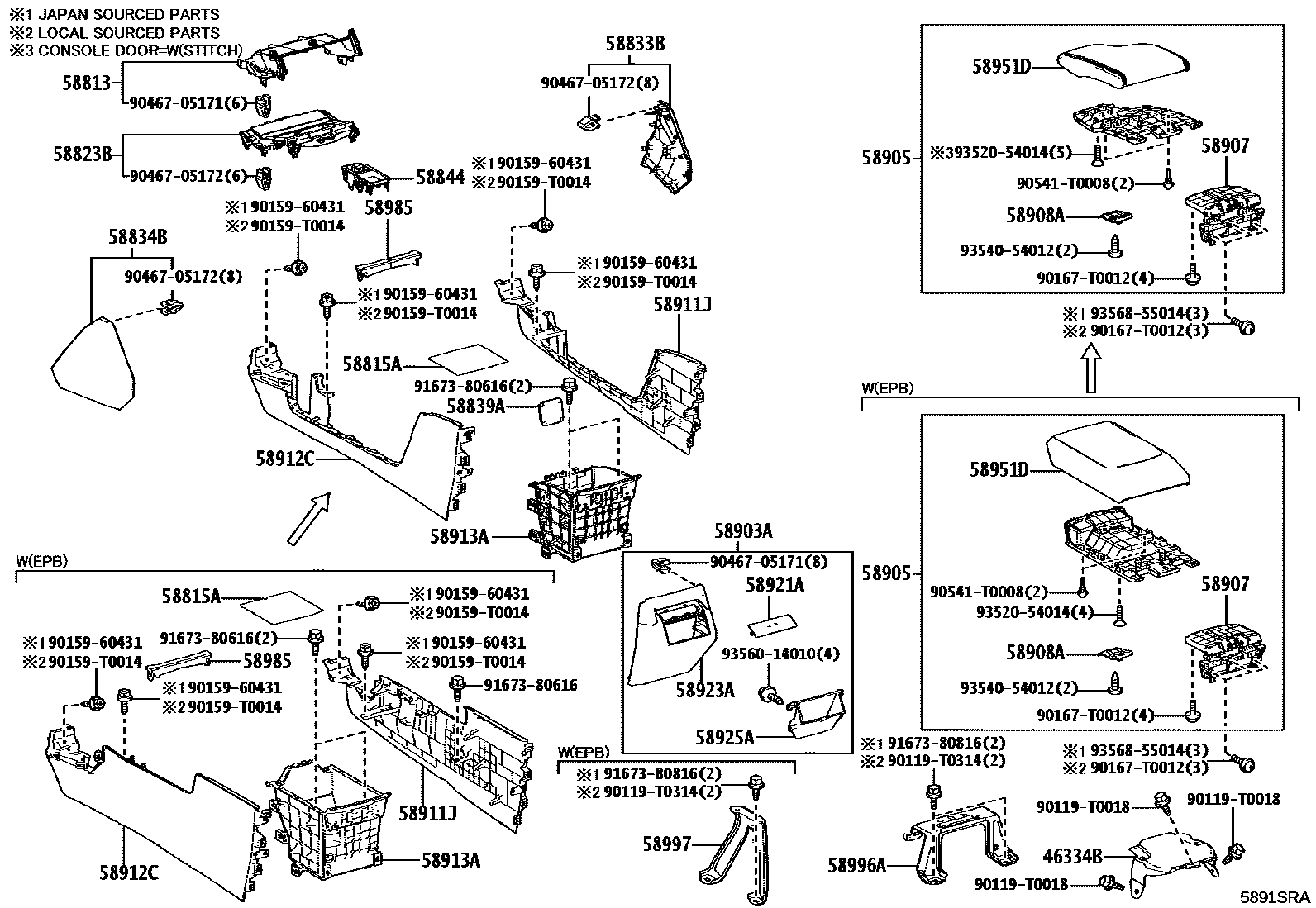

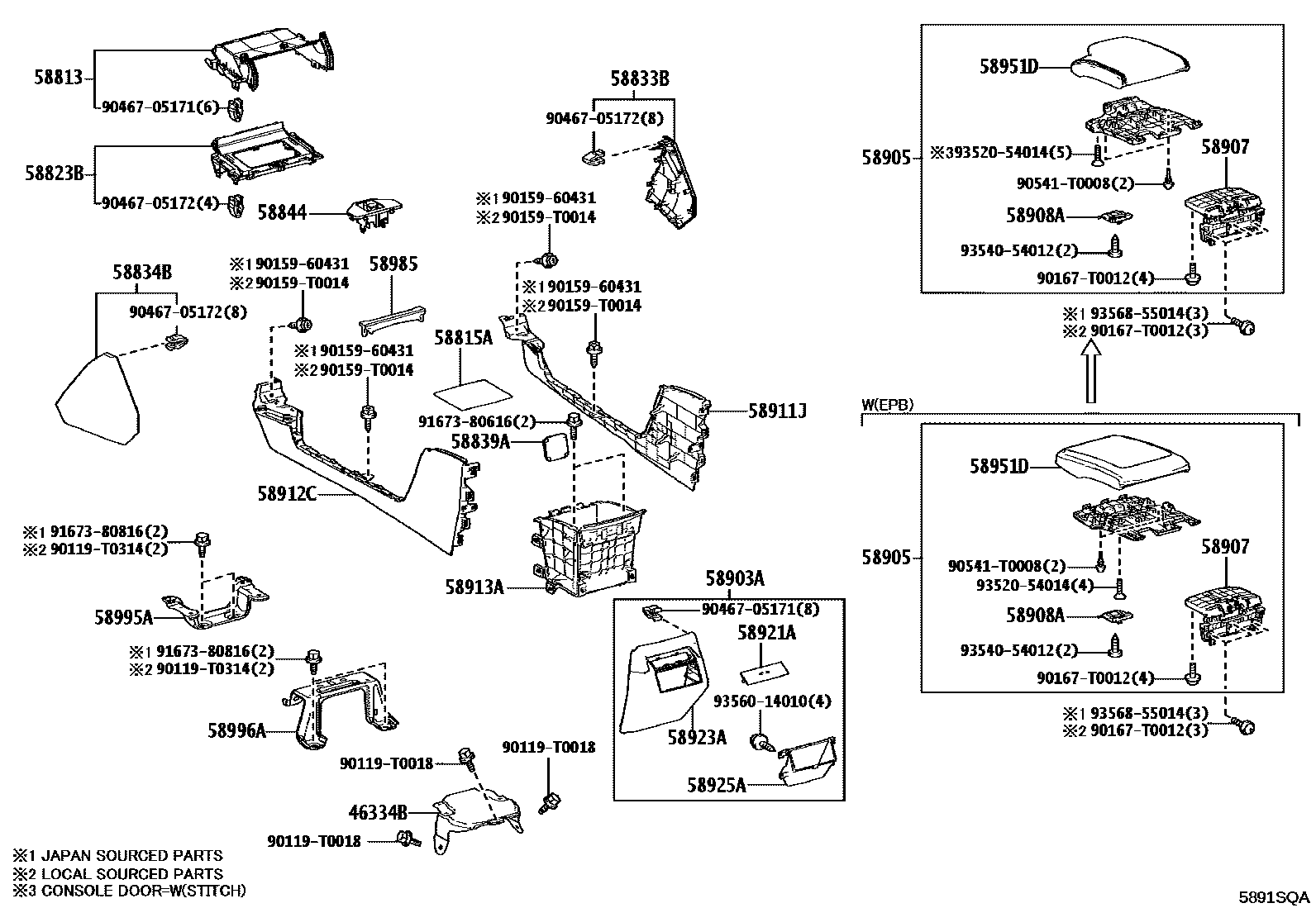

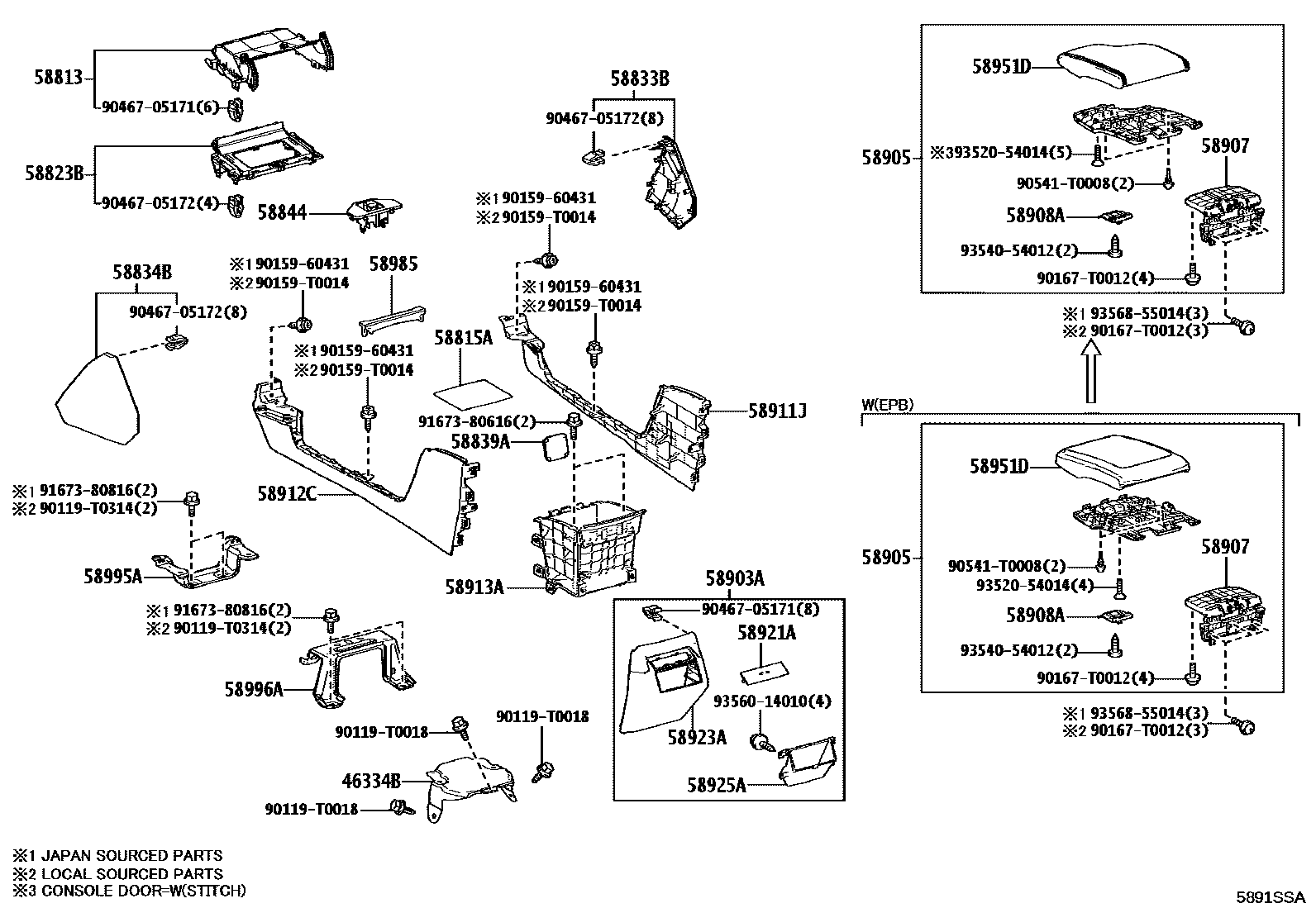

Toyota HILUX 中央扶手箱和支架 — Figure 5855
Toyota HILUX EPC diagram 5855, 中央扶手箱和支架, with 6 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46334B | PROTECTEUR, LEVIER INTERMEDIAIRE | 46334-0K020 |
| 58813 | Upper armrest box | 58813-KK170 · 58813-KK190 |
| 58815A | Armrest box felt pad | 58815-KK030 |
| 58823B | Armrest box cover | 58823-KK080 · 58823-KK100 |
| 58825A | Armrest box groove | 58825-KK010 |
| 58833B | Armrest box upper panel decorative part No. 1 | 58833-KK180 |
| 58834B | Armrest box upper panel decorative part No. 2 | 58834-KK180 |
| 58908A | Armrest box lid lock assembly | 58908-KK010 |
| 58925A | Rear armrest box groove | 58925-KK070 |
| 58985 | Armrest box fixing bracket | 58985-KK010 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-KK020 · 58995-KK040 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-KK030 |
