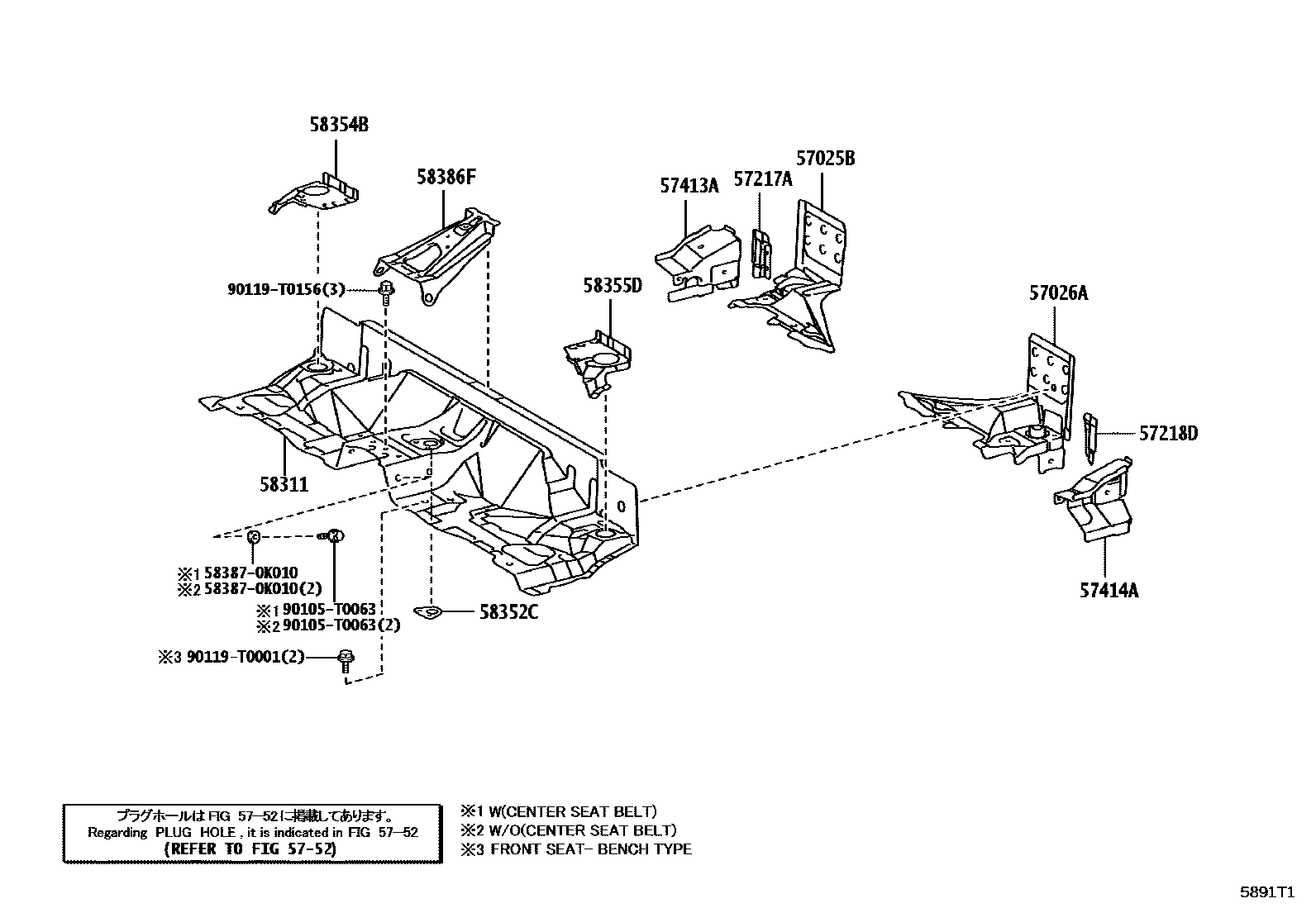

Toyota HILUX 后地板和后地板梁 — Figure 5852
Toyota HILUX EPC diagram 5852, 后地板和后地板梁, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57025B | Right body No. 3 mounting bracket sub-assembly | 57025-KK010 |
| 57026A | Left body No. 3 mounting bracket sub-assembly | 57026-KK010 |
| 57217A | Right body No. 4 mounting bracket | 57217-0K020 |
| 57218D | Left body No. 4 mounting bracket | 57218-0K020 |
| 57413A | Rear floor right inner longitudinal beam | 57413-KK030 |
| 57414A | Rear floor left inner longitudinal beam | 57414-KK030 |
| 58311 | rear floor pan | 58311-KK040 · 58311-KK050 · 58311-KK060 |
| 58352C | Rear floor reinforcement No. 2 | 58352-KK010 |
| 58354B | Rear floor reinforcement No. 4 | 58354-0K050 |
| 58355D | Rear floor reinforcement No. 5 | 58355-0K050 |
| 58386F | Body lower back panel 2 corner panel | 58386-KK010 |
