Toyota HILUX 前围板和挡风玻璃 — Figure 5553

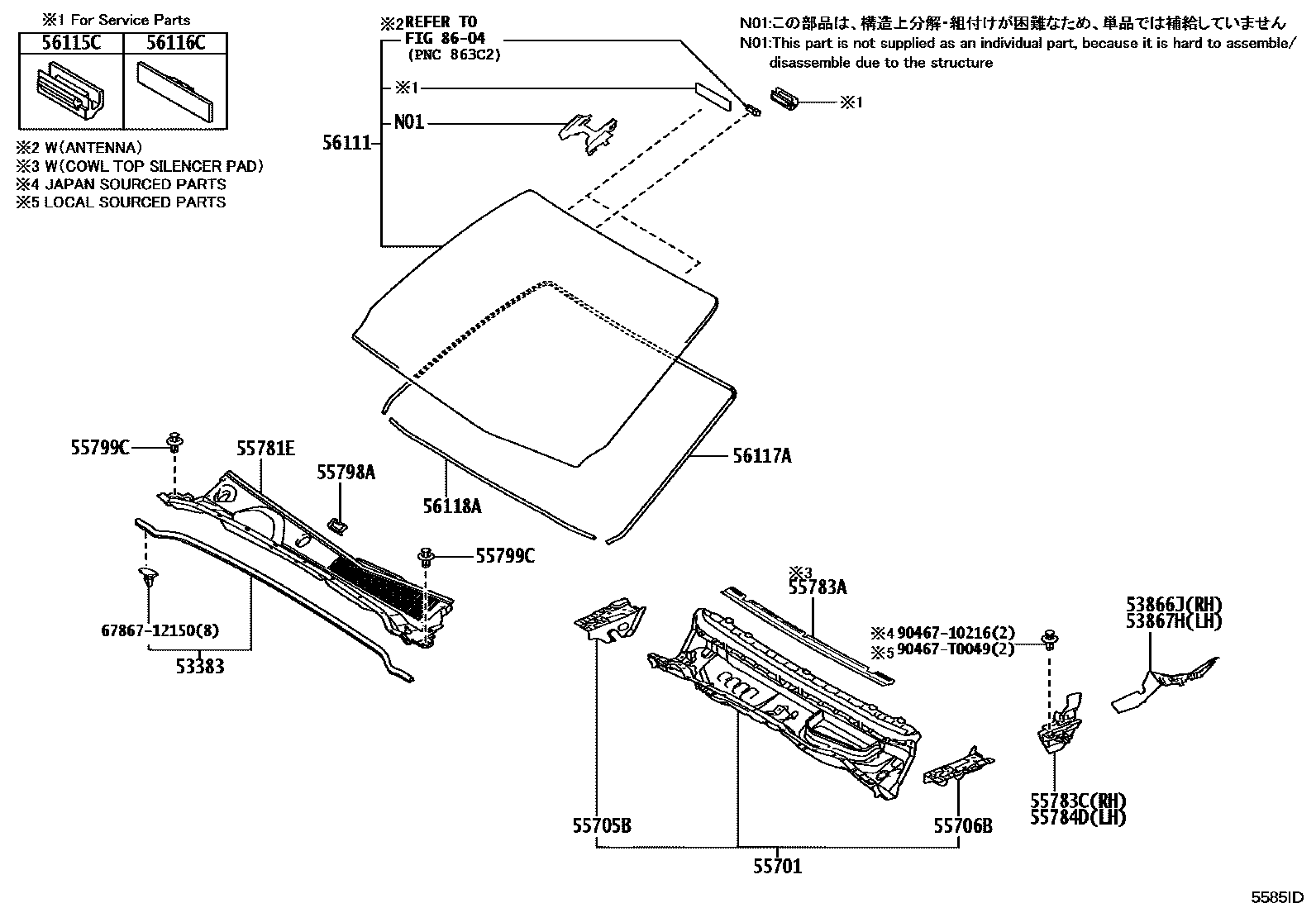

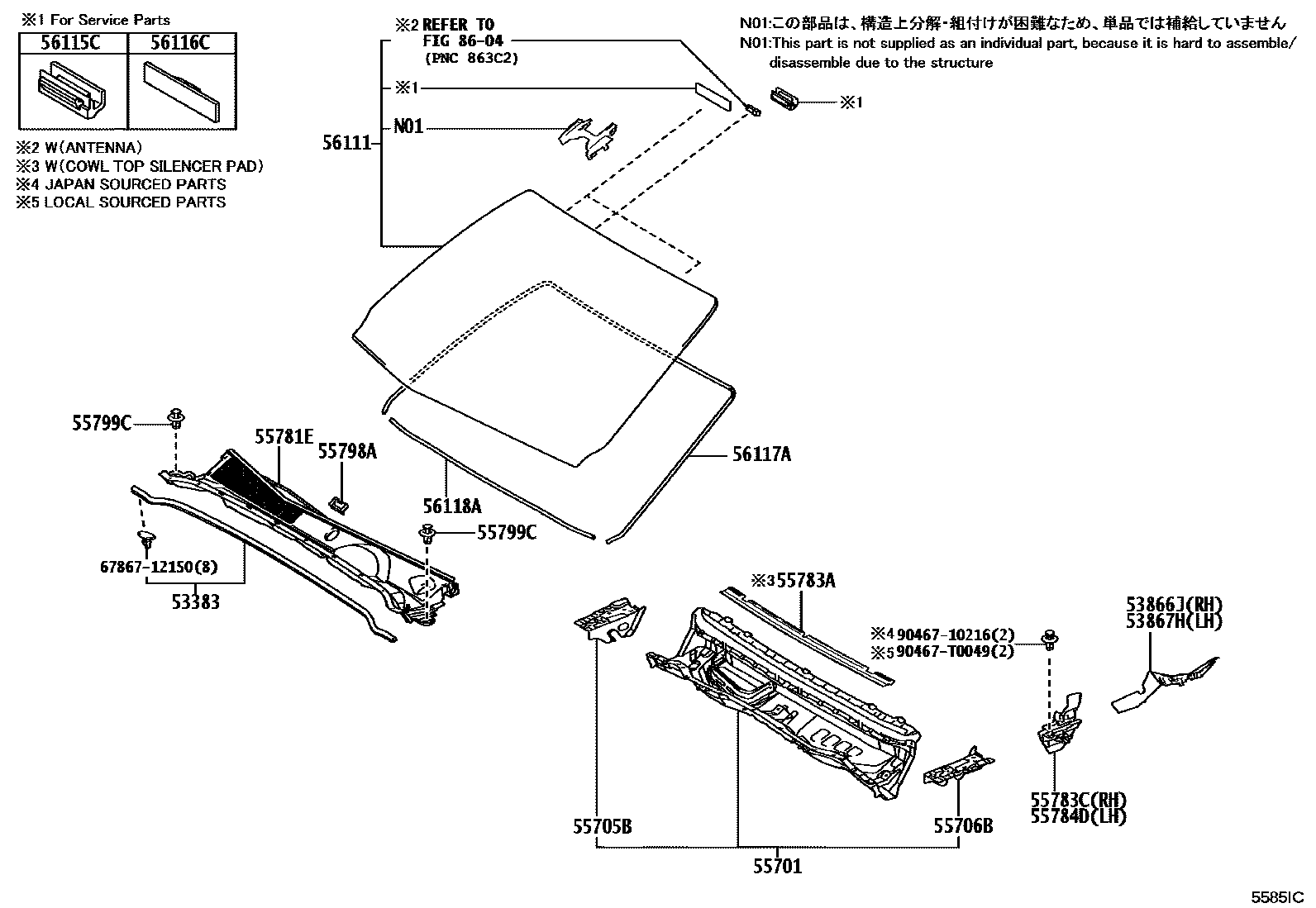

Toyota HILUX EPC diagram 5553, 前围板和挡风玻璃, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383 | Engine cover to cowl upper cover seal | 53383-0K150 |
| 53866J | Right front fender to cowl side seal | 53866-0K130 |
| 53867H | Left front fender to cowl side seal | 53867-0K130 |
| 55701 | Front apron sub-assembly | 55700-KK010 · 55700-KK020 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-KK010 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-KK010 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-0K190 · 55708-0K200 |
| 55783C | Ventilation grille bracket on right front apron | 55783-0K100 |
| 55784D | Ventilation grille bracket on left front apron | 55784-0K030 |
| 55798A | Front water pump seal bracket | 55798-0K010 |
| 55799C | Ventilation grille clips on front apron | 90467-07215 · 90467-T0050 |
| 56111 | windshield | 56101-0KW00 · 56101-F0260 · 56101-F0400 |
| 56115C | windshield block | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-KK060 |
| 56118A | Window Glass No. 2 Adhesive Sealing Strip | 56117-KK030 |
