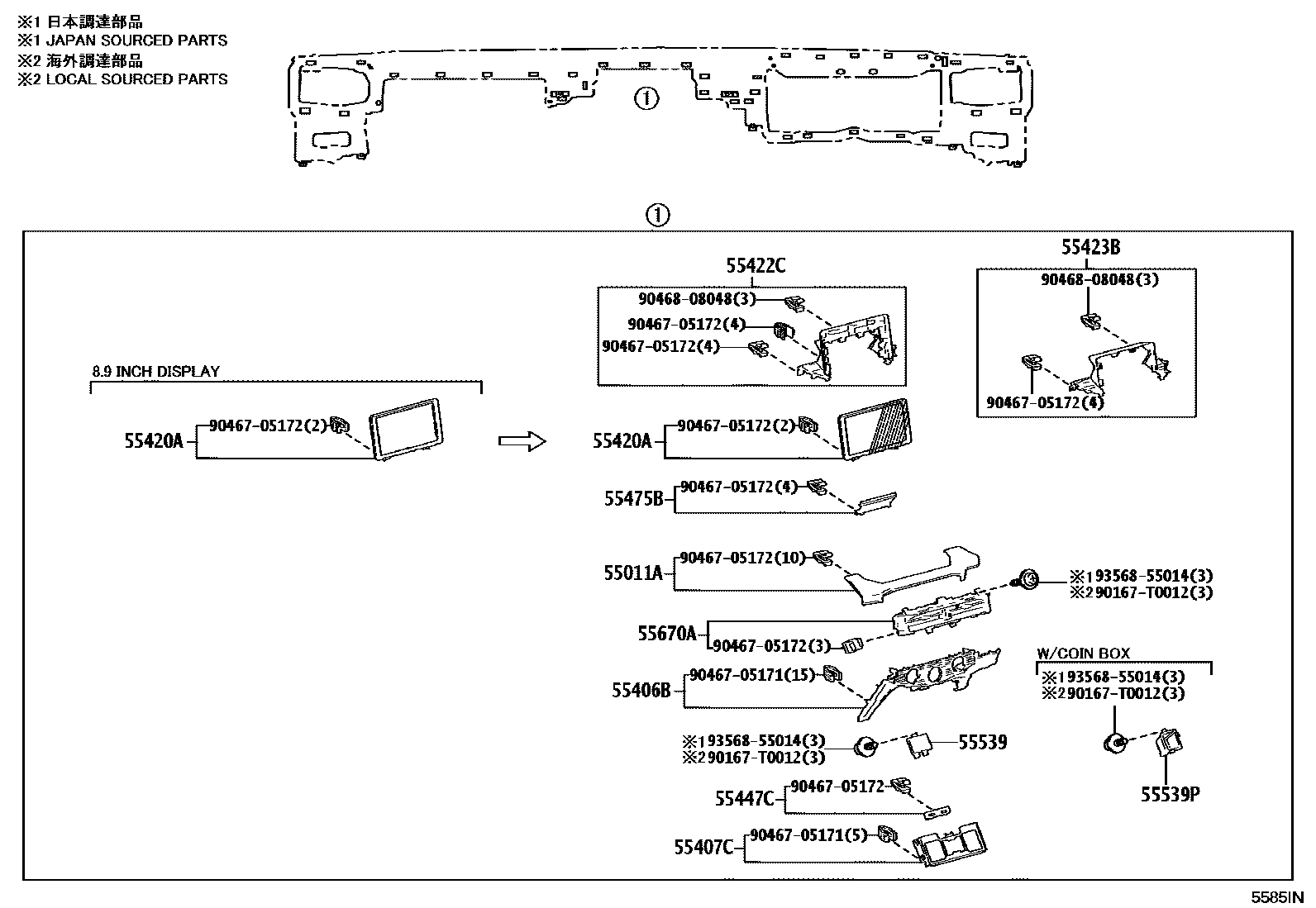

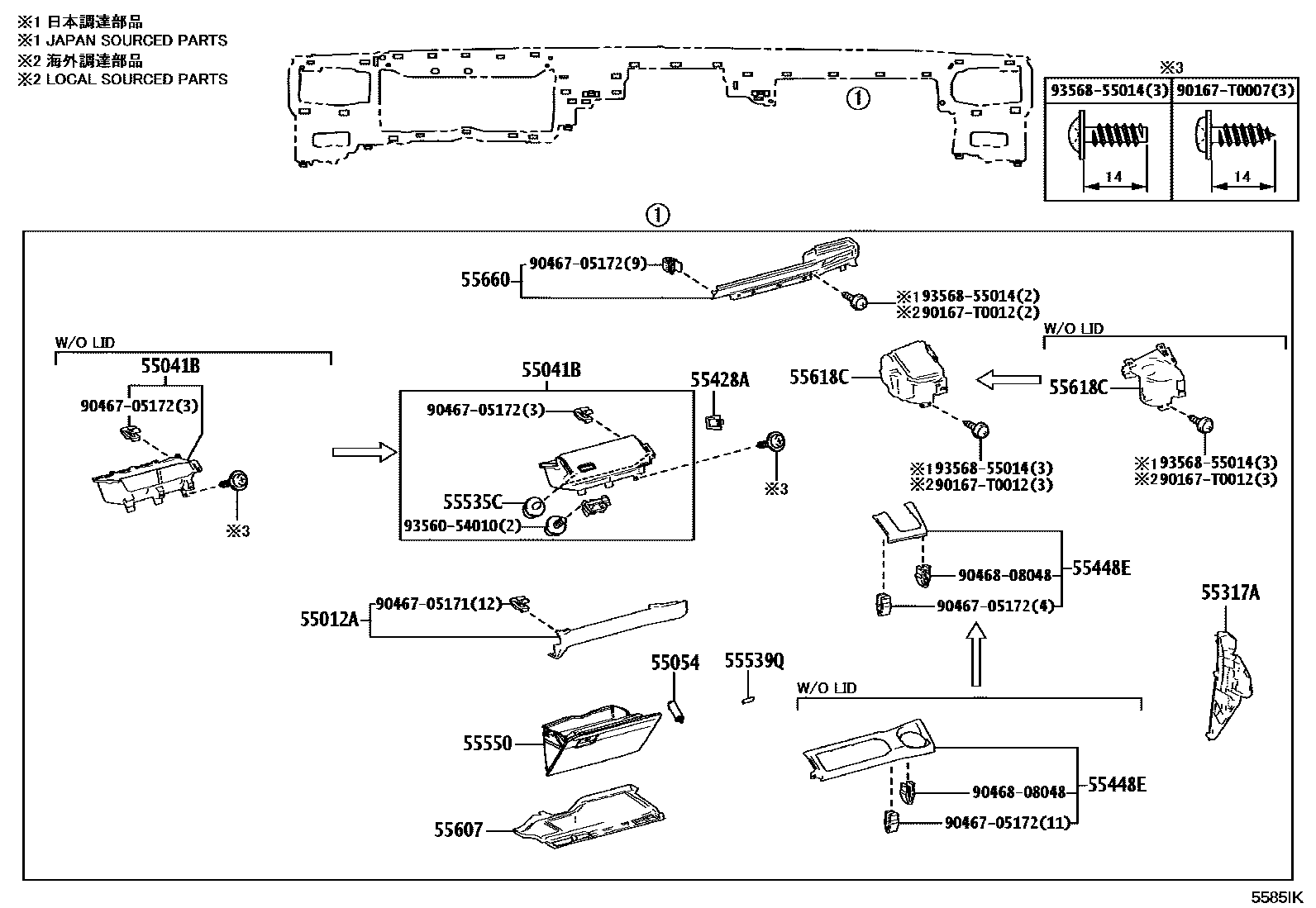

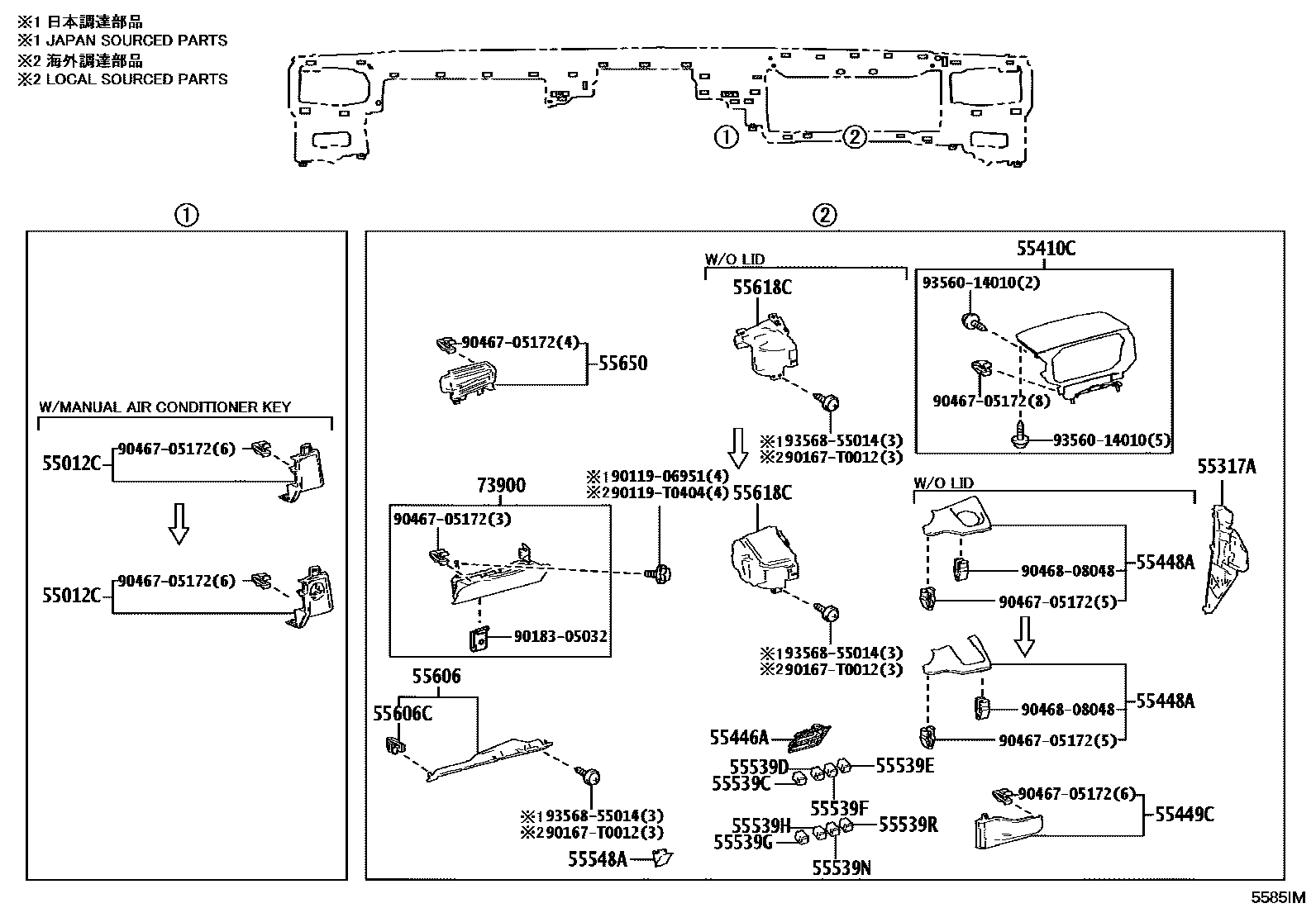

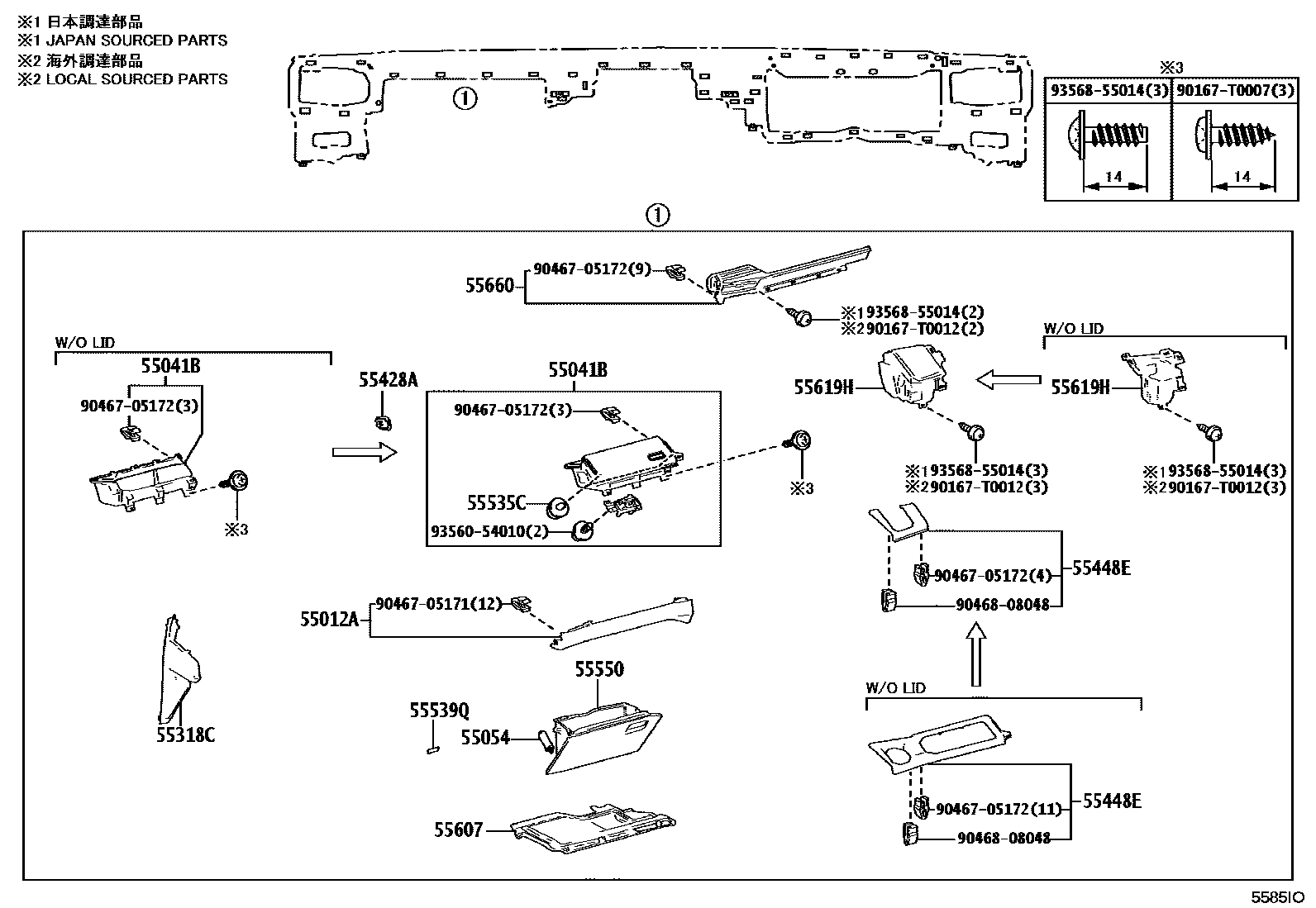

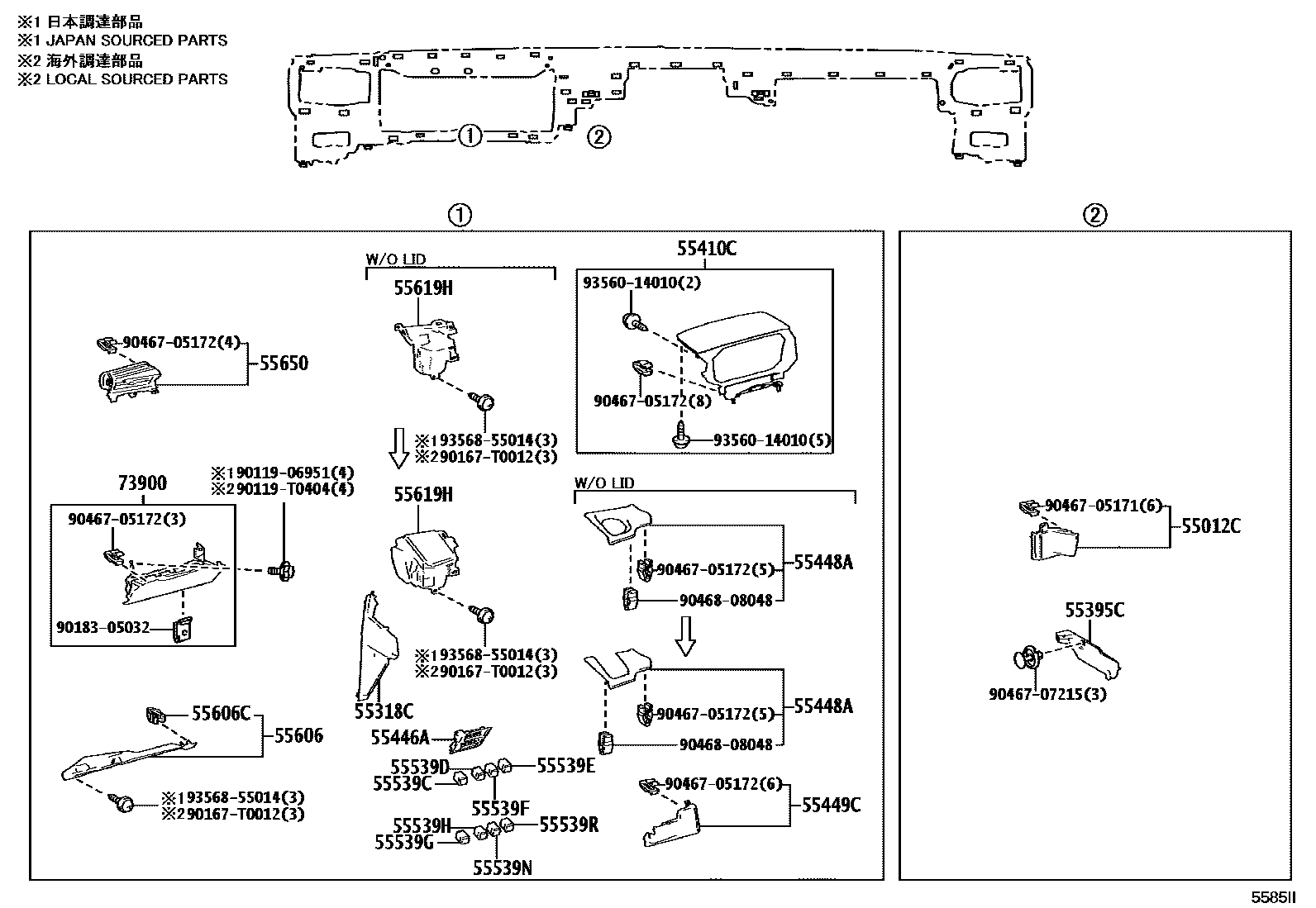

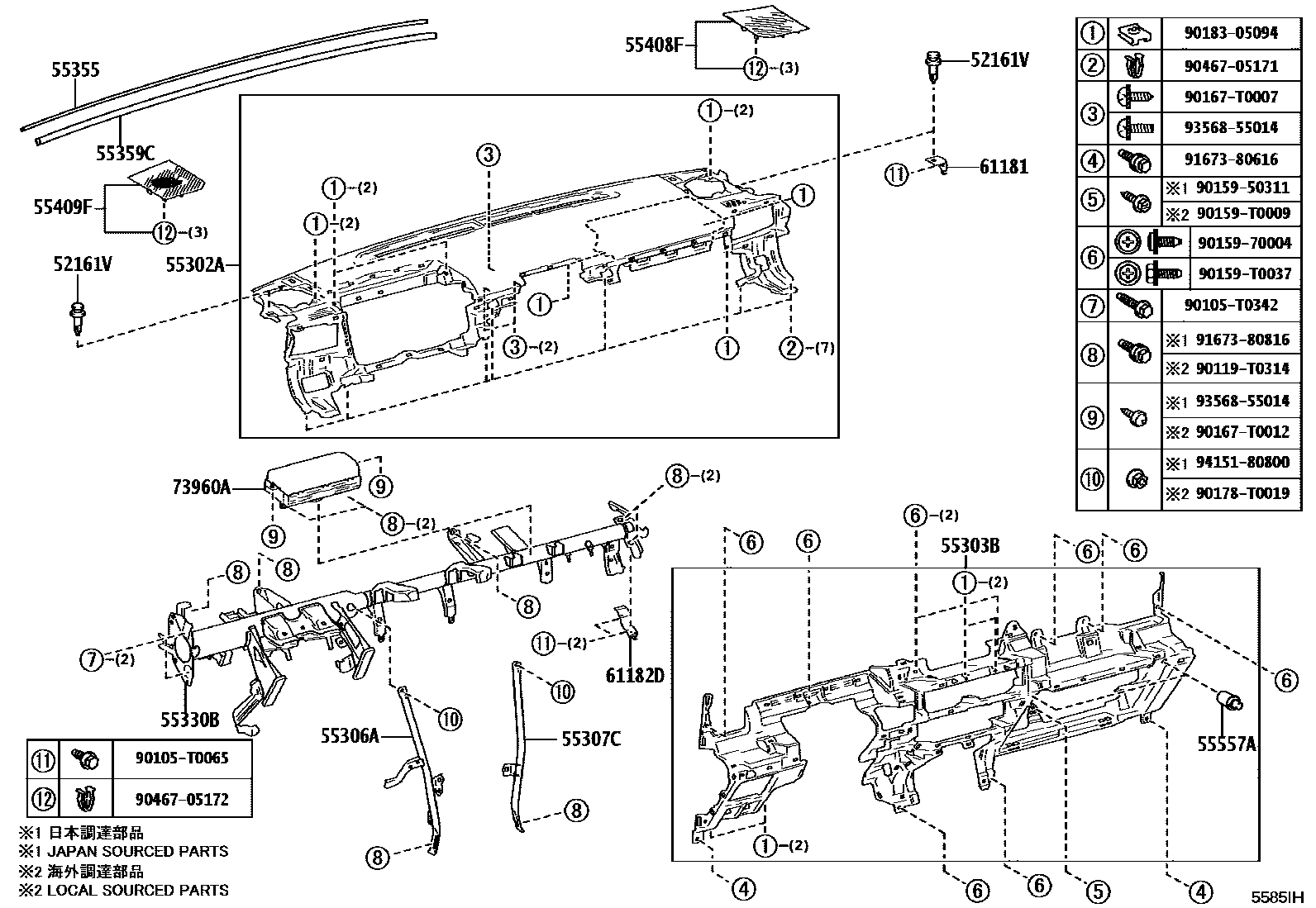

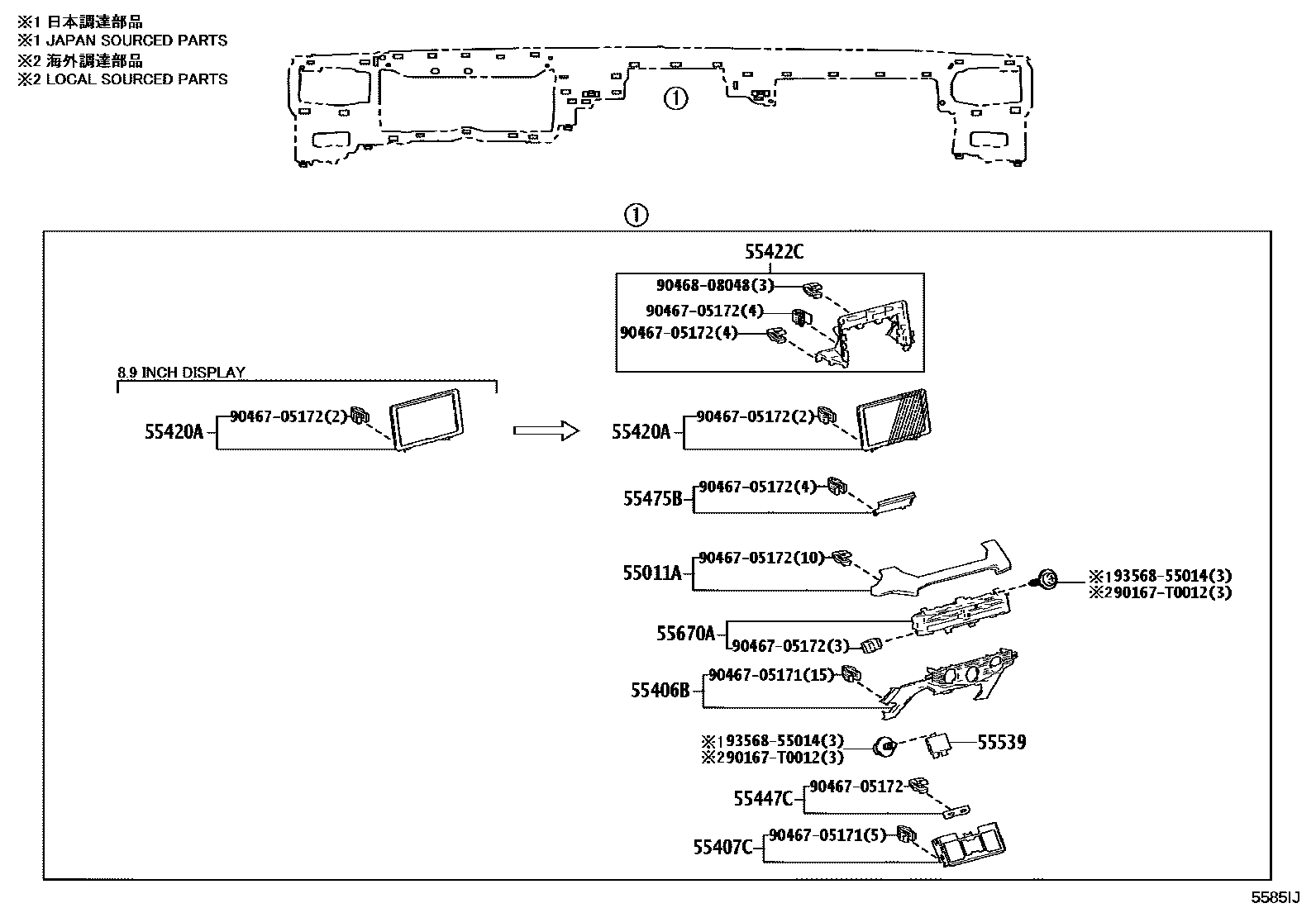

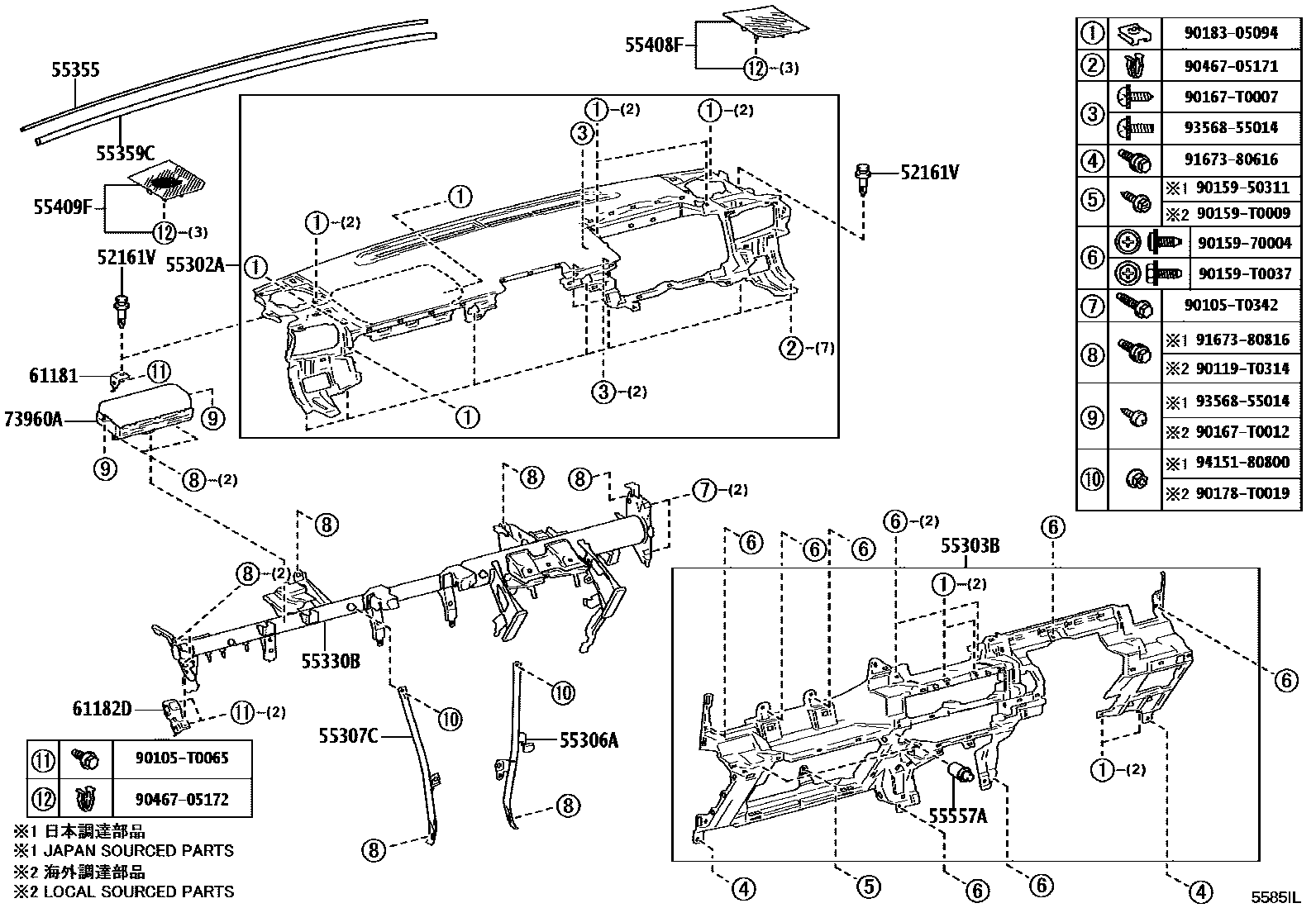

Toyota HILUX 仪表板和手套箱 — Figure 5551
Toyota HILUX EPC diagram 5551, 仪表板和手套箱, with 8 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161V | instrument panel insert | 52161-0K040 · 52161-16010 |
| 55041B | Dashboard No. 1 storage box cover sub-assembly | 55041-KK330 · 55041-KK360 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-KK030 · 55306-KK050 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-KK030 · 55307-KK040 |
| 55330B | Instrument panel reinforcement assembly | 55330-KK680 · 55330-KK700 · 55330-KK710 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-KK020 · 55355-KK030 |
| 55395C | Instrument panel No. 1 left inner bracket cover | 55395-KK010 |
| 55407C | Instrument panel lower cover sub-assembly | 55407-KK310 |
| 55447C | No. 2 switch hole seat | 55447-KK040 · 55447-KK050 · 55447-KK060 |
| 55539 | Spare switch hole cover | 55539-KK040 |
| 55539D | Spare switch hole cover | 55539-06130 |
| 55539E | Spare switch hole cover | 55539-06130 |
| 55539F | Spare switch hole cover | 55539-06130 |
| 55539G | Spare switch hole cover | 55539-06130 |
| 55539H | Spare switch hole cover | 55539-06130 |
| 55539N | Spare switch hole cover | 55539-06130 |
| 55539P | Spare switch hole cover | 55539-KK050 |
| 55539R | Spare switch hole cover | 55539-06130 |
| 55557A | Glove box cover limit pad | 55557-0K030 |
| 55606C | Clip (for instrument panel bottom cover) | 90467-05172 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-KK070 · 55607-KK080 |
| 55618C | Dashboard cup holder | 55618-KK150 |
| 55619H | Dashboard cup holder 2 | 55619-KK150 |
| 55670A | Instrument panel central air register assembly | 55670-KK140 · 55670-KK200 |
| 61181 | Dashboard side bracket | 61181-KK030 |
| 61182D | Dashboard side bracket | 61125-KK010 · 61126-KK010 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-0K210 · 73960-0K220 |
