Toyota HILUX 前翼子板挡泥板和前围板 — Figure 5355

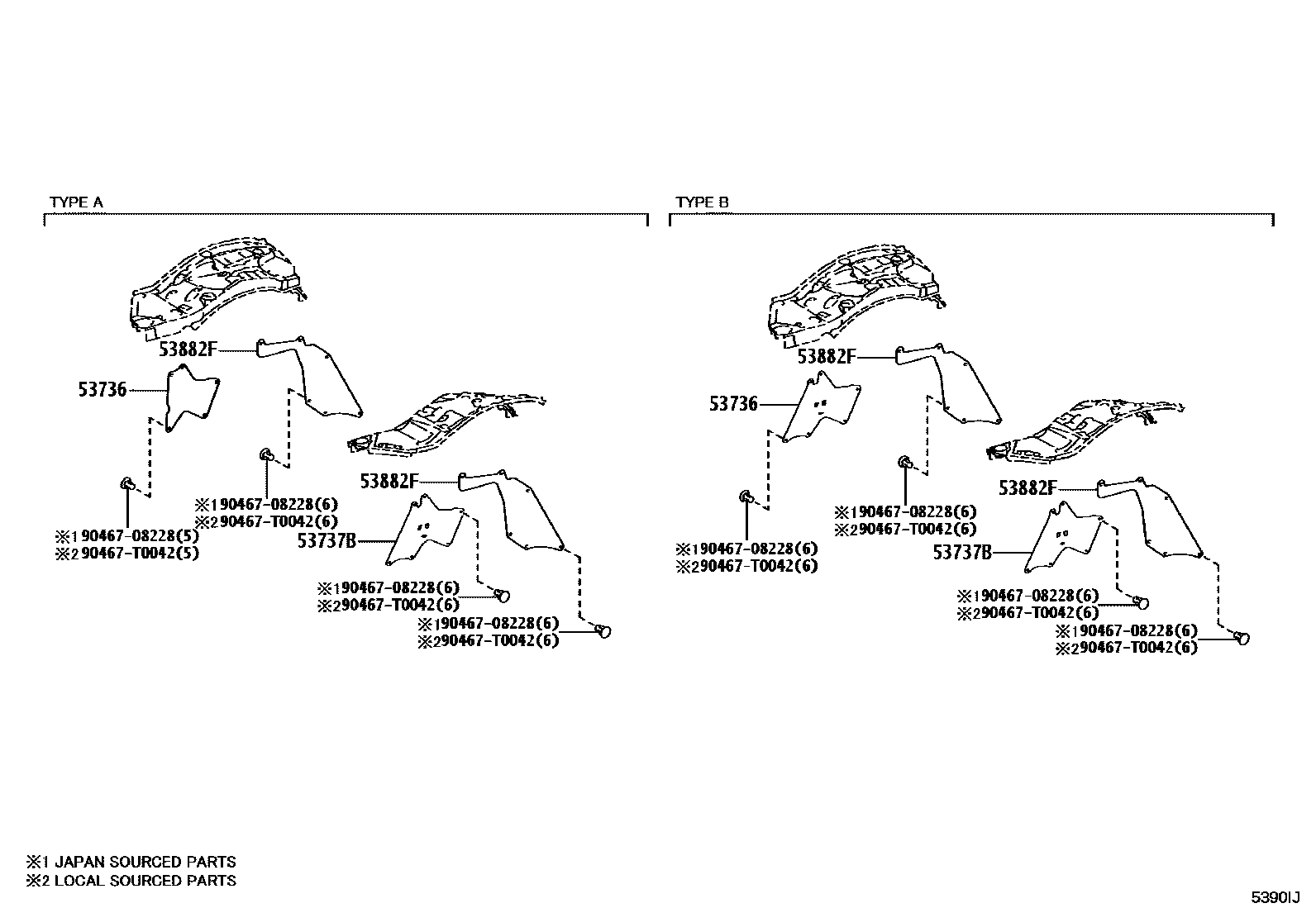

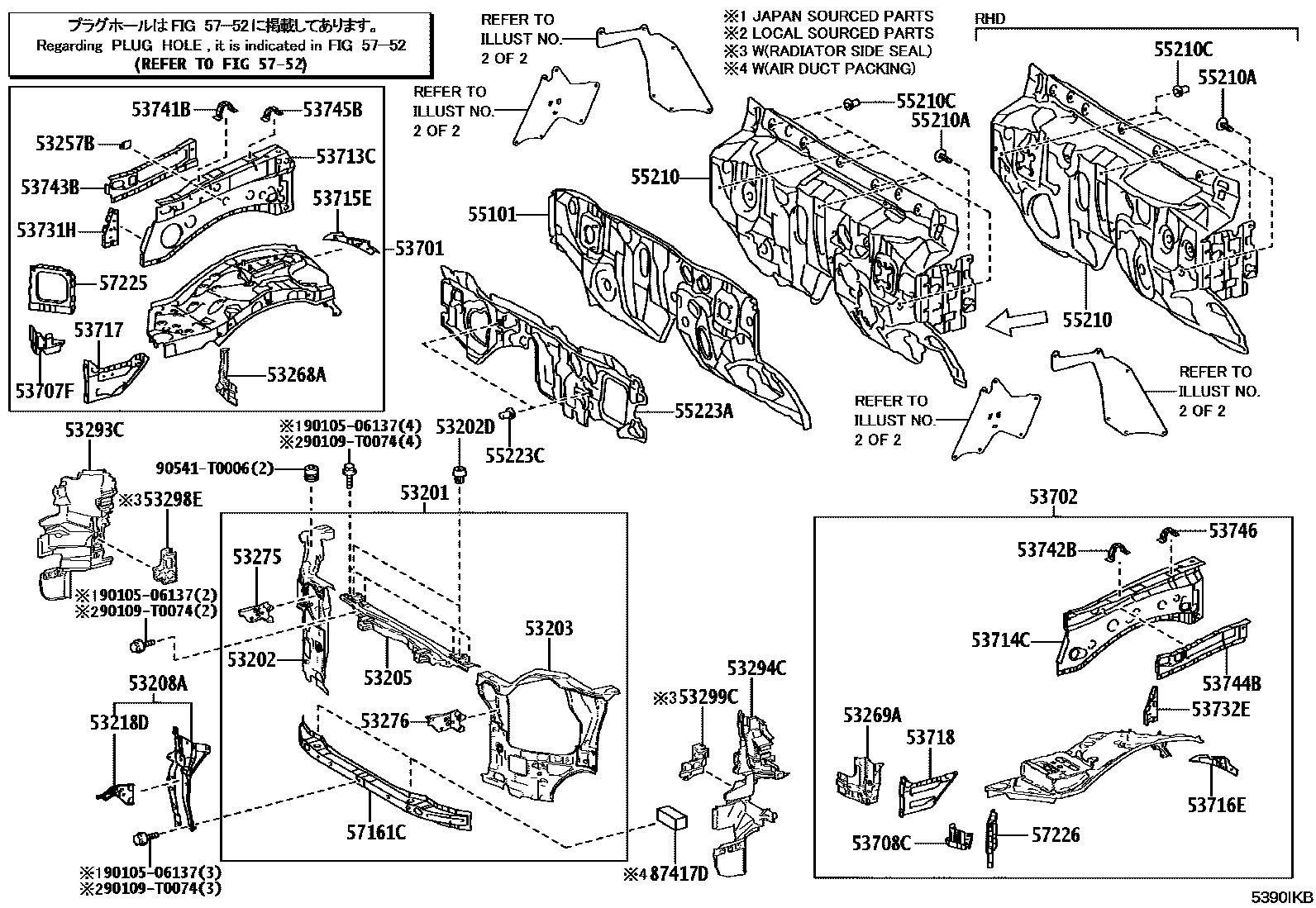

Toyota HILUX EPC diagram 5355, 前翼子板挡泥板和前围板, with 2 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53201 | Radiator bracket sub-assembly | 53201-KK160 |
| 53202 | Radiator right side bracket sub-assembly | 53202-KK050 |
| 53202D | Radiator bracket cushion | 53384-0K040 |
| 53203 | Radiator left bracket sub-assembly | 53203-KK050 |
| 53205 | Radiator upper bracket sub-assembly | 53205-KK070 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-KK050 |
| 53218D | Engine hood lock bracket extension | 53218-KK040 |
| 53257B | Radiator bracket to front fender bracket | 53257-35030 |
| 53268A | Install reinforcement on the right side of the radiator | 53268-KK030 |
| 53269A | Install reinforcement on the left side of the radiator | 53269-KK020 |
| 53275 | No. 1 right headlight lampshade mounting bracket | 53275-KK060 |
| 53276 | No. 1 left headlight cover mounting bracket | 53276-KK030 |
| 53293C | Radiator right baffle | 53293-KK170 · 53293-KK180 |
| 53294C | Radiator left baffle | 53294-KK170 · 53294-KK180 |
| 53701 | Right front fender fender sub-assembly | 53701-KK860 · 53701-KKA70 |
| 53702 | Left front fender fender sub-assembly | 53702-KK110 · 53702-KK130 |
| 53707F | Right front fender fender lower corner plate sub-assembly | 53707-KK020 |
| 53708C | Left front fender fender lower corner plate sub-assembly | 53708-KK020 |
| 53713C | Right front fender fender front extension | 53713-KK060 · 53713-KK070 |
| 53714C | Left front fender fender front extension | 53714-KK060 · 53714-KK070 |
| 53715E | Right front fender fender rear extension | 53715-0K030 |
| 53716E | Left front fender fender rear extension | 53716-0K030 |
| 53717 | Right fender fender side panel | 53717-KK010 |
| 53718 | Left fender fender side panel | 53718-KK020 |
| 53731H | Right front fender fender liner | 53731-KK010 |
| 53732E | Left front fender fender reinforcement | 53732-KK010 |
| 53736 | Right front fender fender seal | 53735-KK040 |
| 53737B | Left front fender fender seal | 53735-KK040 |
| 53741B | Right fender fender reinforcement panel | 53741-KK050 |
| 53742B | Left fender fender reinforcement plate | 53742-KK050 |
| 53743B | Right front fender fender front reinforcement | 53743-KK040 |
| 53744B | Left front fender fender front reinforcement | 53744-KK050 |
| 53745B | Right front fender fender rear reinforcement | 53745-KK040 |
| 53746 | Left front fender rear reinforcement | 53746-KK040 |
| 53882F | front fender seal | 53885-KK020 |
| 55101 | Front apron sub-assembly | 55101-KK320 · 55101-KK330 · 55101-KK350 · 55101-KK370 |
| 55210 | Front wall insulation pad assembly | 55210-0K330 · 55210-0K370 |
| 55210C | clip | 90467-T0032 |
| 55223A | Front wall outer heat insulation pad | 55223-KK100 · 55223-KK110 |
| 55223C | clip | 90467-06197 · 90467-T0032 |
| 57161C | front cross member | 57161-KK040 |
| 57225 | Right front mounting bracket | 57225-KK010 |
| 57226 | Left front mounting bracket | 57226-KK010 |
