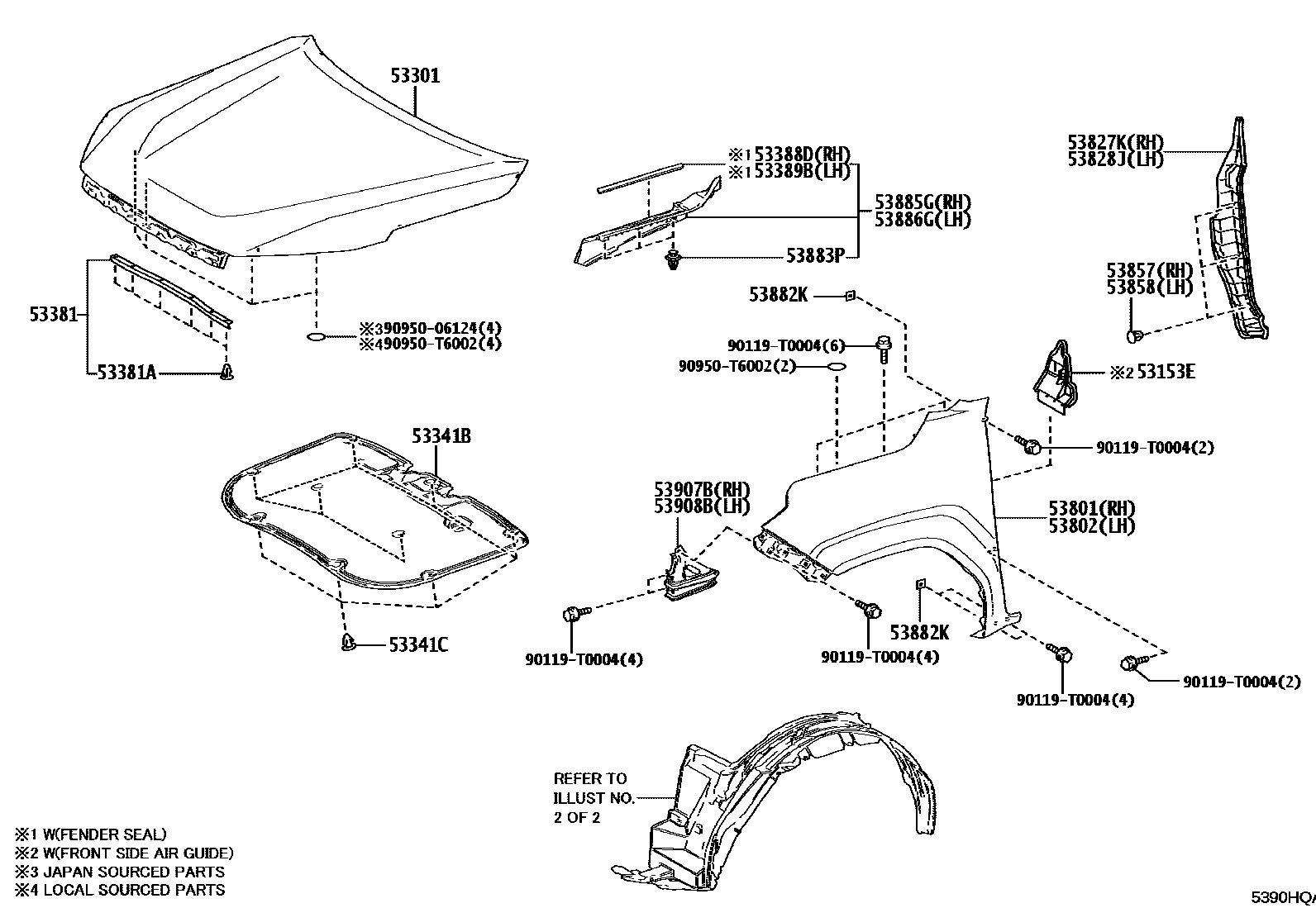

Toyota HILUX 发动机盖和前翼子板 — Figure 5353
Toyota HILUX EPC diagram 5353, 发动机盖和前翼子板, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53153E | front side deflector | 53153-0K150 |
| 53301 | Engine cover sub-assembly | 53301-KK070 |
| 53341B | engine cover gasket | 5334A-0K010 |
| 53341C | Clip (for engine cover gasket) | 90467-T0014 |
| 53381 | Engine cover to radiator bracket seal | 53381-0K140 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-T0013 |
| 53801 | Right front fender sub-assembly | 53811-KK090 |
| 53802 | Left front fender sub-assembly | 53812-KK090 |

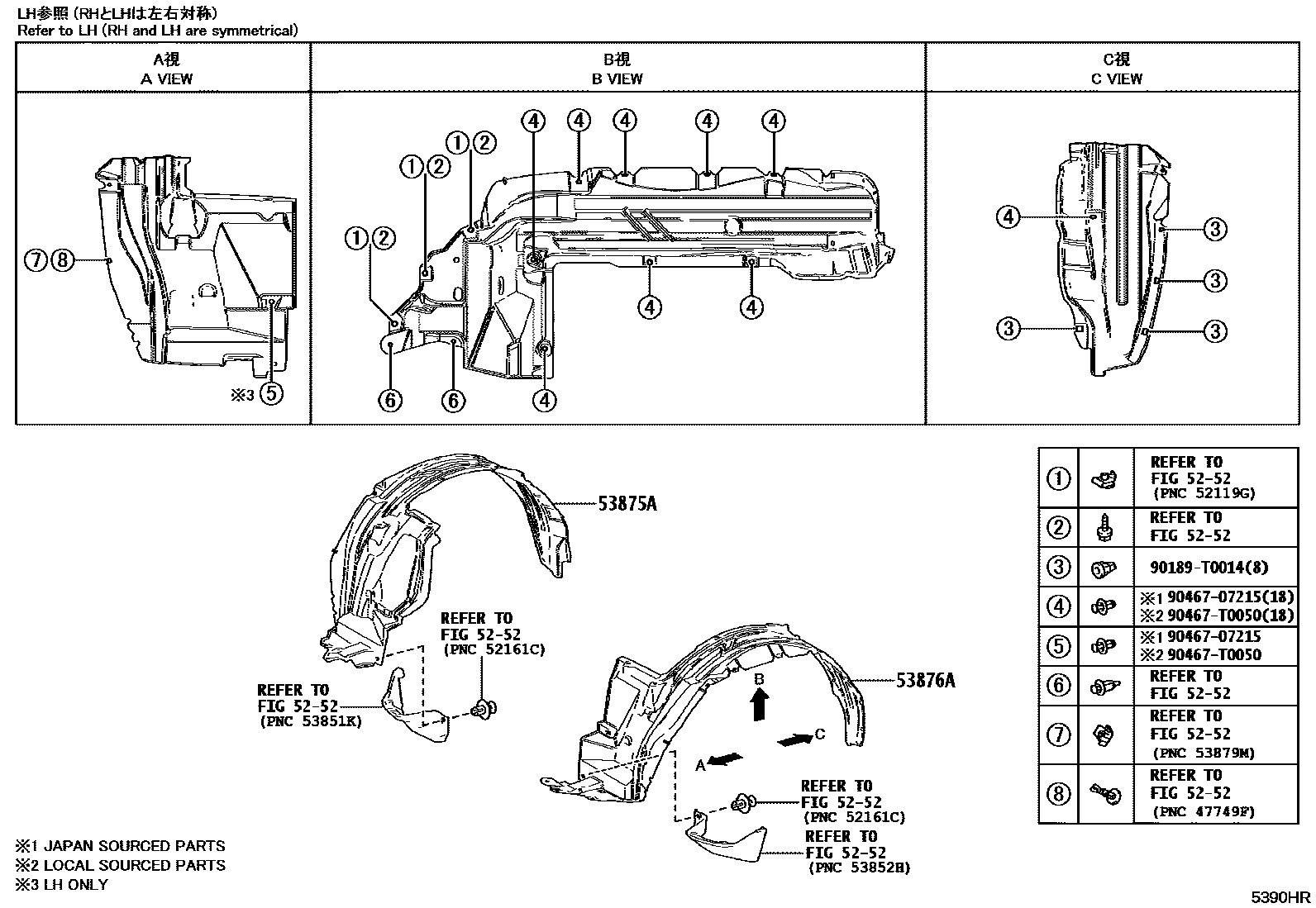

| 53875A | Right front fender lining | 53875-0K630 |
| 53876A | Left front fender lining | 53876-0K630 |
| 53882K | front fender seal | 53882-33060 |
| 53883P | Clamp No. 1 (for front fender seal) | 90467-T0021 |
| 53885G | Right fender fender seal sub-assembly | 53807-0K290 |
| 53886G | Left fender fender seal | 53808-0K290 |
| 53907B | Right front end plate extension sub-assembly | 53941-KK100 |
| 53908B | Left front end plate extension sub-assembly | 53942-KK100 |
