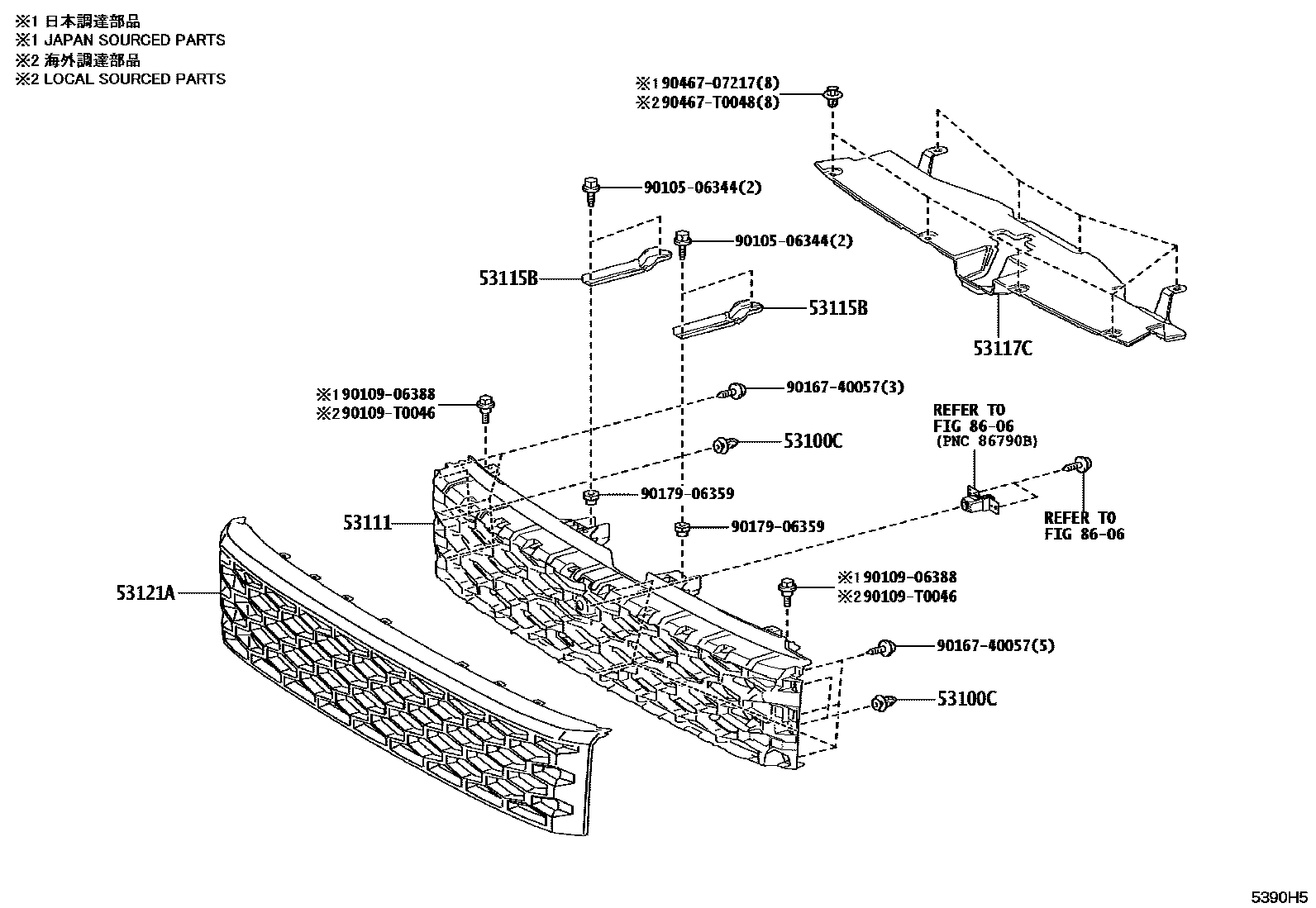

Toyota HILUX radiator grille — Figure 5351
Toyota HILUX EPC diagram 5351, radiator grille, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53100C | Radiator grille clip | 90467-09232 |
| 53111 | radiator grille | 53111-0KC20 |
| 53115B | Radiator grille bracket | 53115-0K080 |
| 53117C | Radiator grille fixing No. 1 | 53117-0K160 |
| 53121A | Radiator grille protection strip | 53121-0K907 |
