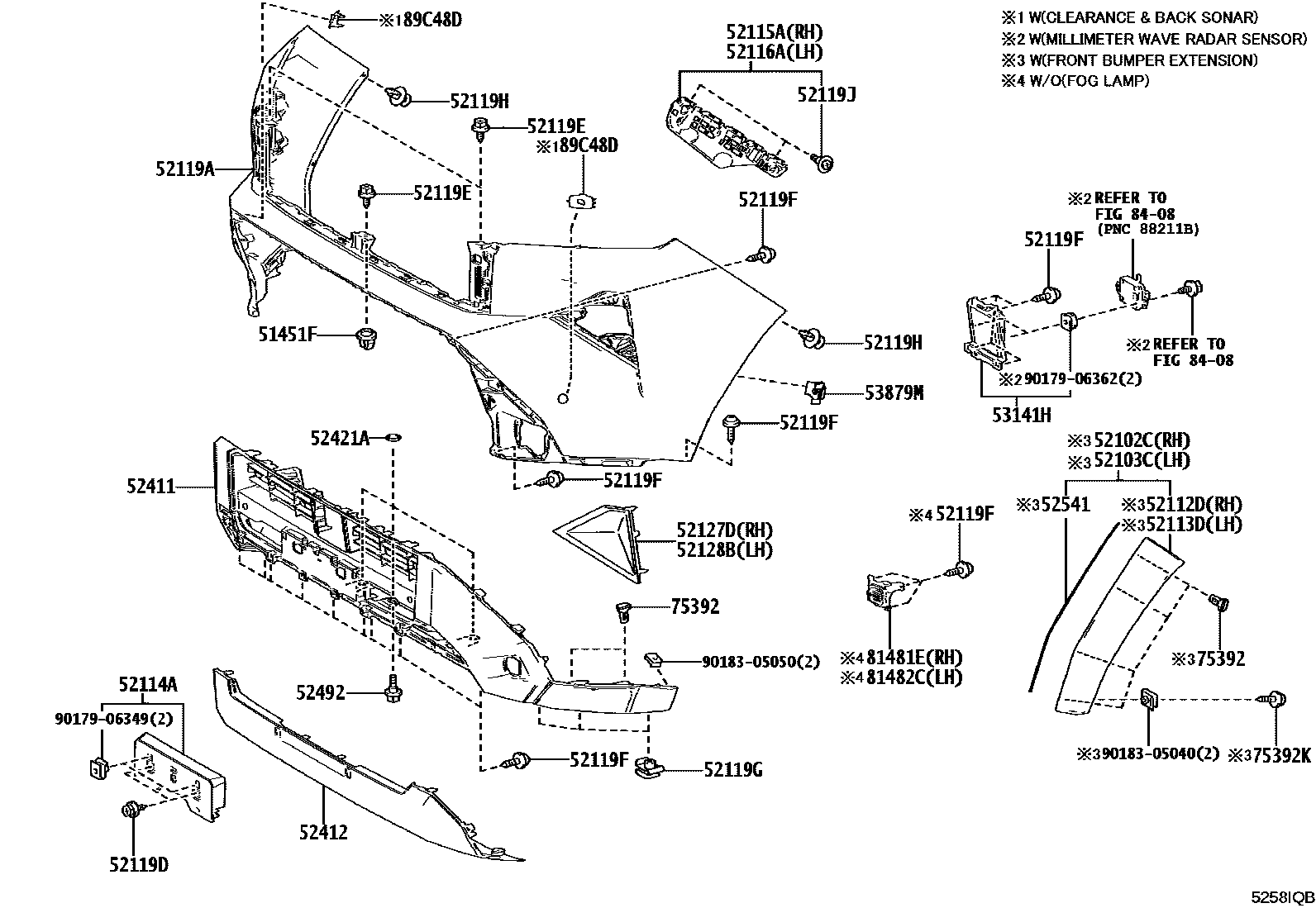

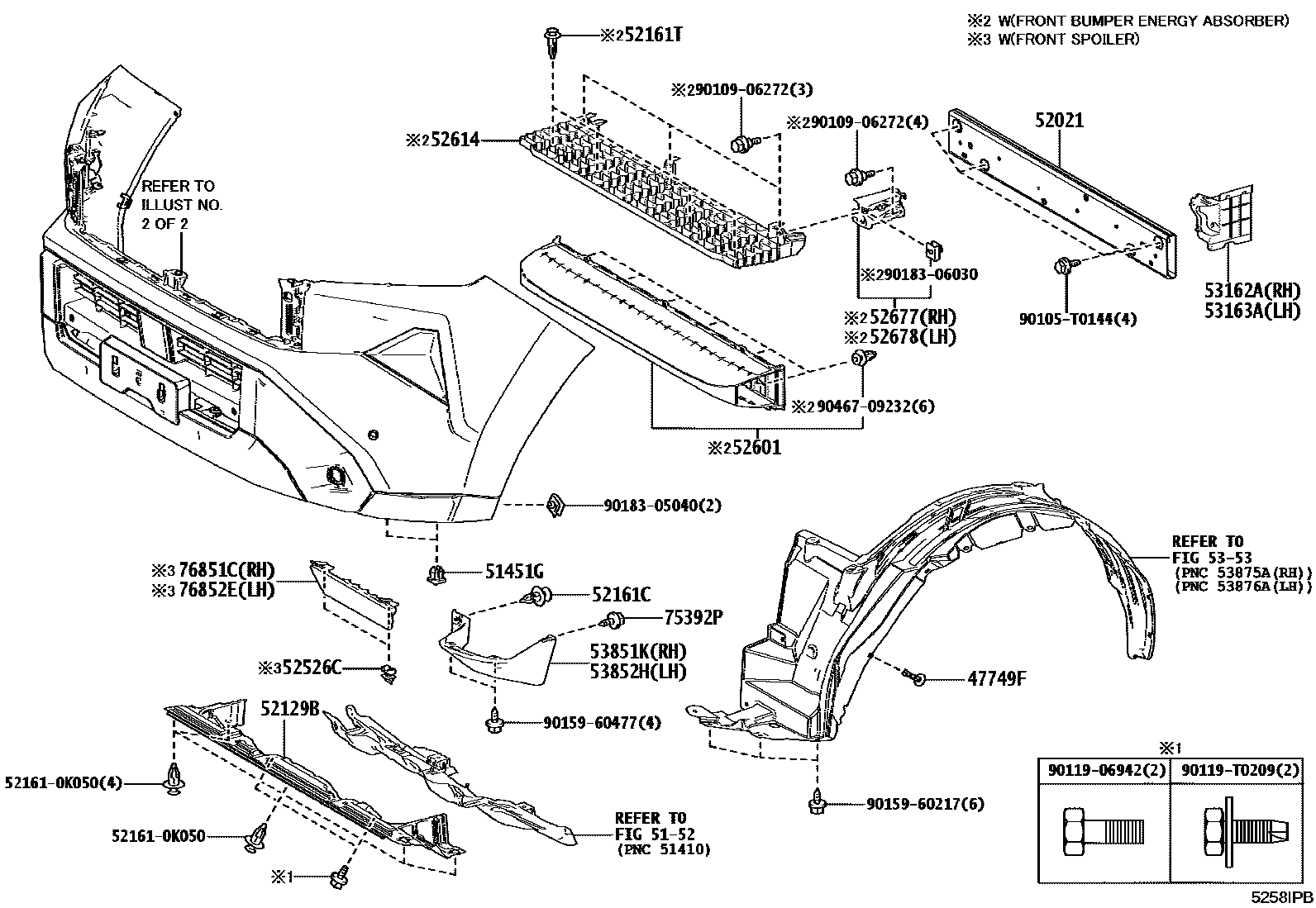

Toyota HILUX 前保险杠及附件 — Figure 5252
Toyota HILUX EPC diagram 5252, 前保险杠及附件, with 2 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | pin fixing clip | 47749-50090 |
| 51451F | Gasket No. 1 | 90189-T0019 |
| 51451G | Gasket No. 2 | 90189-06237 · 90189-T0024 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-KK010 |
| 52114A | Front bumper extension mounting bracket | 52114-0K020 |
| 52115A | Front bumper right side bracket | 52115-0K330 |
| 52116A | Front bumper left bracket | 52116-0K330 |
| 52119A | front bumper cover | 52119-0N920 · 52119-0N921 |
| 52119D | Screw No. 1 | 90159-60431 · 90159-T0014 |
| 52119E | No. 2 screw | 90159-T0033 |
| 52119F | No. 3 screw | 90167-50063 |
| 52119G | No. 1 clip | 90467-05114 |
| 52119H | No. 2 clip | 90467-05170 |
| 52119J | No. 3 clip | 90467-09237 |
| 52127D | Front bumper right hole cover | 52127-0K460 |
| 52128B | Front bumper left hole cover | 52128-0K460 |
| 52129B | Front bumper lower cover | 52129-KK010 |
| 52161C | front bumper insert | 52161-0K040 |
| 52161T | front bumper insert | 52161-0K040 |
| 52411 | Front bumper anti-collision bar | 52411-0K060 |
| 52412 | Front bumper No. 2 anti-collision bar | 52412-0K030 |
| 52421A | front bumper lining | 52421-60191 |
| 52492 | Bumper lining bolt No. 2 | 52491-60010 |
| 52526C | Front bumper lower fixing bracket | 52526-60030 |
| 52601 | Front bumper energy absorber sub-assembly | 52601-0K200 |
| 52614 | No. 2 energy absorber for front bumper | 52614-0K200 |
| 52677 | Front bumper No. 2 right side bracket | 52675-0K050 |
| 52678 | Front bumper No. 2 left side bracket | 52676-0K050 |
| 53141H | Radiator grille trim | 53141-0K020 · 53141-0K030 |
| 53162A | Front bumper right side baffle | 53162-KK010 |
| 53163A | Front bumper left side baffle | 53163-KK010 |
| 53851K | Right front fender outer panel pad | 53851-0K211 |
| 53852H | Left front fender exterior panel pad | 53852-0K211 |
| 53879M | Front fender lining fixing parts | 53879-50020 |
| 75392 | External protective strip fixings | 75392-0K010 |
| 75392P | No. 3 outer protective strip fixings | 75392-42030 |
| 76851C | front spoiler | 76851-0K030 |
| 76852E | left front spoiler | 76852-0K030 |
| 81481E | Right fog light cover | 81481-0K090 |
| 81482C | Left fog light cover | 81482-0K090 |
