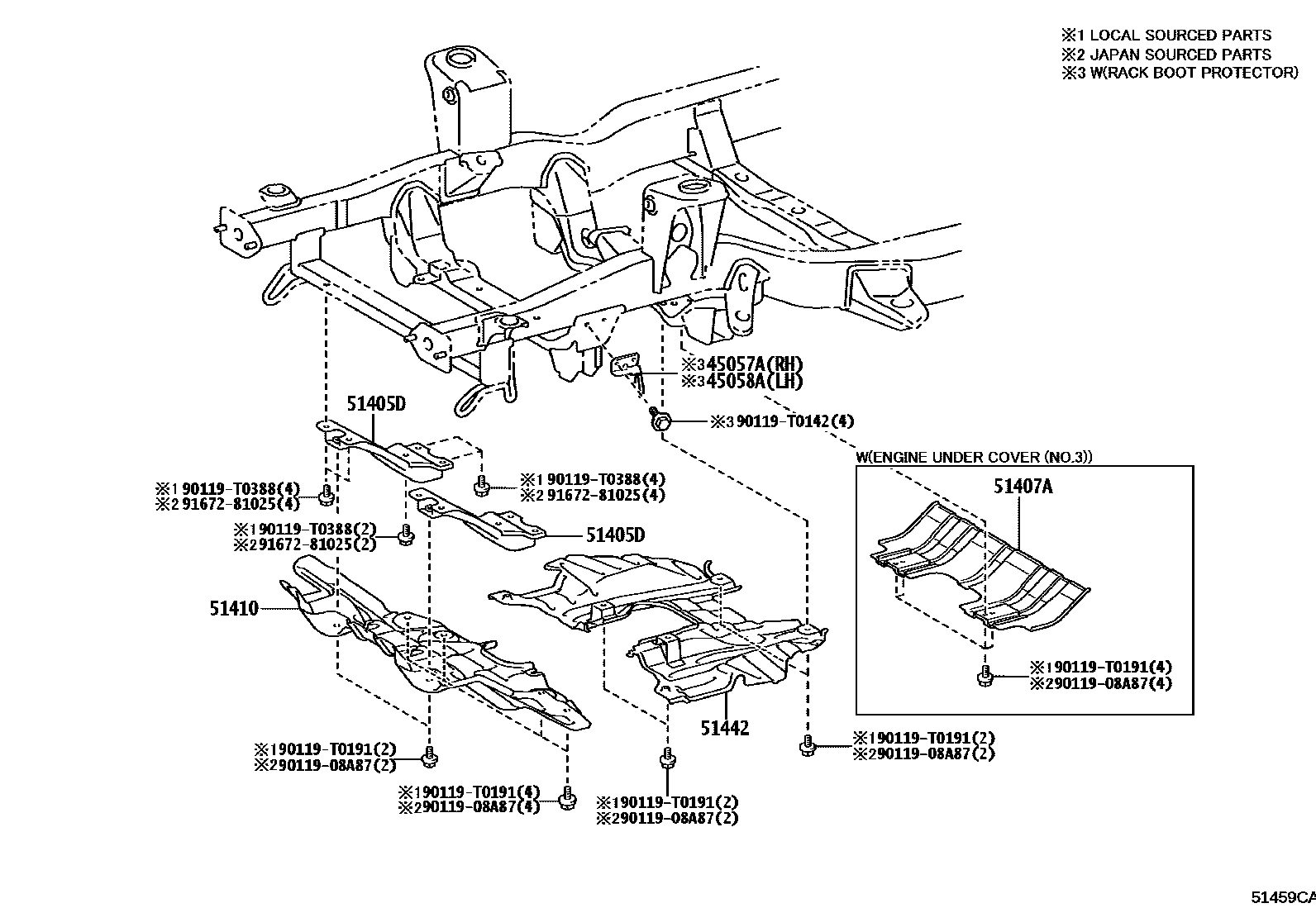

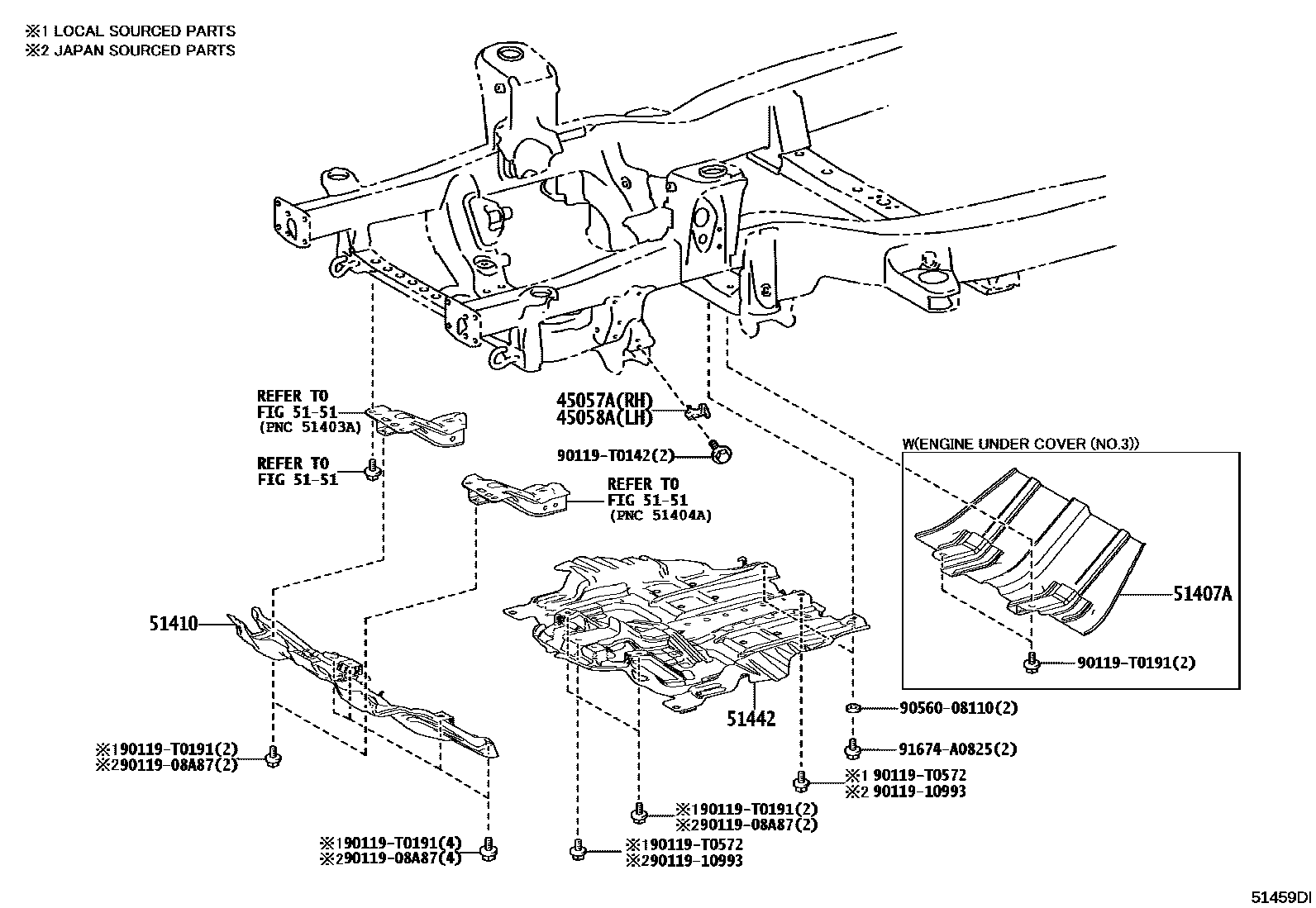

Toyota HILUX 悬架横梁和发动机底罩 — Figure 5152
Toyota HILUX EPC diagram 5152, 悬架横梁和发动机底罩, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45057A | No. 1 rack dust boot right side protective cover sub-assembly | 45543-0K040 · 45543-KK010 |
| 45058A | No. 1 rack dust boot left protective cover sub-assembly | 45544-0K040 · 45544-KK010 |
| 51405D | Engine bottom bracket sub-assembly | 51405-KK030 |
| 51407A | No. 3 engine bottom cover sub-assembly | 51407-KK040 |
| 51410 | Engine No. 1 bottom cover assembly | 51410-KK010 · 51410-KK020 · 51410-KK040 |
| 51442 | No. 2 engine bottom cover | 51420-KK010 · 51420-KK020 · 51420-KK030 |
