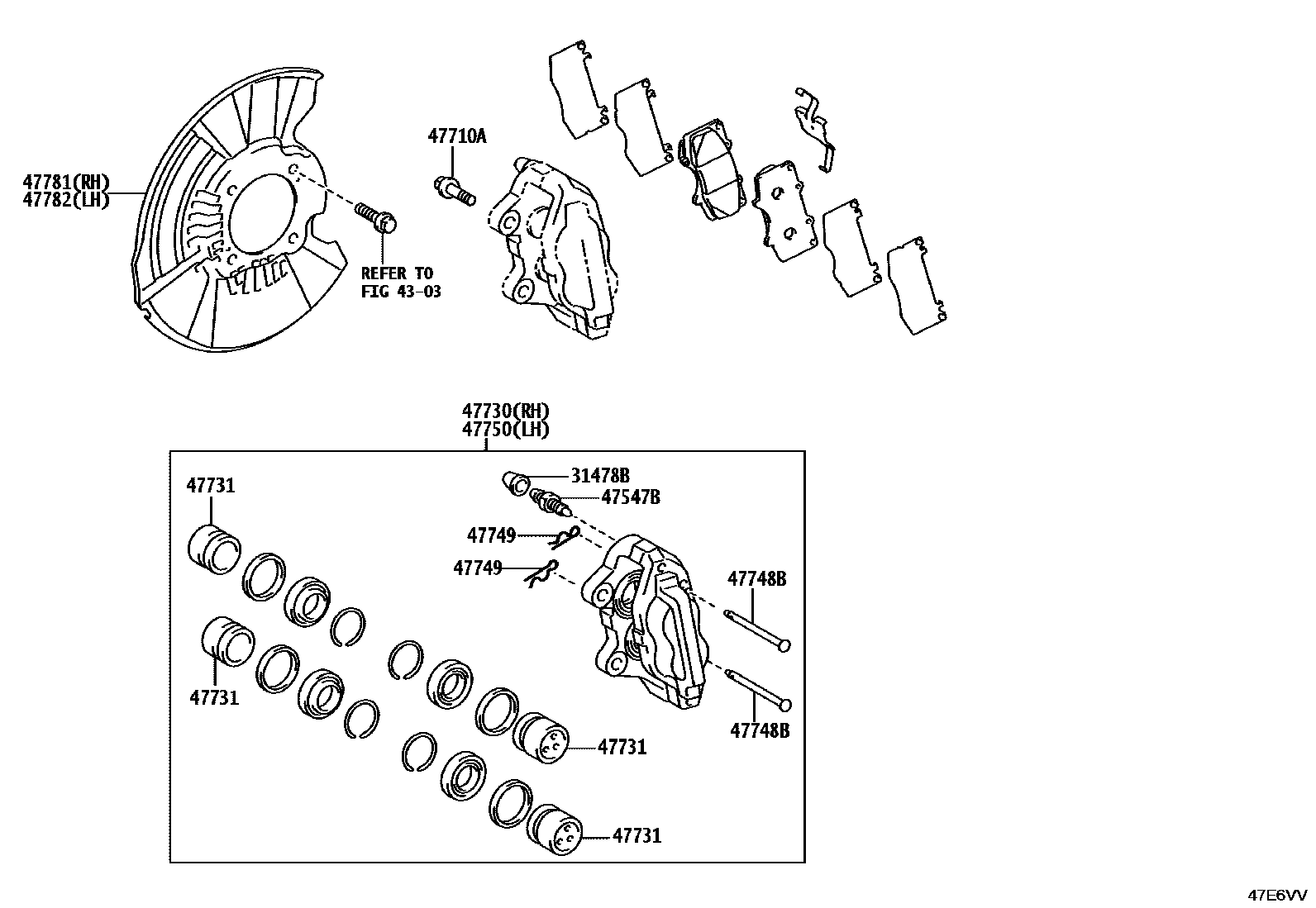

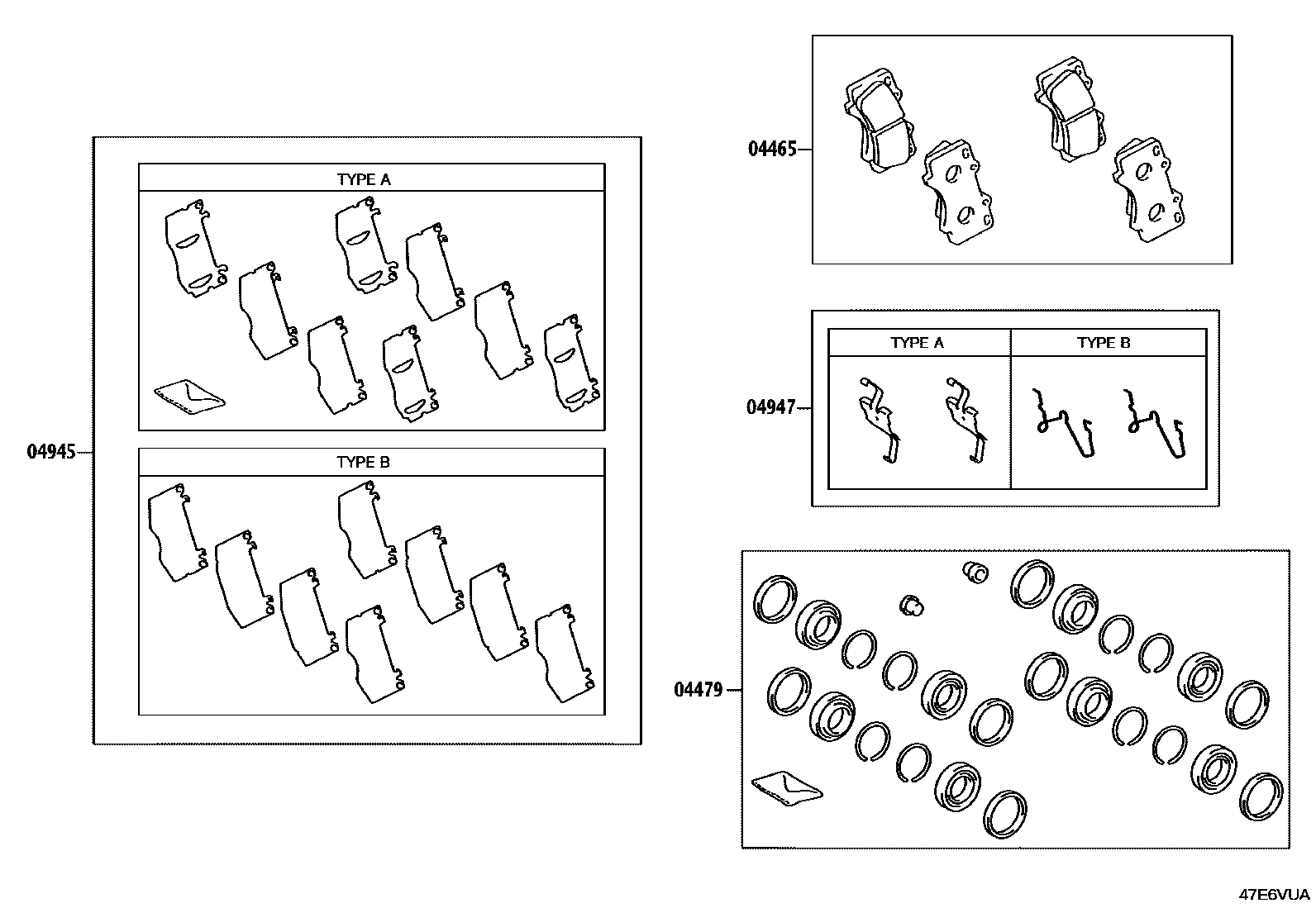

Toyota HILUX 前盘式制动器卡钳和防尘罩 — Figure 4705
Toyota HILUX EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-0K391 · 04465-0K580 |
| 04479 | Front disc brake cylinder assembly | 04478-0K250 |
| 04945 | Front silencer gasket assembly | 04945-0K341 · 04945-0K370 |
| 04947 | Front disc brake mounting kit | 04947-0K100 · 04947-0K110 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-0D040 |
| 47547B | Bleed plug (for front disc brake) | 47547-27030 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90105-14212 |
| 47730 | Right front disc brake cylinder assembly | 47730-0K300 |
| 47731 | Front disc brake piston | 47731-0K300 |
| 47748B | Pin with hole (for front disc brake vibration isolator) | 90016-AE602 |
| 47749 | pin fixing clip | 47743-0K300 |
| 47750 | Left disc brake cylinder assembly | 47750-0K300 |
| 47781 | Right front disc brake dust cover | 47781-0K193 |
| 47782 | Left front disc brake dust cover | 47782-0K193 |
