Toyota HILUX 叶片泵和储油罐(动力转向) — Figure 4502

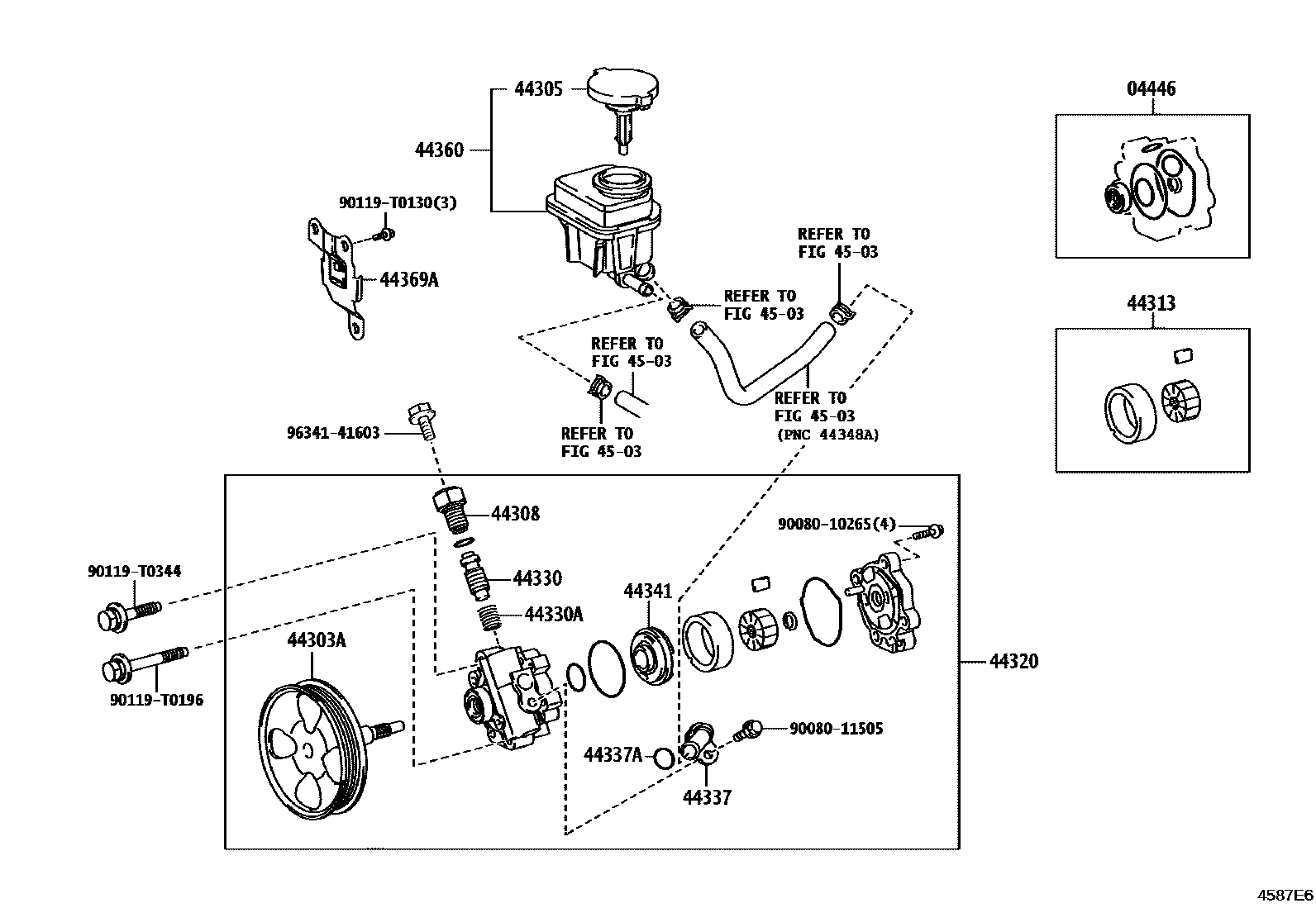

Toyota HILUX EPC diagram 4502, 叶片泵和储油罐(动力转向), with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04446 | Power steering pump gasket assembly | 04446-06110 |
| 44303A | Shaft sub-assembly with pulley | 44303-06040 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-0K030 |
| 44308 | Pressure hole connector sub-assembly | 44308-0K050 |
| 44313 | vane pump rotor | 44313-09010 |
| 44320 | Vane pump assembly | 44310-0K130 |
| 44330 | Flow control valve assembly | 44330-0K250 · 44330-0K260 · 44330-0K270 · 44330-0K280 · 44330-0K290 · 44330-0K300 |
| 44330A | Compression spring (for flow control valve) | 90501-T0001 |
| 44337 | Power steering suction port connector | 44337-0K040 |
| 44337A | O-ring (for power steering oil suction port) | 90080-30093 |
| 44341 | Vane pump front cover | 44341-06010 |
| 44360 | Vane pump oil storage tank assembly | 44360-0K050 |
| 44369A | No. 1 oil storage tank bracket | 44390-0K010 |
