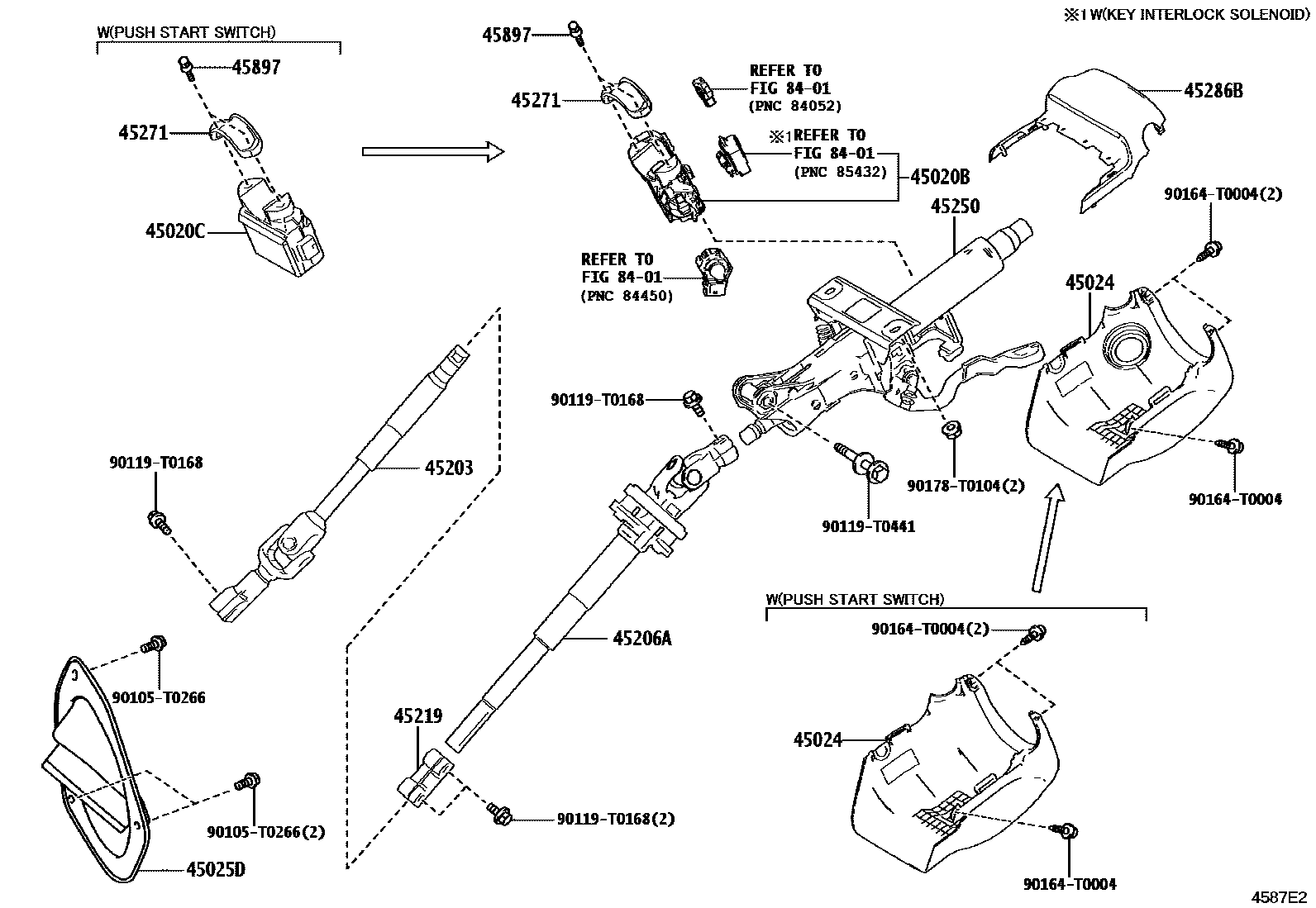

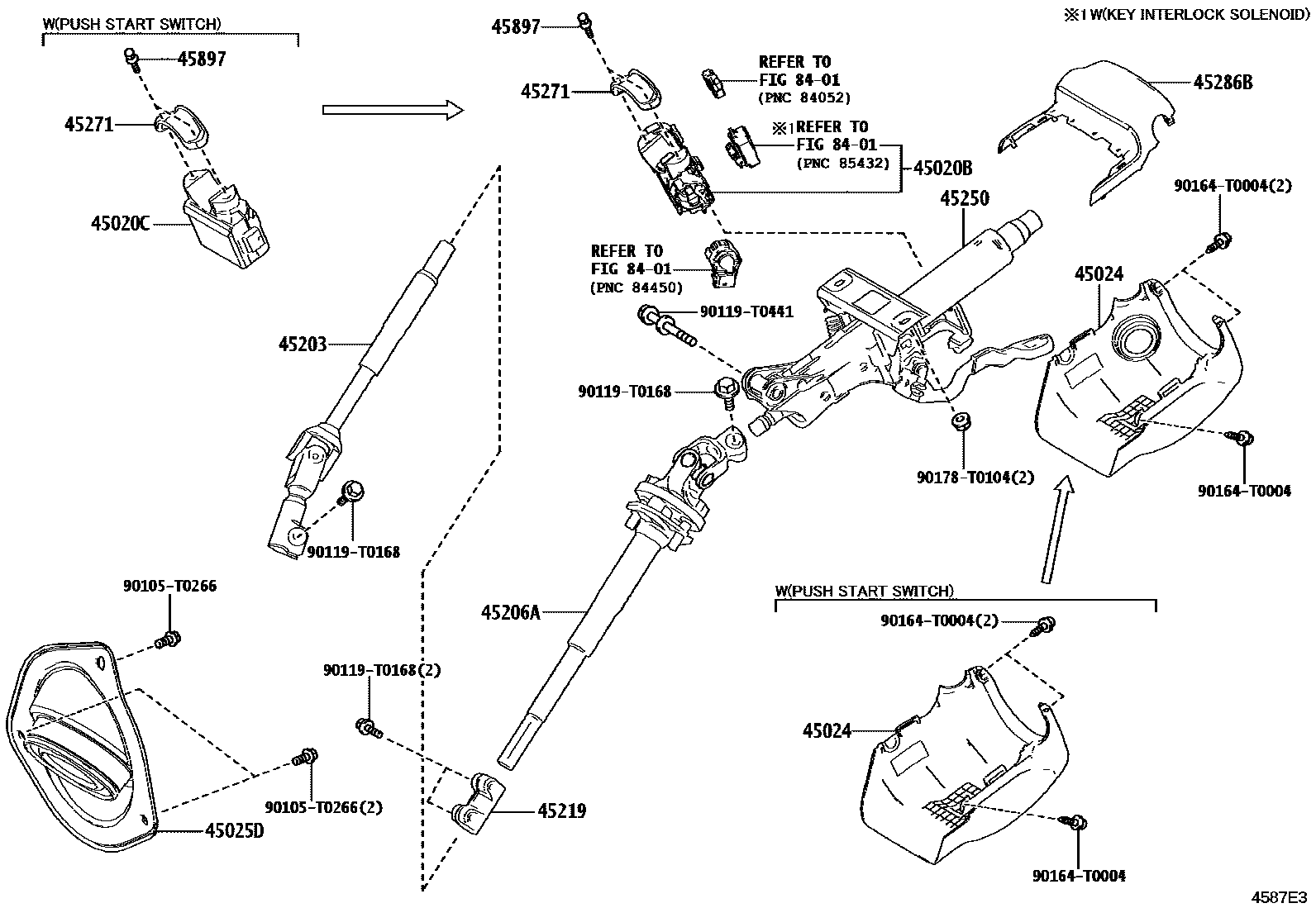

Toyota HILUX Steering Column & Shaft — Figure 4501
Toyota HILUX EPC diagram 4501, Steering Column & Shaft, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020B | Steering lock actuator or upper bracket assembly | 45280-02440 · 45280-02570 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-KK090 · 45025-KK130 · 45025-KK140 |
| 45203 | No. 2 steering intermediate shaft sub-assembly | 45203-0K210 · 45203-0K230 · 45203-0K240 |
| 45206A | Steering slip fork sub-assembly with coupling | 45206-0K120 · 45206-0K140 |
| 45219 | steering fork | 45219-0K090 |
| 45250 | Steering column assembly | 45250-0K160 |
| 45271 | Clamp on steering column | 45271-52030 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
