Toyota HILUX 变速器油冷却器和配管(ATM) — Figure 3514

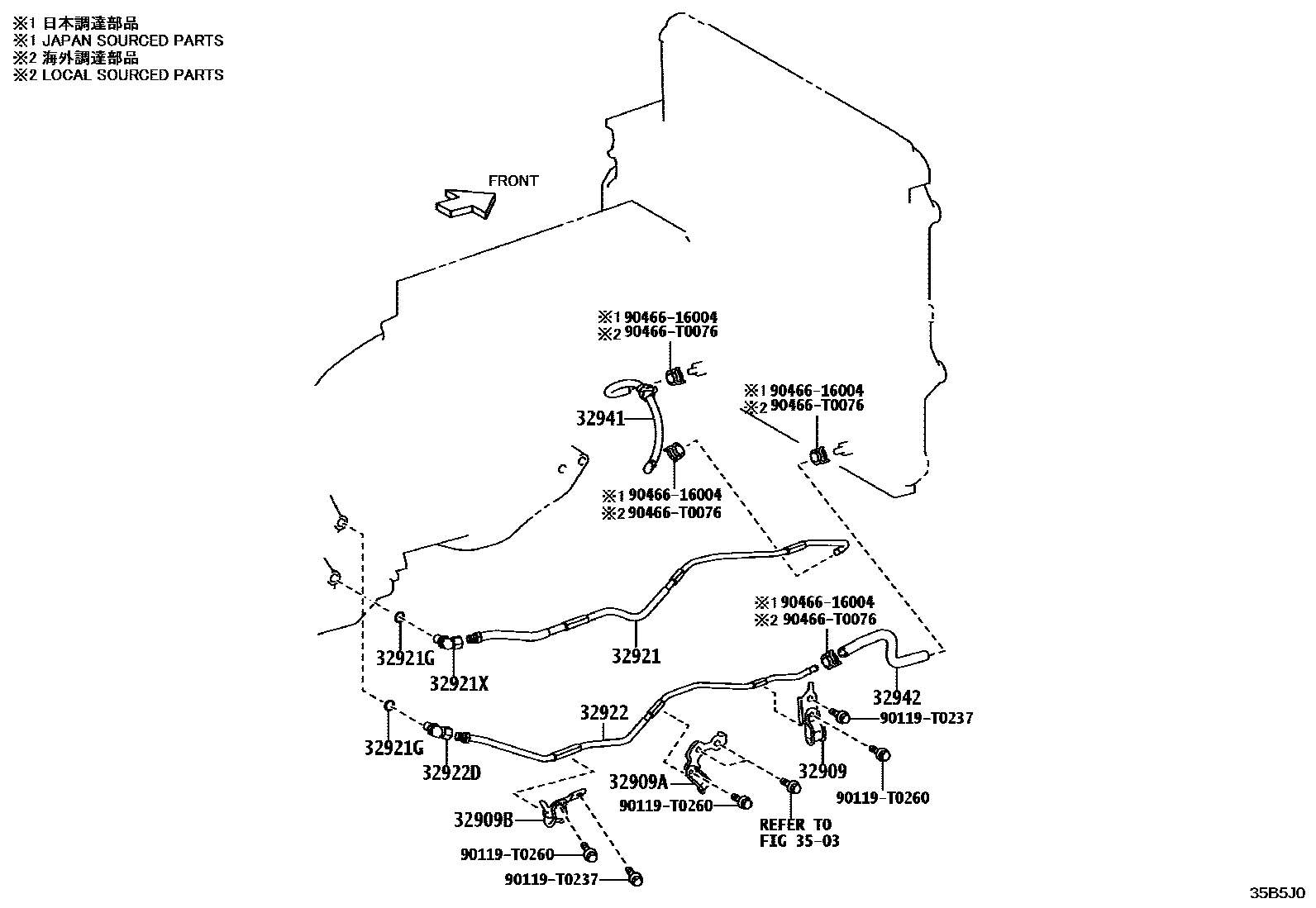

Toyota HILUX EPC diagram 3514, 变速器油冷却器和配管(ATM), with 1 images and 10 PNC and OE references.

Toyota HILUX 变速器油冷却器和配管(ATM) EPC diagram — 35B5J0
变速器油冷却器和配管(ATM) — 35B5J0 (202508 – 999999)

PNC and OE references

PNCPart nameOE numbers
32909Transmission oil cooler pipe No. 1 clamp sub-assembly32909-KK030
32909ATransmission oil cooler pipe No. 2 clamp sub-assembly32909-KK020
32909BTransmission oil cooler pipe No. 3 clamp sub-assembly32909-KK010
32921No. 1 transmission oil cooler oil inlet pipe32921-0K140
32921GO-ring (for transmission oil cooler pipe joint)90301-11030 · 90301-T0069
32921XTransmission oil cooler oil inlet joint or elbow90407-16009
32922No. 1 transmission oil cooler oil outlet pipe32922-0K140
32922DTransmission oil cooler oil outlet connector or elbow90407-16009
32941No. 1 transmission oil cooler oil inlet hose32941-0K010
32942No. 1 transmission oil cooler oil outlet hose32942-0K010
