Toyota HILUX 阀体和滤油网(ATM) — Figure 3512

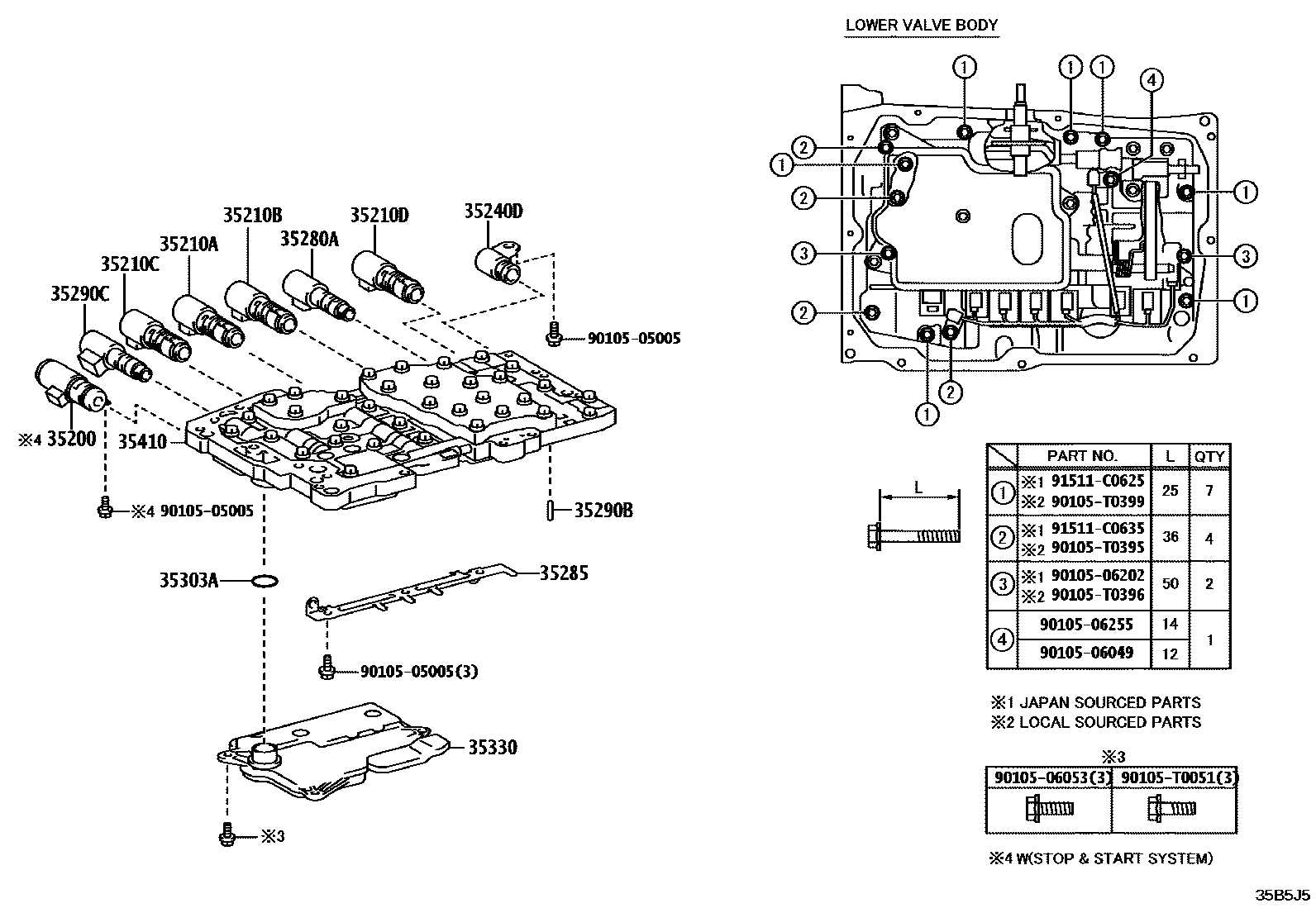

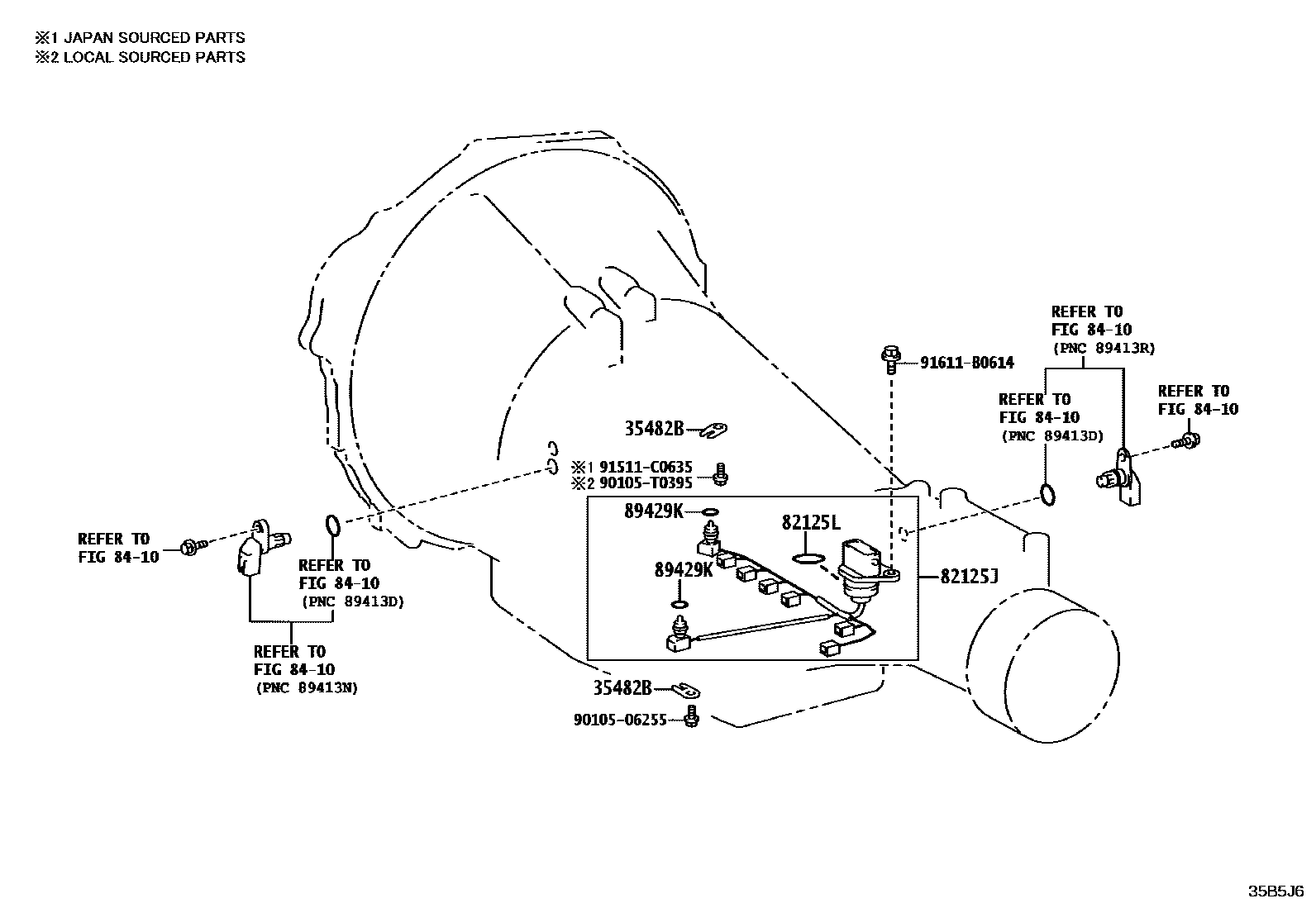

Toyota HILUX EPC diagram 3512, 阀体和滤油网(ATM), with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35200 | Oil pump assembly with solenoid valve | 35200-71010 |
| 35210A | Solenoid valve (SL1) | 35210-71010 |
| 35210B | Solenoid valve (SL3) | 35210-71010 |
| 35210C | Solenoid valve (SL2) | 35210-71010 |
| 35210D | Solenoid valve (SL4) | 35210-71010 |
| 35240D | Solenoid valve (SL) | 35240-71010 |
| 35280A | Solenoid valve (SLU) | 35280-0K010 · 35280-71020 |
| 35285 | Solenoid valve lock plate | 35285-0K010 · 35285-71010 |
| 35290B | Direct sales (for pipeline pressure control solenoid valve) | 90250-03045 |
| 35290C | Solenoid valve (SLT) | 35290-0K010 · 35290-71030 |
| 35303A | O-ring (for oil filter) | 90301-27010 · 90301-T0071 |
| 35330 | Valve body oil filter assembly | 35330-0K010 · 35330-71010 |
| 35410 | Transmission valve body assembly | 35410-0K041 · 35410-71113 |
| 35482B | temperature sensor clip | 35482-0K010 · 35482-73010 |
| 82125J | Transmission wiring harness | 82125-0K020 · 82125-71031 |
| 82125L | O-ring (for transmission wiring harness) | 90301-36014 |
| 89429K | O-ring (for oil temperature sensor) | 90301-06004 |
